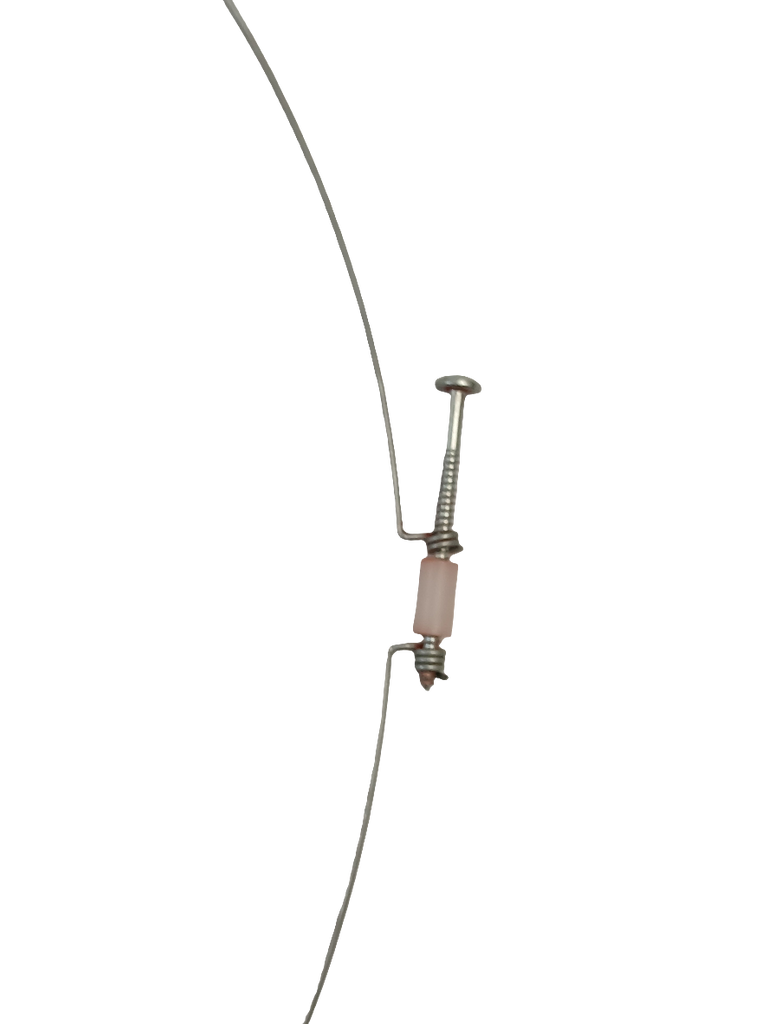

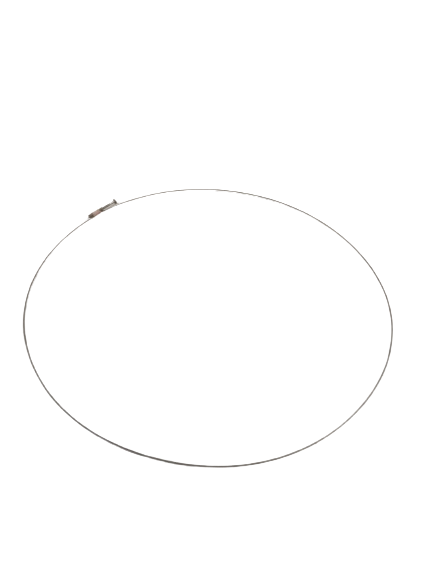

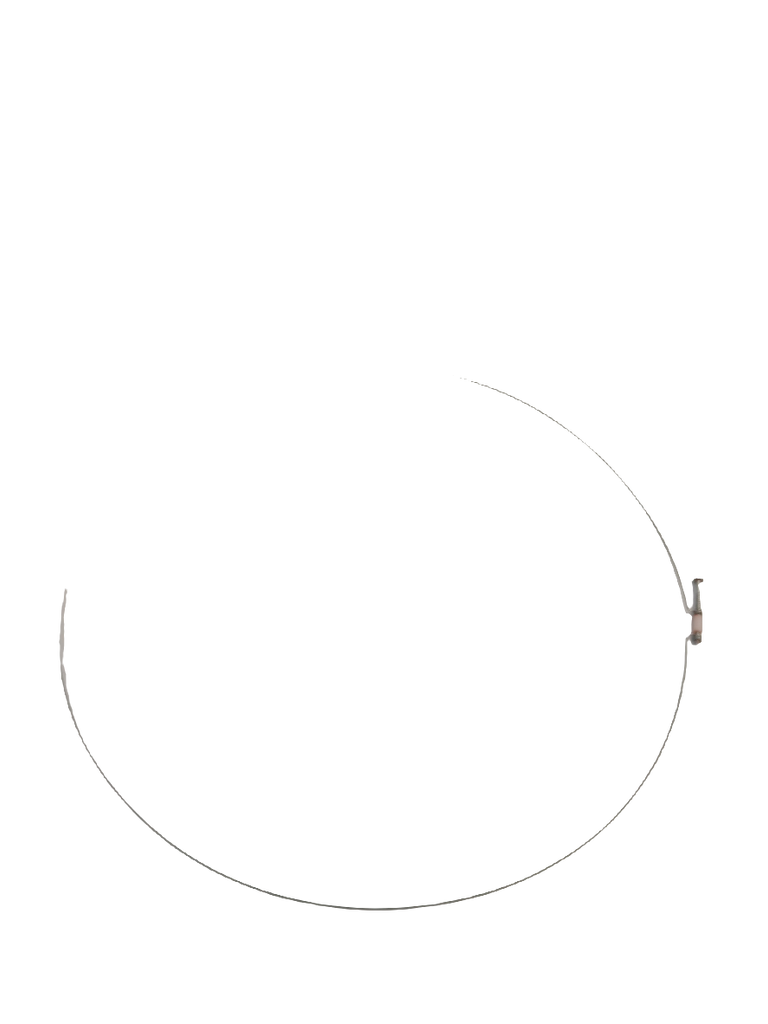

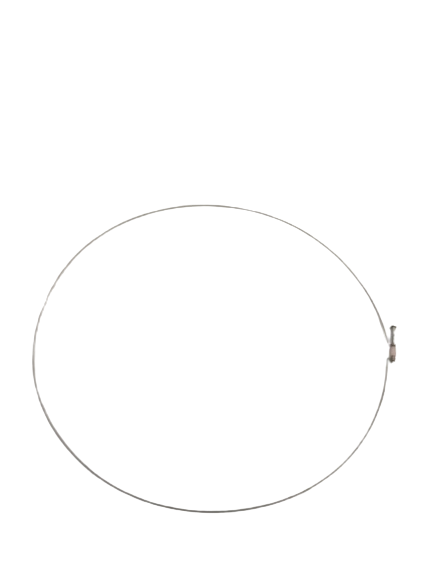

Whirlpool Washer Door Boot Spring Clamp W11218344, Replaces W10818944, W10237502, WPW10237502

Genuine Whirlpool inner boot-seal retaining clamp/ring for a front-load washer. It secures the inner door boot (bellow) seal in place to help prevent leaks.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Door boot appears loose, detached, or not fully seated.
• Visible gap between the inner boot seal and its mounting surface.
• Door may fail to close or lock properly if the boot or retaining ring is displaced.
• Leakage may occur during washing or spinning when the seal is under water pressure.

Check Before Replacing

• Unplug the washer before inspection.
• Visually inspect the inner perimeter of the door boot for a missing, displaced, damaged, or corroded retaining ring.
• Check that the boot seal is seated continuously in its groove and that no section is pulled away from the mounting surface.
• Inspect for water tracks or fresh moisture below the door opening, while recognizing that other components can cause similar leaks.
• Confirm the suspected clamp is the inner boot clamp rather than the separate outer/front boot clamp.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM component.
• Manufacturer part number W11218344.
• Inner boot clamp / boot seal retaining ring.
• Designed for front-load washer door boot seals.
• Replaces W10818944, W10237502, and WPW10237502.

Installation Notes

• Disconnect electrical power before installation.
• Wear protective gloves because the retaining ring and spring area may have sharp edges or pinch points.
• Install the ring only after confirming the boot seal is correctly positioned in its groove.
• Ensure the clamp is seated continuously around the boot seal before operating the washer.
• Follow the service information for the exact washer model; the part page does not provide a universal installation procedure for every compatible design.

Verified Compatible Models

7MMHW5500FC0, 7MMHW5500FC1, 7MMHW5500FW0, 7MMHW5500FW1, 7MMHW6000BW0, 7MMHW7000BG0, 7MMHW7000YG0, 7MMHW7000YW0, 7MMHW7100DC0, 7MMHW7100DW0, 7MWFW72HEDW0, 7MWFW75HEFW0, 7MWFW75HEFW1, 7MWFW80HEBW0, 7MWFW81HEDW0, 7MWFW86HEBC0, 7MWFW87HEDC0, 7MWFW90HEFC0, 7MWFW90HEFC1, 7MWFW90HEFW0, 7MWFW90HEFW1, 7MWFW94HEBU0, 7MWFW95HEDU0, 7MWFW95HEYL0, 7MWFW97HDBD0, BNQ11C6ANA0, BNQ11CVANA0, BNQ11DCANA0, CFWH4084GW0, MHW3000BG0, MHW3000BG1, MHW3000BG2, MHW3000BW0, MHW3000BW1, MHW3000BW2, MHW3100DW0, MHW3500FW0, MHW9000YR0, NFW5700BW0, NFW5700BW1, NFW5800DW0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
