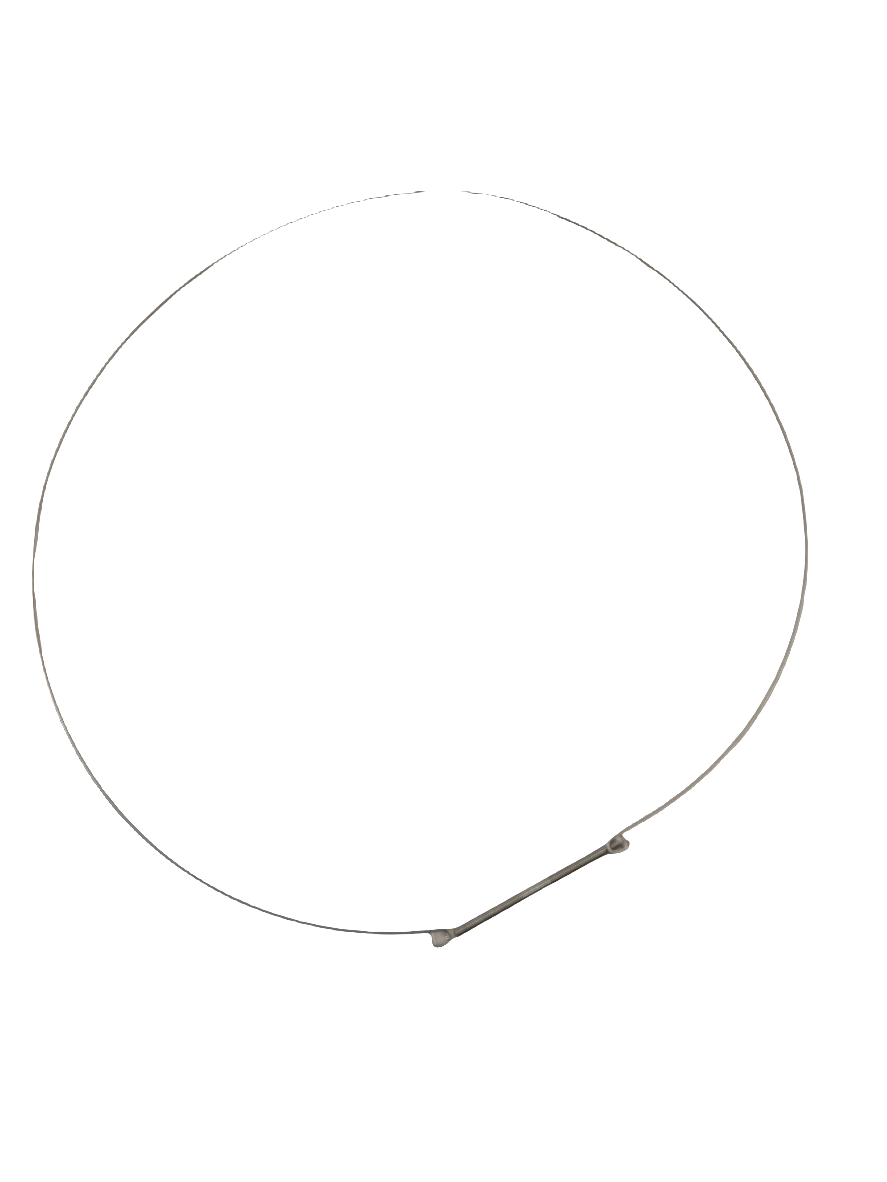

Whirlpool Washer Outer Door Boot Seal Clamp (Boot Seal Retaining Ring) W11266654, Replaces W10237503, W10818945, WPW10237503

Genuine Whirlpool OEM outer retaining ring/clamp for the washer door boot seal; it secures the outer edge of the door boot/gasket at the door opening.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• The door boot edge is loose, detached, or not held in its front-panel groove.
• Visible water leakage at the front of the washer during operation.
• The door may not close or lock correctly when the boot is displaced.
• Unusual rubbing or noise may occur if a loose boot contacts moving components.

Check Before Replacing

• Disconnect electrical power before inspection.
• Visually check whether the metal retaining ring is present and seated continuously around the outer boot edge.
• Inspect the ring for breakage, deformation, corrosion, or a displaced spring section.
• Confirm that the rubber boot edge is fully seated in the front-panel groove; a displaced or damaged boot can cause the same symptoms.
• After reassembly, inspect the seal area for gaps or pinched rubber before operating the washer.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM outer door-boot retaining ring/clamp.
• Metal ring designed for front-load washer door boot retention.
• Sold as the clamp/retaining ring only; the boot seal is not included.
• Approximately 16.3 to 16.5 inches in diameter according to retailer specifications.

Installation Notes

• Disconnect power and wear suitable hand protection before handling the retaining ring.
• Remove and install the ring carefully so the rubber boot is not cut, pinched, or pulled out of its groove.
• Seat the boot edge evenly around the opening before securing the retaining ring.
• Because the ring is tensioned/compressed, use controlled pressure and avoid forcing it if the boot is not correctly positioned.
• Confirm that the ring is fully seated around the circumference before restoring power.

Verified Compatible Models

7MMHW5500FC0, 7MMHW5500FC1, 7MMHW5500FW0, 7MMHW6621HC1, 7MMHW7000BG0, 7MMHW7000YG0, 7MWFW75HEFW0, 7MWFW80HEBW0, 7MWFW86HEBC0, 7MWFW95HEDU0, 7MWFW6622HW1, 8TWFW6620HW1, BNQ11DCANA0, IFW5900HW0, IFW5900HW1, MHW3100DW0, MHW4200BG2, MHW5500FW1, MHW6000XG0, MHW6000XG2, MHW6000XR1, MHW6630HC2, MHW6630HC3, MHW6630MBK0, MHW7000XG1, MHW8100DC0, MHW8630HC4, NFW5800HW4, WFC9820HW0, WFW61HEBW1, WFW80HEBC2, WFW86HEBC2, WFW90HEFC1, WFW94HEXW2, WFW95HEXL2, WFW95HEXR0, WFW95HEXR2, WFW95HEXW2, WFW96HEAW0, WFW97HEXL2, WFW97HEXR2, WFW560CHW1, WFW4720RW0, WFW5605MC0, WFW6605MW0, WFW6605MW1, WFW6620HC1, WFW8740DC0, WFW9620HBK1, WFW9620HC1

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
