Whirlpool Dishwasher Pump and Motor Assembly; complete circulation, drain pump, and sump assembly W11416362, Replaces W11345228

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Little or no water spraying from the spray arms / poor wash-water circulation.
• Water remaining in the tub after the drain portion of a cycle may warrant checking this assembly’s drain-pump function, along with the drain path.

Check Before Replacing

• Disconnect power before any inspection. Check and clean the dishwasher filter and inspect spray-arm holes for debris that could restrict water flow.
• During a cycle, confirm the dishwasher fills, then listen for wash-water circulation; lack of spray-arm action can also result from restrictions or an electrical/control issue.
• If water remains after draining, inspect the drain hose for kinks or obstructions and verify the drain pump is operating before attributing the symptom to the complete assembly.
• Use the dishwasher’s model-specific service information/diagnostics to check for stored fault indications before replacing the assembly.

Pro Tip

Part Details

Installation Notes

• Disconnect electrical power and shut off the dishwasher water supply before installation.

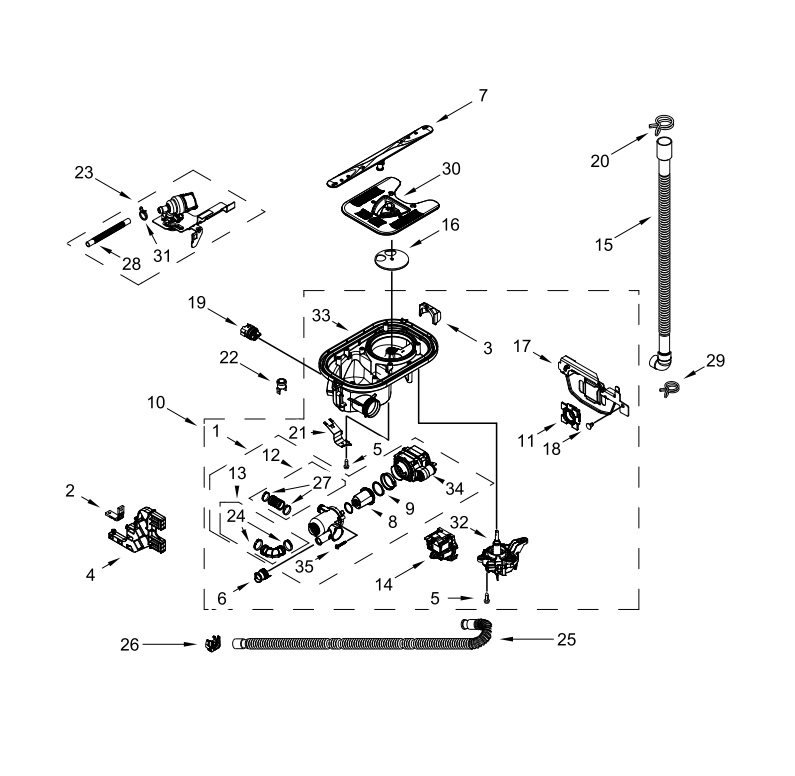

• Confirm the part against the appliance model and parts diagram before disassembly.
• After installation, restore utilities and check operation and connection areas for leaks.

Verified Compatible Models

KDFM404KPS2, KDFM404KPS3, KDPM604KPS0, KDPM604KPS1, KDPM704KPS0, KDPM704KPS2, KDPS624SBE0, KDTM404KPS0, KDTM604KBS2, KDTM604KPS1, KDTM604KPS3, KDTM704KPS0, KDTM804KPS1, KDTM804KPS2, WDTS8024SV0, KDTM704KPS3

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
