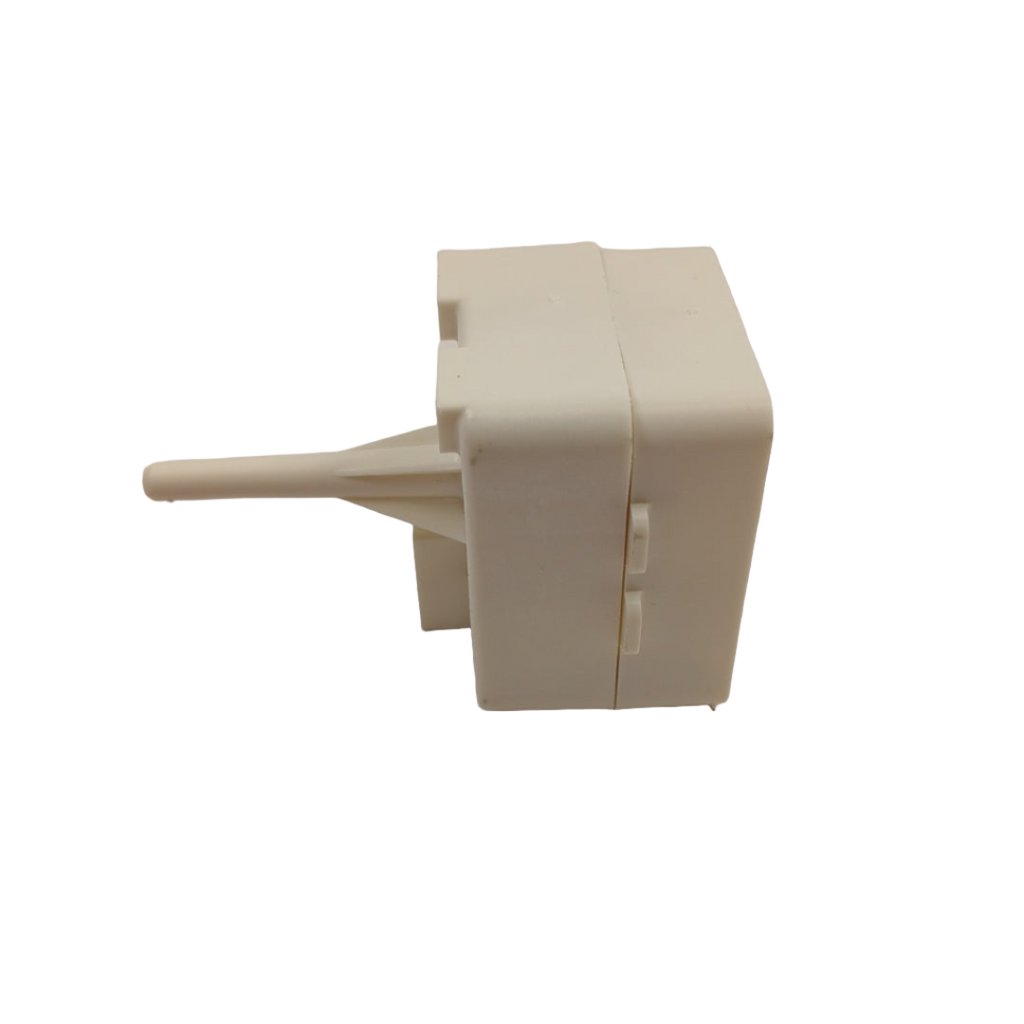

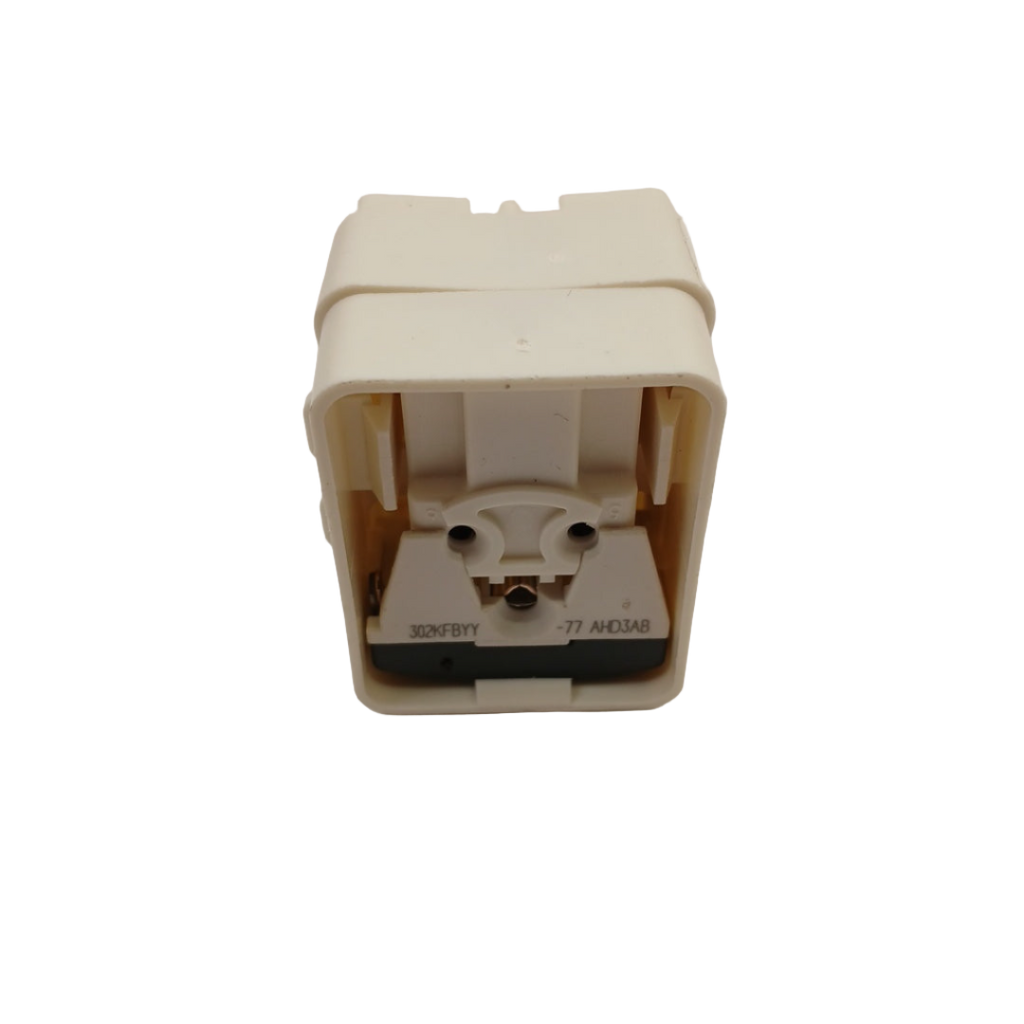

Whirlpool Refrigerator Start Device W11524472, Replaces W11359985

OEM compressor start device that supplies the electrical input needed to initiate compressor motor operation. It is also described as a start relay/start device and is used in select Whirlpool-family refrigerators and freezers.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Refrigerator or freezer is not cooling because the compressor does not run
• Compressor attempts to start and then clicks off repeatedly
• Appliance may stop running intermittently
• Burning odor may be present near the compressor area if the start device has overheated or failed

Check Before Replacing

• Disconnect electrical power before inspecting the component.
• Confirm that the appliance model documentation identifies W11524472 as the specified start device.
• Visually inspect the start device and its terminals for discoloration, melting, loose connections, or a burnt odor.
• Listen for repeated compressor-start clicking, while recognizing that clicking can also result from other compressor, overload, control, or sealed-system faults.
• If electrical testing is required, use the model-specific service documentation or a qualified appliance technician; do not diagnose the part from symptoms alone.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM start device
• Used on select Whirlpool-family refrigerators and freezers
• Also described as a compressor start relay or start device
• Manufacturer part number W11524472
• Replaces archived Whirlpool part number W11359985

Installation Notes

• Disconnect power before servicing the refrigerator or freezer.
• Use the appliance model-specific service information for access and wiring details.
• Record or photograph the original wire and connector arrangement before removal, and restore each connection to the same terminal location.
• Inspect the mating terminals and surrounding wiring for heat damage before installing the replacement.
• Reinstall any component cover or protection and verify that all connections are secure before restoring power.

Verified Compatible Models

ABB1921BRB03, ABB1921BRM03, ABB1921BRW03, ABB1924BRB03, ABB1924BRB05, ABB1924BRM03, ABB1924BRM05, ABB1924BRW03, ABB1924BRW05, ABB2224BRB03, ABB2224BRB05, ABB2224BRM03, ABB2224BRM05, ABB2224BRW03, ABB2224BRW05

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
