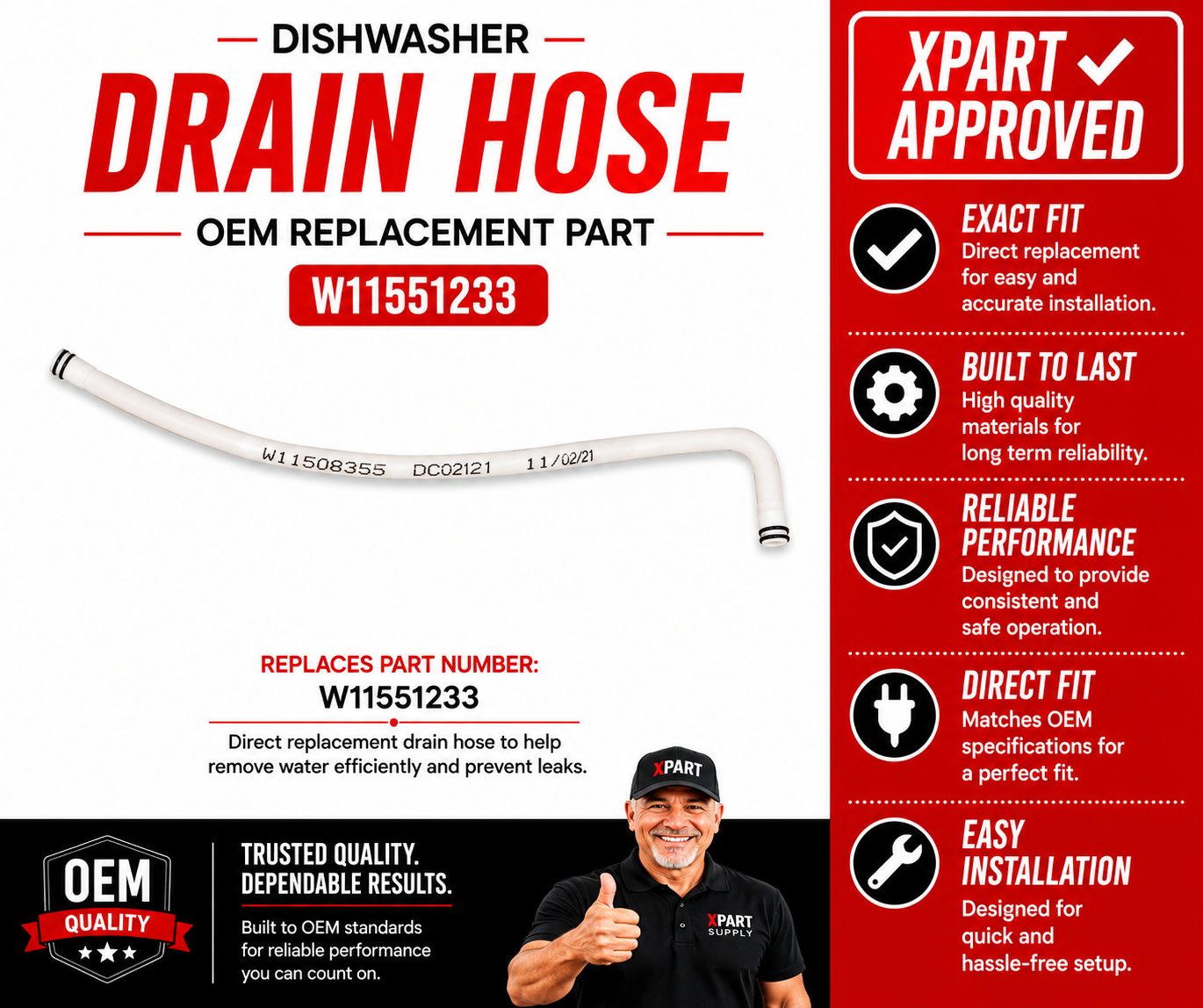

Whirlpool Dishwasher Drain Hose Assembly W11551233, Replaces W11036161

Genuine Whirlpool dishwasher drain hose assembly that carries drain water from the dishwasher to the household drain connection.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Water remains in the dishwasher tub after a cycle
• Water leakage beneath or around the dishwasher
• Slow draining from a restricted or kinked hose
• Drainage problems after the hose has been damaged or improperly routed

Check Before Replacing

• Disconnect electrical power and shut off the dishwasher water supply before inspecting the hose.
• Visually inspect the accessible hose for kinks, crushed sections, cracks, pinholes, abrasions, or loose connections.
• Check that the hose is firmly attached at the dishwasher drain port and household drain connection, with the clamp properly positioned.
• Inspect the accessible drain path for an obvious obstruction; do not force tools through the hose or disassemble sealed components.
• After any correction, run a short rinse or drain operation and observe the connections for leakage.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM drain hose assembly
• Designed for Whirlpool-family dishwashers, including Whirlpool, Maytag, and KitchenAid applications
• Current Whirlpool part number W11551233
• Elbow-style drain connection intended to be secured with a hose clamp

Installation Notes

• Disconnect electrical power before beginning installation; follow the dishwasher-specific installation instructions.
• Place the supplied clamp over the elbow end, push the hose fully onto the dishwasher drain port, and position the clamp securely over the connection.
• Route the hose out through the rear of the dishwasher without sharp bends or kinks.
• Remove any shipping plug from the dishwasher drain port before connecting the hose, if present.
• Maintain the required high-loop or air-gap arrangement specified by the dishwasher installation instructions to help prevent backflow and drainage problems.
• After installation, check the drain connections during a short cycle for leaks.

Verified Compatible Models

KDFM404KBS0, KDFM404KBS2, KDPM804KBS0, KDPM804KBS1, KDPM804KBS3, KDPM804KPS2, KDTM404KPS0, KDTM404KPS2, KDTM604KBS0, KDTM604KBS2, KDTM604KPS0, KDTM704KPS1, KDTM704KPS3, KDTM804KPS1, KDTM804KPS3

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
