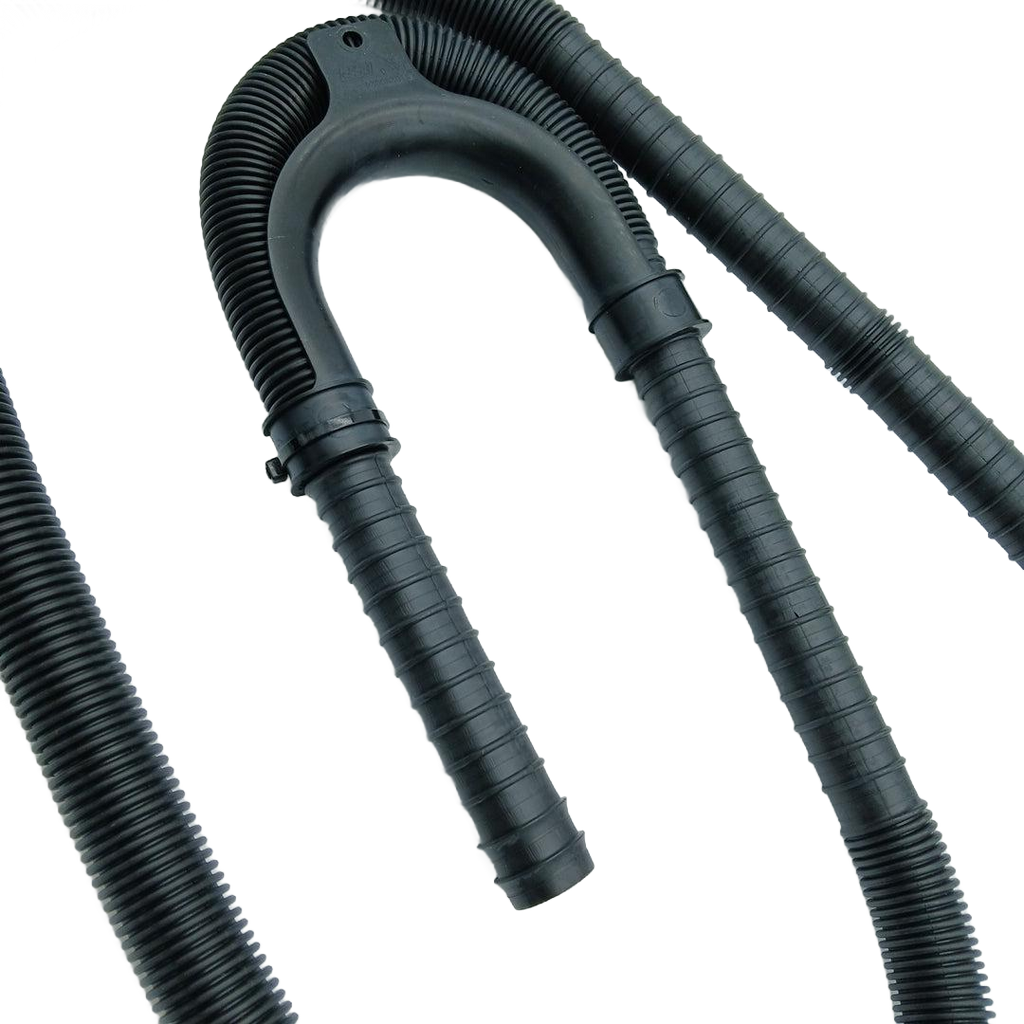

Whirlpool Washer Hose assembly - drain, external W11551765, Replaces W11392677

Genuine Whirlpool OEM external drain hose assembly that carries wastewater from the washer to the household drain. Failure may cause leaks or incomplete drainage.

Is This the Right Part?

Common Symptoms

• Water leaking at or near the hose connection points
• Slow or incomplete washer drainage when the hose is kinked, blocked, or damaged
• Gurgling or unusual noise during draining
• Visible cracking, abrasion, bulging, or other hose deterioration

Check Before Replacing

• Unplug the washer and shut off its water supply before inspection.
• Visually inspect the accessible hose and connection areas for kinks, crushing, cracks, abrasion, loose connections, or water residue.
• Confirm the hose is not forced tightly against the wall or sharply bent, which can restrict flow or cause rubbing damage.
• If the washer drains slowly, check the hose and household drain for an obvious blockage according to the washer’s use-and-care instructions; do not assume the hose is the cause.
• After any service, run an appropriate test cycle while observing for leaks and proper drainage.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM external drain-hose assembly
• Designed for Whirlpool-family washing machines
• Carries wastewater from the washer to the household drain
• Replaces Whirlpool part W11392677

Installation Notes

• Disconnect electrical power and shut off the washer’s water supply before servicing.
• Match the replacement to the exact washer model and serial information before installation.
• Route and secure the hose according to the washer’s model-specific installation instructions to prevent kinks, siphoning, disconnection, or leakage.
• Do not seal the hose airtight into a standpipe; maintain the required air gap and secure the hose as specified by the installation instructions.
• Check all hose connections for leaks after installation before returning the washer to normal use.

Verified Compatible Models

7MMHW6621HC1, 7MMHW6621HC2, 7MMHW6621HW1, 7MWFW560CHW2, 8TMHW6630HW0, 8TMHW6630HW1, 8TMHW6630HW2, 8TWFC6810LW0, 8TWFC6820LW0, 8TWFW5620HW0, 8TWFW5620HW1, 8TWFW5620HW2, 8TWFW6620HW0, 8TWFW6620HW1, 8TWFW6620HW2

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
