Whirlpool Console Cap (Black) / Dishwasher Control Panel W11632693, Replaces W11316315, W11412695, W11591421

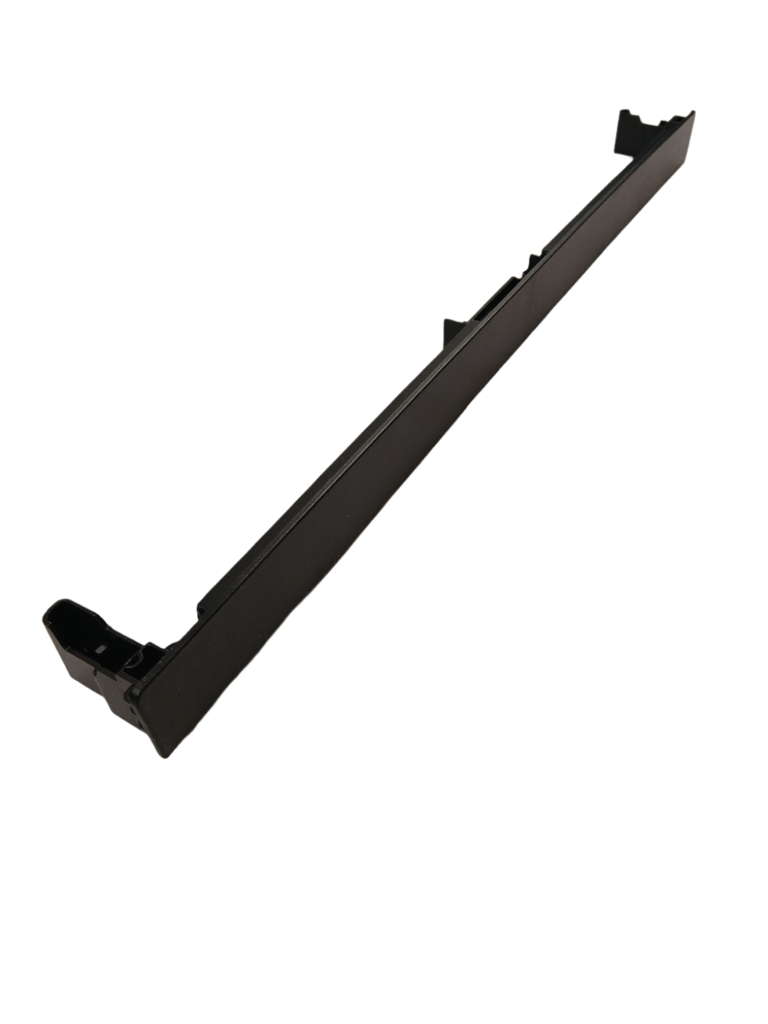

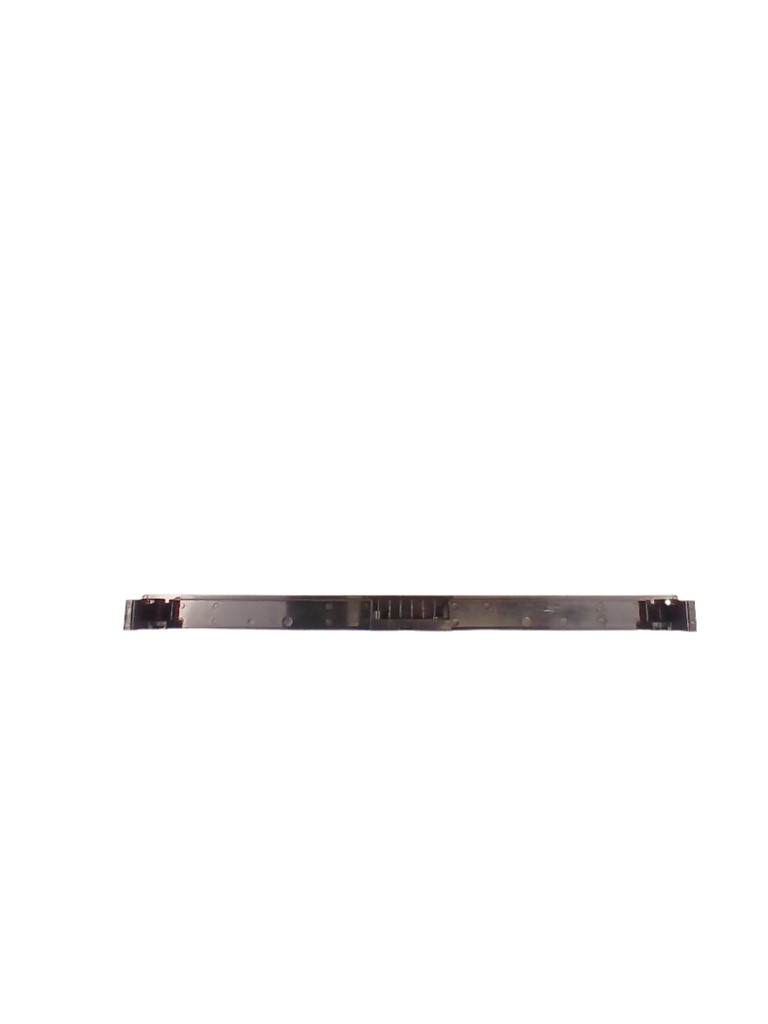

Genuine Whirlpool OEM black dishwasher console cap/control panel used on select Whirlpool, KitchenAid, Maytag, and Kenmore-branded dishwashers. The part provides the dishwasher’s exterior control interface and may be replaced when buttons or controls do not operate correctly.

Is This the Right Part?

Common Symptoms

• One or more control-panel buttons do not respond
• Dishwasher stops mid-cycle with control-panel operation affected
• Dishwasher starts unexpectedly when the control panel or its touchpad circuitry is faulty
• Control-panel lights or display behavior is abnormal

Check Before Replacing

• Confirm the Control Lock feature is not enabled before replacing the panel.
• With the dishwasher idle, test each control-panel button and note whether the problem affects only selected buttons or the entire interface.
• If the dishwasher appears unpowered, verify the circuit breaker and perform the manufacturer-recommended 30-second power reset before condemning the panel.
• Inspect the visible console for cracks, warping, loose trim, or liquid-damage signs without disassembling the appliance.
• Verify the replacement part number against the dishwasher’s complete model and serial number before installation.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM part
• Black console cap/control-panel exterior
• Dishwasher application
• Used across select Whirlpool-family dishwasher brands and models
• Manufacturer part number W11632693
• Replaces archived Whirlpool numbers W11316315, W11412695, and W11591421

Installation Notes

• Disconnect electrical power before servicing the dishwasher and follow the model-specific service or installation documentation.
• Use the exact model-specific instructions because console construction and fastener access can vary by dishwasher model.
• Transfer or reconnect any control-panel components only as specified by the model’s service documentation; do not force connectors or retainers.
• Confirm the panel is seated evenly and that all controls can be operated normally after reassembly.
• If wiring, live electrical testing, or control-board work is required, use a qualified appliance technician.

Verified Compatible Models

KDFE104KBL0, KDFE104KBL1, KDFE104KBL2, KDFE104KBL3, KDFE104KPS0, KDFE104KPS1, KDFE104KPS2, KDFE104KPS3, KDFE104KWH0, KDFE104KWH1, KDFE104KWH2, KDFE104KWH3, KDFE105PPS0, KDFE204KBL0, KDFE204KBL1

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
