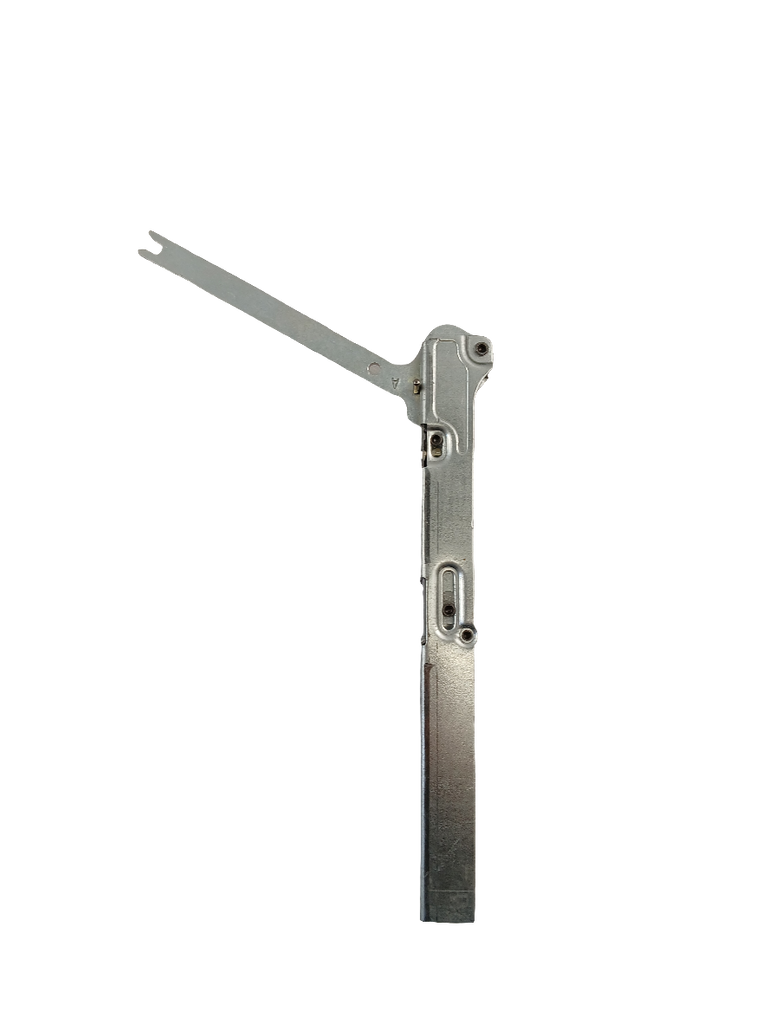

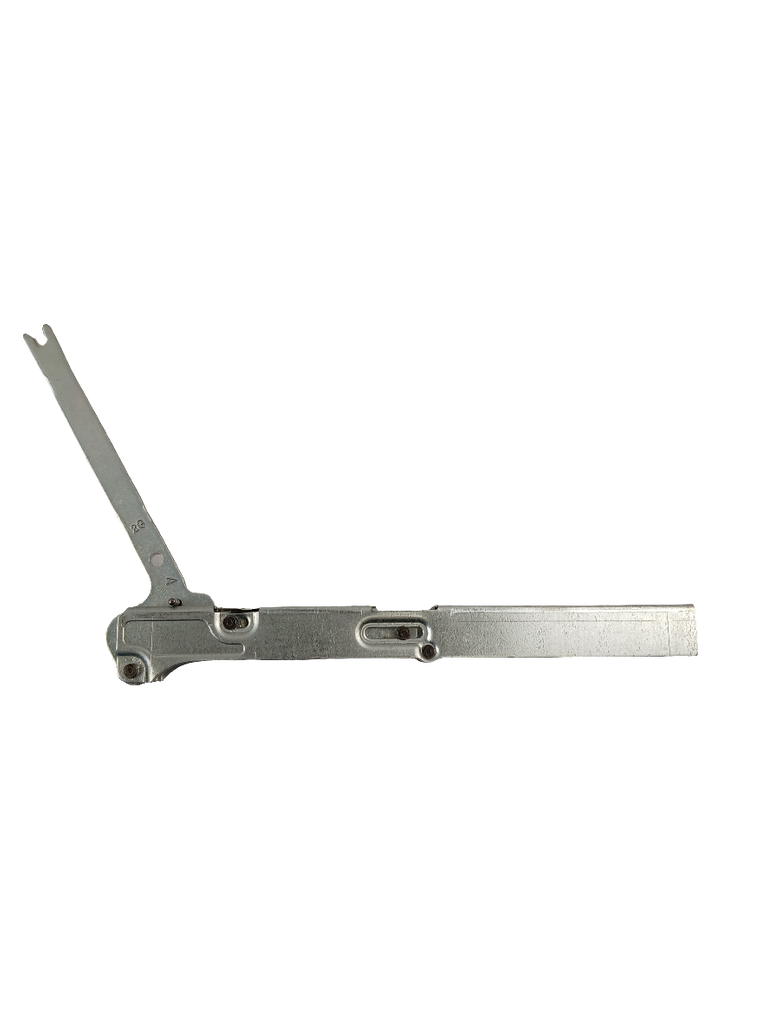

Whirlpool Hinge-Door / Microwave Door Hinge W11675306, Replaces W11319473

Whirlpool genuine OEM microwave door hinge used in select built-in microwave and wall-oven/microwave-combination appliances.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Door binds, sags, or feels misaligned while opening or closing.
• A visible uneven door gap or door movement is present near the hinge side.
• Door-closing issue persists after checking for obstructions at the latch/door-contact area.

Check Before Replacing

• With power disconnected, visually inspect the exposed door/hinge area for obvious bending, looseness, or damage; do not disassemble the microwave cabinet for diagnosis.
• Check that no cookware, rack, packing material, or debris is preventing the door from closing fully.
• Clean the door-contact area and verify the door closes without forcing it.
• Observe whether the door gap is even and whether the door latches normally; a hinge is only one possible cause of a door-closing issue.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM Hinge-Door component.
• Listed by Whirlpool's authorized parts distributor as a microwave Door Hinge.
• Designed to support normal microwave-door movement and alignment.

Installation Notes

• Disconnect electrical power before inspection or service.
• Do not operate the microwave if the door, hinges, latches, seals, or sealing surfaces are damaged or the door does not close properly.
• Because correct microwave-door closure is safety-critical, use a qualified appliance technician if hinge replacement requires door disassembly, adjustment, or verification of latch/interlock operation.
• Verify the appliance model and replacement part number before installation; W11675306 is documented as superseded by W11750429 in the trusted archive context.

Verified Compatible Models

JMC2430LL00, JMC2430LM00, JMW2430LL00, JMW2430LL02, JMW2430LL03, JMW2430LM00, JMW2430LM02, JMW2430LM03, JMW3430LL02, JMW3430LL03, JMW3430LM00, JMW3430LM02, JMW3430LM03

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
