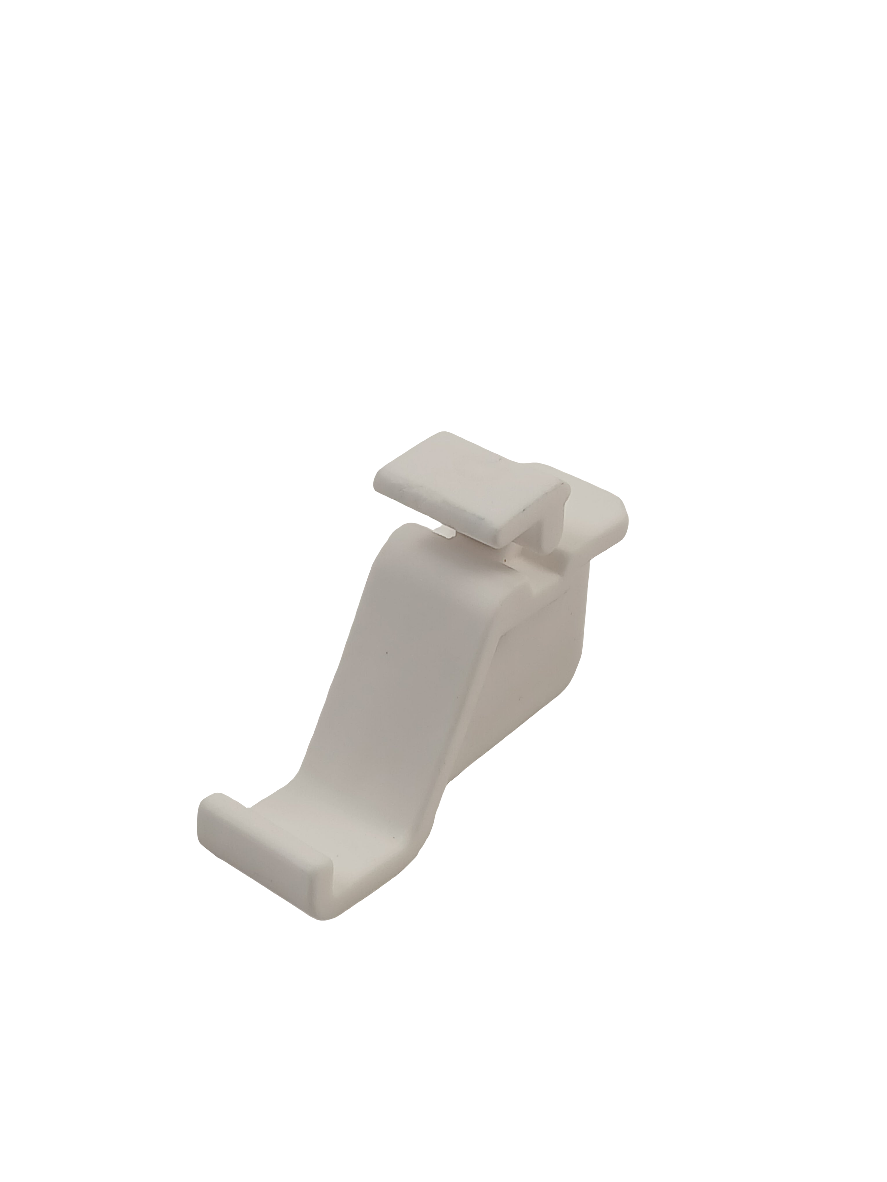

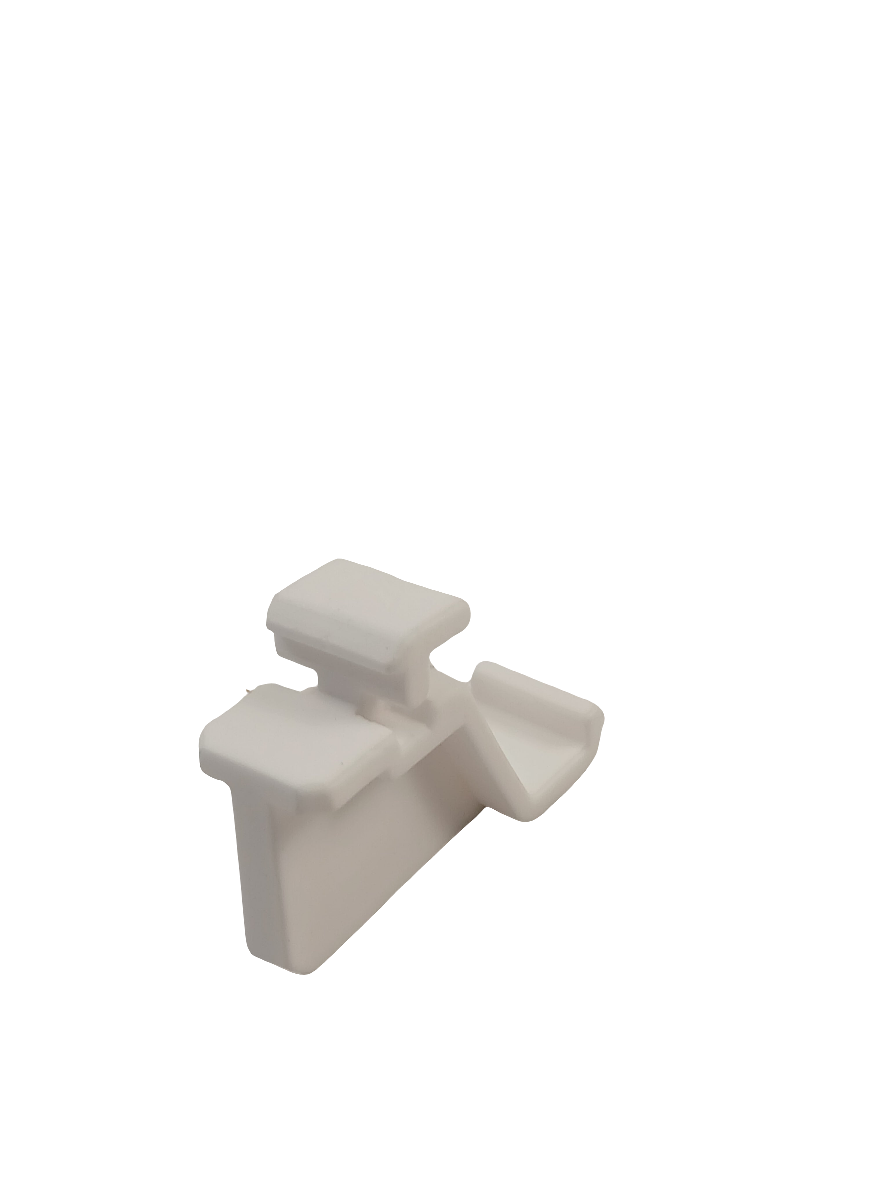

A broken or missing grill support means your microwave's grill rack can't sit level — and an unlevel rack means uneven browning, hot spots, and food that cooks inconsistently every time you use the grill function. The W11724411 is the OEM grill support that holds the rack at the correct height and angle for proper heat distribution across the full cooking surface.
Symptoms of a Failed or Missing Grill Support
- Grill rack sitting unevenly or tilting to one side
- Food browning on one side but not the other
- Rack rattling or shifting during cooking
- Grill support bracket cracked, broken, or missing entirely
- Unable to use the grill/broil function safely
Part Details
- OEM Part Number: W11724411
- Replaces: W10120232, W10120233, W10204461, W10288008, W10909479, W11716587, WPW10204461
- Compatible Brands: KitchenAid, Whirlpool, Jenn-Air
- Part Type: Microwave Grill Rack Support / Bracket
- HS Code: 850990
- Option: Genuine OEM
Most combination microwave-wall oven units use two grill supports — one on each side. If one has cracked or broken, the other has been under the same stress and heat cycles. Replacing both at the same time ensures the rack sits level and saves a second service call.
Installation Notes
- Skill Level: Easy — no tools required on most models
- Support clips or slides into the microwave cavity wall — confirm orientation before inserting
- Always ensure the microwave is off and cool before reaching inside the cavity
- Confirm your full model number before ordering — support profiles vary by unit
Compatible Models
JMC2427DS00, JMC2427DS01, JMC2427IL01, JMC2427IL02, JMC2427IL03, JMC2427IM01, JMC2427IM02, JMC2427IM03, JMC2427LL00, JMC2427LM00, JMC2430DB00, JMC2430DB01, JMC2430DB02, JMC2430DP00, JMC2430DP01, JMC2430DP02, JMC2430DS00, JMC2430DS01, JMC2430DS02, JMC2430IL01, JMC2430IL02, JMC2430IL03, JMC2430IL15, JMC2430IM01, JMC2430IM02, JMC2430IM03, JMC2430LL00, JMC2430LM00, JMC2430WB00, JMC2430WB01, JMC2430WB02, JMC2430WP00, JMC2430WP01, JMC2430WP02, JMC2430WR00, JMC2430WR01, JMC2430WS00, JMC2430WS01, JMC2430WS02, JMW2427DB00, JMW2427DB01, JMW2427DB02, JMW2427DB03, JMW2427DS00, JMW2427DS01, JMW2427DS02, JMW2427DS03, JMW2427DS04, JMW2427IL01, JMW2427IL02, JMW2427IL03, JMW2427IM01, JMW2427IM02, JMW2427IM03, JMW2427LL00, JMW2427LL01, JMW2427LL02, JMW2427LM00, JMW2427LM02, JMW2430DB00, JMW2430DB01, JMW2430DB02, JMW2430DB03, JMW2430DP00, JMW2430DP01, JMW2430DP02, JMW2430DP03, JMW2430DP04, JMW2430DS00, JMW2430DS01, JMW2430DS02, JMW2430DS03, JMW2430DS04, JMW2430IL01, JMW2430IL02, JMW2430IL03, JMW2430IM01, JMW2430IM02, JMW2430IM03, JMW2430LL00, JMW2430LL02, JMW2430LM00, JMW2430LM02, JMW3430DB00, JMW3430DB01, JMW3430DB02, JMW3430DB03, JMW3430DP00, JMW3430DP01, JMW3430DP02, JMW3430DP03, JMW3430DP04, JMW3430DS00, JMW3430DS01, JMW3430DS02, JMW3430DS03, JMW3430DS04, JMW3430HP00, JMW3430HS00, JMW3430IL00, JMW3430IL01, JMW3430IL02, JMW3430IL03, JMW3430IM00, JMW3430IM01, JMW3430IM02, JMW3430IM03, JMW3430LL00, JMW3430LL02, JMW3430LM00, JMW3430LM02, JMW3430WB00, JMW3430WB01, JMW3430WB02, JMW3430WB03, JMW3430WP00, JMW3430WP01, JMW3430WP02, JMW3430WP03, JMW3430WR00, JMW3430WR01, JMW3430WR02, JMW3430WS00, JMW3430WS01, JMW3430WS02, JMW3430WS03, KBHS109BSS00, KBHS109SSS00, KBHS109SSS01, KBHS109SSS03, KBHS109SSS04, KBHS109SSS05, KBHS109SSS06, KBHS179BSS00, KBHS179SSS00, KBHS179SSS01, KBHS179SSS03, KBHS179SSS04, KBHS179SSS05, KBHS179SSS06, KEHU309SSS00, KEHU309SSS02, KEHU309SSS03, KEHU309SSS04, KEHU309SSS05, KEHU309SSS06, KEMS308SBL00, KEMS308SBL02, KEMS308SBL04, KEMS308SBL05, KEMS308SSS00, KEMS308SSS02, KEMS308SSS03, KEMS308SSS04, KEMS308SSS05, KEMS308SWH00, KEMS308SWH02, KEMS308SWH04, KEMS308SWH05, KEMS309BBL00, KEMS309BBL01, KEMS309BSP00, KEMS309BSP01, KEMS309BSS00, KEMS309BSS01, KEMS309BWH00, KEMS309BWH01, KEMS378SBL00, KEMS378SBL02, KEMS378SBL04, KEMS378SBL05, KEMS378SSS00, KEMS378SSS02, KEMS378SSS03, KEMS378SSS04, KEMS378SSS05, KEMS378SWH00, KEMS378SWH02, KEMS378SWH04, KEMS378SWH05, KEMS379BBL00, KEMS379BBL01, KEMS379BSS00, KEMS379BSS01, KEMS379BWH00, KEMS379BWH01, KMBP100EBS01, KMBP100EBS02, KMBP100EBS03, KMBP100ESS00, KMBP100ESS01, KMBP100ESS02, KMBP100ESS03, KMBP107EBS01, KMBP107EBS02, KMBP107EBS03, KMBP107EBS20, KMBP107ESS00, KMBP107ESS01, KMBP107ESS02, KMBP107ESS03, KMBP107ESS20, KOCE500EBL00, KOCE500EBL01, KOCE500EBL02, KOCE500EBL04, KOCE500EBL05, KOCE500EBL06, KOCE500EBL07, KOCE500EBL08, KOCE500EBL09, KOCE500EBL11, KOCE500EBS00, KOCE500EBS01, KOCE500EBS02, KOCE500EBS04, KOCE500EBS05, KOCE500EBS06, KOCE500EBS07, KOCE500EBS08, KOCE500EBS09, KOCE500EBS11, KOCE500EBS20, KOCE500EBS22, KOCE500ESS00, KOCE500ESS01, KOCE500ESS02, KOCE500ESS04, KOCE500ESS05, KOCE500ESS06, KOCE500ESS07, KOCE500ESS08, KOCE500ESS09, KOCE500ESS11, KOCE500ESS20, KOCE500ESS22, KOCE500EWH00, KOCE500EWH01, KOCE500EWH02, KOCE500EWH04, KOCE500EWH05, KOCE500EWH06, KOCE500EWH07, KOCE500EWH08, KOCE500EWH09, KOCE500EWH11, KOCE500EWH20, KOCE500EWH22, KOCE507EBL00, KOCE507EBL01, KOCE507EBL02, KOCE507EBL04, KOCE507EBL05, KOCE507EBL06, KOCE507EBL07, KOCE507EBL08, KOCE507EBL09, KOCE507EBL11, KOCE507EBS01, KOCE507EBS02, KOCE507EBS03, KOCE507EBS04, KOCE507EBS05, KOCE507EBS06, KOCE507EBS07, KOCE507EBS20, KOCE507EBS22, KOCE507ESS00, KOCE507ESS01, KOCE507ESS02, KOCE507ESS04, KOCE507ESS05, KOCE507ESS06, KOCE507ESS07, KOCE507ESS08, KOCE507ESS09, KOCE507ESS11, KOCE507ESS20, KOCE507ESS21, KOCE507ESS22, KOCE507EWH00, KOCE507EWH01, KOCE507EWH02, KOCE507EWH04, KOCE507EWH05, KOCE507EWH06, KOCE507EWH07, KOCE507EWH08, KOCE507EWH09, KOCE507EWH11, KOCE507EWH20, KOCE507EWH22, KOCE900HBS00, KOCE900HBS01, KOCE900HBS02, KOCE900HBS20, KOCE900HBS22, KOCE900HSS00, KOCE900HSS01, KOCE900HSS02, KOCE900HSS20, KOCE900HSS22, WOC54EC0AB00, WOC54EC0AB01, WOC54EC0AS00, WOC54EC0AS01, WOC54EC0AW00, WOC54EC0AW01, WOC97EC0HZ00, WOC97EC0HZ01, WOC97EC0HZ02, WOC97EC0HZ03, WOC97ES0ES00, WOC97ES0ES01, WOC97ES0ES02, WOC97ES0ES03, WOC97ES0ES04, WOCA7EC0HN00, WOCA7EC0HN01, WOCA7EC0HN02, WOCA7EC0HN03, WOCA7EC0HZ00, WOCA7EC0HZ01, WOCA7EC0HZ02, WOCA7EC0HZ03
