WG02F04327 GE Range Radiant Surface Element – Fix Your Range That Won't Heat, Has an Unresponsive Burner, or Has a Faulty Surface Element
OEM & Premium XPart Options · Replaces WB30K10010, WB30T10097 & WS01F01172 · Fast Canada-Wide Shipping · Canadian Business Since 1996

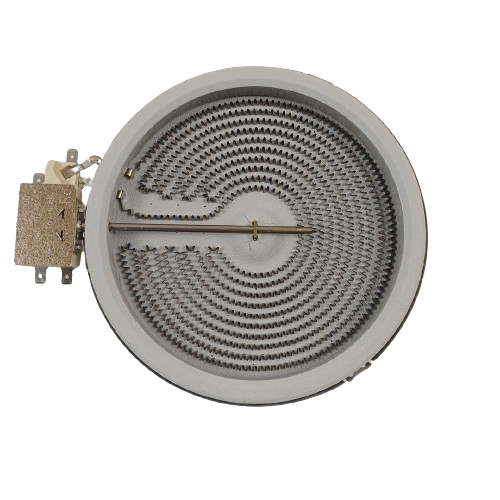

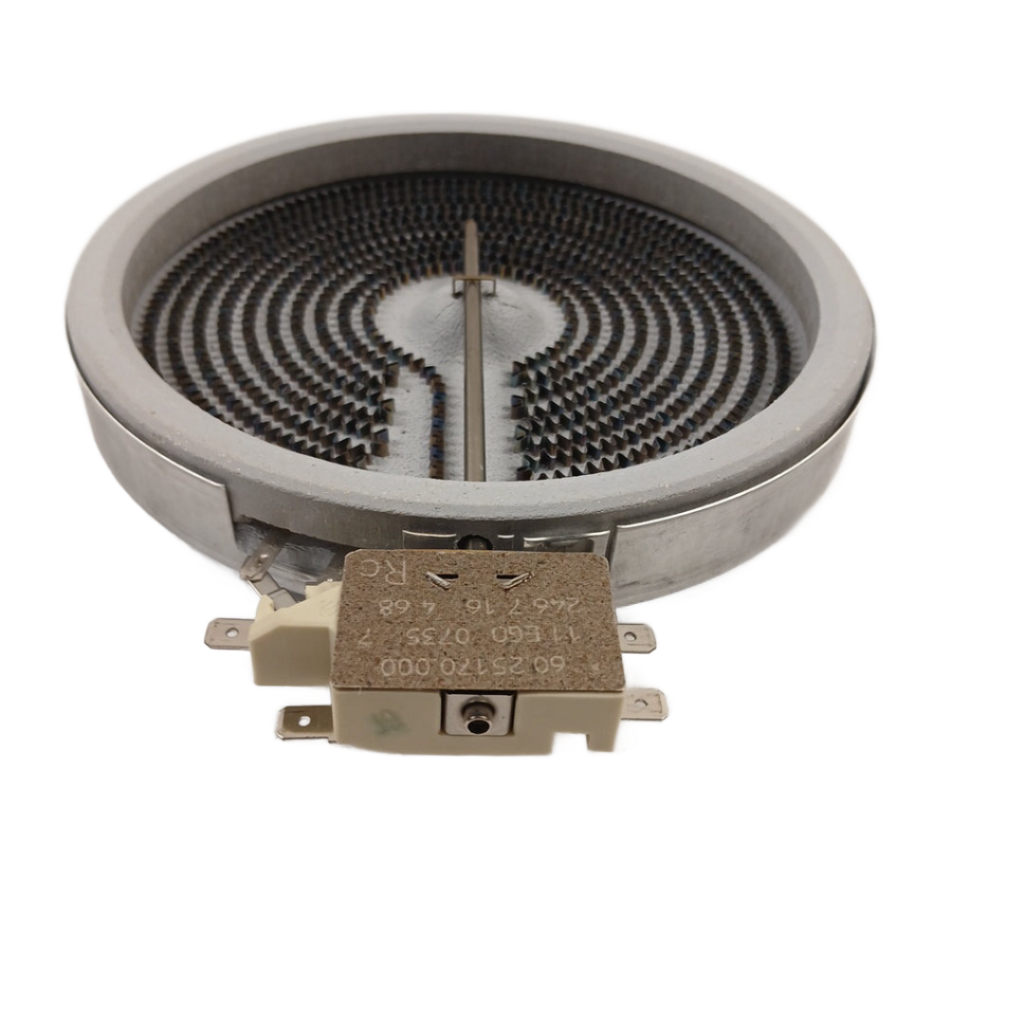

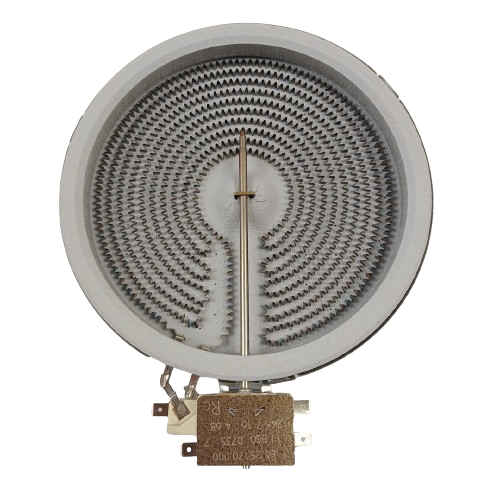

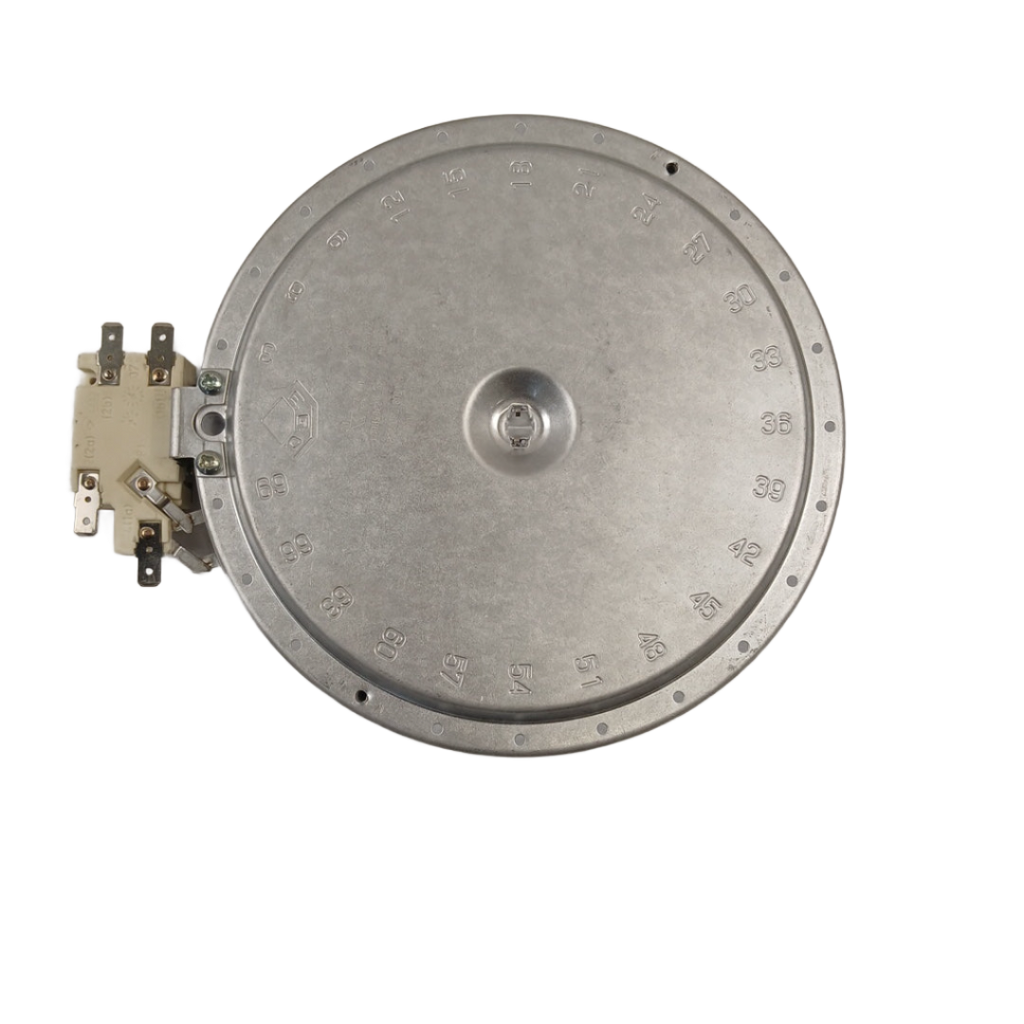

The WG02F04327 GE Range Radiant Surface Element is the current OEM 6" surface heating element for compatible GE electric ranges, replacing part numbers 223C4134P001, WB30K10010, WB30T10097, and WS01F01172. When this element fails, your burner may not heat at all, heat unevenly, or fail to respond to temperature settings. Available in genuine OEM and premium XPart aftermarket options for a reliable, cost-effective repair.
✓ Model-Specific Repair Pages
Find your exact model for confirmed-fit part guidance:
We'll confirm fit before you order.
The 6" radiant surface element uses a coiled resistance heating element beneath a smooth ceramic glass surface to generate precise, even heat. Over time the element can burn out, crack, or develop open circuits — causing no heat, partial heating, or tripped breakers. WG02F04327 is the current superseding part number and is a direct cross-reference for 223C4134P001, WB30K10010, WB30T10097, and WS01F01172.
✓ Common Symptoms Fixed
- 6" burner won't heat on any setting
- Burner heats unevenly or only partially
- Range trips breaker when burner is turned on
- Visible burn marks or cracks on surface element
- Burner heats intermittently or cuts out mid-cycle
✓ Key Features & Specifications
- Part Number: WG02F04327
- Size: 6" radiant surface element
- OEM Option: Genuine GE part — exact factory fit and performance
- XPart Option: Premium aftermarket — same fit and function, lower price
- Even heat distribution across full element surface
- Direct drop-in replacement — no modification required
- Replaces 223C4134P001, WB30K10010, WB30T10097, WS01F01172
✓ Buying Options
OEM (New): Genuine GE replacement — exact factory specifications.
XPart (New): Premium aftermarket — same fit and function, backed by XPart Supply's guarantee — aftermarket replacement parts are not affiliated with, sponsored by, or endorsed by GE or any OEM manufacturer.
✓ Replacement Part Numbers
- WG02F04327 (this part — current OEM)
- CMR7D15XP (aftermarket cross-reference)
- 223C4134P001 (superseded — direct cross-reference)
- WB30K10010 (superseded — direct cross-reference)
- WB30T10097 (superseded — direct cross-reference)
- WS01F01172 (superseded — direct cross-reference)
✓ Installation Tips
- Difficulty: Moderate — comfortable DIYer
- Estimated Time: 20–40 minutes
- Tools Required: Phillips screwdriver, putty knife or panel tool
- Steps: Disconnect power at breaker → lift cooktop or access element from below → disconnect element terminals → remove mounting hardware → install new element → reconnect terminals → reassemble → restore power and test all heat settings
- Safety Note: Always disconnect power at the breaker before servicing any range component
✓ Compatible Models
Replaces the 6" radiant surface element in GE and Frigidaire electric ranges including JCBP, JCBS, JCB, JCS, PCB, PCS, RCB, RCBS, REX, FFES, FFED, CFES, and related series. See full model list in tags.
✓ Frequently Asked Questions
What does WG02F04327 replace?
WG02F04327 replaces 223C4134P001, WB30K10010, WB30T10097, and WS01F01172. All are direct cross-references for the same 6" GE radiant surface element. Contact us if you need help confirming compatibility.
How do I know if my surface element needs replacing?
If your 6" burner won't heat, heats unevenly, or trips the breaker, the element is likely failed. Visible burn marks or cracks are also a clear sign. Contact us for help diagnosing your range.
Is the XPart option as good as OEM?
Yes — XPart parts are premium aftermarket components built to the same fit and function specifications as OEM, backed by XPart Supply's guaranteed fit and 30 years of appliance parts expertise.
Will this fit my GE range?
This element fits a wide range of GE and Frigidaire electric range models. Check your model number against the tags or contact us to confirm fit.
Do you ship to all of Canada?
Yes — XPart Supply ships fast Canada-wide from our Canadian warehouse. Orders placed before our daily cutoff typically ship same or next business day.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
