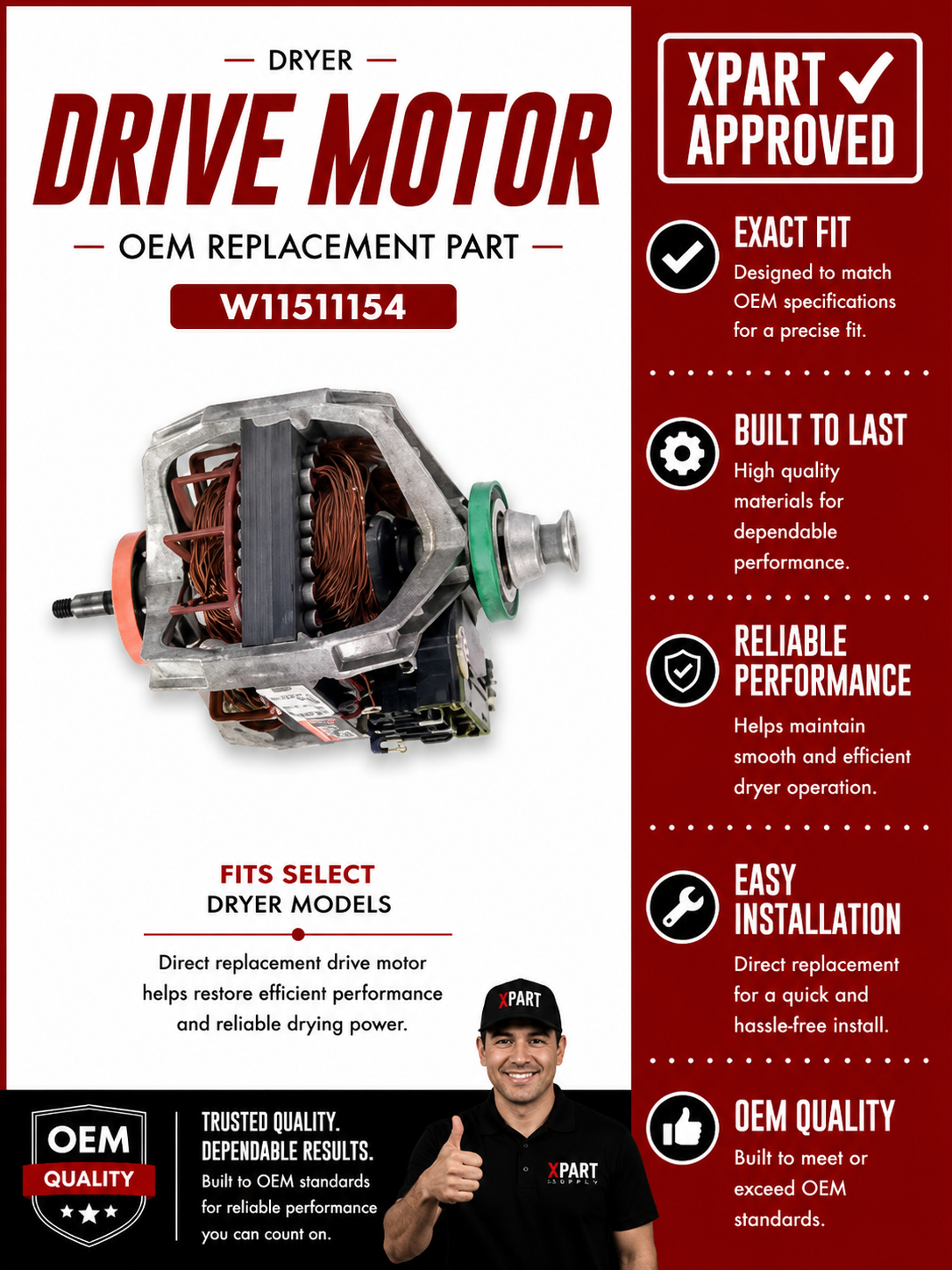

Dryer Won’t Start or Spin? Drive Motor W11511154 – Fix No-Spin & No-Start Fast
A dryer that won’t tumble, hums but doesn’t spin, or trips the breaker on startup almost always has a failed drive motor in Whirlpool-platform dryers. In most Whirlpool, Maytag, and Kenmore dryers, the drive motor turns the drum and powers the blower wheel simultaneously. When it fails, the drum stops turning, clothes stay wet, and the dryer may hum briefly before shutting off or tripping thermal protection. ⚡ One of the highest-failure components on Whirlpool-platform dryers built after 2015. Part W11511154 is the genuine OEM replacement that restores full drum rotation and airflow immediately — direct swap, no modification required.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Dryer powers on — control panel lights up and cycle can be selected
- ✔ Dryer hums briefly at startup but drum does not rotate
- ✔ Drive belt is intact — drum turns freely by hand when belt is connected
- ✔ Thermal fuse and door switch have been tested and confirmed good
- ✔ ONLY problem is drum not spinning — not a no-power or no-heat failure
🔧 Common Symptoms
- Dryer won’t start — hums for 1–2 seconds then shuts off
- Drum does not rotate during any cycle
- Clothes come out wet after a full cycle
- Burning smell from motor area during attempted startup
- Dryer trips breaker or blows fuse on startup
- Motor runs intermittently — works sometimes, fails after warming up
✔ If these symptoms match, this is the most likely failed component in the system.
✔ In most cases, replacing this drive motor restores normal drum rotation and drying performance immediately.
📦 Part Details
- Part Number: W11511154
- Type: Dryer Drive Motor Assembly
- Replaces: W10620755, WPW10620755, W10806758, W10806760, W11086656, W11123147, W11322192, W11364931, W11483444, W11493867, W11778635 — no modification required
- Brands: Whirlpool, Maytag, Kenmore, Amana, Crosley
⚙️ Installation Notes
Skill Level: MODERATE — 45–75 minutes. Disconnect power before servicing. Remove the dryer front panel and drum to access the motor mounted at the base of the cabinet. Disconnect the wiring harness, release the belt from the motor pulley, and unbolt the motor from the base plate. Transfer the blower wheel to the new motor, reinstall in reverse order, and route the belt correctly around the drum and idler pulley. Restore power and run a timed dry cycle to confirm full drum rotation and airflow before reassembling panels.
💡 Pro Tip
The drive belt and idler pulley are directly accessible once the motor is out — and they’re the two most common co-failures with a seized motor. A worn belt or a noisy idler pulley will fail within weeks of a motor replacement. Replacing all three at the same time costs a fraction of a second service call and is the standard practice for any professional dryer repair on Whirlpool-platform machines.
Not sure this is the right part? Send us your model number and we’ll confirm before you order.
WED8740DC0, WED8740DW0, WED8740DC1, WED87HEDC0, WED87HEDC1, WED87HEDW0, WED87HEDW1, WED90HEFC0, WED90HEFC1, WED90HEFC2, WED90HEFW0, WED90HEFW1, WED90HEFW2, WED92HEFBD0, WED92HEFBD1, WED92HEFBD2, WED92HEFC0, WED92HEFC1, WED92HEFC2, WED92HEFU0, WED92HEFU1, WED92HEFU2, WED92HEFW0, WED92HEFW1, WED92HEFW2, WED95HEDC0, WED95HEDC1, WED95HEDU0, WED95HEDU1, WED95HEDW0, WED95HEDW1, WED97HEDBD0, WED97HEDBD1, WED97HEDC0, WED97HEDC1, WED97HEDU0, WED97HEDU1, WED97HEDW0, WED97HEDW1, WED9620HBK0, WED9620HBK1, WED9620HC0, WED9620HC1, WED9620HW0, WED9620HW1, WED85HEFC0, WED85HEFC1, WED85HEFC2, WED85HEFW0, WED85HEFW1, WED85HEFW2, WED8620HC0, WED8620HC1, WED8620HW0, WED81HEDW0, WED81HEDW1, WED75HEFW0, WED75HEFW1, WED72HEDW0, WED72HEDW1, WED7505FW0, WED7540FW0, WED7540FW1, WED8540FW0, WED8540FW1, WED8540FW2, WED6620HC0, WED6620HW0, WED5620HW0, WED5620HW1, WGD8740DC0, WGD8740DW0, WGD8740DW1, WGD87HEDC0, WGD87HEDC1, WGD87HEDW0, WGD87HEDW1, WGD90HEFC1, WGD90HEFW0, WGD90HEFW1, WGD92HEFBD0, WGD92HEFBD1, WGD92HEFC0, WGD92HEFC1, WGD92HEFU0, WGD92HEFU1, WGD92HEFW0, WGD92HEFW1, WGD95HEDC0, WGD95HEDC1, WGD95HEDU0, WGD95HEDU1, WGD95HEDW0, WGD95HEDW1, WGD97HEDBD0, WGD97HEDBD1, WGD97HEDC0, WGD97HEDC1, WGD97HEDU0, WGD97HEDU1, WGD97HEDW0, WGD97HEDW1, WGD9620HBK0, WGD9620HBK1, WGD9620HC0, WGD9620HC1, WGD9620HW1, WGD85HEFC0, WGD85HEFC1, WGD85HEFW0, WGD85HEFW1, WGD8620HC0, WGD8620HC1, WGD8620HW0, WGD8620HW1, WGD81HEDW0, WGD81HEDW1, WGD75HEFW0, WGD72HEDW0, WGD72HEDW1, WGD7505FW0, WGD7540FW0, WGD8540FW0, WGD8540FW1, WGD6620HC0, WGD6620HC1, WGD6620HW0, WGD6620HW1, WGD5620HW0, WGD5620HW1, WGD5620HW2, MED8200FC0, MED8200FW0, MED8100DC1, MED8100DW1, MED7100DC1, MED7100DW1, MED6630HW2, MED5500FC0, MED5500FW0, MED5100DC1, MED5100DW1, MED3500FW0, MGD8630HC2, MGD8630HW2, MGD8100DC1, MGD8100DW1, MGD7100DC1, MGD7100DW1, MGD5500FC0, MGD5500FW0, MGD5100DC1, MGD5100DW1, MGD3500FW0, MGD3100DW1, NED5800HW0, NED5800HW1, NGD5800DW1, NGD5800HW0, CED7464GW0, CED7464GW1, CGD7464GW0, YIED5900HW0, YIED5900HW1, 7MWED5620HW0, 7MWED5620HW1, 7MWED6613HC0, 7MWED6613HC1, 7MWED6613HW0, 7MWED6613HW1, 7MWED81HEDW0, 7MWED90HEFW0, 7MWED90HEFW1, 7MWED90HEFW2, 8TWGD5620HW0, 8TWGD6622HW0, 8TWGD6622HW1, 8TWGD8620HW0, 8TWGD8620HW1, 8TMGD6630HW1
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
