Range Burner Not Heating or Stuck on HIGH? Surface Element Switch WPW10434452 – Fix Temperature Control Fast

A range burner that won’t heat at any setting, is stuck on HIGH and won’t cycle off, or heats at the wrong temperature almost always has a failed surface element switch. In most Whirlpool, Maytag, KitchenAid, Amana, and Kenmore electric ranges, the infinite switch is the only component that controls power output to the surface element — when its bimetallic contacts fail, weld shut, or lose calibration, the burner loses all temperature regulation. When it fails, the element may not heat at all, stay on full power regardless of the knob position, or cycle erratically. ⚡ The surface element switch is the most common cause of burner temperature control failure in Whirlpool-platform ranges. Part WPW10434452 is the genuine OEM replacement that restores precise, safe burner control immediately.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Your range is a Whirlpool, Maytag, KitchenAid, Amana, Kenmore, Roper, or Jenn-Air electric model
• ✔ The element itself is intact — no visible breaks, burns, or open coils
• ✔ Power is confirmed at the outlet and breaker — supply is not the issue
• ✔ The control knob engages the switch shaft correctly — not a knob or shaft issue
• ✔ ONLY problem is burner not heating, stuck on HIGH, or heating at wrong level

Not sure? Send us your model number — we’ll confirm before you order.

🔧 Common Symptoms

• Burner not heating at any setting — element stays cold
• Burner stuck on HIGH and won’t cycle off — contacts welded shut
• Burner heating at wrong temperature — too hot or too cold at all settings
• Intermittent or erratic heating — element cycles on and off unpredictably
• Dual element not switching between small and large burner modes
• Burning smell or sparking from behind the control panel

✔ If these symptoms match, this is the most likely failed component in the system.

✔ In most cases, replacing the surface element switch restores full, precise burner control immediately.

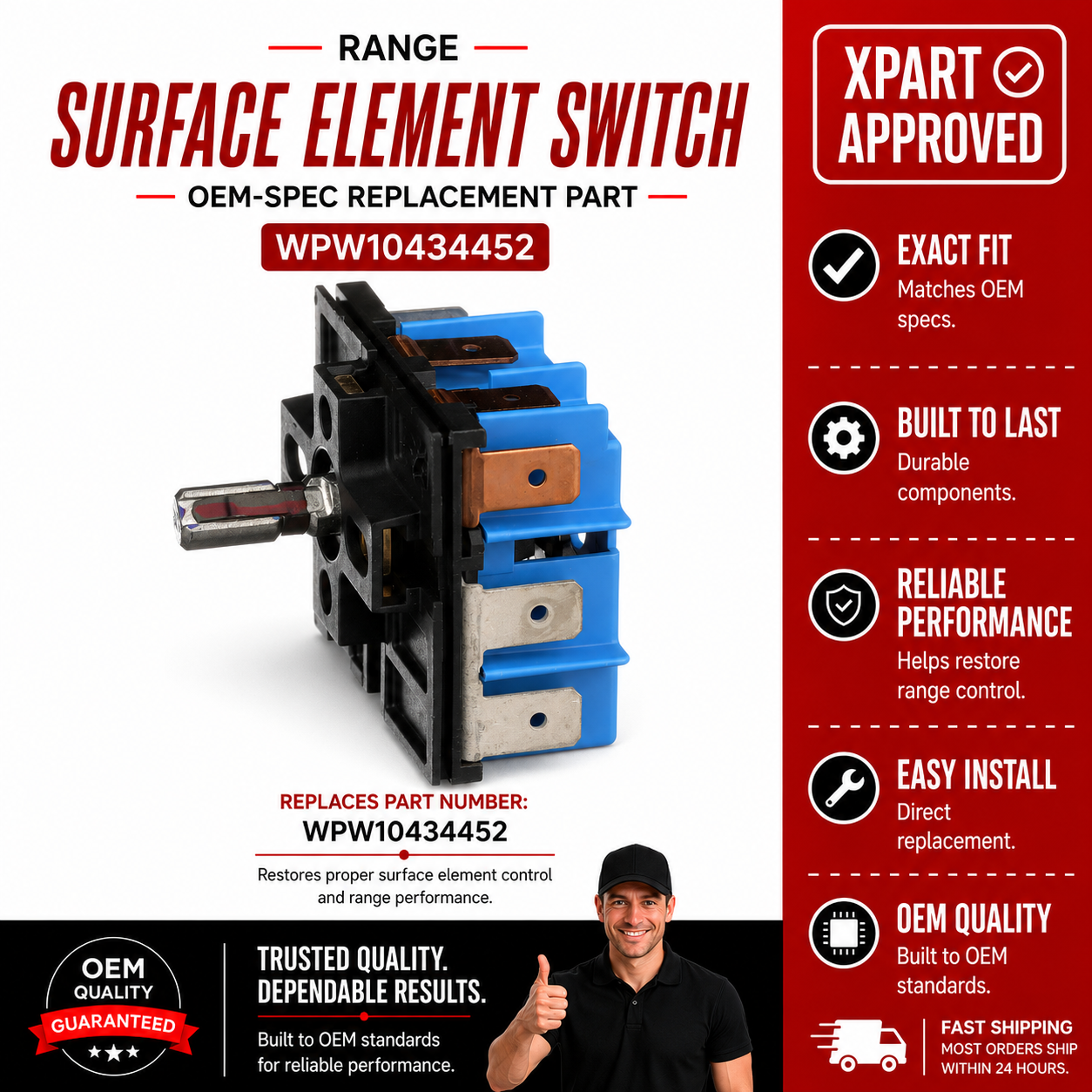

📦 Part Details

• Part Number: WPW10434452
• Type: Range Surface Element Infinite Switch — dual-element, D-bore rotary shaft, OEM
• Replaces: W10434452, 3148951, AP6020674, PS11754687, EAP11754687 — no modification required
• Brands: Whirlpool, Maytag, KitchenAid, Amana, Kenmore, Roper, Jenn-Air

⚙️ Installation

Skill Level: Moderate — 60–90 minutes. Disconnect power at the circuit breaker before servicing — this switch carries 240V AC. Remove the control panel or rear access panel to reach the switch. Photograph all wire terminal positions before disconnecting — incorrect wiring causes immediate failure or fire hazard. Transfer all terminals to the new WPW10434452 in the same positions, secure the switch, reinstall the panel, restore power, and test all heat settings including both small and large burner modes.

💡 Pro Tip

4KAER7685EW0, 4KAER7685EW1, 4KMER7685ES0, 4KMER7685ES1, 4KMER7685EW0, 4KMER7685EW1, 4KWFE7685ES0, 4KWFE7685ES1, 4KWFE7685EW0, 4KWFE7685EW1, AER5630BAB0, AER5630BAS0, AER5630BAW0, AER5844VAB1, AER5844VAS1, AER5844VAW1, AER5844VCB1, AER5844VCB2, AER5844VCS1, AER5844VCS2, AER5844VCW1, AER5844VCW2, AER6603SFB0, AER6603SFB1, AER6603SFB2, AER6603SFB3, AER6603SFS0, AER6603SFS1, AER6603SFS2, AER6603SFS3, AER6603SFS5, AER6603SFW0, AER6603SFW1, AER6603SFW2, AER6603SFW3, AER6603SFW5, AER6603SMS0, GFE461LVB1, GFE461LVQ1, GFE461LVS1, GFE461LVT1, IER660GS0, IES426AS0, IES426AS1, IES505DS0, KERS202BBL0, KERS202BSS0, KERS202BSS1, KERS202BWH0, MER4600LS2, MER6600FB0, MER6600FB1, MER6600FB2, MER6600FB3, MER6600FB5, MER6600FW0, MER6600FW1, MER6600FW2, MER6600FW3, MER6600FW5, MER6600FZ0, MER6600FZ1, MER6600FZ2, MER6600FZ3, MER6600FZ5, MER7662WB2, MER7662WB3, MER7662WQ2, MER7662WQ3, MER7662WS2, MER7662WS3, MER7662WW2, MER7662WW3, MER7664XB1, MER7664XB2, MER7664XS1, MER7664XS2, MER7664XW1, MER7664XW2, MER7685BB0, MER7685BS0, MER7685BW0, MER7700LZ0, MER7700LZ2, MER7775WB2, MER7775WS2, MER7775WW2, MER8600DE0, MER8600DH0, MER8600DS0, MER8650ES0, MER8670AB0, MER8670AS0, MER8670AW0, MER8674AB0, MER8674AS0, MER8674AW0, MER8680BB0, MER8680BS0, MER8680BW0, MER8700DB0, MER8700DB1, MER8700DE0, MER8700DE1, MER8700DH0, MER8700DH1, MER8700DS0, MER8700DS1, MER8700DS2, MER8700DW0, MER8700DW1, MER8800DE0, MER8800DE1, MER8800DH0, MER8800DH1, MER8800DS0, MER8800DS1, MER8880AB0, MER8880AS0, MER8880AW0, WFE320M0AB0, WFE320M0AS0, WFE320M0AW0, WFE320M0EB0, WFE320M0EB1, WFE320M0EB2, WFE320M0ES0, WFE320M0ES1, WFE320M0ES2, WFE320M0EW0, WFE320M0EW1, WFE320M0EW2, WFE320M0JB0, WFE324LWB1, WFE324LWQ1, WFE324LWS1, WFE361LVB1, WFE361LVD1, WFE361LVQ1, WFE361LVS1, WFE361LVT1, WFE366LVB1, WFE366LVQ1, WFE366LVS1, WFE366LVT1, WFE371LVB1, WFE371LVQ1, WFE371LVS1, WFE374LVB1, WFE374LVQ1, WFE374LVS1, WFE381LVB1, WFE381LVQ1, WFE381LVS1, WFE505W0HB0, WFE505W0HB1, WFE505W0HB2, WFE505W0HB3, WFE505W0HS0, WFE505W0HS1, WFE505W0HW0, WFE505W0HW1, WFE505W0HW2, WFE505W0HW3, WFE505W0HZ0, WFE505W0HZ1, WFE505W0JS0, WFE505W0JS1, WFE505W0JV0, WFE505W0JV1, WFE505W0JZ0
