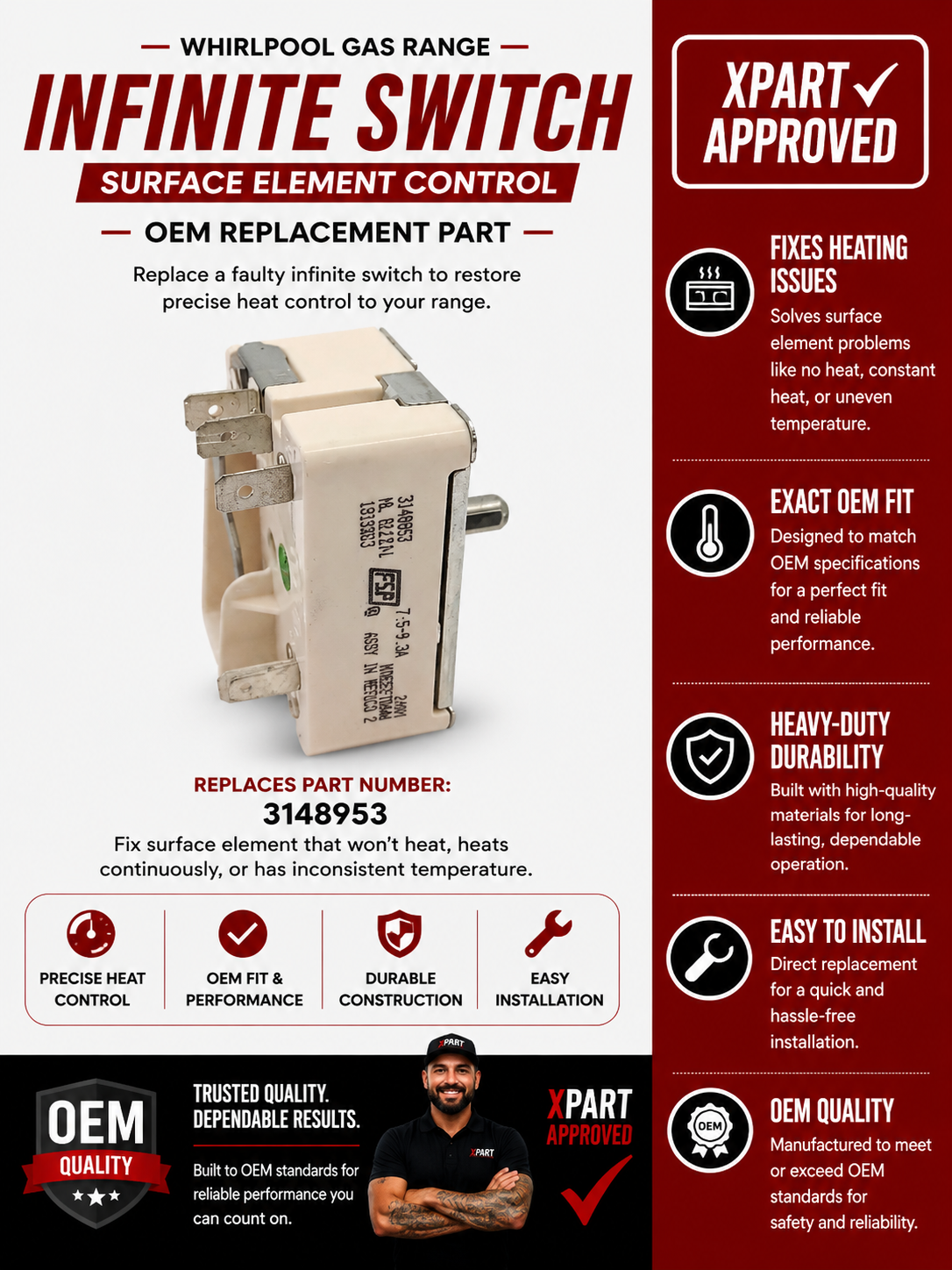

Whirlpool Range Surface element control switch (infinite switch) for large/8-inch surface element WP3148953, Replaces 3148953

Sale price
$51.99
Regular price
$78.51
You save
$26.52 (34%)
Buying Options: XPart

Product variant with selected options does not exist!

Frequently Bought Together

Confirm This Fits Your Model
Not sure where to find your model number? See guide →
THE LARGE SURFACE ELEMENT DOES NOT REGULATE HEAT NORMALLY

Whirlpool Range Surface element control switch (infinite switch) for large/8-inch surface element WP3148953, Replaces 3148953, Fixes The large surface element does not regulate heat normally

Whirlpool OEM range surface-element control switch, also called an infinite switch, for a large/8-inch electric surface element. It regulates heat cycling for the connected surface element.

Part WP3148953Replaces 3148953Whirlpool

Whirlpool OEM range surface-element control switch, also called an infinite switch, for a large/8-inch electric surface element. It regulates heat cycling for the connected surface element.

Is This the Right Part?

Part NumberWP3148953
Replaces3148953
ManufacturerWhirlpool
Appliance TypeRange
Part TypeSurface element control switch (infinite switch) for large/8-inch surface element

✅ Cross Reference Information

Current Part NumberWP3148953
Replaces3148953

Common Symptoms

  • Large element will not heat
  • Large element remains on high or does not respond correctly to the control setting
  • Large element cycles off unexpectedly
  • Surface-element indicator may remain on when the element is off

Check Before Replacing

  • With appliance power disconnected, verify the control shaft turns normally and is not physically damaged.
  • Confirm the symptom is isolated to the surface element controlled by this switch rather than affecting multiple elements.
  • With power disconnected, inspect accessible switch terminals and wiring for loose connections, heat damage, discoloration, or arcing.
  • A qualified technician may perform continuity/resistance checks specified for the switch, with power fully disconnected; do not test live terminals unless trained and equipped to do so.

Pro Tip

Photograph or label the terminal locations before disconnecting the old switch, because the switch has multiple similar-looking terminals and correct wire placement is essential.

Part Details

Part NumberWP3148953
Part TypeSurface element control switch (infinite switch) for large/8-inch surface element
ManufacturerWhirlpool
Appliance TypeRange
Primary FunctionRegulates power cycling and heat level for a connected large/8-inch electric range surface element.
Cross References3148953

Key Features

  • Whirlpool genuine OEM surface-element control switch
  • Designed for a large/8-inch electric surface element
  • Green infinite-switch design
  • Rated listing: 7.5–9.3 A at 240 V
  • Used on electric ranges

Installation Notes

  • Disconnect electrical power at the range's breaker or other approved disconnect before servicing.
  • Access requirements vary by range model; use the appliance's model-specific service or installation documentation.
  • Record terminal locations before removing wires and transfer wires to the corresponding terminals on the replacement switch.
  • After installation, restore power and verify that the controlled element responds across its operating settings before completing reassembly.

Verified Compatible Models

4KWFC120MAW0, 4RF302BXDW0, 4RF302BXEQ1, 4RF302BXGQ0, 4RF302BXGQ1, 4RF302BXKQ0, 4RF302BXKQ1, 4RF310PXDQ0, 4RF315PXDQ0, 4RF315PXDW0, CES366HQ0, CES366HQ1, CES366HZ0, CES366HZ1, FEC330BL0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.

✅Compatibility & Cross Reference

3148953, WP3148953VP, WP3149401

4KWFC120MAW0, 4RF302BXDW0, 4RF302BXEQ1, 4RF302BXGQ0, 4RF302BXGQ1, 4RF302BXKQ0, 4RF302BXKQ1, 4RF310PXDQ0, 4RF315PXDQ0, 4RF315PXDW0, CES366HQ0, CES366HQ1, CES366HZ0, CES366HZ1, FEC330BL0

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
