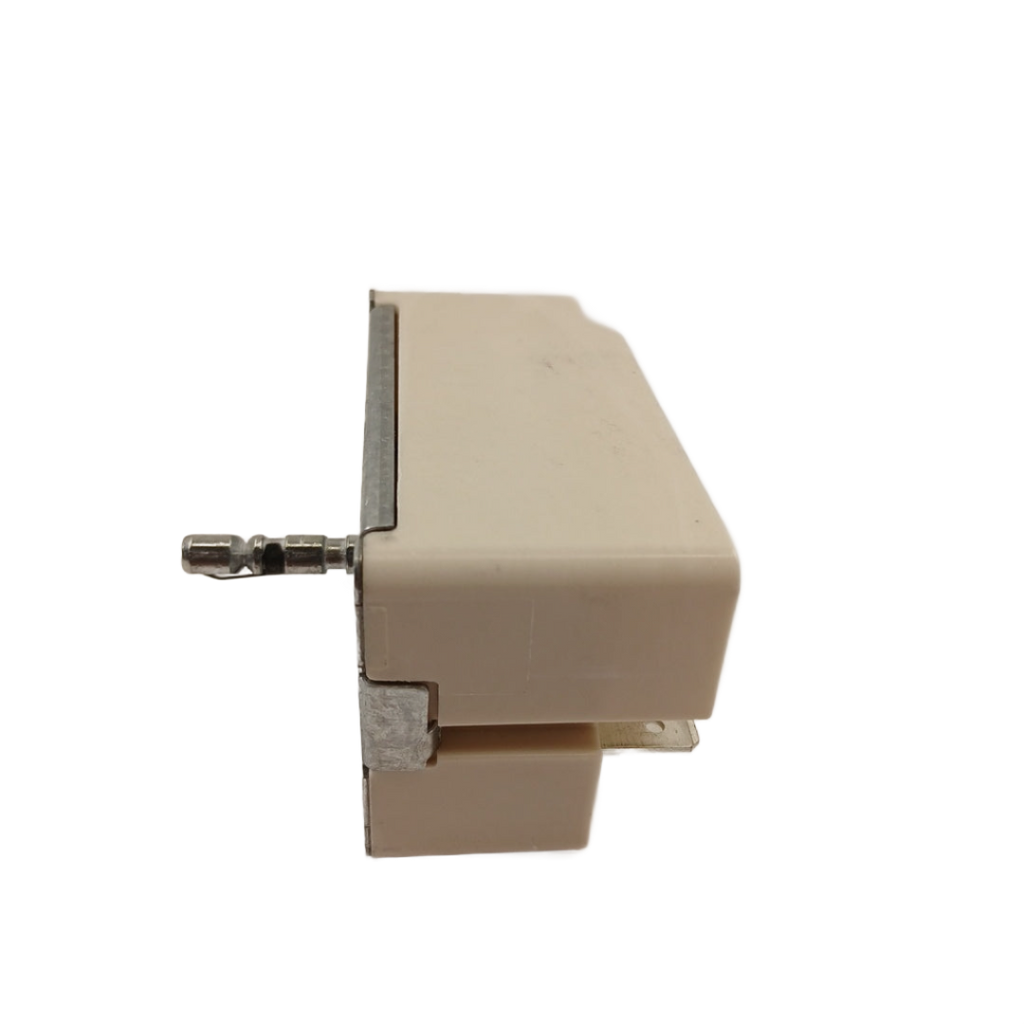

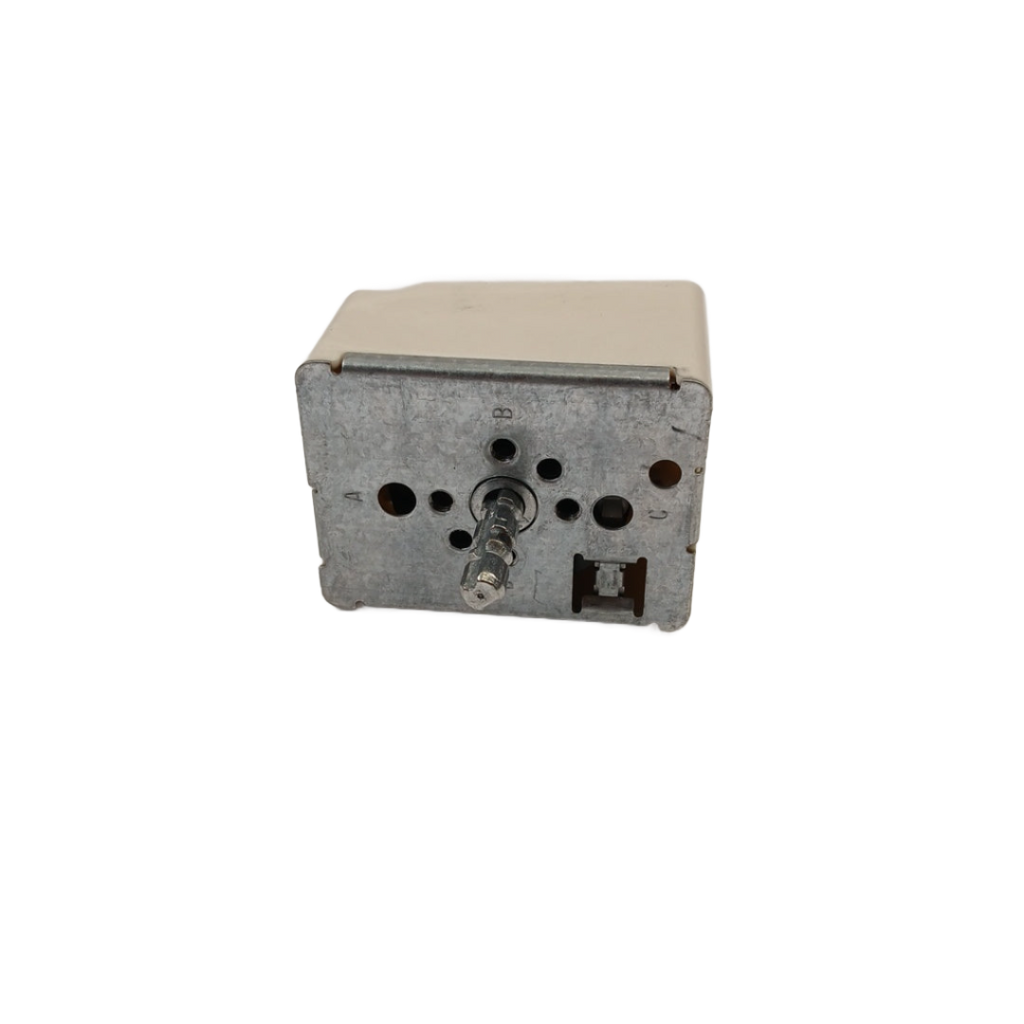

Infinite Switch, Surface Element Switch, Burner Switch, Range Switch, Cooktop Switch, Element Control Switch

Part number WP3149400 replaces 310180, 311846, 311858, 311859, 314140, 3148954, 3149400, 99989662, W10295573, WP3149400VP

Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, Kenmore, Estate, Roper, Inglis, Crosley

1028B06, 1028B16, 1028B26, 1028B46, 1213W1A, 12150A, 12151A, 12150A, 12151A, 1215W0A, 1215W1A, 12350A, 12351A, 12350A, 1235^1A, 1235W0A, 1235W1A, 1259A16, 1259A26, 1259C16, 1259C26, 1259H16, 1259H26, 1259L26, 1259W16, 1259W26, 12760A, 12760A, 1276W0A, 1352W06, 14050A, 14051A, 14052A, 14050A, 14051A, 14052A, 1405W0A, 1405W1A, 14150A, 14151A, 14150A, 14151A, 1415W0A, 1415W1A, 14160A, 14161A, 14162A, 14160A, 14161A, 14162A, 1416W0A, 1416W1A, 1416W2A, 14250A, 14251A, 14250A, 14251A, 1425W0A, 1425W1A, 1426X0A, 1426X1A, 1426X2A, 14350A, 14351A, 14350A, 14351A, 1435W0A, 1435W1A, 14360A, 14361A, 14360A, 14361A, 1436W0A, 1436W1A, 14450A, 14451A, 14450A, 14451A, 1445W0A, 1445W1A, 1455X0A, 2920A, 2930A, 2940A, 2950A, 2960A, 4KAER7685EW1, 4KMER7685ES1, 4KMER7685EW1, 4KWFC120MAW1, 4KWFE7685ES0, 4KWFE7685ES1, 4KWFE7685EW0, 4KWFE7685EW1, 4RF315PXEQ0, 4RF315PXGQ0, 4RF315PXKQ0, 4RF315PXMQ0, 66565025101, 66592002100, 66592002101, 66592002102, 66592004100, 66592004101, 66592004102, 66592005101, 66592005102, 66592012100, 66592012101, 66592012102, 66592014100, 66592014101, 66592014102, 66592015101, 66592015102, 66592022100, 66592022101, 66592023101, 66592024100, 66592024101, 66592025100, 66592025101, 66592029100, 66592029101, 66592142300, 66592143300, 66592144300, 66592162300, 66592163300, 66592164300, 66592169300, 66595002100, 66595002101, 66595002102, 66595004100, 66595004101, 66595004102, 66595005101, 66595005102, 66595012100, 66595012101, 66595012102, 66595014100, 66595014101, 66595014102, 66595015101, 66595015102, 66595022100, 66595022101, 66595023101, 66595024100, 66595024101, 66595025100, 66595025101, 66595029100, 66595029101, 66595032200, 66595033200, 66595034200, 66595039200, 66595142300, 66595143300, 66595144300, 66595162300, 66595163300, 66595164300, 66595169300, 66595775890, 66595775891, 66595776890, 66595776891, 66595779890, 66595779891, 66595781000, 66595788000, 66595792000, 66595794000, 66595802000, 66595804000, 66595809000, 66595812000, 66595814000, 66595819000, 66595822000, 66595822001, 66595822002, 66595822003, 66595822004, 66595822005, 66595823003, 66595823004, 66595823005, 66595824000, 66595824001, 66595824002, 66595824003, 66595824004, 66595824005, 66595825002, 66595825003, 66595825004, 66595825005, 66595829000, 66595829001, 66595829002, 66595829003, 66595829004, 66595829005, 99521, 99528, 99531, 99538, ACR2303MFW4, ACR2303MFW5, ACR4303MFB1, ACR4303MFB4, ACR4303MFB5, ACR4303MFS1, ACR4303MFS4, ACR4303MFW1, ACR4303MFW4, ACR4303MFW5, ACR4503SFB1, ACR4503SFB4, ACR4503SFS1, ACR4503SFW1, ACR4503SFW4, AER6011VAB0, AER6011VAS0, AER6011VAW0, AER6303MFB1, CES365HQ0, CES365HQ1, CES365HZ0, CES365HZ1, FES325RQ0, FES325RQ1, FES325RQ2, FES326RD0, FES350BL0, FES350BL1, FES350BW0, FES350BW1, FES355YL0, FES355YL1, FES355YL2, FES355YW0, FES355YW1, FES355YW2, FES385YL0, FES385YW0, GR395LXGB0, GR395LXGB1, GR395LXGB2, GR395LXGQ0, GR395LXGQ1, GR395LXGQ2, GR395LXGT2, GR395LXGZ0, GR395LXGZ1, GR395LXGZ2, GR396LXGB0, GR396LXGB1, GR396LXGB2, GR396LXGQ0, GR396LXGQ1, GR396LXGQ2, GR396LXGT2, GR396LXGZ0, GR396LXGZ1, GR396LXGZ2, GR399LXGB0, GR399LXGB1, GR399LXGB2, GR399LXGQ0, GR399LXGQ1, GR399LXGQ2, GR399LXGT1, GR399LXGT2, GR399LXGZ0, GR399LXGZ1, GR399LXGZ2, GR399LXHS0, GR399LXHS1, GR438LXRQ0, GR438LXRQ1, GR438LXRQ2, GR458LXLQ0, GR458LXLT0, GR458LXMQ0, GR458LXMT0, IES426AS0, IES426AS1, IES505DS0, IME31300, IME31301, IME31302, IME32300, IME32301, IME32302, IME32303, IME33300, IME33302, IME33303, IMP33801, IMP33802, IRE31300, IRE31301, IRE32300, IRE32301, IRE32302, IRE32303, IRP33800, IRP33801, IRP33802, IRP33803, IVE32300, IVE32301, IVP33800, IVP33801, MER6600FB1, MER6600FB2, MER6600FW1, MER6600FW2, MER6600FW3, MER6600FZ1, MER6600FZ2, MER6600FZ3, OEMGR399LXGB2, OEMGR399LXGQ2, OEMGR399LXGT2, OEMGR399LXGZ2, RF114PXSB0, RF114PXSB1, RF114PXSB2, RF114PXSB3, RF114PXSQ0, RF114PXSQ1, RF114PXSQ2, RF114PXSQ3, RF114PXST0, RF114PXST1, RF114PXST2, RF114PXST3, RF196LXJQ0, RF196LXJT0, RF198LXMB0, RF198LXMC0, RF198LXMP0, RF198LXMS0, RF199LXHQ0, RF199LXHQ1, RF199LXHT1, RF199LXHZ0, RF199LXHZ1, RF199LXKB0, RF199LXKB1, RF199LXKP0, RF199LXKP1, RF199LXKT0, RF199LXKT1, RF246LXSB0, RF261PXSQ0, RF261PXSQ1, RF261PXST0, RF261PXST1, RF261PXSW0, RF261PXSW1, RF262LXSB0, RF262LXSB1, RF262LXSB2, RF262LXSB3, RF262LXSB4, RF262LXSQ0, RF262LXSQ1, RF262LXSQ2, RF262LXSQ3, RF262LXSQ4, RF262LXST0, RF262LXST1, RF262LXST2, RF262LXST3, RF262LXST4, RF262LXSW0, RF262LXSW1, RF263LXTB0, RF263LXTB1, RF263LXTB2, RF263LXTB3, RF263LXTQ0, RF263LXTQ1, RF263LXTQ2, RF263LXTQ3, RF263LXTS0, RF263LXTS1, RF263LXTS2, RF263LXTS3, RF263LXTT0, RF263LXTT1, RF263LXTT2, RF263LXTT3, RF263LXTW0, RF263LXTW1, RF263LXTW2, RF264LXSB0, RF264LXSB1, RF264LXSB2, RF264LXSB3, RF264LXSQ0, RF264LXSQ1, RF264LXSQ2, RF264LXSQ3, RF264LXST0, RF264LXST1, RF272LXTD0, RF272LXTD1, RF272LXTD2, RF272LXTD3, RF3000XPW0, RF3020XPW0, RF302BXPW0, RF303BXPW0, RF306BXPW0, RF3100XPW0, RF310PXPW0, RF3120XPW0, RF313PXPT0, RF3140XPN0, RF315PCYN0, RF315PCYN1, RF315PCYN2, RF315PCYW0, RF315PCYW1, RF315PCYW2, RF315PXEN0, RF315PXEQ0, RF315PXEW0, RF315PXGN0, RF315PXGN1, RF315PXGQ0, RF315PXGQ1, RF315PXGT1, RF315PXGV1, RF315PXGW0, RF315PXGW1, RF315PXKB0, RF315PXKQ0, RF315PXKT0, RF315PXKV0, RF315PXKW0, RF315PXMB0, RF315PXMQ0, RF315PXMT0, RF315PXMV0, RF315PXMW0, RF315PXPB0, RF315PXPB1, RF315PXPB2, RF315PXPB3, RF315PXPQ0, RF315PXPQ1, RF315PXPQ2, RF315PXPQ3, RF315PXPT0, RF315PXPT1, RF315PXPT2, RF315PXPT3, RF315PXXG1, RF315PXXG2, RF315PXXN0, RF315PXXN1, RF315PXXN2, RF315PXXW0, RF315PXXW1, RF315PXXW2, RF315PXYG0, RF315PXYG1, RF315PXYG2, RF315PXYN0, RF315PXYN1, RF315PXYN2, RF315PXYW0, RF315PXYW1, RF315PXYW2, RF3165XPW0, RF3165XVF0, RF3165XVG0, RF3165XVM0, RF3165XVN0, RF3165XVW0, RF3165XWG1, RF3165XWG2, RF3165XWN0, RF3165XWN1, RF3165XWN2, RF3165XWW0, RF3165XWW1, RF3165XWW2, RF317PXPW0, RF325PXEN0, RF325PXEQ0, RF325PXEW0, RF325PXEZ0, RF325PXGN0, RF325PXGN1, RF325PXGQ0, RF325PXGQ1, RF325PXGW0, RF325PXGW1, RF325PXGZ0, RF325PXGZ1, RF327PXPW0, RF3300XPW0, RF330PXPW0, RF332BXPW0, RF333PXPT0, RF3365XPW0, RF3365XVN0, RF3365XVW0, RF3365XWN0, RF3365XWN1, RF3365XWN2, RF3365XWW0, RF3365XWW1, RF3365XWW2, RF336PXPW0, RF3600XPW0, RF3600XPW1, RF360BXPW0, RF360BXVF0, RF360BXVG0, RF360BXVM0, RF360BXVN0, RF360BXVW0, RF360BXXN0, RF360BXXN1, RF360BXXN2, RF360BXXN3, RF360BXXW0, RF360BXXW1, RF360BXXW2, RF360BXXW3, RF360BXYN0, RF360BXYN1, RF360BXYN2, RF360BXYW0, RF360BXYW1, RF360BXYW2, RF3615XWG1, RF3615XWN1, RF3615XWW1, RF361BXDN0, RF361BXDW0, RF361PXXW0, RF361PXXW1, RF361PXXW2, RF3620XPW0, RF3620XPW1, RF362BBDN0, RF362BBDQ0, RF362BBDW0, RF362BBDZ0, RF362BXGN0, RF362BXGN1, RF362BXGQ0, RF362BXGQ1, RF362BXGT1, RF362BXGV1, RF362BXGW0, RF362BXGW1, RF362BXKQ0, RF362BXKQ1, RF362BXKT0, RF362BXKT1, RF362BXKV0, RF362BXKV1, RF362BXKW0, RF362BXKW1, RF362BXMQ0, RF362BXMT0, RF362BXMV0, RF362BXMW0, RF362LXSB0, RF362LXSB1, RF362LXSQ0, RF362LXSQ1, RF362LXSS0, RF362LXSS1, RF362LXST0, RF362LXST1, RF363PXDN0, RF363PXDW0, RF363PXPT0, RF363PXPT1, RF364PSBN0, ELECTRONIC,, DESIGNER, STYLE,, RF364PSBQ0, RF364PSBW0, RF365BXPN0, RF365BXPN1, RF365BXPW0, RF365BXPW1, RF365BXVN0, RF365BXVW0, RF365BXWM1, RF365BXWM2, RF365BXWN1, RF365BXWN2, RF365BXWW1, RF365BXWW2, RF365BXYN0, RF365BXYN1, RF365BXYW0, RF365BXYW1, RF365PXDN0, RF365PXDQ0, RF365PXDW0, RF365PXDZ0, RF365PXGN0, RF365PXGN1, RF365PXGQ0, RF365PXGQ1, RF365PXGT1, RF365PXGW0, RF365PXGW1, RF365PXKQ0, RF365PXKT0, RF365PXKV0, RF365PXKW0, RF365PXMQ0, RF365PXMQ1, RF365PXMQ2, RF365PXMQ3, RF365PXMT0, RF365PXMT1, RF365PXMT2, RF365PXMT3, RF365PXMV0, RF365PXMV1, RF365PXMV2, RF365PXMW0, RF365PXMW1, RF365PXMW2, RF365PXMW3, RF365PXWN0, RF365PXWW0, RF365PXXN0, RF365PXXN1, RF365PXXN2, RF365PXXW0, RF365PXXW1, RF365PXXW2, RF365PXYN0, RF365PXYN1, RF365PXYN2, RF365PXYQ0, RF365PXYQ1, RF365PXYQ2, RF365PXYW0, RF365PXYW1, RF365PXYW2, RF365PXYZ2, RF366LXKQ0, RF366LXKT0, RF366PXGN0, RF366PXGN1, RF366PXGQ0, RF366PXGQ1, RF366PXGQ2, RF366PXGT1, RF366PXGT2, RF366PXGW0, RF366PXGW1, RF366PXGW2, RF367BXPW0, RF367LXKB0, RF367LXKQ0, RF367LXKT0, RF367LXKV0, RF367LXKW0, RF367LXMB0, RF367LXMQ0, RF367LXMT0, RF367LXMV0, RF367LXMW0, RF367PXDN0, RF367PXDW0, RF368LXKB0, RF368LXKB1, RF368LXKP0, RF368LXKQ0, RF368LXKQ1, RF368LXKS1, RF368LXKT0, RF368LXKT1, RF368LXKV0, RF368LXKW0, RF368LXMB0, RF368LXMQ0, RF368LXMS0, RF368LXMT0, RF368LXPB0, RF368LXPB1, RF368LXPB2, RF368LXPB3, RF368LXPQ0, RF368LXPQ1, RF368LXPQ2, RF368LXPQ3, RF368LXPS0, RF368LXPS1, RF368LXPS2, RF368LXPS3, RF368LXPT0, RF368LXPT1, RF368LXPT2, RF368LXPT3, RF369LXPB0, RF369LXPB1, RF369LXPB2, RF369LXPB3, RF369LXPQ0, RF369LXPQ1, RF369LXPQ2, RF369LXPQ3, RF369LXPT0, RF369LXPT1, RF369LXPT2, RF370LXGN0, RF370LXGW0, RF370LXPB0, RF370LXPB1, RF370LXPQ0, RF370LXPQ1, RF370LXPQ2, RF370LXPQ3, RF370LXPS0, RF370LXPS1, RF370LXPS2, RF370LXPS3, RF370LXPT0, RF370LXPT1, RF370LXPT2, RF370LXPT3, RF370PXDN0, RF370PXDW0, RF370PXGQ0, RF370PXGQ1, RF370PXGZ0, RF370PXGZ1, RF370PXYN0, RF370PXYN1, RF370PXYN2, RF370PXYW0, RF370PXYW1, RF370PXYW2, RF372BXEN0, RF372BXEQ0, RF372BXEW0, RF372BXEZ0, RF3750XPW0, RF3750XPW1, RF375PCYN0, RF375PCYN1, RF375PCYN2, RF375PCYN3, RF375PCYW0, RF375PCYW1, RF375PCYW2, RF375PCYW3, RF375PXDN0, RF375PXDQ0, RF375PXDW0, RF375PXDZ0, RF375PXEN0, RF375PXEQ0, RF375PXEW0, RF375PXEZ0, RF375PXPW0, RF375PXPW1, RF375PXVN0, RF375PXVN1, RF375PXVW0, RF375PXVW1, RF375PXWN0, RF375PXWN1, RF375PXWN2, RF375PXWW0, RF375PXWW1, RF375PXWW2, RF375PXXN0, RF375PXXN1, RF375PXXN2, RF375PXXW0, RF375PXXW1, RF375PXXW2, RF375PXYB1, RF375PXYB2, RF375PXYB3, RF375PXYN0, RF375PXYN1, RF375PXYN2, RF375PXYN3, RF375PXYQ0, RF375PXYQ1, RF375PXYQ2, RF375PXYQ3, RF375PXYW0, RF375PXYW1, RF375PXYW2, RF375PXYW3, RF376LXGN0, RF376LXGN1, RF376LXGN2, RF376LXGN3, RF376LXGT2, RF376LXGT3, RF376LXGW0, RF376LXGW1, RF376LXGW2, RF376LXGW3, RF377PXGB0, CLEANING, RF377PXGB1, RF377PXGB5, RF377PXGN0, CLEANING, RF377PXGN1, RF377PXGN5, RF377PXGQ0, CLEANING, RF377PXGQ1, RF377PXGQ5, RF377PXGT1, RF377PXGV1, RF377PXGW0, CLEANING, RF377PXGW1, RF377PXGW5, RF377PXGZ0, CLEANING, RF377PXGZ1, RF377PXGZ5, RF377PXYN0, RF377PXYN1, RF377PXYN2, RF377PXYW0, RF377PXYW1, RF377PXYW2, RF378LXKB0, RF378LXKB1, RF378LXKQ0, RF378LXKQ1, RF378LXKS1, RF378LXKT0, RF378LXKT1, RF378LXMB0, RF378LXMQ0, RF378LXMS0, RF378LXMT0, RF378PXGB0, RF378PXGB1, RF378PXGN0, RF378PXGN1, RF378PXGQ0, RF378PXGQ1, RF378PXGT1, RF378PXGW0, RF378PXGW1, RF378PXGZ0, RF378PXGZ1, RF379LXKB0, RF379LXKQ0, RF379LXKQ1, RF379LXKT0, RF379LXKT1, RF379LXMQ0, RF379LXMT0, RF380LXKQ0, RF380LXKT0, RF380LXMQ0, RF380LXMT0, RF3850XVN0, RF3850XVW0, RF385PCVN0, RF385PCVW0, RF385PCWN0, RF385PCWN1, RF385PCWN2, RF385PCWW0, RF385PCWW1, RF385PCWW2, RF385PXDB0, RF385PXDQ0, RF385PXDZ0, RF385PXEN0, RF385PXEQ0, RF385PXEW0, RF385PXEZ0, RF385PXGB0, RF385PXGB1, RF385PXGB2, RF385PXGN0, RF385PXGN1, RF385PXGN2, RF385PXGQ0, RF385PXGQ1, RF385PXGQ2, RF385PXGT2, RF385PXGW0, RF385PXGW1, RF385PXGW2, RF385PXGZ0, RF385PXGZ1, RF385PXGZ2, RF385PXVN0, RF385PXVW0, RF385PXWN0, RF385PXWN1, RF385PXWN2, RF385PXWW0, RF385PXWW1, RF385PXWW2, RF385PXYN0, RF385PXYN1, RF385PXYN2, RF385PXYN3, RF385PXYN4, RF385PXYQ0, RF385PXYQ1, RF385PXYQ2, RF385PXYQ3, RF385PXYQ4, RF385PXYW0, RF385PXYW1, RF385PXYW2, RF385PXYW3, RF385PXYW4, RF386PXGB0, RF386PXGB1, RF386PXGB2, RF386PXGB3, RF386PXGB4, RF386PXGN0, RF386PXGN1, RF386PXGN2, RF386PXGN3, RF386PXGN4, RF386PXGQ0, RF386PXGQ1, RF386PXGQ2, RF386PXGQ3, RF386PXGQ4, RF386PXGT2, RF386PXGT3, RF386PXGT4, RF386PXGW0, RF386PXGW1, RF386PXGW2, RF386PXGW3, RF386PXGW4, RF386PXGZ0, RF386PXGZ1, RF386PXGZ2, RF386PXGZ3, RF386PXGZ4, RF387LXGN0, RF387LXGN1, RF387LXGQ0, RF387LXGQ1, RF387LXGW0, RF387LXGW1, RF387LXHQ0, RF387LXHQ1, RF387LXHT1, RF387LXHZ0, RF387LXHZ1, RF388LXGQ0, RF388LXGQ1, RF388LXGQ2, RF388LXGQ3, RF388LXGQ4, RF388LXGT3, RF388LXGT4, RF388LXGZ0, RF388LXGZ1, RF388LXGZ2, RF388LXGZ3, RF388LXGZ4, RF388LXKB0, RF388LXKP0, RF388LXKQ0, RF388LXKT0, RF389LXKB0, RF389LXKQ0, RF389LXKT0, RF390LXKP0, RF390LXKQ0, RF390LXKT0, RF395LXEB0, RF395LXEQ0, RF395LXEZ0, RF462LXSB2, RF462LXSB3, RF462LXSB4, RF462LXSQ2, RF462LXSQ3, RF462LXSQ4, RF462LXSS2, RF462LXSS3, RF462LXSS4, RF462LXST2, RF462LXST3, RF462LXST4, RJE345PW0, RJE385PW0, RJE385PW1, RLS340-U*-0F, RLS357-U*-0F, RLT359, RMT359, RS363PXGN0, RS363PXGQ0, RS363PXGW0, S4257*0, S4257^0, S4257W0, S6507*0, S6507^0, S6507X0, SES380MS0, TEP325KW0, TEP325MW0, TER46W0WN0, TER46W0WN1, TER46W0WN2, TER46W0WW0, TER46W0WW1, TER46W0WW2, TER46W0YN0, TER46W0YN1, TER46W0YN2, TER46W0YW0, TER46W0YW1, TER46W0YW2, TER56W2BN0, TER56W2BW0, TER86W5BN0, TER86W5BW0, TES325MQ0, TES325MQ1, TES325MQ2, TES325MQ3, TES325MQ4, TES325MQ5, TES325MT4, TES325MT5, TES325VQ0, TES325VT0, TES326RD0, TES326RD1, TES326RD2, TES326RD3, TES326RD4, TES326VD0, WERC3100PQ0, WERC3100PQ1, WERC3100PQ2, WERE3000PB4, WERE3000PB5, WERE3000PQ0, WERE3000PQ1, WERE3000PQ2, WERE3000PQ4, WERE3000PQ5, WERE3000SB0, WERE3000SB1, WERE3000SB2, WERE3000SQ0, WERE3000SQ1, WERE3000SQ2, WERE3100PQ0, WERE3100PQ1, WERE3100PQ2, WERE3110PQ0, WERE3110PQ1, WERE4100PB0, WERE4100PB2, WERE4100PB3, WERE4100PQ0, WERE4100PQ2, WERE4100PQ3, WERE4100PT0, WERE4200PQ0, WERE4200PQ1, WERE4200PQ2, WERE4200PQ3, WERP3000PB4, WERP3000PQ0, WERP3000PQ1, WERP3000PQ2, WERP3000PQ3, WERP3000PQ4, WERP3100PB0, WERP3100PB1, WERP3100PB2, WERP3100PB3, WERP3100PB4, WERP3100PQ0, WERP3100PQ1, WERP3100PQ2, WERP3100PQ3, WERP3100PQ4, WERP3100PS0, WERP3100PS1, WERP3100PS2, WERP3100PS3, WERP3100PS4, WERP3100PT0, WERP3100PT1, WERP3101SB0, WERP3101SB1, WERP3101SB2, WERP3101SQ0, WERP3101SQ1, WERP3101SQ2, WERP3101SS0, WERP3101SS1, WERP3101SS2, WERP3120PB0, WERP3120PB1, WERP3120PB2, WERP3120PB3, WERP3120PQ0, WERP3120PQ1, WERP3120PQ2, WERP3120PQ3, WERP3200PQ0, WERP3200PQ1, WERP3200PQ2, WERP4101SB1, WERP4101SB2, WERP4101SB3, WERP4101SQ1, WERP4101SQ2, WERP4101SQ3, WERP4101SS1, WERP4101SS2, WERP4101SS3, WERP4110PQ0, WERP4110PQ1, WERP4110PQ2, WERP4110PQ3, WERP4110PS0, WERP4110PS1, WERP4110PS2, WERP4110PS3, WERP4110PT0, WERP4110PT1, WERP4110SB0, WERP4110SB1, WERP4110SB2, WERP4110SB3, WERP4110SQ0, WERP4110SQ1, WERP4110SQ2, WERP4110SQ3, WERP4110SS0, WERP4110SS1, WERP4110SS2, WERP4110SS3, WERP4210PQ0, WERP4210PQ1, WERP4210PQ2, WERP4210PQ3, WFC150M0EB1, WFC150M0EW1, WFC150M0JB0, WFC150M0JS0, WFC150M0JW0, WFC310S0AB0, WFC310S0AS0, WFC310S0AT0, WFC310S0AW0, WFC310S0EB0, WFC310S0EB1, WFC310S0EB2, WFC310S0EB3, WFC310S0EB4, WFC310S0ES0, WFC310S0ES1, WFC310S0ES2, WFC310S0ES3, WFC310S0ES4, WFC310S0EW0, WFC310S0EW1, WFC310S0EW2, WFC310S0EW3, WFC310S0EW4, WFC315S0JB0, WFC315S0JS0, WFC315S0JS1, WFC315S0JW0, WFE320M0AB0, WFE320M0AS0, WFE320M0AW0, WFE320M0EB0, WFE320M0EB1, WFE320M0EB2, WFE320M0ES0, WFE320M0ES1, WFE320M0ES2, WFE320M0EW0, WFE320M0EW1, WFE320M0EW2, WFE320M0JB0, WFE320M0JS0, WFE320M0JS1, WFE320M0JW0, WFE361LVB0, WFE361LVB1, WFE361LVD0, WFE361LVD1, WFE361LVQ0, WFE361LVQ1, WFE361LVS0, WFE361LVS1, WFE361LVT0, WFE361LVT1, WFE505W0HB0, WFE505W0HB1, WFE505W0HB2, WFE505W0HB3, WFE505W0HS0, WFE505W0HS1, WFE505W0HW0, WFE505W0HW1, WFE505W0HW2, WFE505W0HW3, WFE505W0HZ0, WFE505W0HZ1, WFE505W0JS0, WFE505W0JS1, WFE505W0JV0, WFE505W0JV1, WFE505W0JZ0, WFE505W0JZ1, WFE510S0AB0, WFE510S0AD0, WFE510S0AS0, WFE510S0AT0, WFE510S0AW0, WFE510S0HB0, WFE510S0HB1, WFE510S0HS0, WFE510S0HS1, WFE510S0HW0, WFE510S0HW1, WFE515S0EB0, WFE515S0EB1, WFE515S0EB2, WFE515S0ED0, WFE515S0ED1, WFE515S0ES0, WFE515S0ES1, WFE515S0ES2, WFE515S0ET0, WFE515S0ET1, WFE515S0ET2, WFE515S0EW0, WFE515S0EW1, WFE515S0EW2, WFE515S0JB0, WFE515S0JB1, WFE515S0JS0, WFE515S0JS1, WFE515S0JW0, WFE515S0JW1, WFE520C0AB0, WFE520C0AS0, WFE520C0AW0, WFE525C0BB0, WFE525C0BS0, WFE525C0BW0, WFE525S0JB0, WFE525S0JB1, WFE525S0JS0, WFE525S0JS1, WFE525S0JT0, WFE525S0JV0, WFE525S0JV1, WFE525S0JW0, WFE525S0JW1, WFE525S0JZ0, WFE525S0JZ1, YACR4303MFS5, YACR4303MFW5, YACR4303MFW6, YACR4503SFW5, YIES426AS0, YIES426AS1, YIES505DS0, YIES505DS1, YKERI204PB0, YKERI204PB1, YKERI204PB2, YKERI204PW0, YKERI204PW1, YKERI204PW2, YKERI204PW3, YMER6600FB0, YMER6600FB1, YMER6600FB2, YMER6600FW0, YMER6600FW1, YMER6600FW2, YMER6600FW3, YMER6600FZ0, YMER6600FZ1, YMER6600FZ2, YMER7651WB0, YMER7651WB1, YMER7651WB2, YMER7651WS0, YMER7651WS2, YMER7660WB1, YMER7660WS2, YRF115LXVB0, YRF115LXVQ0, YRF115LXVS0, YRF263LXTB0, YRF263LXTQ0, YRF263LXTS0, YWFC150M0EB4, YWFC150M0EW4, YWFC150M0JB0, YWFC150M0JW0, YWFC310S0BB0, YWFC310S0BS0, YWFC310S0BW0, YWFC310S0ES0, YWFC310S0ES1, YWFC310S0ES2, YWFC310S0ES3, YWFC310S0ES4, YWFC310S0EW0, YWFC310S0EW1, YWFC310S0EW2, YWFC310S0EW3, YWFC310S0EW4, YWFC315S0JS0, YWFC315S0JS1, YWFC315S0JW0, YWFE361LVB0, YWFE361LVB1, YWFE361LVQ0, YWFE361LVQ1, YWFE361LVS0, YWFE361LVS1, YWFE505W0JW0, YWFE505W0JZ0, YWFE505W0JZ1, YWFE510S0AB0, YWFE510S0AS0, YWFE510S0AW0, YWFE510S0EB0, YWFE510S0ES0, YWFE510S0ES1, YWFE510S0EW0, YWFE510S0HB0, YWFE510S0HB1, YWFE510S0HS0, YWFE510S0HS1, YWFE510S0HW0, YWFE510S0HW1, YWFE515S0EB0, YWFE515S0EB1, YWFE515S0ES0, YWFE515S0ES1, YWFE515S0EW0, YWFE515S0EW1, YWFE515S0JB0, YWFE515S0JS0, YWFE515S0JS1, YWFE515S0JW0, YWFE521S0HS0, YWFE521S0HS1, YWFE521S0HS2, YWFE521S0HW0, YWFE521S0HW1

CRITICAL SAFETY WARNING: This repair involves working with 240-volt electrical connections inside the range. Always turn off the circuit breaker and unplug the range before beginning work to prevent electrical shock, burns, and accidental element activation. If uncomfortable with this repair, hire a qualified electrician or appliance technician.TOOLS REQUIRED: Phillips screwdriver, flathead screwdriver, nut driver or socket set (typically 1/4-inch or 5/16-inch), needle-nose pliers, flashlight, work gloves, voltage tester or multimeter.IMPORTANT: This switch is specifically for 8-inch surface elements rated at 8.9-11.0 amps. Verify your element size and switch amperage rating before ordering.

1. Turn off the circuit breaker that supplies power to the range. CRITICAL: Never work on the range while it's powered.
2. Unplug the range from the electrical outlet (if accessible) to ensure complete power disconnection.
3. Verify power is off using a voltage tester or multimeter at the range's electrical connection. Should read 0 volts.
4. Remove the control knob from the faulty switch by pulling it straight off the shaft. Some knobs may have a set screw that must be loosened first.
5. Remove the cooktop or access panel to reach the switch. Most ranges require removing screws securing the cooktop, then lifting or tilting the cooktop forward to access the switches underneath.
6. Take multiple photos of the switch location, wire connections, terminal positions, and mounting configuration before disassembly. CRITICAL: Wire connections must be exact for proper reassembly and safe operation.
7. Locate the faulty infinite switch behind the control knob location. The switch is typically mounted to a bracket on the back of the control panel.
8. Take detailed close-up photos of: all wire connections and terminal positions (typically 4 wires: L1, L2, H1, H2), wire colors and routing, switch mounting screws or clips, and switch orientation.
9. Label each wire with tape or markers indicating its terminal position (L1, L2, H1, H2) before disconnection. CRITICAL: Incorrect wiring causes element malfunction, overheating, or electrical hazards.
10. Disconnect the wires from the switch terminals by pulling the spade connectors straight off. Caution: Do not pull on the wires—grip the connector and pull. If connectors are tight, use needle-nose pliers to gently wiggle and pull.
11. Remove the switch mounting screws or clips securing the switch to the bracket. Typically 1-2 screws hold the switch.
12. Carefully remove the old switch from the mounting location, noting its orientation.
13. Inspect the old switch for damage indicators: melted or discolored housing (overheating), burned or pitted terminals (electrical arcing), cracked housing (thermal stress), or visible damage to internal components. This confirms the diagnosis.
14. Test the old switch resistance (optional, requires multimeter): Set multimeter to measure resistance (ohms). Touch probes to the L1 and H1 terminals. Rotate the switch shaft through its full range. Resistance should vary smoothly from infinite (off) to low resistance (on) as the shaft rotates. If resistance is always infinite (open circuit) or always low (contacts welded closed), the switch has failed.
15. Inspect the wire connectors for damage, corrosion, or burning. If connectors are damaged, they should be replaced before installing the new switch.
16. Clean the switch mounting area on the bracket, removing any grease, debris, or corrosion.
17. Unpack the new WP3149400 switch from its packaging.
18. Compare the new switch to the old one to verify terminal configuration, shaft length, mounting hole spacing, and overall design match.
19. Inspect the new switch for any shipping damage before installation. The housing should be intact with no cracks, and the shaft should rotate smoothly.
20. Position the new switch in the mounting location on the bracket, aligning the mounting holes and ensuring the shaft protrudes through the control panel opening. Important: The switch orientation must match the old switch per your detailed photos.
21. Install the switch mounting screws or clips to secure the switch to the bracket. Tighten firmly but not excessively.
22. Verify the switch is securely mounted with no excessive play or movement.
23. Connect the wires to the new switch terminals according to your detailed photos and labels:L1 terminal: Incoming power (hot) from circuit breaker (typically black wire)L2 terminal: Incoming neutral from circuit breaker (typically white wire)H1 terminal: Outgoing power to surface element (typically black or red wire)
    - H2 terminal: Outgoing neutral to surface element (typically white wire)
    24. Connect each wire firmly to its terminal by pushing the spade connector onto the terminal post until it seats completely. CRITICAL: Loose connections cause overheating, arcing, and fire hazard.
    25. Verify all connections are secure by gently tugging on each wire—should not pull off.
    26. Inspect all wire connections for proper seating and no exposed terminals.
    27. Reinstall the cooktop or access panel by positioning it and securing with screws.
    28. Reinstall the control knob on the switch shaft by pushing it straight on until it seats. If the knob has a set screw, tighten it to secure the knob.
    29. Verify the knob is secure by attempting to pull it off—should not move.
    30. Restore electrical power by turning on the circuit breaker.
    31. Verify power is restored using a voltage tester at the range's electrical connection. Should read 240 volts.
    32. Run a test cycle to verify proper switch operation:
    - Set the surface element to low heat
    - Observe the element—should glow red after 30-60 seconds
    - Rotate the knob to medium heat
    - The element should glow brighter
    - Rotate the knob to high heat
    - The element should glow at maximum brightness
    - Rotate the knob back to off
    - The element should stop glowing within 1-2 minutes
    33. Listen for any unusual sounds during the test—should not hear buzzing, crackling, or popping.
    34. Check for any burning smell during the test. If you smell burning, immediately turn off the element and circuit breaker and diagnose the issue.
    35. Verify smooth temperature control by rotating the knob slowly through its full range. The element brightness should increase smoothly from off to high without jumping or cycling erratically.
    36. Test all surface elements (if applicable) to verify they operate independently and properly.
    37. Monitor the element during a 10-15 minute test to verify consistent operation and proper heat output.
    38. If the element heats smoothly, responds properly to knob adjustments, and operates without burning smell or unusual sounds, the repair is complete.Safety Notes: Always turn off the circuit breaker before working on electrical components. Verify power is off using a voltage tester. Label all wires before disconnection to ensure correct reassembly. Connect wires firmly to terminals—loose connections cause fire hazard. Test operation thoroughly before considering the repair complete. This repair requires electrical knowledge and typically takes 30-45 minutes for a qualified technician. If uncomfortable working with 240-volt electrical connections, hire a professional electrician.



1. The WP3149400 is specifically for 8-inch surface elements rated at 8.9-11.0 amps—do not confuse it with switches for 6-inch elements or different amperage ratings. Whirlpool ranges typically have two different infinite switches: one for 6-inch elements (lower amperage) and one for 8-inch elements (higher amperage). Installing the wrong switch causes element malfunction, overheating, or fire hazard. Always verify your element size and switch amperage rating before ordering. The 8.9-11.0 amp rating is specific to 8-inch elements—verify compatibility with your range model.
2. An element stuck on high heat indicates the switch contacts are welded closed from electrical arcing. When high current flows through the switch contacts during normal operation, tiny arcs can occur at the contact surfaces. Over time, these arcs pit and erode the contacts. Eventually, the contacts can weld together, preventing the switch from opening and leaving the element on continuously. This is a serious safety hazard—the element will heat to maximum temperature and cannot be turned off. If your element is stuck on high, immediately turn off the circuit breaker and replace the switch. Do not attempt to repair the contacts.
3. An element that cycles erratically (turns on and off randomly) indicates the bimetallic sensing element inside the switch has failed. The bimetallic element is the heart of the infinite switch—it automatically cycles power on/off to maintain temperature. If the bimetallic element is damaged or warped, it cannot cycle properly and the element will behave erratically. This cannot be repaired—the entire switch must be replaced.
4. Proper wire connection is critical—incorrect wiring causes element malfunction, overheating, or electrical hazards. The WP3149400 has four terminals: L1 and L2 for incoming 240-volt power, and H1 and H2 for outgoing power to the element. L1 and H1 carry the hot (black) wires, while L2 and H2 carry the neutral (white) wires. If wires are reversed or crossed, the element may not heat, may overheat, or may create an electrical short. Always label wires before disconnection and verify correct connection before restoring power.
5. Loose wire connections cause overheating, arcing, and fire hazard. If a wire connection is loose, the electrical resistance at the connection increases, causing heat buildup. This heat can melt the wire insulation, damage the switch terminal, or ignite nearby materials. Always connect wires firmly to terminals, ensuring the spade connector seats completely on the terminal post. After connection, gently tug each wire to verify it's secure.
6. Electrical arcing at the switch contacts is the most common cause of infinite switch failure. Every time the switch cycles on/off, a tiny arc occurs at the contact surfaces. Over millions of cycles, these arcs pit and erode the contacts, degrading their conductivity. Eventually, the contacts become so damaged that they cannot carry current properly. The switch then fails—either stuck on, stuck off, or cycling erratically. This is normal wear and cannot be prevented—the switch must be replaced when contacts are damaged.
7. If the element doesn't heat at all, check for: circuit breaker tripped, loose wire connections, or failed switch. A non-heating element indicates a break in the electrical circuit. Verify the circuit breaker is on, check all wire connections for tightness, and test the switch with a multimeter. If the circuit breaker keeps tripping, there may be an electrical short—do not restore power until the short is found and repaired.
8. If the element only works on high heat, the switch bimetallic element may be stuck in the high position. The bimetallic element moves with temperature changes to adjust the on/off cycle. If it's stuck, the switch cannot cycle properly and the element will only work on high. This indicates switch failure—the entire switch must be replaced.
9. Thermal stress from high burner temperatures can damage the switch housing and internal components. If the switch is mounted too close to the cooktop or exposed to excessive heat, the phenolic plastic housing can melt or warp, and the bimetallic element can lose its calibration. Verify the switch is mounted away from direct heat sources and that the cooktop is properly insulated. If the housing is melted or warped, the switch must be replaced.
10. The push-to-turn design prevents accidental activation—verify the knob requires pushing inward before rotating. The WP3149400 features a push-to-turn mechanism that prevents accidental burner activation. If the knob can be rotated without pushing, the mechanism may be damaged or the knob may be installed incorrectly. Verify the knob is properly seated on the shaft and the mechanism functions correctly.
11. After replacing the switch, test all temperature settings (low, medium, high) to verify proper operation. The element should respond smoothly to knob adjustments without jumping, sticking, or cycling erratically. If any problems occur, immediately turn off the element and circuit breaker and diagnose the issue. Do not leave the element unattended during the first few cycles after switch replacement.
12. If the new switch fails prematurely, the cause may be: incorrect wire connection, loose connections, or a defective replacement switch. If the new switch fails within days or weeks, verify all wire connections are correct and tight. If connections are correct, the replacement switch may be defective—contact the supplier for a replacement or refund.
