WP3363394 Washer Drain Pump (replaces 3363394)

XPart Supply Ltd. 680277507725

Sale price
$29.95
Regular price
$47.17
You save
$17.22 (37%)
Buying Options: XPart

Product variant with selected options does not exist!

Frequently Bought Together


21024, 3348015, 3352293, 3352492, 3363394, 62516, 63347, 64076, 8235, WP3363394VP

Fits Models: (Ctrl+F and Enter Your Model Number)


10682872600, 110088732791, 11010202000, 11010202001, 1101050299, 11010502990, 11010502991, 11010852990, 11010852991, 11012202100, 11012502100, 11012852100, 11013202200, 11013212200, 11014102300, 11014112300, 11014202300, 11014212200, 11014222300, 11014502300, 11014852300, 11015732400, 11015842400, 11015852400, 11015862400, 11015864400, 11015942400, 11015942401, 11015944400, 11015944401, 11015952400, 11015952401, 11015954400, 11015954401, 11015962400, 11015962401, 11015964400, 11015964401, 11016101690, 11016101691, 11016102500, 11016102501, 11016102502, 11016202690, 11016202691, 11016212500, 11016212501, 11016212502, 11016212503, 11016502690, 11016502691, 11016502692, 11016502693, 11016502694, 11016512690, 11016512691, 11016512692, 11016602690, 11016602691, 11016602692, 11016602693, 11016611690, 11016611691, 11016611692, 11016612690, 11016612691, 11016612692, 11016732500, 11016812500, 11016812501, 11016812502, 11016812503, 11016852500, 11016852501, 11016852502, 11016852503, 11016862500, 11016862501, 11016862502, 11016862503, 11016872690, 11016872691, 11016872692, 11016872693, 11016882500, 11016882501, 11016882502, 11016882503, 11016922500, 11016922501, 11016922502, 11016922503, 11016922504, 11016942500, 11016942501, 11016942502, 11016942503, 11016962500, 11016962501, 11016962502, 11016962503, 11016964500, 11016964501, 11016964502, 11016964503, 11016972500, 11016982500, 11016984500, 11016986500, 11017102700, 11017122700, 11017132700, 11017812600, 11018112700, 11018202790, 1101820299, 11018212700, 11018212701, 11018522790, 11018522791, 11018532790, 11018542890, 11018542891, 11018609890, 11018702790, 11018702791, 11018812700, 11018812701, 11019101990, 11019101991, 11019101992, 11019202200, 11019422200, 11020052990, 11020052991, 11020052992, 11020052993, 11020052994, 11020056991, 11020056992, 11020056993, 11020056994, 11020072990, 11020072991, 11020072992, 11020072993, 11020092990, 11020092991, 11020092992, 11020092993, 11020094992, 11020094993, 11020096990, 11020096991, 11020096992, 11020096993, 11020097990, 11020097991, 11020097992, 11020097993, 11020112000, 1102011200A, 11020132000, 11020132001, 11020172000, 11020172001, 11020272000, 11020272001, 11020402990, 11020412990, 11020412991, 11020422990, 11020422991, 11020432990, 11020432991, 11020442990, 11020442991, 11020522900, 11020602990, 11020602991, 11020602992, 11020612990, 11020612991, 11020622990, 11020622991, 11020632990, 11020632991, 11020642990, 11020692000, 11020692001, 11020702990, 11020702991, 1102071299, 11020712990, 11020712991, 11020722990, 11020722991, 11020802990, 11020802991, 11020832990, 11020832991, 11020842990, 11020842991, 11020852990, 11020852991, 11020854990, 11020854991, 11020857990, 1102086299, 11020862990, 11020862991, 1102087299, 11020872990, 11020872991, 11020882990, 11020882991, 11020892990, 11020892991, 11020894990, 11020894991, 11020897990, 11020901990, 11020901991, 11020902990, 11020902991, 11020904990, 11020904991, 11020907990, 11020907991, 11020912990, 11020912991, 11020922990, 11020922991, 11020924990, 11020924991, 11020927990, 11020932990, 11020932991, 11020932992, 11020932993, 11020932994, 11020936990, 11020936991, 11020936992, 11020936993, 11020936994, 11020942990, 11020942991, 11020942992, 11020942993, 11020942994, 11020952990, 11020952991, 11020952992, 11020952993, 11020952994, 11020954992, 11020954993, 11020954994, 11020956990, 11020956991, 11020956992, 11020956993, 11020956994, 11020957990, 11020957991, 11020957992, 11020972990, 11020972991, 11020972992, 11020972993, 11020982990, 11020982991, 11020982992, 11020982993, 11020992990, 11020992991, 11020992992, 11020992993, 11020994991, 11020994992, 11020994993, 11020996991, 11020996992, 11020996993, 11020997990, 11020997991, 11020997992, 11021882000, 11021882001, 11021884000, 11021884001, 11021892000, 11021894000, 11022032100, 11022032101, 11022032102, 11022036100, 11022036101, 11022036102, 11022042100, 11022042101, 11022042102, 11022052100, 11022052101, 11022052102, 11022054100, 11022054101, 11022054102, 11022056100, 11022056101, 11022056102, 11022292100, 11022294100, 11022422100, 11022432100, 11022442100, 11022622100, 11022632100, 11022642100, 11022652100, 11022662100, 11022692100, 11022692101, 11022702100, 11022702101, 11022712100, 11022722100, 11022722101, 11022802100, 11022802101, 11022832100, 11022832101, 11022832102, 11022842100, 11022842101, 11022842102, 11022852100, 11022852101, 11022852102, 11022854100, 11022854101, 11022854102, 11022862100, 11022862101, 11022872100, 11022872101, 11022872102, 11022882100, 11022882101, 11022882102, 11022892100, 11022892101, 11022892102, 11022894100, 11022894101, 11022894102, 11022902100, 11022902101, 11022904100, 11022904101, 11022912100, 11022912101, 11022922100, 11022922101, 11022922102, 11022924100, 11022924101, 11022924102, 11022932100, 11022932101, 11022932102, 11022936100, 11022936101, 11022936102, 11022942100, 11022942101, 11022942102, 11022952100, 11022952101, 11022952102, 11022954100, 11022954101, 11022954102, 11022956100, 11022956101, 11022956102, 11022972100, 11022972101, 11022972102, 11022972103, 11022974100, 11022974101, 11022974102, 11022974103, 11022982100, 11022982101, 11022982102, 11022982103, 11022992100, 11022992101, 11022992102, 11022992103, 11022994100, 11022994101, 11022994102, 11022994103, 11022996100, 11022996101, 11022996102, 11022996103, 11023012100, 11023012101, 11023012102, 11023014100, 11023014101, 11023014102, 11023022100, 11023022101, 11023022102, 11023024100, 11023024101, 11023024102, 11023032100, 11023032101, 11023032102, 11023034100, 11023034101, 11023034102, 11023036100, 11023036101, 11023036102, 11023652200, 11023662200, 11023692200, 1102371220, 11023712200, 11023722200, 11023732200, 11023812100, 11023822100, 11023832100, 11023902200, 11023902201, 11023904200, 11023904201, 11023912100, 11023912101, 11023912102, 11023922200, 11023922201, 11023924200, 11023924201, 11023932200, 11023934200, 11024032301, 11024036301, 11024042301, 11024052300, 11024054300, 11024056300, 11024292300, 11024294300, 11024422300, 11024432300, 11024442300, 11024622300, 11024632300, 11024642300, 11024652300, 11024662300, 11024692300, 11024712300, 11024722300, 11024732300, 11024812200, 11024812201, 11024822200, 11024822201, 11024832200, 11024832201, 11024852300, 11024862300, 11024872300, 11024892300, 11024894300, 11024902200, 11024902201, 11024902202, 11024904200, 11024904201, 11024904202, 11024922200, 11024922201, 11024922202, 11024924200, 11024924201, 11024924202, 11024932200, 11024932201, 11024932202, 11024934200, 11024934201, 11024934202, 11024942300, 11024942301, 11024944300, 11024944301, 11024946300, 11024946301, 11024952300, 11024952301, 11024954300, 11024954301, 11024956300, 11024956301, 11024962300, 11024962301, 11024964300, 11024964301, 11024966300, 11024966301, 11024972300, 11024974300, 11024982300, 11024992300, 11024994300, 11024996300, 11025292500, 11025292501, 11025292502, 11025292503, 11025294500, 11025294501, 11025294502, 11025294503, 11025832400, 11025842400, 11025844400, 11025852400, 11025854400, 11025862400, 11025864400, 11026051690, 11026058590, 11026058690, 11026071690, 11026071691, 11026152500, 11026292690, 11026292691, 11026292692, 11026292693, 11026292694, 11026292695, 11026294690, 11026294691, 11026294692, 11026294693, 11026294694, 11026294695, 11026322500, 11026322501, 11026322502, 11026322503, 11026332500, 11026332501, 11026332502, 11026332503, 11026342500, 11026342501, 11026342502, 11026342503, 11026422500, 11026422501, 11026422502, 11026422503, 11026432500, 11026432501, 11026432502, 11026432503, 11026442500, 11026442501, 11026442502, 11026442503, 11026622690, 11026622691, 11026632500, 11026632501, 11026632502, 11026632503, 11026642500, 11026642501, 11026642502, 11026642503, 11026652500, 11026652501, 11026652502, 11026652503, 11026682503, 11026692503, 11026702690, 11026702691, 11026702692, 11026702693, 11026702694, 11026712690, 11026712691, 11026712692, 11026712693, 11026722690, 11026722691, 11026722692, 11026722693, 11026732500, 11026732501, 11026732502, 11026732503, 11026742500, 11026742501, 11026742502, 11026742503, 11026752500, 11026752501, 11026752502, 11026752503, 11026791690, 11026791691, 11026801690, 11026801691, 11026801692, 11026808690, 11026808691, 11026808692, 11026809690, 11026812690, 11026812691, 11026814690, 11026814691, 11026822690, 11026822691, 11026822692, 11026824690, 11026824691, 11026824692, 11026832690, 11026832691, 11026832692, 11026832694, 11026834690, 11026834691, 11026834692, 11026834694, 11026842690, 11026842691, 11026842692, 11026842694, 11026844690, 11026844691, 11026844692, 11026844694, 11026852500, 11026852501, 11026852502, 11026852503, 11026852504, 11026862500, 11026862501, 11026862502, 11026862503, 11026882500, 11026882501, 11026882502, 11026882503, 11026884500, 11026884501, 11026884502, 11026884503, 11026892690, 11026892691, 11026894691, 11026901690, 11026901691, 11026901692, 11026902690, 11026902691, 11026902692, 1102690290, 11026902962, 11026904691, 11026904692, 11026912690, 11026912691, 11026914690, 11026914691, 11026922500, 11026922501, 11026922502, 11026922503, 11026924500, 11026924501, 11026924502, 11026924503, 11026942500, 11026942501, 11026942502, 11026942503, 11026944500, 11026944501, 11026944502, 11026944503, 11026962500, 11026962501, 11026962502, 11026962503, 11026964500, 11026964501, 11026964502, 11026964503, 11026966500, 11027112600, 11027112601, 11027172600, 11027172601, 11027222600, 11027224600, 11027272600, 11027322600, 11027332600, 11027342600, 11027422600, 11027432600, 11027442600, 11027522600, 11027532600, 11027542600, 11027612600, 11027622790, 11027622791, 11027632600, 11027642600, 11027721600, 11027731600, 11027741600, 11027751700, 11027761700, 11027782700, 11027802690, 11027802691, 11027812690, 11027812691, 11027812692, 11027822790, 11027824790, 11027831600, 11027841600, 11027852790, 11027852791, 11027862790, 11027871600, 11027872600, 11027874600, 11027892790, 11027892791, 11027894790, 11027894791, 11027902790, 11028222700, 11028222701, 11028299890, 11028322700, 11028332700, 11028352700, 11028362700, 11028372700, 11028422700, 11028432700, 11028522700, 11028522701, 11028532700, 11028532701, 11028622700, 11028622701, 11028632700, 11028632701, 11028692700, 11028692701, 11028722700, 11028732700, 11028752700, 11028762700, 11028782700, 11028802890, 11028803890, 11028812790, 11028822790, 11028822791, 11028824790, 11028824791, 1102882790, 11028832700, 11028837700, 11028842700, 11028847700, 11028872890, 11028872891, 11028874890, 11028874891, 11028882790, 11028882791, 11028884790, 11028884791, 11028892790, 11028892791, 11028894790, 11028894791, 11028902790, 11028902791, 11028912790, 11028912791, 11028922790, 11028922791, 11028924790, 11028924791, 11029012990, 11029032990, 11029072990, 11029422800, 11029422801, 11029432800, 11029432801, 11029442800, 11029442801, 11029522800, 11029522801, 11029532800, 11029532801, 11029592800, 11029592801, 11029601690, 11029622800, 11029622801, 11029632800, 11029632801, 11029672800, 11029672801, 11029682800, 11029682801, 11029692800, 11029692801, 11029722800, 11029722801, 11029727800, 11029727801, 11029732800, 11029732801, 11029737800, 11029737801, 11029802890, 11029812890, 11029812891, 11029822800, 11029822801, 11029832800, 11029832801, 11029842990, 11029842991, 11029852990, 11029852991, 11029852992, 11029882890, 11029882891, 11029884890, 11029884891, 11029892990, 11029894990, 11029962890, 11029962891, 11047602940, 11047661950, 11047662950, 11080754000, 11080754001, 11080754006, 11081061100, 11081161100, 11081161200, 11081161400, 11081161600, 11081161800, 11081167110, 11081167120, 11081167210, 11081167220, 11081167410, 11081167420, 11081167610, 11081167620, 11081167810, 11081167820, 11081275100, 11081275110, 11081275200, 11081275210, 11081275400, 11081275410, 11081275600, 11081275610, 11081275800, 11081275810, 11081310100, 11081310110, 11081310120, 11081310130, 11081310140, 11081320100, 11081320110, 11081320120, 11081320130, 11081320140, 11081321100, 11081321110, 11081321120, 11081321130, 11081321140, 11081321150, 11081350100, 11081350110, 11081350120, 11081350130, 11081350140, 11081350150, 11081351100, 11081351110, 11081351120, 11081351130, 11081351140, 11081351150, 11081360100, 11081360110, 11081360120, 11081360130, 11081360200, 11081360210, 11081360220, 11081360230, 11081360400, 11081360410, 11081360420, 11081360430, 11081360600, 11081360610, 11081360620, 11081360630, 11081360800, 11081360810, 11081360820, 11081360830, 11081361100, 11081361110, 11081361120, 11081361130, 11081361140, 11081361150, 11081361200, 11081361210, 11081361220, 11081361230, 11081361240, 11081361250, 11081361310, 11081361320, 11081361330, 11081361340, 11081361350, 11081361400, 11081361410, 11081361420, 11081361430, 11081361440, 11081361450, 11081361600, 11081361610, 11081361620, 11081361630, 11081361640, 11081361650, 11081361710, 11081361720, 11081361730, 11081361740, 11081361750, 11081361800, 11081361810, 11081361820, 11081361830, 11081361840, 11081361850, 11081362100, 11081362110, 11081362120, 11081362130, 11081362140, 11081362150, 11081362200, 11081362210, 11081362220, 11081362230, 11081362240, 11081362250, 11081362310, 11081362320, 11081362330, 11081362340, 11081362350, 11081362400, 11081362410, 11081362420, 11081362430, 11081362440, 11081362450, 11081362600, 11081362610, 11081362620, 11081362630, 11081362640, 11081362650, 11081362710, 11081362720, 11081362730, 11081362740, 11081362750, 11081362800, 11081362810, 11081362820, 11081362830, 11081362840, 11081362850, 11081375100, 11081375110, 11081375120, 11081375130, 11081375150, 11081375160, 11081375200, 11081375210, 11081375220, 11081375230, 11081375250, 11081375260, 11081375310, 11081375320, 11081375330, 11081375350, 11081375360, 11081375400, 11081375410, 11081375420, 11081375430, 11081375450, 11081375460, 11081375600, 11081375610, 11081375620, 11081375630, 11081375650, 11081375660, 11081375710, 11081375720, 11081375730, 11081375750, 11081375760, 11081375800, 11081375810, 11081375820, 11081375830, 11081375850, 11081375860, 11081446100, 11081446110, 11081446120, 11081446200, 11081446210, 11081446220, 11081446400, 11081446410, 11081446420, 11081446600, 11081446610, 11081446620, 11081446800, 11081446810, 11081446820, 11081476100, 11081476110, 11081476120, 11081476140, 11081476200, 11081476210, 11081476220, 11081476240, 11081476310, 11081476320, 11081476340, 11081476400, 11081476410, 11081476420, 11081476440, 11081476600, 11081476610, 11081476620, 11081476640, 11081476710, 11081476720, 11081476740, 11081476800, 11081476810, 11081476820, 11081476840, 11081610100, 11081620100, 11081621100, 11081650100, 11081661100, 11081661300, 11081661600, 11081661700, 11081661800, 11081662100, 11081662300, 11081662600, 11081662700, 11081662800, 11081664100, 11081664110, 11081664300, 11081664310, 11081664600, 11081664610, 11081664700, 11081664710, 11081664800, 11081664810, 11081675100, 11081675110, 11081675300, 11081675310, 11081675600, 11081675610, 11081675700, 11081675710, 11081675800, 11081675810, 11081810100, 11081810110, 11081820100, 11081820110, 11081821100, 11081821110, 11081850100, 11081860100, 11081860110, 11081860300, 11081860310, 11081860600, 11081860610, 11081860700, 11081860710, 11081860800, 11081860810, 11081862100, 11081862110, 11081862120, 11081862300, 11081862310, 11081862320, 11081862600, 11081862610, 11081862620, 11081862700, 11081862710, 11081862720, 11081862800, 11081862810, 11081862820, 11081863100, 11081863110, 11081863120, 11081863130, 11081863300, 11081863310, 11081863320, 11081863330, 11081863600, 11081863610, 11081863620, 11081863630, 11081863700, 11081863710, 11081863720, 11081863730, 11081863800, 11081863810, 11081863820, 11081863830, 11081864100, 11081864110, 11081864120, 11081864130, 11081864300, 11081864310, 11081864320, 11081864330, 11081864600, 11081864610, 11081864620, 11081864630, 11081864700, 11081864710, 11081864720, 11081864730, 11081864800, 11081864810, 11081864820, 11081864830, 11081878100, 11081878110, 11081878120, 11081878300, 11081878310, 11081878320, 11081878600, 11081878610, 11081878620, 11081878700, 11081878710, 11081878720, 11081878800, 11081878810, 11081878820, 11081910100, 11081921100, 11081921110, 11081950100, 11081950110, 11081950600, 11081950610, 11082403100, 11082403110, 11082403120, 11082403130, 11082403140, 11082403800, 11082403810, 11082403820, 11082403830, 11082403840, 11082405100, 11082405110, 11082405120, 11082405130, 11082405140, 11082405800, 11082405810, 11082405820, 11082405830, 11082405840, 11082407100, 11082407110, 11082407120, 11082407130, 11082407140, 11082407800, 11082407810, 11082407820, 11082407830, 11082407840, 11082427100, 11082427110, 11082427120, 11082427130, 11082427140, 11082427300, 11082427310, 11082427320, 11082427330, 11082427340, 11082427600, 11082427610, 11082427620, 11082427630, 11082427640, 11082427700, 11082427710, 11082427720, 11082427730, 11082427740, 11082427800, 11082427810, 11082427820, 11082427830, 11082427840, 11082467100, 11082467110, 11082467120, 11082467130, 11082467140, 11082467300, 11082467310, 11082467320, 11082467330, 11082467340, 11082467600, 11082467610, 11082467620, 11082467630, 11082467640, 11082467700, 11082467710, 11082467720, 11082467730, 11082467740, 11082467800, 11082467810, 11082467820, 11082467830, 11082467840, 11082477100, 11082477110, 11082477120, 11082477130, 11082477140, 11082477300, 11082477310, 11082477320, 11082477330, 11082477340, 11082477600, 11082477610, 11082477620, 11082477630, 11082477640, 11082477700, 11082477710, 11082477720, 11082477730, 11082477740, 11082477800, 11082477810, 11082477820, 11082477830, 11082477840, 11082670100, 11082670110, 11082670120, 11082670300, 11082670310, 11082670320, 11082670600, 11082670610, 11082670620, 11082670700, 11082670710, 11082670720, 11082670800, 11082670810, 11082670820, 11082671100, 11082671110, 11082671120, 11082671300, 11082671310, 11082671320, 11082671600, 11082671610, 11082671620, 11082671700, 11082671710, 11082671720, 11082671800, 11082671810, 11082671820, 11082672100, 11082672110, 11082672120, 11082672300, 11082672310, 11082672320, 11082672600, 11082672610, 11082672620, 11082672700, 11082672710, 11082672720, 11082672800, 11082672810, 11082672820, 11082673100, 11082673110, 11082673120, 11082673300, 11082673310, 11082673320, 11082673600, 11082673610, 11082673620, 11082673700, 11082673710, 11082673720, 11082673800, 11082673810, 11082673820, 11082680100, 11082680110, 11082680300, 11082680310, 11082680600, 11082680610, 11082680700, 11082680710, 11082680800, 11082680810, 11082681100, 11082681110, 11082681120, 11082681300, 11082681310, 11082681320, 11082681600, 11082681610, 11082681620, 11082681700, 11082681710, 11082681720, 11082681800, 11082681810, 11082681820, 11082682100, 11082682110, 11082682120, 11082682300, 11082682310, 11082682320, 11082682600, 11082682610, 11082682620, 11082682700, 11082682710, 11082682720, 11082682800, 11082682810, 11082682820, 11082683100, 11082683110, 11082683120, 11082683130, 11082683300, 11082683310, 11082683320, 11082683330, 11082683600, 11082683610, 11082683620, 11082683630, 11082683700, 11082683710, 11082683720, 11082683730, 11082683800, 11082683810, 11082683820, 11082683830, 11082692100, 11082692110, 11082692120, 11082692130, 11082692140, 11082692300, 11082692310, 11082692320, 11082692330, 11082692340, 11082692600, 11082692610, 11082692620, 11082692630, 11082692640, 11082692700, 11082692710, 11082692720, 11082692730, 11082692740, 11082692800, 11082692810, 11082692820, 11082692830, 11082692840, 11082694100, 11082694110, 11082694120, 11082694130, 11082694140, 11082694300, 11082694310, 11082694320, 11082694330, 11082694340, 11082694500, 11082694510, 11082694520, 11082694530, 11082694540, 11082694700, 11082694710, 11082694720, 11082694730, 11082694740, 11082694800, 11082694810, 11082694820, 11082694830, 11082694840, 1108271610, 1108272700, 11082781100, 11082781300, 11082781600, 11082781700, 11082781800, 11082791100, 11082791110, 11082791120, 11082791300, 11082791310, 11082791320, 11082791600, 11082791610, 11082791620, 11082791700, 11082791710, 11082791720, 11082791800, 11082791810, 11082791820, 11082870020, 11082870030, 11082870100, 11082870110, 11082870120, 11082870130, 11082870300, 11082870310, 11082870320, 11082870330, 11082870600, 11082870610, 11082870620, 11082870630, 11082870700, 11082870710, 11082870720, 11082870730, 11082870800, 11082870810, 11082870820, 11082870830, 11082870900, 11082870910, 11082870920, 11082870930, 11082872100, 11082872110, 11082872120, 11082872130, 11082872300, 11082872310, 11082872320, 11082872330, 11082872600, 11082872610, 11082872620, 11082872630, 11082872700, 11082872710, 11082872720, 11082872730, 11082872800, 11082872810, 11082872820, 11082872830, 11082873100, 11082873110, 11082873120, 11082873130, 11082873300, 11082873310, 11082873320, 11082873330, 11082873600, 11082873610, 11082873620, 11082873630, 11082873700, 11082873710, 11082873720, 11082873730, 11082873800, 11082873810, 11082873820, 11082873830, 11082874100, 11082874110, 11082874120, 11082874130, 11082874300, 11082874310, 11082874320, 11082874330, 11082874600, 11082874610, 11082874620, 11082874630, 11082874700, 11082874710, 11082874720, 11082874730, 11082874800, 11082874810, 11082874820, 11082874830, 11082880100, 11082880300, 11082880600, 11082880700, 11082880800, 11082881100, 11082881110, 11082881300, 11082881310, 11082881700, 11082881710, 11082881800, 11082881810, 11082882100, 11082882300, 11082882600, 11082882700, 11082882800, 11082883100, 11082883300, 11082883600, 11082883700, 11082883800, 11082884100, 11082884300, 11082884600, 11082884700, 11082884800, 11082891100, 11082891110, 11082891120, 11082891130, 11082891300, 11082891310, 11082891320, 11082891330, 11082891610, 11082891620, 11082891630, 11082891700, 11082891710, 11082891720, 11082891730, 11082891800, 11082891810, 110828918100, 110828918110, 110828918120, 110828918130, 11082891820, 11082891830, 11082892100, 11082892300, 11082892600, 11082892700, 11082892800, 11082979100, 11082979110, 11082979300, 11082979310, 11082979600, 11082979610, 11082979700, 11082979710, 11082979800, 11082979810, 11082980100, 11082980110, 11082980120, 11082980130, 11082980300, 11082980310, 11082980320, 11082980330, 11082980620, 11082980630, 11082980700, 11082980710, 11082980720, 11082980730, 11082980800, 11082980810, 11082980820, 11082980830, 11082982100, 11082982110, 11082982120, 11082982130, 11082982300, 11082982310, 11082982320, 11082982330, 11082982620, 11082982630, 11082982700, 11082982710, 11082982720, 11082982730, 11082982800, 11082982810, 11082982820, 11082982830, 11082983100, 11082983110, 11082983120, 11082983130, 11082983300, 11082983310, 11082983320, 11082983330, 11082983700, 11082983710, 11082983720, 11082983730, 11082983800, 11082983810, 11082983820, 11082983830, 11082984100, 11082984110, 11082984120, 11082984130, 11082984300, 11082984310, 11082984320, 11082984330, 11082984700, 11082984710, 11082984720, 11082984730, 11082984800, 11082984810, 11082984820, 11082984830, 11082992100, 11082992110, 11082992300, 11082992310, 11082992700, 11082992710, 11082992800, 11082992810, 11082993100, 11082993110, 11082993300, 11082993310, 11082993500, 11082993510, 11082993700, 11082993710, 11082993800, 11082993810, 11082994100, 11082994110, 11082994300, 11082994310, 11082994500, 11082994510, 11082994700, 11082994710, 11082994800, 11082994810, 11084417100, 11084417300, 11084417600, 11084417700, 11084417800, 11084418100, 11084418300, 11084418600, 11084418700, 11084418800, 11084419100, 11084419110, 11084419300, 11084419600, 11084419700, 11084419800, 11084419810, 11084670100, 11084670300, 11084670600, 11084670700, 11084670800, 11084671100, 11084671300, 11084671600, 11084671700, 11084671800, 11084870100, 11084870110, 11084870300, 11084870600, 11084870610, 11084870700, 11084870800, 11084870810, 11088675100, 11088675110, 11088675300, 11088675310, 11088675600, 11088675610, 11088675700, 11088675710, 11088675800, 11088675810, 11088732790, 11088732791, 11088732792, 11088732793, 11088752790, 11088752791, 11088752792, 11088752793, 11088754790, 11088754791, 11088754792, 11088754793, 11089675110, 11089675310, 11089675610, 11089675710, 11089675810, 11091110100, 11091110110, 11091121100, 11091121110, 11091210100, 11091220100, 11091250100, 11091263100, 11091263600, 11091263800, 11091264100, 11091264600, 11091264800, 11091278100, 11091278600, 11091278800, 11091310100, 11091320100, 11091468100, 11091468600, 11091468800, 11091510100, 11091510110, 11091511100, 11091511110, 11091512200, 11091512210, 11091520100, 11091520110, 11091521200, 11091521210, 11091522200, 11091550100, 11091551200, 11091551210, 11091552200, 11091552210, 11091554100, 11091554110, 11091554200, 11091554210, 11091564100, 11091564110, 11091564800, 11091564810, 11091565100, 11091565110, 11091565200, 11091565210, 11091565800, 11091565810, 11091566200, 11091566210, 11091566400, 11091566410, 11091578100, 11091578800, 11091579100, 11091579800, 11091587200, 11091587210, 11091587400, 11091587410, 11092060100, 11092060110, 11092060120, 1109206110, 11092071100, 11092071110, 11092071300, 11092071310, 11092071600, 11092071610, 11092071700, 11092071710, 11092071800, 11092071810, 11092093100, 11092093110, 11092093120, 11092093300, 11092093310, 11092093320, 11092093510, 11092093520, 11092093700, 11092093710, 11092093720, 11092093800, 11092093810, 11092093820, 11092094100, 11092094300, 11092094500, 11092094700, 11092094800, 11092180100, 11092180110, 11092180300, 11092180310, 11092180600, 11092180610, 11092180700, 11092180710, 11092180800, 11092180810, 11092184100, 11092184800, 11092195100, 11092195110, 11092195500, 11092195510, 11092195800, 11092195810, 11092260100, 11092271100, 11092271600, 11092271800, 11092272000, 11092272100, 11092272600, 11092272800, 11092272900, 11092273100, 11092273600, 11092273800, 11092274100, 11092274600, 11092274800, 11092275100, 11092275600, 11092275800, 11092279100, 11092279600, 11092279800, 11092280100, 11092280600, 11092280800, 11092281100, 11092281600, 11092281800, 11092282100, 11092282600, 11092282800, 11092283100, 11092283600, 11092283800, 11092284100, 11092284800, 11092291100, 11092291600, 11092291800, 11092292100, 11092292600, 11092292800, 11092293100, 11092293110, 11092293500, 11092293510, 11092293800, 11092293810, 11092375100, 11092375800, 11092380200, 11092389200, 11092418100, 11092418600, 11092418800, 11092428100, 11092428600, 11092428800, 11092429100, 11092429600, 11092429800, 11092478100, 11092478600, 11092478800, 11092480200, 11092480400, 11092490100, 11092490110, 11092490120, 11092491200, 11092491210, 11092491400, 11092491410, 11092529100, 11092529110, 11092529800, 11092529810, 11092560100, 11092560800, 11092561100, 11092561110, 11092561200, 11092561210, 11092561410, 11092561800, 11092561810, 11092562200, 1109257020, 11092570200, 11092570400, 11092571200, 11092571400, 11092572100, 11092572110, 11092572800, 11092572810, 11092573000, 11092573010, 11092573100, 11092573110, 11092573200, 11092573210, 11092573800, 11092573810, 11092573900, 11092573910, 11092574100, 11092574800, 11092575100, 11092575110, 11092577200, 11092577210, 11092577400, 11092577410, 11092578200, 11092578210, 11092578400, 11092578410, 11092579100, 11092579110, 11092579800, 11092579810, 11092580000, 11092580100, 11092580110, 11092580600, 11092580610, 11092580800, 11092580810, 11092580900, 11092581100, 11092581110, 11092581120, 11092581200, 11092581210, 11092581220, 11092581420, 11092581800, 11092581810, 11092581820, 11092582100, 11092582110, 11092582120, 11092582210, 11092582220, 11092582410, 11092582420, 11092582800, 11092582810, 11092582820, 11092583100, 11092583110, 11092583120, 11092583200, 11092583210, 11092583220, 11092583800, 11092583810, 11092583820, 11092584100, 11092584800, 11092585100, 11092585110, 11092585800, 11092585810, 11092586200, 11092586210, 11092586400, 11092586410, 11092587200, 11092587210, 11092587400, 11092587410, 11092588200, 11092588210, 11092588400, 11092588410, 11092590100, 11092590110, 11092590120, 11092590800, 11092590810, 11092590820, 11092591200, 11092591210, 11092591220, 11092591230, 11092591400, 11092591410, 11092591420, 11092591430, 11092592200, 11092592400, 11092593200, 11092593210, 11092593220, 11092593400, 11092593410, 11092593420, 11092595200, 11092595210, 11092595400, 11092595410, 11092595500, 11092595510, 11092596100, 11092597200, 11092597210, 11092597400, 11092597410, 1109281100, 11094519100, 11094519800, 11094570100, 11094570800, 11098573100, 11098573110, 11098573120, 11098573130, 11098573800, 11098573810, 11098573820, 11098573830, 11098575100, 11098575110, 11098575120, 11098575800, 11098575810, 11098575820, 11098618100, 11098618800, 11098673830, 11098752790, 11098752791, 11098752792, 11098752793, 11098752794, 11098752795, 1109875279B, 11099575100, 11099575110, 11099575120, 11099575800, 11099575810, 11099575820, 1109975820, 110C81432510, 1CLBR5432PQ0, 1CLSQ9549PG0, 1CLSQ9549PG1, 1CLSQ9549PW0, 1CLSQ9549PW1, 1CLSR7010PQ0, 1CLSR7010PQ1, 1CLSR7300PQ0, 1CLSR7300PQ1, 1CLSR7333PQ0, 1CLSR7333PQ1, 1CLSR9434PQ0, 1CLSR9434PQ1, 1CLSR9434PT0, 1CLSR9434PT1, 1CLXR7244PT0, 1CLXR7244PT1, 1CWTW5100VQ0, 1CWTW5100VQ1, 1CWTW5200VQ0, 1CWTW5200VQ1, 1CWTW5300SQ0, 1CWTW5300VW0, 1CWTW5300VW1, 1CWTW5500SQ0, 1CWTW5500ST0, 1CWTW5505SQ0, 1CWTW5505VQ0, 1CWTW5505VQ1, 1CWTW5520SQ0, 1CWTW5590SQ0, 1CWTW5590ST0, 1CWTW5590VQ0, 1CWTW5590VQ1, 1CWTW5700SW0, 1CWTW5790SQ0, 1CWTW5790ST0, 1CWTW5790VQ0, 1CWTW5790VQ1, 1CWTW57ESVW0, 1CWTW57ESVW1, 1CWTW5800SG0, 1DWTW5205SQ0, 1DWTW5205SQ1, 2DATW4305TQ0, 2DHTW4305TQ0, 2DLSQ7533JQ3, 2DLSQ7533JQ4, 2DLSQ7533JQ5, 2DLSQ8000JQ3, 2DLSQ8000JQ4, 2DLSQ8000JQ5, 2DLXR7244MQ0,

Professional Technician: 30-45 minutes (including diagnosis, cabinet removal, pump replacement, testing, and reassembly)
DIY Homeowner: 60-90 minutes (first-time repair; includes extra time for photos, labeling, and careful reassembly)
Difficulty Rating: Moderate (requires cabinet removal, hose disconnection, and attention to correct pump orientation and hose connections)

Required Tools:

  • Flathead screwdriver
  • Needle-nose pliers
  • Channel-lock pliers
  • Work gloves
  • Flashlight
  • Camera or smartphone (for reference photos)
  • Towels (to catch residual water)
  • Bucket or shallow pan (to catch water)
  • Masking tape and marker (for labeling hoses)

Step-by-Step Installation:

  1. Disconnect Power: Unplug the washer from the electrical outlet. Never work on the washer with power connected.
  2. Turn Off Water Supply: Turn off both hot and cold water supply valves behind the washer.
  3. Move Washer: Pull the washer away from the wall to provide access to the rear and sides. You'll need at least 3 feet of clearance.
  4. Prepare for Water Drainage: Place towels and a bucket or shallow pan near the work area. The drain pump and hoses contain residual water that will drain when disconnected.
  5. Remove Washer Cabinet: Remove the entire washer cabinet to access the drain pump:Remove 2 screws at the rear bottom corners of the cabinetLift the cabinet straight up approximately 1 inch to disengage the cabinet clips at the bottom frontPull the cabinet forward and off the washer baseSet the cabinet aside in a safe locationYou now have full access to the motor, transmission, and drain pump
  6. Locate Drain Pump: Look at the front of the motor (bottom component). You'll see the drain pump—a white or gray plastic housing with two ports, mounted directly to the motor with two spring clips.
  7. Take Reference Photos (Critical): Before disconnecting anything, take 20-30 clear, close-up photos showing:The drain pump position and orientation on the motorHow the pump mounts to the motor with spring clipsAll hose connections (inlet from tub, outlet to drain)Hose clamp positions and typesThe pump's relationship to the motor shaftAny alignment marks or positioning indicators This is absolutely critical for correct reinstallation.
  8. Label All Hoses: Use masking tape and marker to label each hose:Label the inlet hose from the tub (connects to large port)Label the outlet hose to the drain (connects to small port)This prevents confusion during reinstallation
  9. Drain Residual Water from Pump: Before disconnecting hoses, prepare for water drainage:Position your bucket or pan under the pumpHave towels ready to catch waterExpect 1-2 cups of water to drain from the pump and hoses
  10. Remove Inlet Hose: Disconnect the inlet hose from the pump (hose from tub to pump):Position your bucket or pan under the connection to catch waterUse channel-lock pliers to squeeze or loosen the hose clampSlide the hose clamp away from the pump connectionTwist and pull the hose off the pump inlet port (large port)Water will drain—allow it to drain into your bucketKeep the hose clamp—you'll need it for reinstallation
  11. Remove Outlet Hose: Disconnect the outlet hose from the pump (hose from pump to drain):Position your bucket or pan under the connection to catch waterUse channel-lock pliers to squeeze or loosen the hose clampSlide the hose clamp away from the pump connectionTwist and pull the hose off the pump outlet port (small port)Water will drain—allow it to drain into your bucketKeep the hose clamp—you'll need it for reinstallation
  12. Release Spring Clips: The drain pump is secured to the motor with two spring clips:Locate the two spring clips on opposite sides of the pumpUse a flathead screwdriver or needle-nose pliers to release each spring clipPress or pull the clip away from the motor housing to release itWork carefully to avoid breaking the clips (they're reusable)Support the pump with one hand as you release the clips
  13. Remove Old Drain Pump: Once both spring clips are released and hoses are disconnected, carefully pull the old drain pump straight off the motor shaft. The pump slides off the motor shaft and motor housing. Handle gently to avoid spilling residual water.
  14. Inspect Old Pump: Examine the old pump for visible damage:Look for cracks in the pump housingCheck the impeller for damage or foreign objects (look through the ports)Look for signs of leaking (water stains, corrosion)Inspect the inlet and outlet ports for blockageCheck the motor shaft seal for damageIf the impeller is jammed or damaged, this confirms the diagnosis
  15. Check for Foreign Objects: Inspect the old pump for foreign objects:Look inside the pump housing through the ports for coins, buttons, bobby pins, small clothing items, or debrisThese objects cause impeller jamming and pump failureRemove all debris and dispose of itIf significant debris is found, advise the customer to check pockets before washing
  16. Clean Motor Shaft: Wipe down the motor shaft where the pump mounts. Remove any debris, lint, or residue. A clean shaft ensures proper fit and seal for the new pump.
  17. Compare Old and New Pumps: Remove the new drain pump from its packaging. Compare the new pump to the old pump:Verify the overall size and shape matchCheck that inlet and outlet port positions and sizes are identicalConfirm the spring clip mounting points matchEnsure the motor shaft opening is the same sizeVerify part numbers match or are compatibleCheck that the pump is not damaged or defective
  18. Inspect New Pump: Verify the new pump is not damaged:Check that the plastic housing is intact with no cracksLook through the ports and verify the impeller moves freelyCheck that inlet and outlet ports are clean and undamagedEnsure the motor shaft seal is intactVerify the spring clip mounting points are intact
  19. Install New Pump on Motor Shaft (Critical Step): Install the new drain pump onto the motor shaft:Align the pump with the motor shaftThe pump has a keyed opening that matches the motor shaft profile (typically D-shaped or flat-sided)Push the pump straight onto the motor shaft until it's fully seatedThe pump should sit flush against the motor housingVerify the pump is oriented correctly (inlet and outlet ports in the correct positions—match your reference photos)
  20. Secure Spring Clips: Secure the drain pump to the motor with the two spring clips:Position each spring clip over its mounting point on the pump and motor housingPress or snap each clip into placeYou should hear or feel a click when each clip engagesVerify both clips are fully engaged and secureTug the pump gently to ensure it won't pull off the motor
  21. Verify Pump Mounting: Before reconnecting hoses, verify the pump is properly mounted:The pump should sit flush against the motor housingBoth spring clips should be fully engagedThe pump should not move or shift when you try to wiggle itThe inlet and outlet ports should be oriented correctly (match your reference photos)
  22. Connect Inlet Hose (Critical Step): Reconnect the inlet hose to the pump (hose from tub to pump):Align the hose with the pump inlet port (large port)Push the hose onto the inlet port until it's fully seated (typically 1-2 inches)Position the hose clamp over the connectionUse channel-lock pliers to tighten the hose clamp securelyVerify the hose is fully seated and the clamp is tightTug the hose gently to ensure it won't pull off
  23. Connect Outlet Hose (Critical Step): Reconnect the outlet hose to the pump (hose from pump to drain):Align the hose with the pump outlet port (small port)Push the hose onto the outlet port until it's fully seated (typically 1-2 inches)Position the hose clamp over the connectionUse channel-lock pliers to tighten the hose clamp securelyVerify the hose is fully seated and the clamp is tightTug the hose gently to ensure it won't pull off
  24. Verify Hose Connections: Before reinstalling the cabinet, carefully verify that:The inlet hose is connected to the correct pump port (large port from tub)The outlet hose is connected to the correct pump port (small port to drain)Both hoses are fully seated on their portsBoth hose clamps are tight and secureNo hoses are kinked, twisted, or pinchedCompare to your reference photos to confirm correct connections
  25. Test Pump Impeller Rotation (Optional): Manually test the pump impeller before reassembling:Look through the inlet or outlet portUse a flathead screwdriver to gently rotate the motor shaft by handThe pump impeller should rotate smoothly with no binding or grindingIf the impeller doesn't rotate smoothly, recheck the pump installation
  26. Reinstall Washer Cabinet: Position the washer cabinet back onto the washer base:Align the cabinet with the baseLower the cabinet straight down onto the baseEnsure the cabinet clips engage at the bottom frontPush down on the cabinet to ensure it's fully seatedSecure the cabinet with the 2 rear bottom corner screws
  27. Move Washer Back: Push the washer back into position, leaving a small gap from the wall for hose clearance.
  28. Restore Water Supply: Turn on both hot and cold water supply valves.
  29. Restore Power: Plug the washer back into the electrical outlet.
  30. Test Drain Pump Operation: Run a drain/spin cycle to test the new pump:Set the washer to drain/spin cycle (no clothes)Add 2-3 gallons of water to the tub manually (use a bucket)Start the cycleThe motor should run and the pump should drain water from the tubWater should drain within 2-3 minutes
    - Listen for any unusual noises (grinding, rattling, squealing)
    - The pump should operate smoothly and quietly
  31. Check for Leaks (Critical): While the washer is draining, inspect all connections for leaks:Check the inlet hose connection at the pump for water leaksCheck the outlet hose connection at the pump for water leaksCheck around the pump housing for leaksCheck the floor under the washer for waterIf any leaks are found, stop the washer immediately, disconnect power, and recheck/tighten the leaking connection
  32. Run Full Test Cycle: After verifying the drain function works, run a complete wash cycle with no clothes:Select a normal wash cycleLet the washer fill, agitate, drain, and spinMonitor the washer throughout the entire cycleVerify the washer drains completely during the drain cycleVerify the washer spins properly after drainingListen for any unusual noises during drain and spin
  33. Final Inspection: After the test cycle completes:Check for any water leaks around the pump areaCheck the floor under the washer for waterVerify the washer drained completely (no water in tub)Verify the washer completed the full cycle without errorsIf everything operates normally, the repair is complete
  34. Customer Education: Advise the customer to:Always check pockets before washing to prevent foreign objects from entering the pumpAvoid overloading the washer, which can stress the pumpUse the correct amount of detergent (excess suds can strain the pump)If the washer doesn't drain in the future, check for blockages before assuming pump failureSchedule annual maintenance to inspect hoses and connections

Safety Warnings:

  • Always disconnect power before servicing the washer
  • Drain pumps contain residual water—be prepared for water spillage
  • Spring clips are under tension—release carefully to avoid injury
  • Hose clamps can have sharp edges—wear work gloves
  • The motor shaft may have sharp edges—handle carefully
  • Never run the washer with the cabinet removed unless absolutely necessary for testing
  • If the pump is replaced and the washer still doesn't drain, the problem may be a clogged drain hose, faulty motor, or blocked tub outlet

Tip 1 – Verify Motor Operation Before Replacing Pump:
Before replacing the drain pump, verify the motor is actually running during the drain cycle. If the motor doesn't run at all during drain, the problem is not the pump—it's the motor, motor control board, lid switch, or wiring. Listen carefully during the drain cycle: you should hear the motor running. If the motor runs but no water drains, then the pump is likely the problem. If the motor doesn't run at all, diagnose the motor circuit first.

Tip 2 – Check for Foreign Object Blockage First:
Before replacing the pump, always check for foreign object blockage. Remove the pump and inspect the impeller for coins, buttons, bobby pins, small clothing items, or debris. Many "failed" pumps are simply jammed by foreign objects and can be cleared and reused. Look through the inlet and outlet ports and manually rotate the impeller to check for binding. If the impeller is jammed, clear the blockage before installing a new pump. Also check the drain hose for blockages—a clogged drain hose will cause the same symptoms as a failed pump.

Tip 3 – Verify Correct Pump Orientation During Installation:
The drain pump must be installed in the correct orientation on the motor shaft. The inlet port (large port) must face the tub outlet hose, and the outlet port (small port) must face the drain hose. If the pump is installed backwards or rotated incorrectly, it won't drain properly. Take reference photos before removing the old pump so you can match the exact position and orientation. The pump has a keyed opening that matches the motor shaft, but it may still fit in multiple rotational positions—verify the ports are oriented correctly.

Tip 4 – Inspect and Replace Hose Clamps if Worn:
The hose clamps securing the inlet and outlet hoses to the pump are critical for preventing leaks. If the old clamps are rusted, corroded, or weak, replace them with new stainless steel hose clamps (typically 1-1/4" to 1-1/2" diameter). Leaking hose connections are a common callback issue after pump replacement. Tighten the clamps securely but don't overtighten—overtightening can crack the plastic pump ports.

Tip 5 – Test for Proper Impeller Rotation After Installation:
After installing the new pump, manually test the impeller rotation before reassembling the washer. Look through the inlet or outlet port and use a screwdriver to gently rotate the motor shaft by hand. The pump impeller should rotate smoothly with no binding, grinding, or resistance. If the impeller doesn't rotate smoothly, the pump may be defective, installed incorrectly, or the motor shaft may have debris on it. Correct the issue before reassembling.

Tip 6 – Check Drain Hose for Kinks, Clogs, or Improper Height:
A kinked, clogged, or improperly positioned drain hose will cause the same symptoms as a failed pump. After replacing the pump, inspect the entire drain hose from the pump outlet to the household drain. Check for kinks, clogs, or collapsed sections. Also verify the drain hose is positioned correctly: the hose should rise to a height of 39-45 inches above the floor (per manufacturer specs) to prevent siphoning and ensure proper drainage. If the hose is too low, water may siphon out during fill. If it's too high or kinked, the pump can't drain effectively.

Tip 7 – Advise Customer to Check Pockets to Prevent Future Failures:
Most drain pump failures are caused by foreign objects (coins, buttons, bobby pins, small items) jamming the impeller. Educate the customer to always check pockets before washing clothes. Small items can pass through the tub outlet and enter the pump, causing impeller damage or jamming. This simple habit can prevent future pump failures and extend the life of the new pump.

Tip 8 – Verify Spring Clips Are Fully Engaged:
The two spring clips that secure the pump to the motor are critical for proper pump operation and preventing leaks. After installing the pump, verify both spring clips are fully engaged and seated in their mounting points. Tug the pump gently to ensure it won't pull off the motor. If the clips aren't fully engaged, the pump may vibrate loose during operation, causing leaks or poor drainage. If the old clips are damaged or weak, order new clips (part number varies by model).

Tip 9 – This Pump Is Non-Returnable if Installed:
Drain pumps are typically non-returnable once installed due to water contact and potential contamination. Before installing, verify you have the correct part number for your model and that the pump is not defective. Test the impeller rotation by hand before installation. If the customer insists on returning an installed pump, explain that most suppliers (including XPart Supply) cannot accept returns on water-contact parts for health and safety reasons.

Tip 10 – Check Motor Coupling if Pump Replacement Doesn't Fix the Problem:

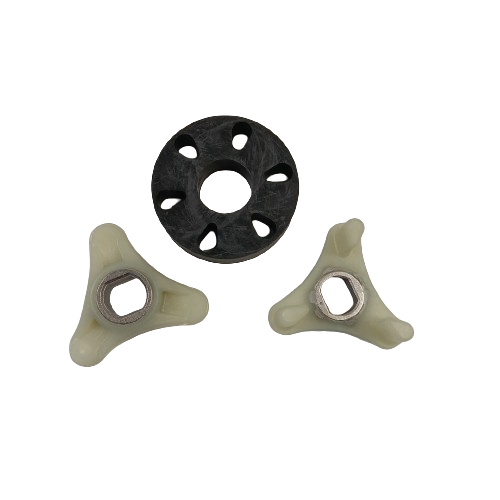

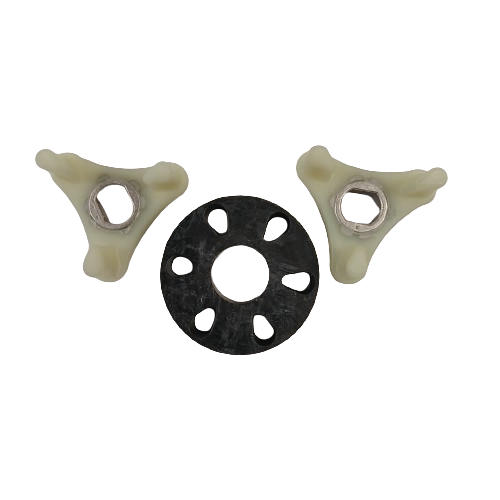

If you replace the drain pump and the washer still doesn't drain, check the motor coupling (the connection between the motor and transmission). A broken motor coupling will prevent the motor from running properly, which affects both agitation and drainage. Also check the motor itself—if the motor is weak or failing, it may not have enough power to drive the pump effectively. Use a multimeter to test motor windings and verify proper voltage at the motor during drain cycle.

  • Washer not draining water from tub
  • Water remaining in tub after wash cycle completes
  • Washer stopping mid-cycle with water in tub
  • Very loud grinding, rattling, or humming noise during drain cycle
  • Slow drainage taking 10+ minutes to drain
  • Motor running during drain cycle but no water draining
  • Washer not advancing to spin cycle (stuck in drain)
  • F9 E1 error code (drain pump problem)
  • Visible water leaking from bottom of washer during drain cycle
  • Water leaking from pump area or motor area
  • Washer draining intermittently (works sometimes, not others)
  • Washer making squealing or screeching noise during drain
  • Pump running but very little water draining
  • Washer overfilling because it can't drain
  • Washer not completing cycles due to drain failure
  • Burning smell during drain cycle (pump motor overheating)
  • Pump impeller jammed by foreign objects (coins, buttons, bobby pins)
  • Pump seal failure causing leaks
  • Pump bearing wear causing noise and poor drainage
  • Cracked pump housing causing leaks


Whirlpool refrigerator replacement parts, Frigidaire refrigerator replacement parts, GE refrigerator replacement parts, Kenmore refrigerator replacement parts, KitchenAid refrigerator replacement parts, LG refrigerator replacement parts, Maytag refrigerator replacement parts, Whirlpool refrigerator drawers and glides replacement, Whirlpool dishwasher replacement parts, GE dishwasher replacement parts, KitchenAid dishwasher replacement parts, Maytag dishwasher replacement parts, Frigidaire dishwasher replacement parts, Kenmore dishwasher replacement parts, Whirlpool washer replacement parts, GE washer replacement parts, Maytag washer replacement parts, Kenmore washer replacement parts, LG washer replacement parts, Whirlpool dryer replacement parts, GE dryer replacement parts, Maytag dryer replacement parts, Kenmore dryer replacement parts, LG dryer replacement parts, Whirlpool range replacement parts, GE range replacement parts, Whirlpool stove replacement parts, GE stove replacement parts, GE oven replacement parts, GE microwave replacement parts, buy Whirlpool refrigerator parts online, buy GE dishwasher parts online, replacement Kenmore washer parts for sale, buy Maytag dryer parts, LG washer replacement parts online, KitchenAid refrigerator parts for sale, Whirlpool stove and range replacement parts

WP3363394 Washer Drain Pump

Genuine OEM washer drain pump for Whirlpool, Kenmore, and Maytag direct-drive top-load washers. This critical component is the drain pump that removes water from the washer tub during the drain and spin cycles. Unlike front-load washers with standalone pumps, this pump mounts directly to the washer motor with two spring clips and is driven by the motor shaft. The pump features a single-piece molded plastic housing with two ports: one large inlet port (from tub) and one small outlet port (to drain hose). The pump operates when the motor runs in the drain/spin direction, using centrifugal force to pump water from the tub through the drain hose to the household drain system. When this component fails, you'll experience the washer not draining, water remaining in the tub after the cycle, very loud grinding or humming noises during drain cycle, slow drainage taking 10+ minutes, the washer stopping mid-cycle with water in tub, visible water leaks from the pump area, or the motor running but no water draining. Drain pumps fail due to foreign objects blocking the impeller (coins, buttons, small clothing items, bobby pins), impeller damage from debris, bearing wear from continuous use, seal deterioration causing leaks, age-related degradation of plastic housing, or manufacturing defects. The drain pump is located at the bottom of the washer cabinet, mounted directly to the front of the motor. This assembly replaces 3363394, 3348015, 3352492, and many other previous drain pump versions. The WP3363394 is the current production version with improved durability compared to older 3363394 pumps.

Performance and Benefits

This drain pump effectively resolves common issues like poor drainage and extended cycle times, helping your washing machine operate smoothly and efficiently. By investing in this part, you save time and money on repairs, enhancing your laundry routine while maintaining the reliability you expect from XPart Supply Ltd. products.

This high-quality WP3363394 Washer Drain Pump is a reliable replacement part for numerous washing machines. It is designed to withstand the rigors of regular use and has tested to meet OEM standards. Investing in this pump gives your washing machine the ability to keep cycle times short and efficient.

Part number WP3363394 replaces 21024, 3348015, 3352293, 3352492, 3363394, 62516, 63347, 64076, 8235, WP3363394VP

Supported Models:

10682872600, 110088732791, 11010202000, 11010202001, 1101050299, 11010502990, 11010502991, 11010852990, 11010852991, 11012202100, 11012502100, 11012852100, 11013202200, 11013212200, 11014102300, 11014112300, 11014202300, 11014212200, 11014222300, 11014502300, 11014852300, 11015732400, 11015842400, 11015852400, 11015862400, 11015864400, 11015942400, 11015942401, 11015944400, 11015944401, 11015952400, 11015952401, 11015954400, 11015954401, 11015962400, 11015962401, 11015964400, 11015964401, 11016101690, 11016101691, 11016102500, 11016102501, 11016102502, 11016202690, 11016202691, 11016212500, 11016212501, 11016212502, 11016212503, 11016502690, 11016502691, 11016502692, 11016502693, 11016502694, 11016512690, 11016512691, 11016512692, 11016602690, 11016602691, 11016602692, 11016602693, 11016611690, 11016611691, 11016611692, 11016612690, 11016612691, 11016612692, 11016732500, 11016812500, 11016812501, 11016812502, 11016812503, 11016852500, 11016852501, 11016852502, 11016852503, 11016862500, 11016862501, 11016862502, 11016862503, 11016872690, 11016872691, 11016872692, 11016872693, 11016882500, 11016882501, 11016882502, 11016882503, 11016922500, 11016922501, 11016922502, 11016922503, 11016922504, 11016942500, 11016942501, 11016942502, 11016942503, 11016962500, 11016962501, 11016962502, 11016962503, 11016964500, 11016964501, 11016964502, 11016964503, 11016972500, 11016982500, 11016984500, 11016986500, 11017102700, 11017122700, 11017132700, 11017812600, 11018112700, 11018202790, 1101820299, 11018212700, 11018212701, 11018522790, 11018522791, 11018532790, 11018542890, 11018542891, 11018609890, 11018702790, 11018702791, 11018812700, 11018812701, 11019101990, 11019101991, 11019101992, 11019202200, 11019422200, 11020052990, 11020052991, 11020052992, 11020052993, 11020052994, 11020056991, 11020056992, 11020056993, 11020056994, 11020072990, 11020072991, 11020072992, 11020072993, 11020092990, 11020092991, 11020092992, 11020092993, 11020094992, 11020094993, 11020096990, 11020096991, 11020096992, 11020096993, 11020097990, 11020097991, 11020097992, 11020097993, 11020112000, 1102011200A, 11020132000, 11020132001, 11020172000, 11020172001, 11020272000, 11020272001, 11020402990, 11020412990, 11020412991, 11020422990, 11020422991, 11020432990, 11020432991, 11020442990, 11020442991, 11020522900, 11020602990, 11020602991, 11020602992, 11020612990, 11020612991, 11020622990, 11020622991, 11020632990, 11020632991, 11020642990, 11020692000, 11020692001, 11020702990, 11020702991, 1102071299, 11020712990, 11020712991, 11020722990, 11020722991, 11020802990, 11020802991, 11020832990, 11020832991, 11020842990, 11020842991, 11020852990, 11020852991, 11020854990, 11020854991, 11020857990, 1102086299, 11020862990, 11020862991, 1102087299, 11020872990, 11020872991, 11020882990, 11020882991, 11020892990, 11020892991, 11020894990, 11020894991, 11020897990, 11020901990, 11020901991, 11020902990, 11020902991, 11020904990, 11020904991, 11020907990, 11020907991, 11020912990, 11020912991, 11020922990, 11020922991, 11020924990, 11020924991, 11020927990, 11020932990, 11020932991, 11020932992, 11020932993, 11020932994, 11020936990, 11020936991, 11020936992, 11020936993, 11020936994, 11020942990, 11020942991, 11020942992, 11020942993, 11020942994, 11020952990, 11020952991, 11020952992, 11020952993, 11020952994, 11020954992, 11020954993, 11020954994, 11020956990, 11020956991, 11020956992, 11020956993, 11020956994, 11020957990, 11020957991, 11020957992, 11020972990, 11020972991, 11020972992, 11020972993, 11020982990, 11020982991, 11020982992, 11020982993, 11020992990, 11020992991, 11020992992, 11020992993, 11020994991, 11020994992, 11020994993, 11020996991, 11020996992, 11020996993, 11020997990, 11020997991, 11020997992, 11021882000, 11021882001, 11021884000, 11021884001, 11021892000, 11021894000, 11022032100, 11022032101, 11022032102, 11022036100, 11022036101, 11022036102, 11022042100, 11022042101, 11022042102, 11022052100, 11022052101, 11022052102, 11022054100, 11022054101, 11022054102, 11022056100, 11022056101, 11022056102, 11022292100, 11022294100, 11022422100, 11022432100, 11022442100, 11022622100, 11022632100, 11022642100, 11022652100, 11022662100, 11022692100, 11022692101, 11022702100, 11022702101, 11022712100, 11022722100, 11022722101, 11022802100, 11022802101, 11022832100, 11022832101, 11022832102, 11022842100, 11022842101, 11022842102, 11022852100, 11022852101, 11022852102, 11022854100, 11022854101, 11022854102, 11022862100, 11022862101, 11022872100, 11022872101, 11022872102, 11022882100, 11022882101, 11022882102, 11022892100, 11022892101, 11022892102, 11022894100, 11022894101, 11022894102, 11022902100, 11022902101, 11022904100, 11022904101, 11022912100, 11022912101, 11022922100, 11022922101, 11022922102, 11022924100, 11022924101, 11022924102, 11022932100, 11022932101, 11022932102, 11022936100, 11022936101, 11022936102, 11022942100, 11022942101, 11022942102, 11022952100, 11022952101, 11022952102, 11022954100, 11022954101, 11022954102, 11022956100, 11022956101, 11022956102, 11022972100, 11022972101, 11022972102, 11022972103, 11022974100, 11022974101, 11022974102, 11022974103, 11022982100, 11022982101, 11022982102, 11022982103, 11022992100, 11022992101, 11022992102, 11022992103, 11022994100, 11022994101, 11022994102, 11022994103, 11022996100, 11022996101, 11022996102, 11022996103, 11023012100, 11023012101, 11023012102, 11023014100, 11023014101, 11023014102, 11023022100, 11023022101, 11023022102, 11023024100, 11023024101, 11023024102, 11023032100, 11023032101, 11023032102, 11023034100, 11023034101, 11023034102, 11023036100, 11023036101, 11023036102, 11023652200, 11023662200, 11023692200, 1102371220, 11023712200, 11023722200, 11023732200, 11023812100, 11023822100, 11023832100, 11023902200, 11023902201, 11023904200, 11023904201, 11023912100, 11023912101, 11023912102, 11023922200, 11023922201, 11023924200, 11023924201, 11023932200, 11023934200, 11024032301, 11024036301, 11024042301, 11024052300, 11024054300, 11024056300, 11024292300, 11024294300, 11024422300, 11024432300, 11024442300, 11024622300, 11024632300, 11024642300, 11024652300, 11024662300, 11024692300, 11024712300, 11024722300, 11024732300, 11024812200, 11024812201, 11024822200, 11024822201, 11024832200, 11024832201, 11024852300, 11024862300, 11024872300, 11024892300, 11024894300, 11024902200, 11024902201, 11024902202, 11024904200, 11024904201, 11024904202, 11024922200, 11024922201, 11024922202, 11024924200, 11024924201, 11024924202, 11024932200, 11024932201, 11024932202, 11024934200, 11024934201, 11024934202, 11024942300, 11024942301, 11024944300, 11024944301, 11024946300, 11024946301, 11024952300, 11024952301, 11024954300, 11024954301, 11024956300, 11024956301, 11024962300, 11024962301, 11024964300, 11024964301, 11024966300, 11024966301, 11024972300, 11024974300, 11024982300, 11024992300, 11024994300, 11024996300, 11025292500, 11025292501, 11025292502, 11025292503, 11025294500, 11025294501, 11025294502, 11025294503, 11025832400, 11025842400, 11025844400, 11025852400, 11025854400, 11025862400, 11025864400, 11026051690, 11026058590, 11026058690, 11026071690, 11026071691, 11026152500, 11026292690, 11026292691, 11026292692, 11026292693, 11026292694, 11026292695, 11026294690, 11026294691, 11026294692, 11026294693, 11026294694, 11026294695, 11026322500, 11026322501, 11026322502, 11026322503, 11026332500, 11026332501, 11026332502, 11026332503, 11026342500, 11026342501, 11026342502, 11026342503, 11026422500, 11026422501, 11026422502, 11026422503, 11026432500, 11026432501, 11026432502, 11026432503, 11026442500, 11026442501, 11026442502, 11026442503, 11026622690, 11026622691, 11026632500, 11026632501, 11026632502, 11026632503, 11026642500, 11026642501, 11026642502, 11026642503, 11026652500, 11026652501, 11026652502, 11026652503, 11026682503, 11026692503, 11026702690, 11026702691, 11026702692, 11026702693, 11026702694, 11026712690, 11026712691, 11026712692, 11026712693, 11026722690, 11026722691, 11026722692, 11026722693, 11026732500, 11026732501, 11026732502, 11026732503, 11026742500, 11026742501, 11026742502, 11026742503, 11026752500, 11026752501, 11026752502, 11026752503, 11026791690, 11026791691, 11026801690, 11026801691, 11026801692, 11026808690, 11026808691, 11026808692, 11026809690, 11026812690, 11026812691, 11026814690, 11026814691, 11026822690, 11026822691, 11026822692, 11026824690, 11026824691, 11026824692, 11026832690, 11026832691, 11026832692, 11026832694, 11026834690, 11026834691, 11026834692, 11026834694, 11026842690, 11026842691, 11026842692, 11026842694, 11026844690, 11026844691, 11026844692, 11026844694, 11026852500, 11026852501, 11026852502, 11026852503, 11026852504, 11026862500, 11026862501, 11026862502, 11026862503, 11026882500, 11026882501, 11026882502, 11026882503, 11026884500, 11026884501, 11026884502, 11026884503, 11026892690, 11026892691, 11026894691, 11026901690, 11026901691, 11026901692, 11026902690, 11026902691, 11026902692, 1102690290, 11026902962, 11026904691, 11026904692, 11026912690, 11026912691, 11026914690, 11026914691, 11026922500, 11026922501, 11026922502, 11026922503, 11026924500, 11026924501, 11026924502, 11026924503, 11026942500, 11026942501, 11026942502, 11026942503, 11026944500, 11026944501, 11026944502, 11026944503, 11026962500, 11026962501, 11026962502, 11026962503, 11026964500, 11026964501, 11026964502, 11026964503, 11026966500, 11027112600, 11027112601, 11027172600, 11027172601, 11027222600, 11027224600, 11027272600, 11027322600, 11027332600, 11027342600, 11027422600, 11027432600, 11027442600, 11027522600, 11027532600, 11027542600, 11027612600, 11027622790, 11027622791, 11027632600, 11027642600, 11027721600, 11027731600, 11027741600, 11027751700, 11027761700, 11027782700, 11027802690, 11027802691, 11027812690, 11027812691, 11027812692, 11027822790, 11027824790, 11027831600, 11027841600, 11027852790, 11027852791, 11027862790, 11027871600, 11027872600, 11027874600, 11027892790, 11027892791, 11027894790, 11027894791, 11027902790, 11028222700, 11028222701, 11028299890, 11028322700, 11028332700, 11028352700, 11028362700, 11028372700, 11028422700, 11028432700, 11028522700, 11028522701, 11028532700, 11028532701, 11028622700, 11028622701, 11028632700, 11028632701, 11028692700, 11028692701, 11028722700, 11028732700, 11028752700, 11028762700, 11028782700, 11028802890, 11028803890, 11028812790, 11028822790, 11028822791, 11028824790, 11028824791, 1102882790, 11028832700, 11028837700, 11028842700, 11028847700, 11028872890, 11028872891, 11028874890, 11028874891, 11028882790, 11028882791, 11028884790, 11028884791, 11028892790, 11028892791, 11028894790, 11028894791, 11028902790, 11028902791, 11028912790, 11028912791, 11028922790, 11028922791, 11028924790, 11028924791, 11029012990, 11029032990, 11029072990, 11029422800, 11029422801, 11029432800, 11029432801, 11029442800, 11029442801, 11029522800, 11029522801, 11029532800, 11029532801, 11029592800, 11029592801, 11029601690, 11029622800, 11029622801, 11029632800, 11029632801, 11029672800, 11029672801, 11029682800, 11029682801, 11029692800, 11029692801, 11029722800, 11029722801, 11029727800, 11029727801, 11029732800, 11029732801, 11029737800, 11029737801, 11029802890, 11029812890, 11029812891, 11029822800, 11029822801, 11029832800, 11029832801, 11029842990, 11029842991, 11029852990, 11029852991, 11029852992, 11029882890, 11029882891, 11029884890, 11029884891, 11029892990, 11029894990, 11029962890, 11029962891, 11047602940, 11047661950, 11047662950, 11080754000, 11080754001, 11080754006, 11081061100, 11081161100, 11081161200, 11081161400, 11081161600, 11081161800, 11081167110, 11081167120, 11081167210, 11081167220, 11081167410, 11081167420, 11081167610, 11081167620, 11081167810, 11081167820, 11081275100, 11081275110, 11081275200, 11081275210, 11081275400, 11081275410, 11081275600, 11081275610, 11081275800, 11081275810, 11081310100, 11081310110, 11081310120, 11081310130, 11081310140, 11081320100, 11081320110, 11081320120, 11081320130, 11081320140, 11081321100, 11081321110, 11081321120, 11081321130, 11081321140, 11081321150, 11081350100, 11081350110, 11081350120, 11081350130, 11081350140, 11081350150, 11081351100, 11081351110, 11081351120, 11081351130, 11081351140, 11081351150, 11081360100, 11081360110, 11081360120, 11081360130, 11081360200, 11081360210, 11081360220, 11081360230, 11081360400, 11081360410, 11081360420, 11081360430, 11081360600, 11081360610, 11081360620, 11081360630, 11081360800, 11081360810, 11081360820, 11081360830, 11081361100, 11081361110, 11081361120, 11081361130, 11081361140, 11081361150, 11081361200, 11081361210, 11081361220, 11081361230, 11081361240, 11081361250, 11081361310, 11081361320, 11081361330, 11081361340, 11081361350, 11081361400, 11081361410, 11081361420, 11081361430, 11081361440, 11081361450, 11081361600, 11081361610, 11081361620, 11081361630, 11081361640, 11081361650, 11081361710, 11081361720, 11081361730, 11081361740, 11081361750, 11081361800, 11081361810, 11081361820, 11081361830, 11081361840, 11081361850, 11081362100, 11081362110, 11081362120, 11081362130, 11081362140, 11081362150, 11081362200, 11081362210, 11081362220, 11081362230, 11081362240, 11081362250, 11081362310, 11081362320, 11081362330, 11081362340, 11081362350, 11081362400, 11081362410, 11081362420, 11081362430, 11081362440, 11081362450, 11081362600, 11081362610, 11081362620, 11081362630, 11081362640, 11081362650, 11081362710, 11081362720, 11081362730, 11081362740, 11081362750, 11081362800, 11081362810, 11081362820, 11081362830, 11081362840, 11081362850, 11081375100, 11081375110, 11081375120, 11081375130, 11081375150, 11081375160, 11081375200, 11081375210, 11081375220, 11081375230, 11081375250, 11081375260, 11081375310, 11081375320, 11081375330, 11081375350, 11081375360, 11081375400, 11081375410, 11081375420, 11081375430, 11081375450, 11081375460, 11081375600, 11081375610, 11081375620, 11081375630, 11081375650, 11081375660, 11081375710, 11081375720, 11081375730, 11081375750, 11081375760, 11081375800, 11081375810, 11081375820, 11081375830, 11081375850, 11081375860, 11081446100, 11081446110, 11081446120, 11081446200, 11081446210, 11081446220, 11081446400, 11081446410, 11081446420, 11081446600, 11081446610, 11081446620, 11081446800, 11081446810, 11081446820, 11081476100, 11081476110, 11081476120, 11081476140, 11081476200, 11081476210, 11081476220, 11081476240, 11081476310, 11081476320, 11081476340, 11081476400, 11081476410, 11081476420, 11081476440, 11081476600, 11081476610, 11081476620, 11081476640, 11081476710, 11081476720, 11081476740, 11081476800, 11081476810, 11081476820, 11081476840, 11081610100, 11081620100, 11081621100, 11081650100, 11081661100, 11081661300, 11081661600, 11081661700, 11081661800, 11081662100, 11081662300, 11081662600, 11081662700, 11081662800, 11081664100, 11081664110, 11081664300, 11081664310, 11081664600, 11081664610, 11081664700, 11081664710, 11081664800, 11081664810, 11081675100, 11081675110, 11081675300, 11081675310, 11081675600, 11081675610, 11081675700, 11081675710, 11081675800, 11081675810, 11081810100, 11081810110, 11081820100, 11081820110, 11081821100, 11081821110, 11081850100, 11081860100, 11081860110, 11081860300, 11081860310, 11081860600, 11081860610, 11081860700, 11081860710, 11081860800, 11081860810, 11081862100, 11081862110, 11081862120, 11081862300, 11081862310, 11081862320, 11081862600, 11081862610, 11081862620, 11081862700, 11081862710, 11081862720, 11081862800, 11081862810, 11081862820, 11081863100, 11081863110, 11081863120, 11081863130, 11081863300, 11081863310, 11081863320, 11081863330, 11081863600, 11081863610, 11081863620, 11081863630, 11081863700, 11081863710, 11081863720, 11081863730, 11081863800, 11081863810, 11081863820, 11081863830, 11081864100, 11081864110, 11081864120, 11081864130, 11081864300, 11081864310, 11081864320, 11081864330, 11081864600, 11081864610, 11081864620, 11081864630, 11081864700, 11081864710, 11081864720, 11081864730, 11081864800, 11081864810, 11081864820, 11081864830, 11081878100, 11081878110, 11081878120, 11081878300, 11081878310, 11081878320, 11081878600, 11081878610, 11081878620, 11081878700, 11081878710, 11081878720, 11081878800, 11081878810, 11081878820, 11081910100, 11081921100, 11081921110, 11081950100, 11081950110, 11081950600, 11081950610, 11082403100, 11082403110, 11082403120, 11082403130, 11082403140, 11082403800, 11082403810, 11082403820, 11082403830, 11082403840, 11082405100, 11082405110, 11082405120, 11082405130, 11082405140, 11082405800, 11082405810, 11082405820, 11082405830, 11082405840, 11082407100, 11082407110, 11082407120, 11082407130, 11082407140, 11082407800, 11082407810, 11082407820, 11082407830, 11082407840, 11082427100, 11082427110, 11082427120, 11082427130, 11082427140, 11082427300, 11082427310, 11082427320, 11082427330, 11082427340, 11082427600, 11082427610, 11082427620, 11082427630, 11082427640, 11082427700, 11082427710, 11082427720, 11082427730, 11082427740, 11082427800, 11082427810, 11082427820, 11082427830, 11082427840, 11082467100, 11082467110, 11082467120, 11082467130, 11082467140, 11082467300, 11082467310, 11082467320, 11082467330, 11082467340, 11082467600, 11082467610, 11082467620, 11082467630, 11082467640, 11082467700, 11082467710, 11082467720, 11082467730, 11082467740, 11082467800, 11082467810, 11082467820, 11082467830, 11082467840, 11082477100, 11082477110, 11082477120, 11082477130, 11082477140, 11082477300, 11082477310, 11082477320, 11082477330, 11082477340, 11082477600, 11082477610, 11082477620, 11082477630, 11082477640, 11082477700, 11082477710, 11082477720, 11082477730, 11082477740, 11082477800, 11082477810, 11082477820, 11082477830, 11082477840, 11082670100, 11082670110, 11082670120, 11082670300, 11082670310, 11082670320, 11082670600, 11082670610, 11082670620, 11082670700, 11082670710, 11082670720, 11082670800, 11082670810, 11082670820, 11082671100, 11082671110, 11082671120, 11082671300, 11082671310, 11082671320, 11082671600, 11082671610, 11082671620, 11082671700, 11082671710, 11082671720, 11082671800, 11082671810, 11082671820, 11082672100, 11082672110, 11082672120, 11082672300, 11082672310, 11082672320, 11082672600, 11082672610, 11082672620, 11082672700, 11082672710, 11082672720, 11082672800, 11082672810, 11082672820, 11082673100, 11082673110, 11082673120, 11082673300, 11082673310, 11082673320, 11082673600, 11082673610, 11082673620, 11082673700, 11082673710, 11082673720, 11082673800, 11082673810, 11082673820, 11082680100, 11082680110, 11082680300, 11082680310, 11082680600, 11082680610, 11082680700, 11082680710, 11082680800, 11082680810, 11082681100, 11082681110, 11082681120, 11082681300, 11082681310, 11082681320, 11082681600, 11082681610, 11082681620, 11082681700, 11082681710, 11082681720, 11082681800, 11082681810, 11082681820, 11082682100, 11082682110, 11082682120, 11082682300, 11082682310, 11082682320, 11082682600, 11082682610, 11082682620, 11082682700, 11082682710, 11082682720, 11082682800, 11082682810, 11082682820, 11082683100, 11082683110, 11082683120, 11082683130, 11082683300, 11082683310, 11082683320, 11082683330, 11082683600, 11082683610, 11082683620, 11082683630, 11082683700, 11082683710, 11082683720, 11082683730, 11082683800, 11082683810, 11082683820, 11082683830, 11082692100, 11082692110, 11082692120, 11082692130, 11082692140, 11082692300, 11082692310, 11082692320, 11082692330, 11082692340, 11082692600, 11082692610, 11082692620, 11082692630, 11082692640, 11082692700, 11082692710, 11082692720, 11082692730, 11082692740, 11082692800, 11082692810, 11082692820, 11082692830, 11082692840, 11082694100, 11082694110, 11082694120, 11082694130, 11082694140, 11082694300, 11082694310, 11082694320, 11082694330, 11082694340, 11082694500, 11082694510, 11082694520, 11082694530, 11082694540, 11082694700, 11082694710, 11082694720, 11082694730, 11082694740, 11082694800, 11082694810, 11082694820, 11082694830, 11082694840, 1108271610, 1108272700, 11082781100, 11082781300, 11082781600, 11082781700, 11082781800, 11082791100, 11082791110, 11082791120, 11082791300, 11082791310, 11082791320, 11082791600, 11082791610, 11082791620, 11082791700, 11082791710, 11082791720, 11082791800, 11082791810, 11082791820, 11082870020, 11082870030, 11082870100, 11082870110, 11082870120, 11082870130, 11082870300, 11082870310, 11082870320, 11082870330, 11082870600, 11082870610, 11082870620, 11082870630, 11082870700, 11082870710, 11082870720, 11082870730, 11082870800, 11082870810, 11082870820, 11082870830, 11082870900, 11082870910, 11082870920, 11082870930, 11082872100, 11082872110, 11082872120, 11082872130, 11082872300, 11082872310, 11082872320, 11082872330, 11082872600, 11082872610, 11082872620, 11082872630, 11082872700, 11082872710, 11082872720, 11082872730, 11082872800, 11082872810, 11082872820, 11082872830, 11082873100, 11082873110, 11082873120, 11082873130, 11082873300, 11082873310, 11082873320, 11082873330, 11082873600, 11082873610, 11082873620, 11082873630, 11082873700, 11082873710, 11082873720, 11082873730, 11082873800, 11082873810, 11082873820, 11082873830, 11082874100, 11082874110, 11082874120, 11082874130, 11082874300, 11082874310, 11082874320, 11082874330, 11082874600, 11082874610, 11082874620, 11082874630, 11082874700, 11082874710, 11082874720, 11082874730, 11082874800, 11082874810, 11082874820, 11082874830, 11082880100, 11082880300, 11082880600, 11082880700, 11082880800, 11082881100, 11082881110, 11082881300, 11082881310, 11082881700, 11082881710, 11082881800, 11082881810, 11082882100, 11082882300, 11082882600, 11082882700, 11082882800, 11082883100, 11082883300, 11082883600, 11082883700, 11082883800, 11082884100, 11082884300, 11082884600, 11082884700, 11082884800, 11082891100, 11082891110, 11082891120, 11082891130, 11082891300, 11082891310, 11082891320, 11082891330, 11082891610, 11082891620, 11082891630, 11082891700, 11082891710, 11082891720, 11082891730, 11082891800, 11082891810, 110828918100, 110828918110, 110828918120, 110828918130, 11082891820, 11082891830, 11082892100, 11082892300, 11082892600, 11082892700, 11082892800, 11082979100, 11082979110, 11082979300, 11082979310, 11082979600, 11082979610, 11082979700, 11082979710, 11082979800, 11082979810, 11082980100, 11082980110, 11082980120, 11082980130, 11082980300, 11082980310, 11082980320, 11082980330, 11082980620, 11082980630, 11082980700, 11082980710, 11082980720, 11082980730, 11082980800, 11082980810, 11082980820, 11082980830, 11082982100, 11082982110, 11082982120, 11082982130, 11082982300, 11082982310, 11082982320, 11082982330, 11082982620, 11082982630, 11082982700, 11082982710, 11082982720, 11082982730, 11082982800, 11082982810, 11082982820, 11082982830, 11082983100, 11082983110, 11082983120, 11082983130, 11082983300, 11082983310, 11082983320, 11082983330, 11082983700, 11082983710, 11082983720, 11082983730, 11082983800, 11082983810, 11082983820, 11082983830, 11082984100, 11082984110, 11082984120, 11082984130, 11082984300, 11082984310, 11082984320, 11082984330, 11082984700, 11082984710, 11082984720, 11082984730, 11082984800, 11082984810, 11082984820, 11082984830, 11082992100, 11082992110, 11082992300, 11082992310, 11082992700, 11082992710, 11082992800, 11082992810, 11082993100, 11082993110, 11082993300, 11082993310, 11082993500, 11082993510, 11082993700, 11082993710, 11082993800, 11082993810, 11082994100, 11082994110, 11082994300, 11082994310, 11082994500, 11082994510, 11082994700, 11082994710, 11082994800, 11082994810, 11084417100, 11084417300, 11084417600, 11084417700, 11084417800, 11084418100, 11084418300, 11084418600, 11084418700, 11084418800, 11084419100, 11084419110, 11084419300, 11084419600, 11084419700, 11084419800, 11084419810, 11084670100, 11084670300, 11084670600, 11084670700, 11084670800, 11084671100, 11084671300, 11084671600, 11084671700, 11084671800, 11084870100, 11084870110, 11084870300, 11084870600, 11084870610, 11084870700, 11084870800, 11084870810, 11088675100, 11088675110, 11088675300, 11088675310, 11088675600, 11088675610, 11088675700, 11088675710, 11088675800, 11088675810, 11088732790, 11088732791, 11088732792, 11088732793, 11088752790, 11088752791, 11088752792, 11088752793, 11088754790, 11088754791, 11088754792, 11088754793, 11089675110, 11089675310, 11089675610, 11089675710, 11089675810, 11091110100, 11091110110, 11091121100, 11091121110, 11091210100, 11091220100, 11091250100, 11091263100, 11091263600, 11091263800, 11091264100, 11091264600, 11091264800, 11091278100, 11091278600, 11091278800, 11091310100, 11091320100, 11091468100, 11091468600, 11091468800, 11091510100, 11091510110, 11091511100, 11091511110, 11091512200, 11091512210, 11091520100, 11091520110, 11091521200, 11091521210, 11091522200, 11091550100, 11091551200, 11091551210, 11091552200, 11091552210, 11091554100, 11091554110, 11091554200, 11091554210, 11091564100, 11091564110, 11091564800, 11091564810, 11091565100, 11091565110, 11091565200, 11091565210, 11091565800, 11091565810, 11091566200, 11091566210, 11091566400, 11091566410, 11091578100, 11091578800, 11091579100, 11091579800, 11091587200, 11091587210, 11091587400, 11091587410, 11092060100, 11092060110, 11092060120, 1109206110, 11092071100, 11092071110, 11092071300, 11092071310, 11092071600, 11092071610, 11092071700, 11092071710, 11092071800, 11092071810, 11092093100, 11092093110, 11092093120, 11092093300, 11092093310, 11092093320, 11092093510, 11092093520, 11092093700, 11092093710, 11092093720, 11092093800, 11092093810, 11092093820, 11092094100, 11092094300, 11092094500, 11092094700, 11092094800, 11092180100, 11092180110, 11092180300, 11092180310, 11092180600, 11092180610, 11092180700, 11092180710, 11092180800, 11092180810, 11092184100, 11092184800, 11092195100, 11092195110, 11092195500, 11092195510, 11092195800, 11092195810, 11092260100, 11092271100, 11092271600, 11092271800, 11092272000, 11092272100, 11092272600, 11092272800, 11092272900, 11092273100, 11092273600, 11092273800, 11092274100, 11092274600, 11092274800, 11092275100, 11092275600, 11092275800, 11092279100, 11092279600, 11092279800, 11092280100, 11092280600, 11092280800, 11092281100, 11092281600, 11092281800, 11092282100, 11092282600, 11092282800, 11092283100, 11092283600, 11092283800, 11092284100, 11092284800, 11092291100, 11092291600, 11092291800, 11092292100, 11092292600, 11092292800, 11092293100, 11092293110, 11092293500, 11092293510, 11092293800, 11092293810, 11092375100, 11092375800, 11092380200, 11092389200, 11092418100, 11092418600, 11092418800, 11092428100, 11092428600, 11092428800, 11092429100, 11092429600, 11092429800, 11092478100, 11092478600, 11092478800, 11092480200, 11092480400, 11092490100, 11092490110, 11092490120, 11092491200, 11092491210, 11092491400, 11092491410, 11092529100, 11092529110, 11092529800, 11092529810, 11092560100, 11092560800, 11092561100, 11092561110, 11092561200, 11092561210, 11092561410, 11092561800, 11092561810, 11092562200, 1109257020, 11092570200, 11092570400, 11092571200, 11092571400, 11092572100, 11092572110, 11092572800, 11092572810, 11092573000, 11092573010, 11092573100, 11092573110, 11092573200, 11092573210, 11092573800, 11092573810, 11092573900, 11092573910, 11092574100, 11092574800, 11092575100, 11092575110, 11092577200, 11092577210, 11092577400, 11092577410, 11092578200, 11092578210, 11092578400, 11092578410, 11092579100, 11092579110, 11092579800, 11092579810, 11092580000, 11092580100, 11092580110, 11092580600, 11092580610, 11092580800, 11092580810, 11092580900, 11092581100, 11092581110, 11092581120, 11092581200, 11092581210, 11092581220, 11092581420, 11092581800, 11092581810, 11092581820, 11092582100, 11092582110, 11092582120, 11092582210, 11092582220, 11092582410, 11092582420, 11092582800, 11092582810, 11092582820, 11092583100, 11092583110, 11092583120, 11092583200, 11092583210, 11092583220, 11092583800, 11092583810, 11092583820, 11092584100, 11092584800, 11092585100, 11092585110, 11092585800, 11092585810, 11092586200, 11092586210, 11092586400, 11092586410, 11092587200, 11092587210, 11092587400, 11092587410, 11092588200, 11092588210, 11092588400, 11092588410, 11092590100, 11092590110, 11092590120, 11092590800, 11092590810, 11092590820, 11092591200, 11092591210, 11092591220, 11092591230, 11092591400, 11092591410, 11092591420, 11092591430, 11092592200, 11092592400, 11092593200, 11092593210, 11092593220, 11092593400, 11092593410, 11092593420, 11092595200, 11092595210, 11092595400, 11092595410, 11092595500, 11092595510, 11092596100, 11092597200, 11092597210, 11092597400, 11092597410, 1109281100, 11094519100, 11094519800, 11094570100, 11094570800, 11098573100, 11098573110, 11098573120, 11098573130, 11098573800, 11098573810, 11098573820, 11098573830, 11098575100, 11098575110, 11098575120, 11098575800, 11098575810, 11098575820, 11098618100, 11098618800, 11098673830, 11098752790, 11098752791, 11098752792, 11098752793, 11098752794, 11098752795, 1109875279B, 11099575100, 11099575110, 11099575120, 11099575800, 11099575810, 11099575820, 1109975820, 110C81432510, 1CLBR5432PQ0, 1CLSQ9549PG0, 1CLSQ9549PG1, 1CLSQ9549PW0, 1CLSQ9549PW1, 1CLSR7010PQ0, 1CLSR7010PQ1, 1CLSR7300PQ0, 1CLSR7300PQ1, 1CLSR7333PQ0, 1CLSR7333PQ1, 1CLSR9434PQ0, 1CLSR9434PQ1, 1CLSR9434PT0, 1CLSR9434PT1, 1CLXR7244PT0, 1CLXR7244PT1, 1CWTW5100VQ0, 1CWTW5100VQ1, 1CWTW5200VQ0, 1CWTW5200VQ1, 1CWTW5300SQ0, 1CWTW5300VW0, 1CWTW5300VW1, 1CWTW5500SQ0, 1CWTW5500ST0, 1CWTW5505SQ0, 1CWTW5505VQ0, 1CWTW5505VQ1, 1CWTW5520SQ0, 1CWTW5590SQ0, 1CWTW5590ST0, 1CWTW5590VQ0, 1CWTW5590VQ1, 1CWTW5700SW0, 1CWTW5790SQ0, 1CWTW5790ST0, 1CWTW5790VQ0, 1CWTW5790VQ1, 1CWTW57ESVW0, 1CWTW57ESVW1, 1CWTW5800SG0, 1DWTW5205SQ0, 1DWTW5205SQ1, 2DATW4305TQ0, 2DHTW4305TQ0, 2DLSQ7533JQ3, 2DLSQ7533JQ4, 2DLSQ7533JQ5, 2DLSQ8000JQ3, 2DLSQ8000JQ4, 2DLSQ8000JQ5, 2DLXR7244MQ0,
