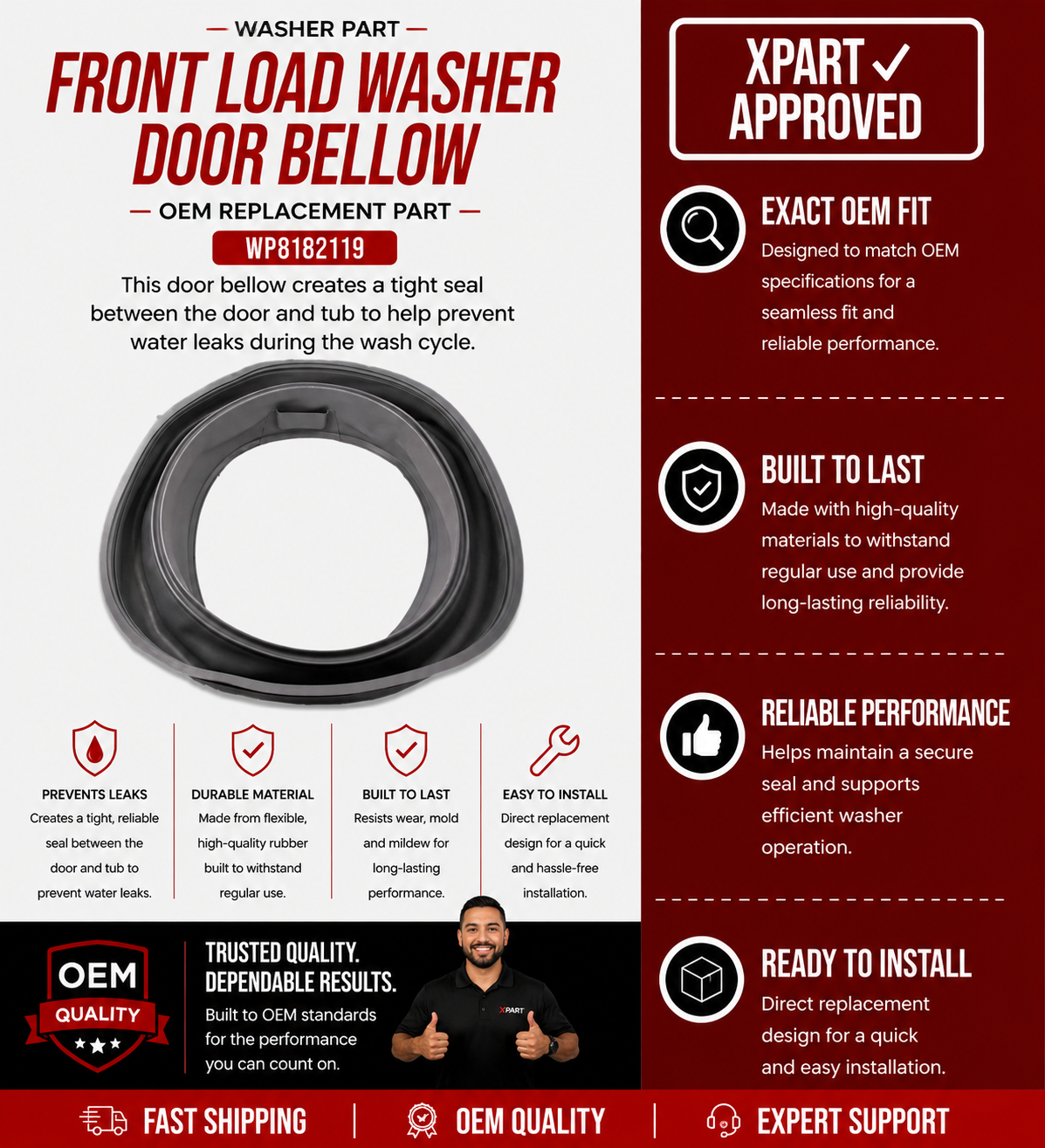

Whirlpool Washer door bellow / door boot seal WP8182119, Replaces 8182119, W10003800, WP8182119VP

Flexible front-load washer door boot seal that forms a watertight seal between the washer door and outer tub, helping prevent leaks. The part is sold without the retaining clamps.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Visible water or suds escaping around the front door during operation
• A torn, split, or punctured rubber boot
• Mold or heavy residue buildup on the boot that compromises sealing
• Water collecting in or around the lower door area

Check Before Replacing

• Disconnect power and inspect the entire boot for tears, splits, punctures, deformation, or objects caught in the folds.
• With the washer empty and powered off, gently inspect the boot-to-door and boot-to-tub contact areas for gaps or sections pulled out of their retaining channels.
• Check that the boot drain/weep openings are positioned at the bottom and are not blocked by debris.
• Clean accessible residue from the seal and verify whether the leak persists; do not operate the washer with a visibly damaged boot.

Pro Tip

Part Details

Key Features

• Whirlpool genuine OEM door boot/bellow seal
• Flexible rubberized construction
• Seals the inner drum area from the washer cabinet and room
• Sold as one seal; retaining clamps are not included
• Replaces Whirlpool 8182119 and W10003800

Installation Notes

• Disconnect electrical power and turn off the washer water supplies before service.
• The replacement requires removal and refitting of the boot retaining clamp(s); the existing clamps must be retained or separately sourced because they are not included.
• Align the boot’s top reference mark at the 12-o’clock position and keep the drain/weep openings at the bottom where applicable.
• Ensure the boot is fully seated in its tub and door channels and that the retaining clamp is evenly engaged before returning the washer to service.
• Follow the appliance-specific service information because front-panel and control-panel access can vary by model.

Verified Compatible Models

7MGHW9150PW0, 7MGHW9150PW1, 7MGHW9150PW2, 7MGHW9400PW0, 7MGHW9400PW1, 7MGHW9400PW2, GHW9100LQ2, GHW9100LW2, GHW9150PW0, GHW9150PW1, GHW9150PW2, GHW9150PW3, GHW9150PW4, GHW9160PW0, GHW9160PW1

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
