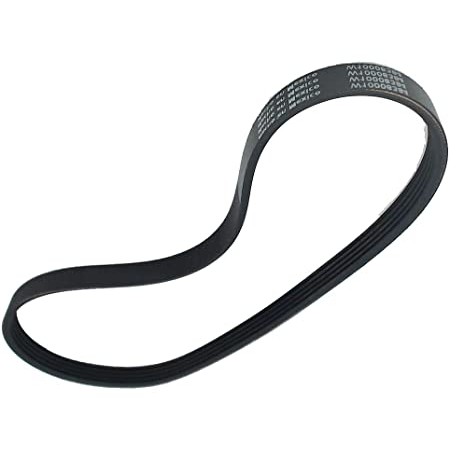

Whirlpool Washer Drive Belt WPW10006384 – OEM & Premium XPart Options Available (Replaces W10006384)

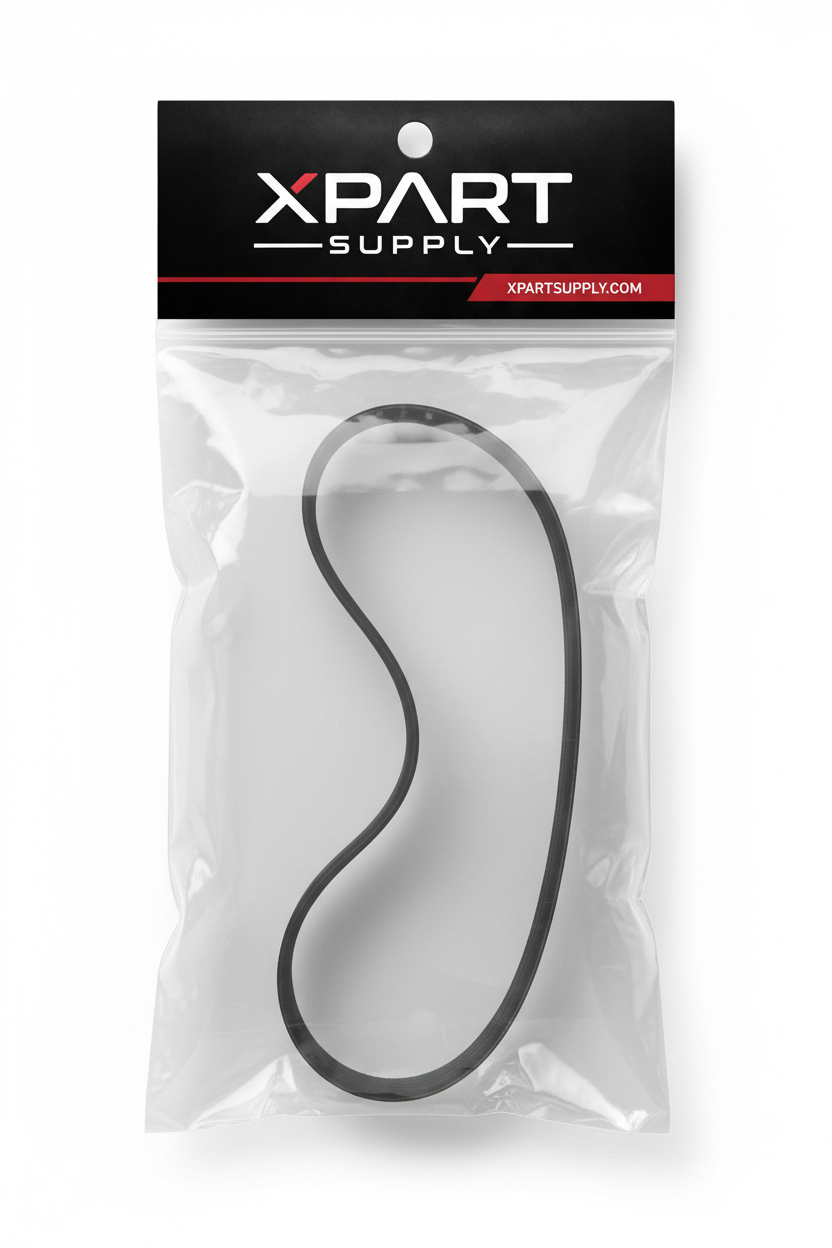

WPW10006384 Whirlpool Washer Drive Belt – Retail Bag Mockup | XPart Supply Canada

WPW10006384 Whirlpool Washer Drive Belt – Sales Image | XPart Supply Canada

Technical diagram of gearcase, motor, and pump parts on a white background

Whirlpool Corporation Washer drive belt WPW10006384

Price: $42.29

Buying Options: XPart

XPart

$42.29

OEM

$35.95

Product variant with selected options does not exist!

Frequently Bought Together

Whirlpool Corporation Washer drive belt WPW10006384

Genuine Whirlpool washer drive belt used to transfer motor power to the washer drive system and spin basket. Sources identify it primarily for top-load washers, with some cross-brand applications.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

✔ Your washer powers on and the motor hums or runs
✔ The lid switch is confirmed working (washer doesn’t stop due to open lid)
✔ The drive motor and transmission are confirmed functional
✔ No error codes pointing to motor or control board failure
✔ ONLY problem is drum not spinning/agitating, squealing noise, or burning rubber smell

Not sure? Send us your model number — we’ll confirm before you order.

🔧 Common Symptoms

Washer drum won’t spin — motor runs but drum stays still
Washer won’t agitate — clothes sit in water without moving
Loud squealing or thumping noise during spin cycle
Burning rubber smell during or after a wash cycle
Visible belt damage — cracking, fraying, or snapped belt found inside cabinet
Clothes come out soaking wet because spin cycle never engages

✔ If these symptoms match, this is the most likely failed component in the system.

✔ In most cases, replacing this drive belt restores full spin and agitation immediately.

✅ Cross Reference Information

Part Number: WPW10006384

Manufacturer Replacements: WPW10006384

Previous Part Numbers: W10006384

Part Details

Part Number: WPW10006384
Part Type: Washer drive belt
Manufacturer: Whirlpool Corporation
Appliance Type: Washer

⚙️ Installation Notes

Skill Level: Moderate — 30–45 minutes. Disconnect power before servicing. Remove the washer cabinet panels using a putty knife and Phillips screwdriver to access the motor and transmission pulleys, release belt tension, slide the old belt off both pulleys, route the new belt around the motor pulley first then the transmission/drum pulley, and verify proper seating before reassembling. Run a spin cycle after reassembly to confirm the belt tracks correctly under load.

💡 Pro Tip

Inspect the Motor Pulley and Transmission Pulley While You’re In There:
A belt rarely fails in isolation — check both pulleys for cracks, wobble, or glazing while the cabinet is open. A worn pulley will destroy a new belt within weeks. Also inspect the pump belt if your model has one; it’s routed nearby and costs almost nothing to replace at the same time. Doing both in one visit eliminates the most common cause of a repeat belt failure.

WTW5840BW0, WTW5840BC0, WTW5810BW0, WTW5800BW0, WTW5700XW3, WTW5640XW3, WTW5610XW3, WTW5600XW3, WTW5550XW3, WTW5500XW3, WTW5000DW1, WTW5000DW0, WTW4950XW3, WTW4930XW3, WTW4915EW1, WTW4900BW1, WTW4850XQ3, WTW4816FW0, WTW4815EW1, WTW4810EW1, WTW4800XQ4, WTW4715EW0, WTW4616FW0, NTW4755EW0, NTW4750YQ1, NTW4705EW0, NTW4655EW0, NTW4635EW0, NTW4615EW0, NTW4605EW0, NTW4516FW0, MVWX700XW2, MVWX655DW1, MVWX600XW2, MVWX550XW2, MVWX500XW2, MVWC565FW0, MVWC555DW1, MVWC450XW4, MVWC415EW1, MVWC400XW4, MVWC300XW2, MVWC215EW1, MVWC200XW3, ITW4971EW0, ITW4771EW0, ITW4671EW0, CAW9444XQ4, CAW9244XQ4, ATW4676BQ1, ATW4675EW0, RTW4640YQ1, RTW4516FW0

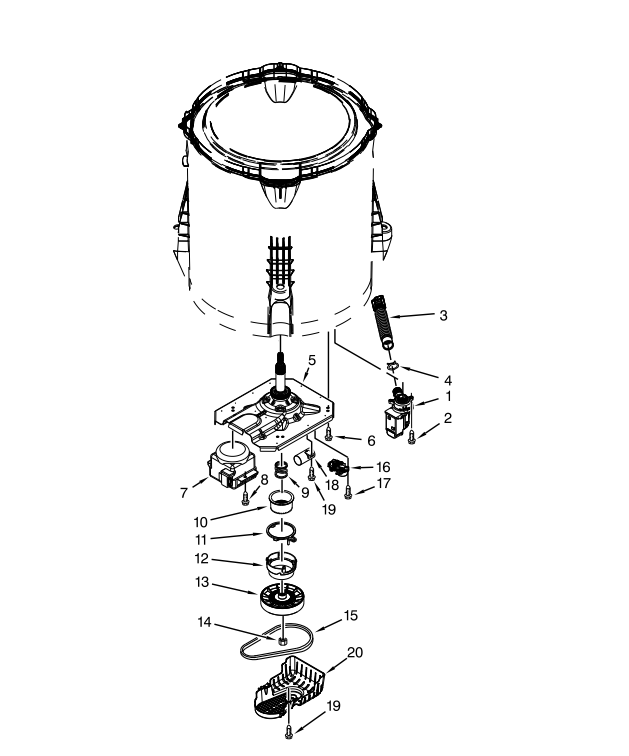

WPW10006384 – Washer Gearcase, Motor & Pump Parts Diagram

Verified Compatible Models

11020022010, 11020022011, 11020022012, 11020022014, 11020102310, 11020102311, 11020112310, 11020112311, 11020222511, 11020232710, 11020232711, 11021102010, 11021302011, WTW5610XW0, WTW5500XW0

Fitment reminder: Match the complete appliance model number before ordering.

✓ Model-Specific Repair Pages

✅Compatibility & Cross Reference

Item # in diagram.

Part number WPW10006384 replaces W10006384, WPW10006384VP

1CWTW4740YQ0, 1CWTW4740YQ1, 1CWTW4740YQ2, 1CWTW4800YQ1, 1CWTW4800YQ2, 1CWTW4815EW0, 1CWTW4815EW1, 1CWTW4840YW0, 1CWTW4840YW1, 1CWTW4840YW2, 1CWTW4845EW0, 1CWTW4845EW1, 4GATW4900YW0, 4GATW4900YW1, 4GATW4900YW2, 4GMVWC100YQ0, 4GMVWC100YQ1, 4GMVWC300YW0, 4GMVWC300YW1, 4GMVWC300YW2, 4GMVWC400YW0, 4GMVWC400YW1, 4GMVWC400YW2, 4GMVWX500YW0, 4GMVWX500YW1, 4GNTW4400YQ0, 4GNTW4400YQ1, 4GNTW4400YQ2, 4GNTW4600YQ0, 4GNTW4600YQ1, 4GNTW4600YQ2, 4GWTW4740YQ0, 4GWTW4740YQ1, 4GWTW4740YQ2, 4GWTW4740YQ3, 4GWTW4800YQ0, 4GWTW4800YQ1, 4GWTW4800YQ2, 4GWTW4800YQ3, 4GWTW4950YW0, 4GWTW4950YW1, 4GWTW4950YW2, 4GWTW5550YW0, 4GWTW5550YW1, 4GWTW5550YW2, 4KATW4830EW0, 4KATW4930DW0, 4KMVWC100BQ0, 4KMVWC130EQ0, 4KMVWC230EW0, 4KMVWC300BW0, 4KMVWC330DW0, 4KMVWC400BW0, 4KMVWC405BW0, 4KMVWX505BW0, 4KNTW4430EQ0, 4KNTW4530EQ0, 4KNTW4630DQ0, 4KWTW4730EQ0, 4KWTW4830EQ0, 4KWTW4930DQ0, 7EWTW1300YM0, 7EWTW1409YM0, 7EWTW1509YM0, 7EWTW1515YW0, 7EWTW1711YM0, 7EWTW1715YW0, 7MMVWC100DW0, 7MMVWC100DW1, 7MMVWC200DW0, 7MMVWC200DW1, 7MMVWC200YW0, 7MMVWC210YW0, 7MMVWC220AW0, 7MMVWC300YW0, 7MMVWC300YW1, 7MMVWC310YW0, 7MMVWC310YW1, 7MMVWC320BW0, 7MMVWC355DW0, 7MMVWC355DW1, 7MMVWC400YW0, 7MMVWC400YW1, 7MMVWC400YW2, 7MMVWC410AW0, 7MMVWC420BW0, 7MMVWH450DW0, 7MMVWH450DW1, 7MMVWX500YW0, 7MMVWX500YW1, 7MMVWX500YW2, 7MMVWX510YW0, 7MMVWX510YW1, 7MMVWX521BW0, 7MMVWX521BW1, 7MMVWX550YW0, 7MMVWX622BW0, 7MMVWX655EW0, 7MMVWX700XL0, 7MMVWX700XL1, 7MMVWX700XL2, 7MMVWX722BG0, 7MMVWX722BG1, 7MWTW1500AQ0, 7MWTW1500EM0, 7MWTW1500EM1, 7MWTW1501AW0, 7MWTW1501AW1, 7MWTW1501AW2, 7MWTW1502AW0, 7MWTW1502AW1, 7MWTW1502AW2, 7MWTW1502BM0, 7MWTW1502BM1, 7MWTW1503AW0, 7MWTW1503AW1, 7MWTW1504DQ0, 7MWTW1504DQ1, 7MWTW1601BQ0, 7MWTW1602AW0, 7MWTW1602AW1, 7MWTW1602AW2, 7MWTW1602BM0, 7MWTW1602BM1, 7MWTW1603AW0, 7MWTW1603AW1, 7MWTW1603AW2, 7MWTW1604AW0, 7MWTW1604AW1, 7MWTW1604DM0, 7MWTW1604DM1, 7MWTW1605AW0, 7MWTW1605AW1, 7MWTW1606AW0, 7MWTW1606AW1, 7MWTW1606AW2, 7MWTW1607AW0, 7MWTW1607AW1, 7MWTW1700AQ0, 7MWTW1700BQ0, 7MWTW1700EM0, 7MWTW1700EM1, 7MWTW1701DQ0, 7MWTW1701DQ1, 7MWTW1702BQ0, 7MWTW1703BM0, 7MWTW1704BM0, 7MWTW1704BM1, 7MWTW1706BM0, 7MWTW1706YM0, 7MWTW1709DM0, 7MWTW1709DM1, 7MWTW1709YM0, 7MWTW1709YM1, 7MWTW1710YM0, 7MWTW1710YM1, 7MWTW1711YM0, 7MWTW1711YM1, 7MWTW1712AM0, 7MWTW1715BM0, 7MWTW1715BM1, 7MWTW1750YW0, 7MWTW1750YW1, 7MWTW1799BQ0, 7MWTW1800DM0, 7MWTW1800DM1, 7MWTW1801BQ0, 7MWTW1801BQ1, 7MWTW1805DM0, 7MWTW1805DM1, 7MWTW1805EM0, 7MWTW1805EM1, 7MWTW1808AW1, 7MWTW1812AW0, 7MWTW1812AW1, 7MWTW1899BQ0, 7MWTW1904DM1, 7MWTW1905DW0, 7MWTW1905DW1, 7MWTW1935DW0, 7MWTW1935DW1, 7MWTW1950EW0, 7MWTW1950EW1, 7MWTW1950YW0, 7MWTW1950YW1, 7MWTW1950YW2, 7MWTW1955EW0, 7MWTW1955EW1, 7MWTW1955YW0, 7MWTW1955YW1, 7MWTW4915EW0, 7MWTW4925EW0, 7MWTW5500XW0, 7MWTW5500XW1, 7MWTW5500XW2, 7MWTW5521BW0, 7MWTW5521BW1, 7MWTW5550YW0, 7MWTW5550YW1, 7MWTW5550YW2, 7MWTW5560YW0, 7MWTW5622BW0, 7MWTW5622BW1, 7MWTW5700YW0, 7MWTW5700YW1, 7MWTW5700YW2, 7MWTW5722BC0, 7MWTW9919DM0, 7MWTW9919DM1, 7MWTW9920EM0, ATW4675EW0, ATW4675YQ0, ATW4675YQ1, ATW4676BQ0, ATW4676BQ1, CAE2743BQ0, CAE2763BQ0, CAE2763CQ0, CAE2793BQ0, CAE2793CQ0, CAW11544EW1, CAW12444BW0, CAW12444DW1, CAW12444XW0, CAW12444XW1, CAW12444XW2, CAW8350EW0, CAW8350EW1, CAW9244BW0, CAW9244DW0, CAW9244DW1, CAW9244XQ0, CAW9244XQ1, CAW9244XQ2, CAW9244XQ4, CAW9352EW1, CAW9444BW0, CAW9444DW0, CAW9444DW1, CAW9444XQ0, CAW9444XQ1, CAW9444XQ2, CAW9444XQ4, ITW4600YQ0, ITW4600YQ1, ITW4671DQ0, ITW4671EW0, ITW4700YQ0, ITW4700YQ1, ITW4771DQ0, ITW4771EW0, ITW4971DQ0, ITW4971EW0, MVW18CSAWW0, MVW18CSBWW0, MVW18MNAWW0, MVW18MNBWW0, MVW18PDAWW0, MVW18PDAXW0, MVW18PDBWW0, MVW18PDBXW0, MVW18PRAWW0, MVW18PRBWW0, MVWC200BW0, MVWC200BW1, MVWC200XW0, MVWC200XW1, MVWC200XW2, MVWC200XW3, MVWC215EW0, MVWC215EW1, MVWC300BW0, MVWC300XW0, MVWC300XW1, MVWC300XW2, MVWC350AW0, MVWC350AW1, MVWC360AW0, MVWC400XW0, MVWC400XW1, MVWC400XW2, MVWC400XW3, MVWC400XW4, MVWC415EW0, MVWC415EW1, MVWC425BW0, MVWC425BW1, MVWC450XW0, MVWC450XW1, MVWC450XW2, MVWC450XW3, MVWC450XW4, MVWC555DW0, MVWC555DW1, MVWC565FW0, MVWP475EW0, MVWX500BW0, MVWX500XL1, MVWX500XL2, MVWX500XW1, MVWX500XW2, MVWX550XW0, MVWX550XW1, MVWX550XW2, MVWX5SPAW0, MVWX600BW0, MVWX600XL0, MVWX600XL1, MVWX600XW0, MVWX600XW1, MVWX600XW2, MVWX655DW0, MVWX655DW1, MVWX700AG0, MVWX700XL0, MVWX700XL1, MVWX700XL2, MVWX700XW0, MVWX700XW1, MVWX700XW2, NTW4501XQ0, NTW4516FW0, NTW4600YQ0, NTW4600YQ1, NTW4601BQ1, NTW4601XQ0, NTW4605EW0, NTW4610YQ0, NTW4611BQ0, NTW4611BQ1, NTW4615EW0, NTW4630YQ0, NTW4631BQ0, NTW4631BQ1, NTW4635EW0, NTW4650YQ0, NTW4651BQ0, NTW4651BQ1, NTW4655EW0, NTW4700YQ0, NTW4700YQ1, NTW4701BQ0, NTW4701BQ1, NTW4705EW0, NTW4750BQ0, NTW4750BQ1, NTW4750YQ0, NTW4750YQ1, NTW4755EW0, QCAE2733BQ0, RTW4516FW0, RTW4640YQ0, RTW4640YQ1, RTW4641BQ0, RTW4641BQ1, RTW4740YQ0, WTW4616FW0, WTW4700YQ0, WTW4715EW0, WTW4750YQ0, WTW4750YQ1, WTW4800BQ0, WTW4800BQ1, WTW4800XQ0, WTW4800XQ1, WTW4800XQ2, WTW4800XQ4, WTW4810BQ0, WTW4810BQ1, WTW4810EW0, WTW4810EW1, WTW4815EW0, WTW4815EW1, WTW4816FW0, WTW4820XQ0, WTW4850BW0, WTW4850BW1, WTW4850BW2, WTW4850XQ0, WTW4850XQ1, WTW4850XQ3, WTW4880AW0, WTW4880AW1, WTW4900AW0, WTW4900BW0, WTW4900BW1, WTW4910XQ0, WTW4910XQ1, WTW4910XQ3, WTW4915EW0, WTW4915EW1, WTW4930XW0, WTW4930XW1, WTW4930XW3, WTW4950XW0, WTW4950XW1, WTW4950XW2, WTW4950XW3, WTW5000DW0, WTW5000DW1, WTW5500BW0, WTW5500XL0, WTW5500XL1, WTW5500XL2, WTW5500XW0, WTW5500XW1, WTW5500XW2, WTW5500XW3, WTW5550XW0, WTW5550XW1, WTW5550XW2, WTW5550XW3, WTW5600XW0, WTW5600XW1, WTW5600XW2, WTW5600XW3, WTW5610XW0, WTW5610XW1, WTW5610XW2, WTW5610XW3, WTW5640XW0, WTW5640XW1, WTW5640XW2, WTW5640XW3, WTW5700AC0, WTW5700XL0, WTW5700XL1, WTW5700XL2, WTW5700XL3, WTW5700XW0, WTW5700XW1, WTW5700XW2, WTW5700XW3, WTW5800BC0, WTW5800BW0, WTW5810BW0, WTW5840BC0, WTW5840BW0

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
