Whirlpool Microwave Sliding Arm Assembly / Door Support Arm WPW10128850, Replaces 251968600013, 461967510191, 8205688, 8205689, W10120469, W10120470, W10128850

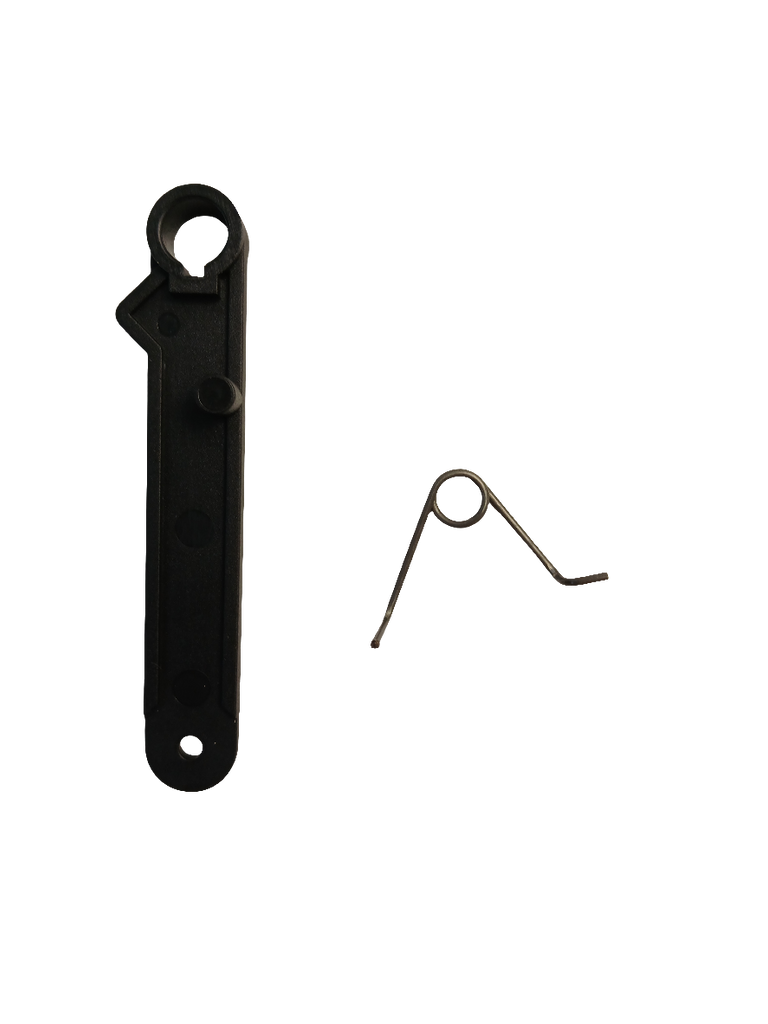

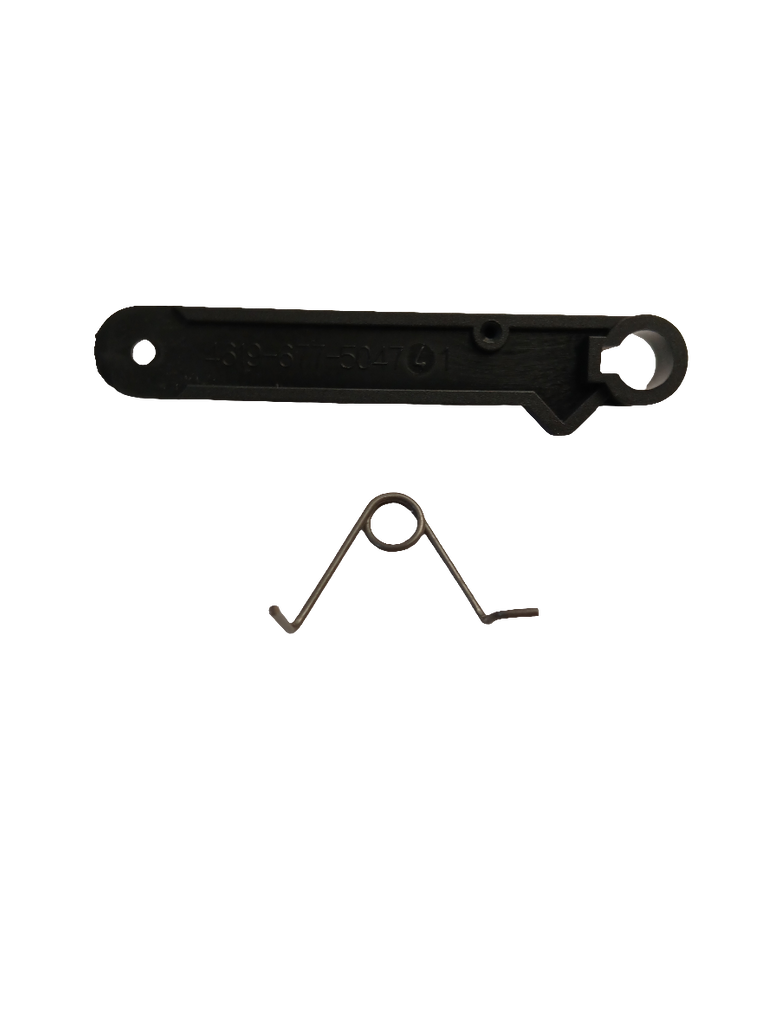

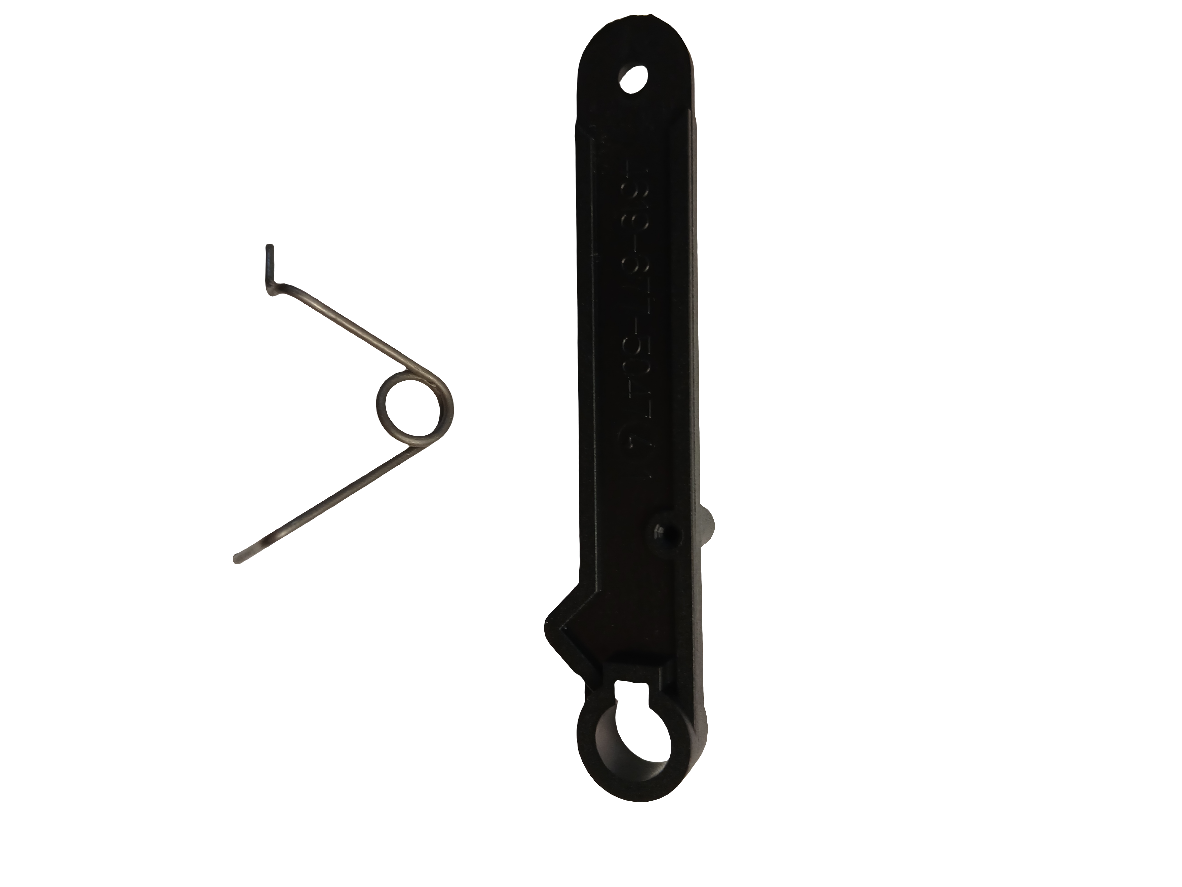

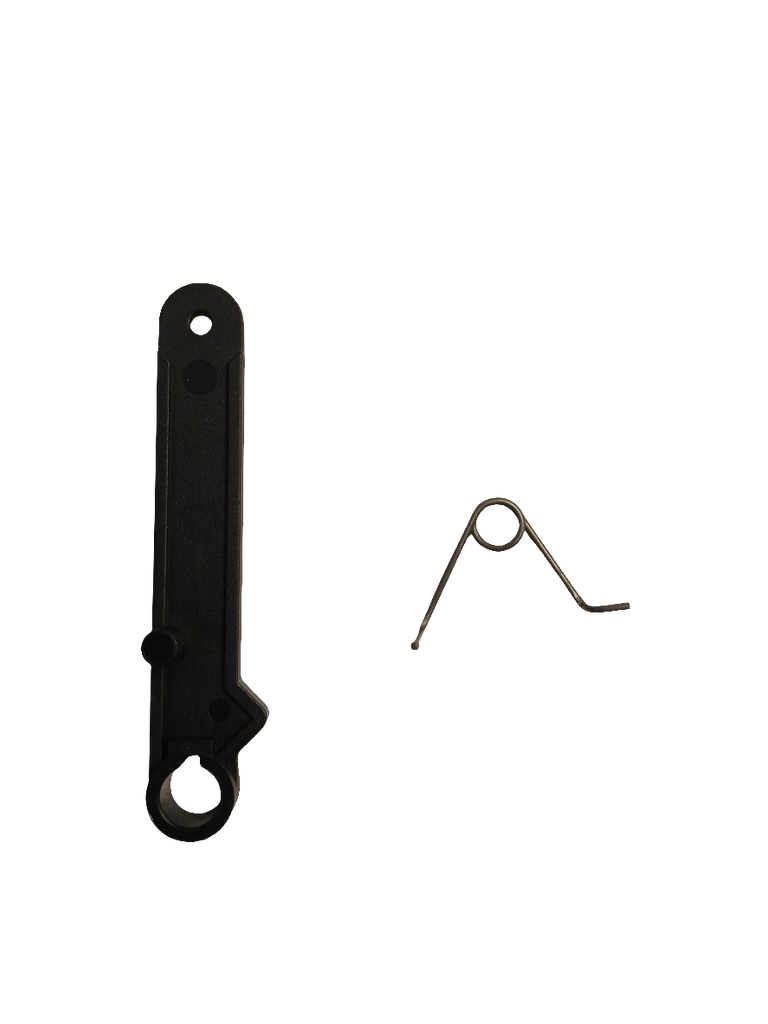

Genuine Whirlpool OEM sliding-arm/door-support assembly used in the microwave door mechanism.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Door movement is stiff, misaligned, or incomplete.
• Door does not latch or engage the interlock mechanism consistently.
• Microwave may not start or heat when the door mechanism fails to actuate the door switch; this symptom can have other causes.

Check Before Replacing

• With the appliance unplugged, visually inspect the door-support/sliding-arm area for visible cracking, bending, looseness, or misalignment.
• Open and close the door gently and observe whether the movement is smooth and whether the door reaches its normal closed position.
• Check for an obvious gap or abnormal door position compared with the cabinet; do not force the door or operate the microwave with damaged door components.
• Do not remove the microwave cabinet or test high-voltage components as part of a customer-level diagnosis.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM component.
• Identified by Whirlpool as a Hinge Arm / Door Support Arm.
• Also documented in Whirlpool repair-parts literature as an Assembly, Sliding Arm.
• Used in selected microwaves, microwave-oven combinations, and related cooking appliances.

Installation Notes

• Because microwave high-voltage capacitors can retain a lethal charge even after unplugging, Sears PartsDirect advises that a service technician install this part.
• Use the appliance's model-specific service information and confirm the replacement part before disassembly.
• If the inner microwave door assembly is replaced, Whirlpool service guidance states that the sliding-arm assembly should also be replaced in the applicable repair procedure.

Verified Compatible Models

IBMS1450VM0, IBMS1450VMS0, IBMS1450WM0, IBMS1450YB0, IBMS1450YS0, IBMS1455DS00, IBMS1455DS01, IBMS1455VS0, IBMS1455VW0, IBMS1455WS0, IBMS1455WW0, IBMS1455XB0, IBMS1456XB0, IBMS1456XS0, IMBS104GSS00, IMBS104GSS01, IMBS104GSS02, JMC2430WB00, JMW2327WS02, JMW2427IL03, JMW2430DP03, JMW2430LM02, JMW2430WW02, WOC54EC0HB03, WOC54EC0HB04, WOC54EC0HS03, WOC54EC0HS04, WOC54EC0HW03, WOC54EC0HW04, WOC54EC7HB02, WOC54EC7HB03, WOC54EC7HB04, WOC54EC7HS02, WOC54EC7HS03, WOC54EC7HS04, WOC54EC7HW02, WOC54EC7HW03, WOC54EC7HW04, WOC75EC0HS03, WOC75EC0HS04, WOC75EC0HV03, WOC75EC0HV04, WOC75EC7HS02, WOC75EC7HS03, WOC75EC7HS04, WOC75EC7HV03, WOC75EC7HV04, WOC97EC0HZ02, WOC97EC0HZ03, WOCA7EC0HN02

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
