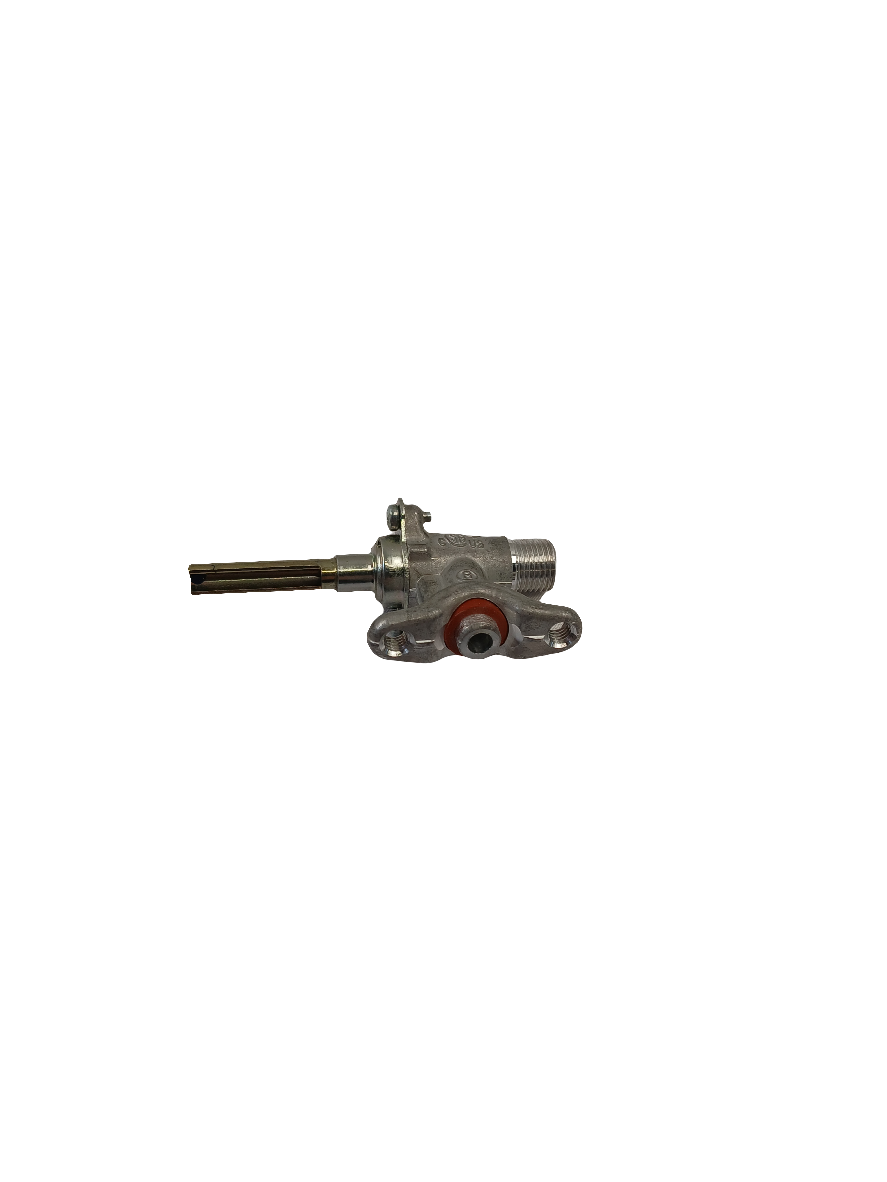

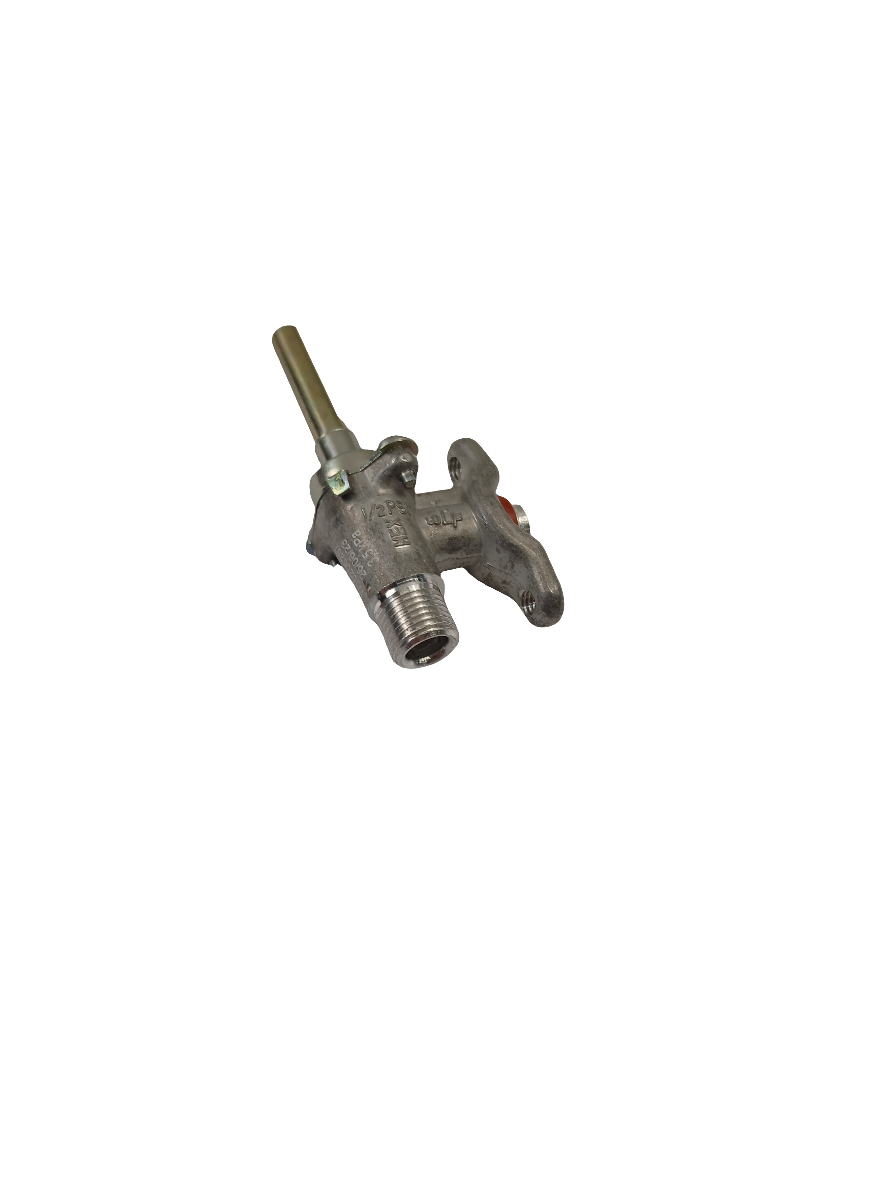

Whirlpool Corporation Range Surface burner valve (5K BTU), also described as burner valve—left/right rear WPW10206287, Replaces W10206287

Genuine Whirlpool OEM gas surface-burner valve that controls gas flow to a range surface burner; documented for 5K-BTU burner positions, including left and right rear burners on supported models.

Is This the Right Part?

Common Symptoms

• The individual burner will not light despite a confirmed spark and an unobstructed burner assembly.
• The burner flame is weak, unstable, or cannot be adjusted normally after basic burner-cleaning checks.
• Gas continues flowing or the burner remains on when its control is set to OFF.
• Gas odor is detected near the valve or connection; stop use immediately and have the appliance inspected.

Check Before Replacing

• With the appliance cool, confirm the control knob is fully seated on the valve stem and turns the stem through its normal range.
• Compare the affected burner with a functioning burner: check that the burner cap and head are correctly positioned and that ports are free of visible food debris or moisture.
• Verify that the igniter produces a spark and that the appliance has its required electrical power; do not disassemble or electrically test the gas valve unless qualified.
• If gas odor is present, turn off the appliance and gas supply if safe to do so, ventilate the area, and contact a qualified gas-appliance technician or the gas utility.
• If the burner will not shut off, do not continue operating the range; a qualified technician should evaluate the valve and the rest of the gas-control system.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM surface burner valve.
• Rated and described for a 5K-BTU surface burner.
• Used for supported left- and right-rear burner positions.
• Manufacturer part number WPW10206287.
• Replaces manufacturer number W10206287.

Installation Notes

• Shut off appliance power and the gas supply before service, and allow the appliance to cool.
• Gas-line disconnection and leak verification are required; installation should be performed by a qualified appliance or gas technician if the procedure is unfamiliar.
• Use the appliance-specific service documentation for access, connection, and reassembly details because range construction varies by model.
• After installation, the connection must be checked for gas leakage before the appliance is returned to service. Do not operate the appliance if a leak is suspected.

Verified Compatible Models

GGG388LXB00, GGG388LXB01, GGG388LXB02, GGG388LXB03, GGG388LXB04, GGG388LXB05, GGG388LXQ00, GGG388LXQ01, GGG388LXQ02, GGG388LXQ03, GGG388LXQ04, GGG388LXQ05, GGG388LXS00, GGG388LXS01, GGG388LXS02

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
