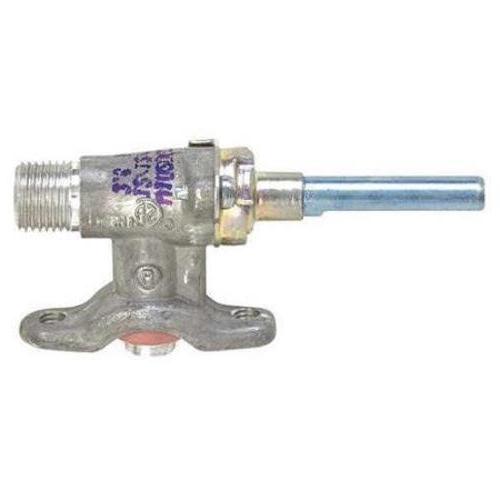

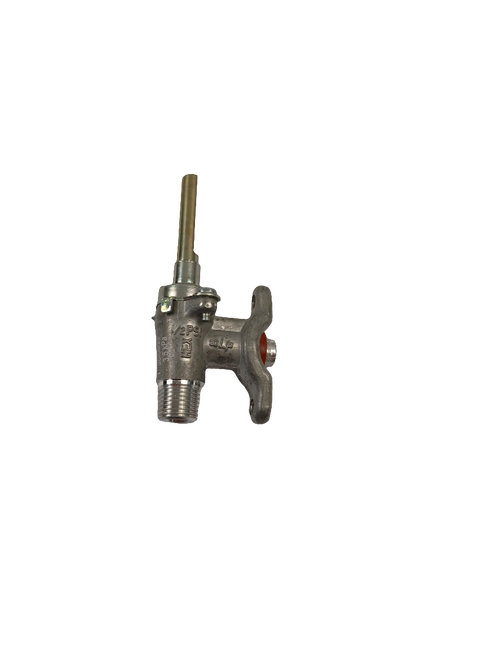

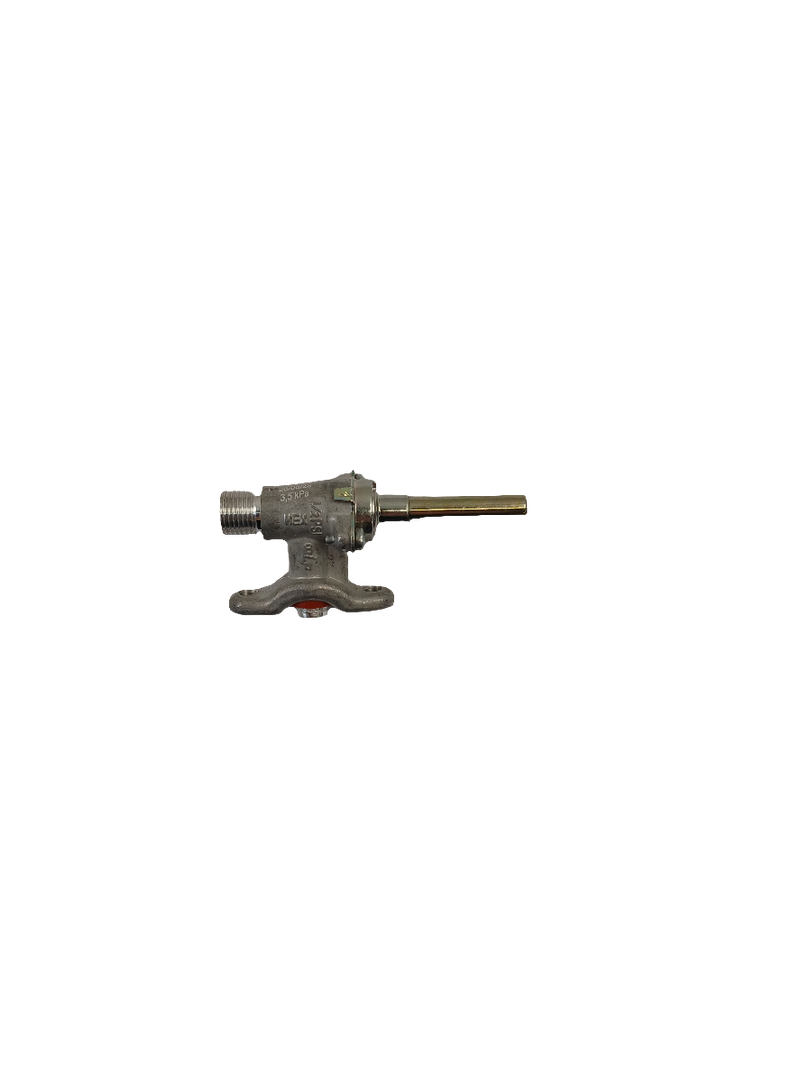

Whirlpool Range Surface Burner Valve (16K BTU) WPW10206288, Replaces W10206288

Genuine Whirlpool OEM surface burner gas valve for ranges; controls gas flow to a surface burner and is rated at 16,000 BTU.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Affected burner will not ignite even though the igniter operates and other burners work.
• Burner flame cannot be adjusted correctly or remains abnormally low/high.
• Valve stem or burner control feels seized, stiff, or does not turn normally.
• Gas odor is present near the range; stop using the appliance and shut off the gas supply if this occurs.

Check Before Replacing

• With the appliance cool, compare the affected burner with a working burner: check whether the knob turns the valve stem normally and whether the igniter produces a spark.
• Confirm that the burner cap and burner head are correctly seated and clean before attributing the issue to the valve.
• If only one burner is affected while other burners operate normally, document the affected burner position and compare its valve part number, orientation, and BTU rating with the replacement.
• Do not use a flame to check for leaks. If gas odor is detected, stop testing, shut off the appliance gas supply if safe, ventilate the area, and contact a qualified gas-appliance technician.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM surface burner valve.
• 16,000-BTU surface burner rating.
• Used for the left-front/right-front burner positions in documented Whirlpool applications.
• Controls the gas flow delivered to the designated surface burner.
• Replaces Whirlpool part W10206288.

Installation Notes

• Shut off the range gas supply and disconnect electrical power before servicing.
• Gas-line connections and valve replacement should be performed by a qualified appliance technician unless the appliance service documentation authorizes the repair.
• Record the original valve position and transfer connections only as specified by the appliance service documentation; do not interchange valve positions.
• After reassembly, perform the manufacturer-specified leak and burner-operation checks. Never check for leaks with an open flame.
• If the replacement valve does not match the original connection arrangement, burner position, or rating, stop installation and verify the appliance model documentation.

Verified Compatible Models

GGG388LXB00, GGG388LXB01, GGG388LXB02, GGG388LXB03, GGG388LXB04, GGG388LXB05, GGG388LXQ00, GGG388LXQ01, GGG388LXQ02, GGG388LXQ03, GGG388LXQ04, GGG388LXQ05, GGG388LXS00, GGG388LXS01, GGG388LXS02

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
