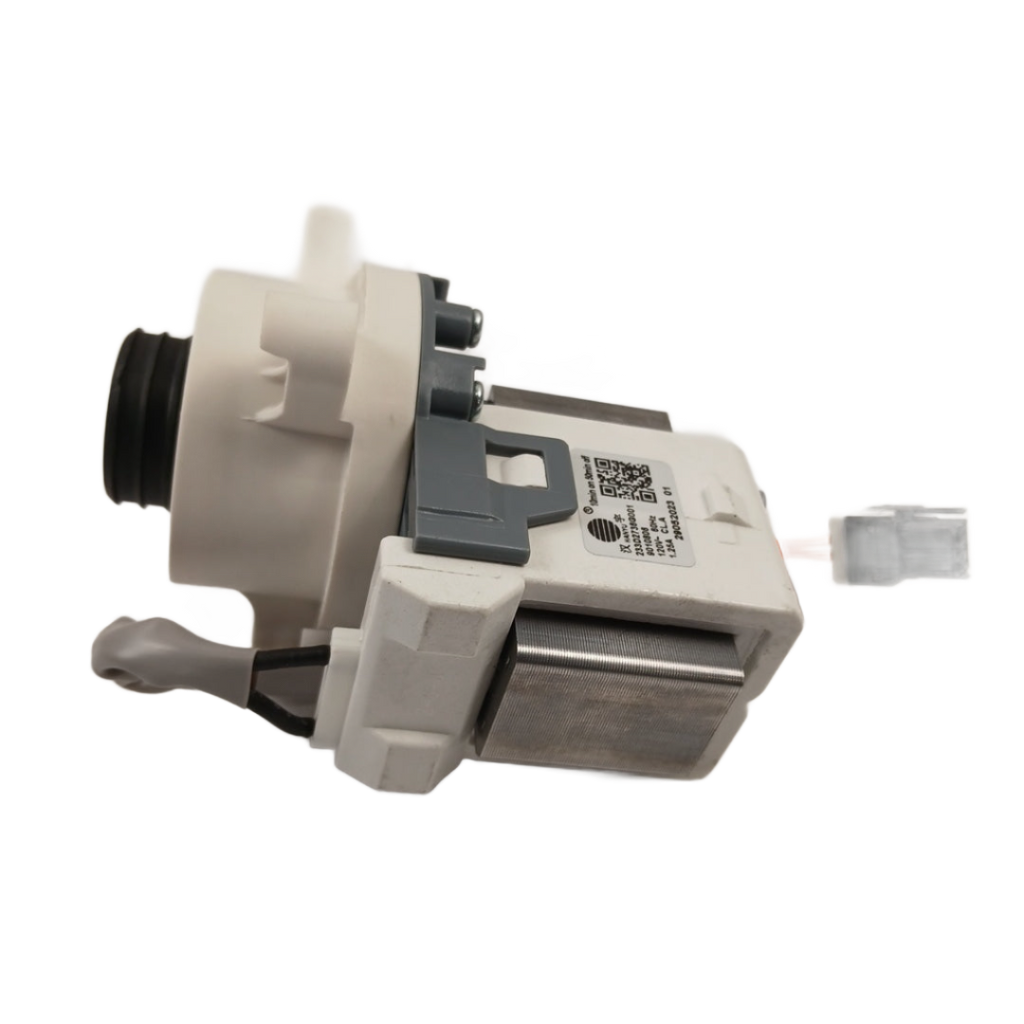

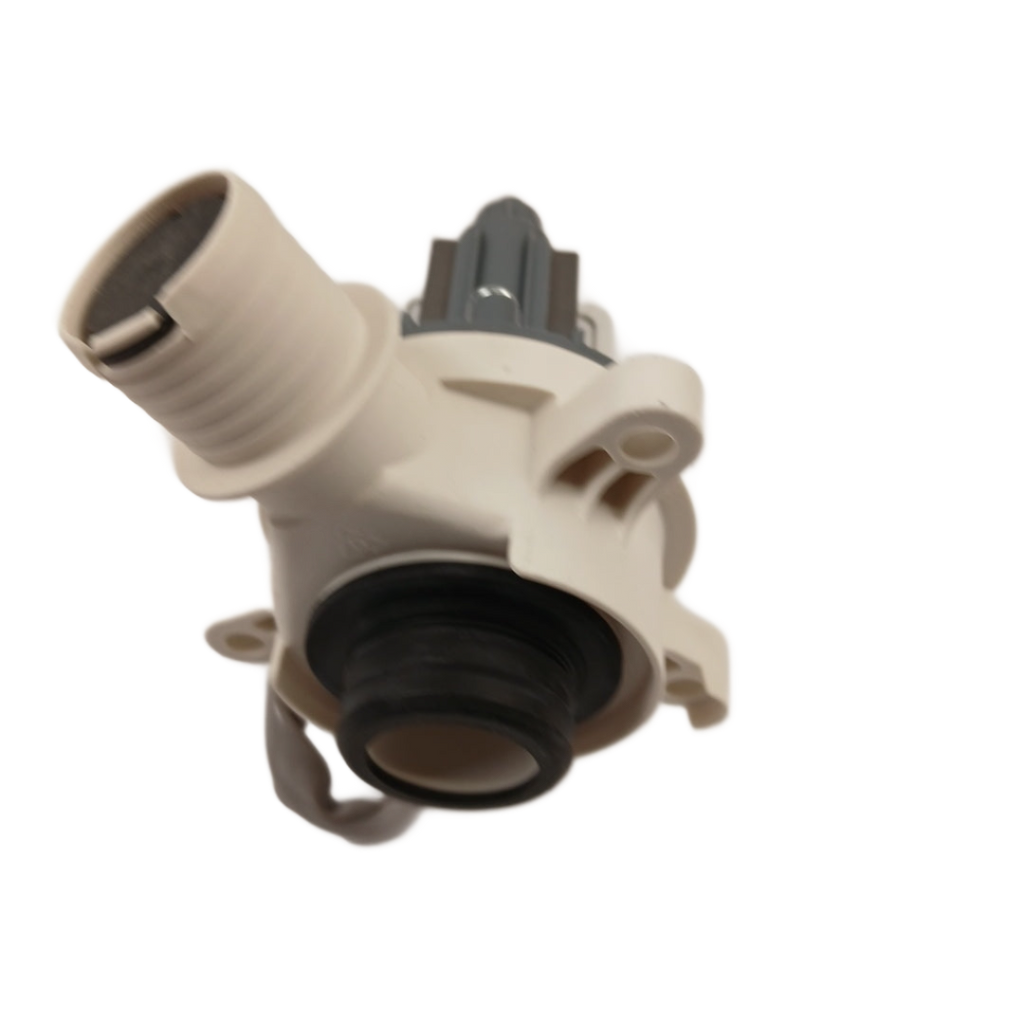

Whirlpool Washer Drain Pump Assembly (120V 60Hz) WPW10276397
Genuine Whirlpool washer drain pump assembly that removes water during the washer drain portion of the cycle. It is used on select top-load washer models and may address no-drain, leaking, or draining-issue symptoms when the pump itself is defective.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Washer powers on and agitates normally — only the drain cycle fails
- ✔ The lid latch and door switch are confirmed functioning
- ✔ No foreign objects (coins, socks) are blocking the pump filter or drain hose
- ✔ The drain hose is not kinked, clogged, or improperly routed
- ✔ ONLY problem is water remaining in the drum after the cycle ends
🔧 Common Symptoms
- Washer stops mid-cycle with water still in the drum
- F21, F9E1, or Sud error code displayed
- Washer runs but never drains — drum stays full
- Loud humming or grinding noise during the drain cycle
- Washer takes much longer than normal to complete a cycle
- Water leaking from under the washer near the pump housing
✔ If these symptoms match, this is the most likely failed component in the system.
✔ In most cases, replacing this drain pump restores normal drain function immediately.
✅ Cross Reference Information
Part Number: WPW10276397
Previous Part Numbers: W10276397
Part Details
- Part Number: WPW10276397
- Part Type: Washer Drain Pump Assembly (120V 60Hz)
- Manufacturer: Whirlpool
- Appliance Type: Washer
⚙️ Installation Notes
Skill Level: Moderate — 30–45 minutes. Disconnect power and water supply before servicing. Tilt the washer back or lay it on its side to access the pump from the bottom, disconnect the wiring harness and two drain hoses from the old pump, remove the mounting screws, install the new WPW10276397 pump, reconnect hoses and harness, and restore power to test. Have towels ready — residual water will drain when hoses are disconnected.
💡 Pro Tip
Before replacing the pump, remove and clean the pump filter — a sock, coin, or debris buildup is the #1 cause of drain pump failure on this platform. If the filter is clear and the pump hums but doesn’t move water, the pump impeller has failed and WPW10276397 is your fix. Skipping the filter check is the most common reason customers replace a pump that didn’t need replacing.
1CWTW4740YQ0, 7MWTW1500AQ0, 7MWTW1706YM0, ATW4675YQ0, ITW4600YQ0, MVWC200XW0, MVWC300XW0, MVWC400XW0, MVWC450XW0, MVWX500XW0, MVWX600XW0, MVWX700XW0, NTW4600YQ0, NTW4700YQ0, NTW4750YQ0, RTW4640YQ0, WTW4800XQ0, WTW4850XQ0, WTW4910XQ0, WTW4950XW0, WTW5500XW0, WTW5550XW0, WTW5600XW0, WTW5700XW0, WTW5800BW0
Verified Compatible Models
11020022010, 11020022011, 11020022012, 11020102310, 11020102311, 11020112310, 11021102010, 11021102011, 11021102012, 11021102013, 11021112010, 11021112011, 11021182010, 11021182011, 11021182012, 11021182013, 11021202010, 11021202011, 11021252110, 11021252111, 11021292010, 11021292011, 11021292012, 11021292013, 11021302010, 11021302011, 11021302012, 11021302013, 11021352110, 11021352111, 11027022710, 7EWTW1509YM0, CAW9444XQ0, CAW9444XQ1, WTW4800XQ0, WTW4820XQ0, WTW5640XW0, CAE2795FQ1, 7MWTW1502AW0, CAE2765FQ0, CAE2743BQ0, 1CWTW4740YQ0, 1CWTW4840YW0, 7EWTW1300YM0, 7EWTW1409YM0, 7EWTW1515YW0, 7EWTW1711YM0, 7EWTW1715YW0, 7MMVWC200YW0, 7MMVWC210YW0
Fitment reminder: Match the complete appliance model number before ordering.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
