Whirlpool Range bake heating element WPW10276482, Replaces W10276482, 74011117, 74008693, 7406P451-60, W10144689

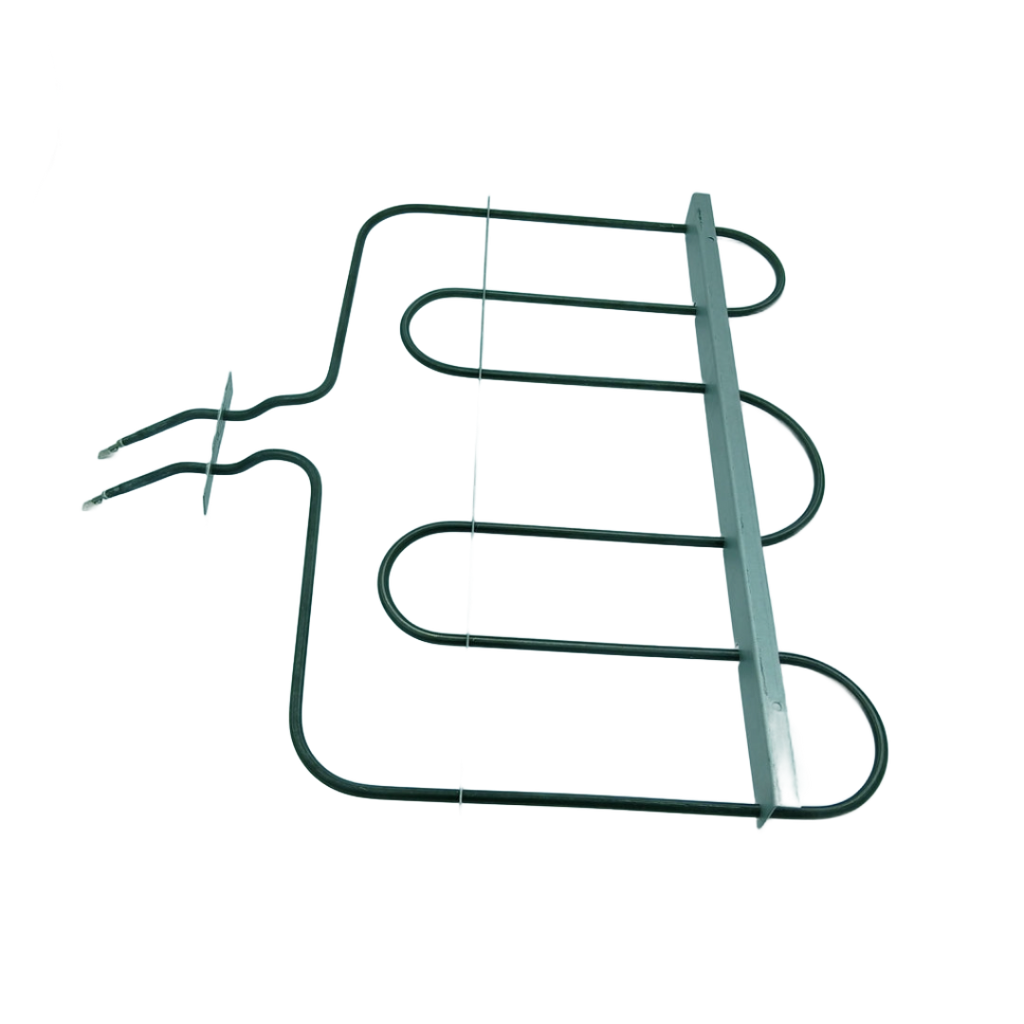

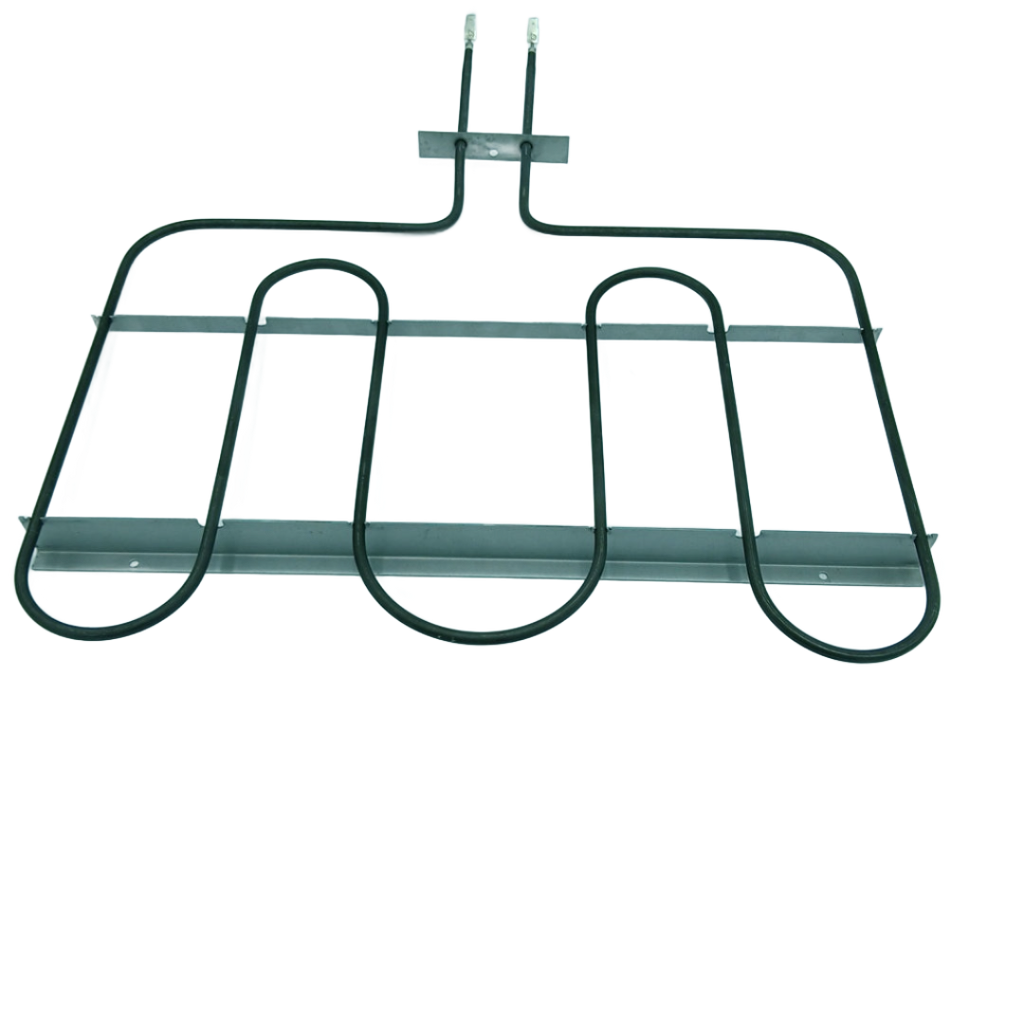

Genuine Whirlpool hidden oven bake element, rated at approximately 3,600 watts and 240 volts. It is installed at the bottom of the oven cavity and supplies heat for baking.

Is This the Right Part?

Common Symptoms

• Oven does not heat during bake.
• Oven heats slowly or fails to reach the selected temperature.
• Bake element has a visible break, crack, blister, or burn mark.

Check Before Replacing

• With electrical power disconnected, visually inspect the element and its terminals for a break, crack, blistering, or burned connection.
• Confirm the range has electrical power and that the circuit breaker has not tripped before attributing the symptom to the element.
• During a controlled bake test, observe whether the lower bake element produces heat; do not touch the element or allow objects to contact it.
• If using an electrical meter, continuity/resistance testing should be performed only with the appliance disconnected from power and by a qualified or properly trained person.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM range bake heating element.
• Hidden/concealed bake-element design.
• Approximately 3,600 watts at 240 volts.
• Installed beneath or at the bottom of the oven cavity.
• Provides heat for baking.

Installation Notes

• Disconnect electrical power by unplugging the range or switching off its circuit breaker before service.
• Remove the oven racks and the panel or cover that conceals the bake element, as applicable to the appliance design.
• Pull the element forward carefully before disconnecting its two terminals; prevent the wires from falling back into the oven wall.
• Reconnect both terminals securely, reinstall the retaining screws and any removed oven-bottom cover, then restore power and test the bake function.
• Verify the appliance model and terminal/physical configuration before installation; do not force a misaligned element into place.

Verified Compatible Models

AER5515QAQ, AER5515QAW, AER5515QCW, AER5715QAQ, AER5715QAS, AER5715QAW, AER5715QCB, AER5715QCS, AER5715QCW, AER5715RCB, AER5715RCS, AER5715RCW, AER5725QAF, AER5725QAN, AER5725QAQ

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
