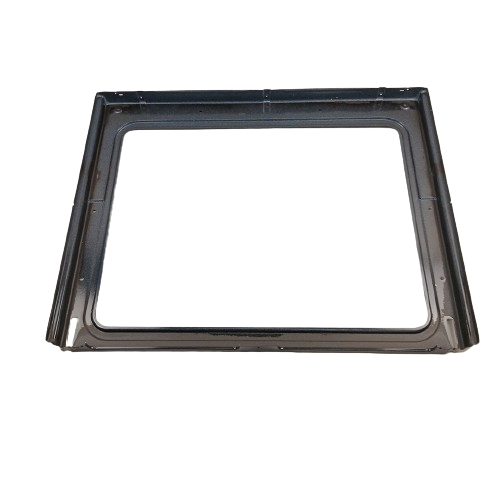

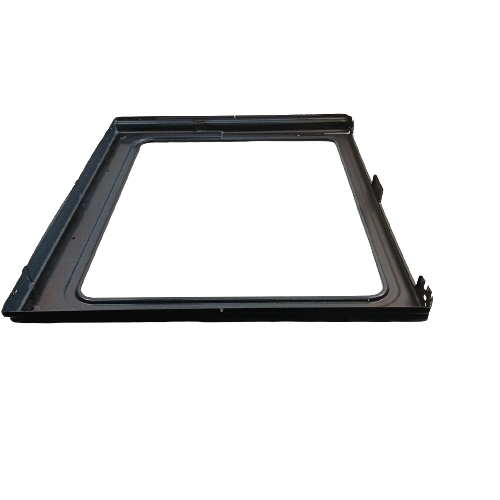

Whirlpool Liner-Door (range/oven door inner liner panel) WPW10297318, Replaces W10297318

Genuine Whirlpool OEM inner oven-door liner panel. It supports the oven-door structure, insulation, and door glass while helping contain heat.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Visible cracking, warping, or physical damage on the inner oven-door panel.
• Door glass may lack proper support or positioning when the liner is damaged.
• Damaged liner may compromise the door's ability to contain heat.

Check Before Replacing

• With the range off and completely cool, visually inspect the inner door panel for cracks, warping, corrosion, or other physical damage.
• Check whether the door glass is seated and supported correctly; do not assume a glass-fit issue proves the liner is defective.
• Close the door and verify that it opens, closes, and sits level normally; hinge or latch problems can also affect door operation.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM liner-door.
• Structural inner panel for the range oven door.
• Supports the oven-door glass.
• Helps the oven-door assembly contain heat.
• Oversize replacement part.

Installation Notes

• Allow the range and door to cool fully before service.
• The oven door is heavy; support it with both hands and use the model-specific door-removal procedure.
• Place a removed door on a flat, protected surface to help prevent damage to the glass and finish.
• No part-specific installation instructions were found for WPW10297318; use the appliance model's service literature for liner disassembly and reassembly.
• After reassembly, verify the door opens and closes freely and sits level when closed.

Verified Compatible Models

KFGG500EWH4, KGRS202BBL0, KGRS202BSS0, KGRS202BWH0, KGRS303BBL0, KGRS303BSS0, KGRS308BSS0, KIRS608BSS0, YKERS202BSS0, YKERS202BWH0, YKERS303BBL0, YKERS303BSS0, YKERS303BWH0, YKERS306BSS0, YKIRS608BSS0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
