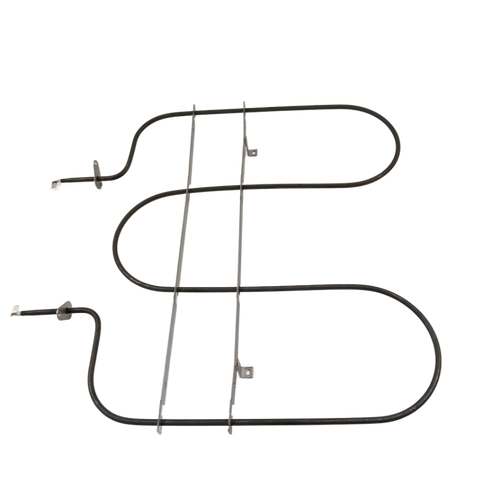

Whirlpool Range Oven bake element WPW10308477, Replaces W10308477, 9758541, 9758519, 814432, 8053713, 3195067

Whirlpool OEM electric range oven bake element, rated 2400W, used to provide bottom-of-oven baking heat. The element may be visibly damaged when failed and can be tested for continuity.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Little or no heat during bake
• Slow preheating or inability to reach the selected temperature
• Uneven baking associated with insufficient bottom heat
• Visible holes, blisters, cracking, or burn damage on the element

Check Before Replacing

• Disconnect electrical power to the range at the plug or circuit breaker and allow the oven to cool completely before inspection.
• Visually inspect the bake element for holes, blisters, cracking, separation, or obvious burn damage.
• With power disconnected and the element wires safely isolated, check continuity across the element terminals using a suitable multimeter; lack of continuity indicates an open element, but other oven faults can produce similar symptoms.
• Inspect the accessible wire connectors and terminals for looseness, corrosion, melting, or heat damage without energizing the appliance.

Pro Tip

Part Details

Key Features

• Whirlpool OEM/factory-certified oven bake element
• 2400W rating
• Installs at the bottom of the oven cavity
• Uses push-on electrical terminals
• Approximate listed dimensions: 16-5/8 inches wide by 15-3/4 inches long
• Mounting bracket has approximately 3-inch terminals with about 1-3/4 inches between terminals

Installation Notes

• Disconnect power at the plug or household circuit breaker and allow the element to cool before beginning.
• Remove the retaining screws and pull the element forward only far enough to access the wire terminals.
• Prevent the wires from falling back into the rear oven wall while disconnecting the old element.
• Transfer the wire connectors securely to the replacement element and reinstall it using the original mounting locations.
• Confirm that the element is seated flat and does not contact the oven cavity improperly before restoring power.
• Use the appliance-specific installation or service information when it differs from these general notes.

Verified Compatible Models

4KAER5500AW0, 4KMER7600AW0, 4KMER7600AW1, 4KWFC120MAW0, 4KWFC120MAW1, 4RF302BXEQ1, 4RF302BXGQ0, 4RF302BXGQ1, 4RF302BXKQ0, 4RF302BXKQ1, 4RF315PXEQ0, 4RF315PXGQ0, 4RF315PXKQ0, 4RF315PXMQ0, 66592153300

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
