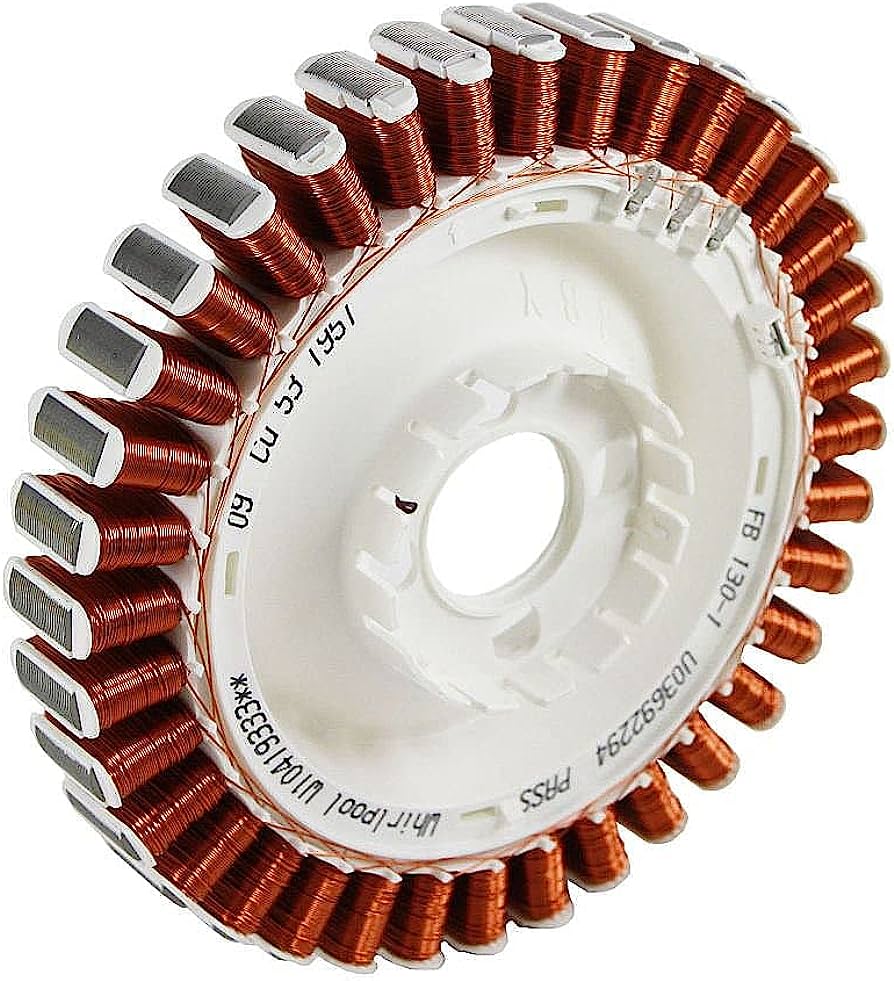

Whirlpool Corporation Washer Stator Assembly; Motor Stator (36 Pole) WPW10419333, Replaces W10419333, 8565170, Fixes Washer will not spin or agitate
Genuine Whirlpool OEM motor stator assembly for direct-drive washing machines. The stator works with the rotor to generate the magnetic field that rotates the washer basket. Sources identify it as a washing-machine stator and as a top-load washer motor stator.
Genuine Whirlpool OEM motor stator assembly for direct-drive washing machines. The stator works with the rotor to generate the magnetic field that rotates the washer basket. Sources identify it as a washing-machine stator and as a top-load washer motor stator.
Is This the Right Part?
✅ Cross Reference Information
Common Symptoms
- Washer will not spin.
- Washer will not agitate.
- Clothes remain wet at the end of the cycle.
Check Before Replacing
- Disconnect power before inspection.
- Confirm the washer’s exact model is listed for WPW10419333 before diagnosing or ordering.
- Inspect the exposed stator windings for visible damage or other defects after safely accessing the drive area.
- Inspect the stator electrical connector and harness for an insecure connection or visible damage; do not condemn the stator from symptoms alone.
Pro Tip
Part Details
Key Features
- Genuine Whirlpool OEM motor stator assembly.
- Stationary direct-drive motor windings that operate with the rotor.
- 36-pole motor stator configuration.
- Used to rotate the washer basket in both wash and spin directions.
Installation Notes
- Disconnect electrical power before service; for the applicable top-load procedure, also shut off the hot- and cold-water supplies before moving the washer.
- The stator is accessed from the underside/rear drive area after removal of the rotor.
- Handle the rotor carefully: its magnets are strong, so keep loose metal objects clear.
- Reconnect the electrical connector securely and reinstall the stator, spacers/shield, and rotor in their original positions; use the appliance-specific service instructions for the exact model.
Verified Compatible Models
7MMVWB850WL0, 7MMVWB950AG0, 7MWTW7800XW0, 7MWTW8800AW0, MVWB300WQ2, MVWB400VQ0, MVWB750WB2, MVWB850WB1, MVWB850WL1, MVWB850WQ2, MVWB850WR2, MVWB850YG1, MVWB880BW0, WTW6800WE1, WTW6800WU1
Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
