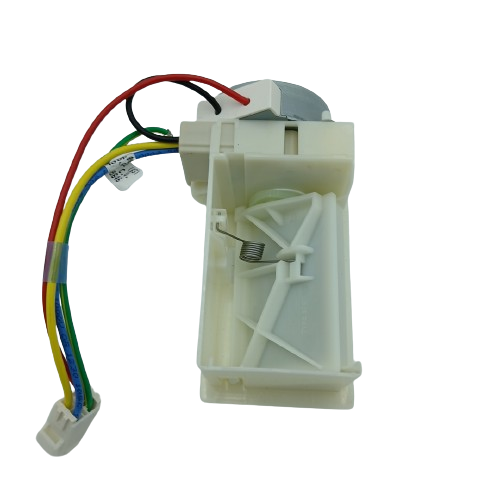

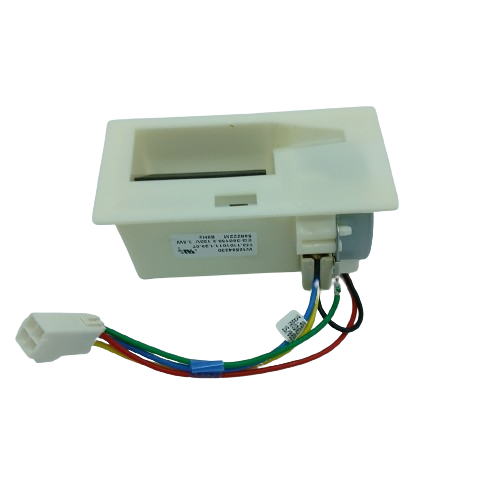

Whirlpool Refrigerator Damper Control Assembly WPW10594330, Replaces W10594330

Genuine OEM refrigerator air damper control assembly. It controls cold-air flow from the freezer compartment into the refrigerator/fresh-food compartment to regulate temperature.

Is This the Right Part?

Common Symptoms

• Fresh-food compartment too warm
• Intermittent clicking, grinding, rattling, or loud noise from the damper area
• Restricted or inconsistent cold-air flow into the refrigerator compartment

Check Before Replacing

• With the refrigerator operating, observe or listen for normal damper movement during a cooling cycle; abnormal grinding, repeated clicking, or failure to move can indicate a damper-area problem.
• Visually inspect the damper opening for visible obstruction, ice, or debris without forcing the door or disassembling the assembly.
• Check whether cold air is reaching the fresh-food compartment at the damper outlet; if airflow is absent, also consider that frost buildup, fans, controls, or sensors may be involved.
• Disconnect electrical power before accessing connectors or removing the damper assembly.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM damper control assembly
• Motorized air damper for refrigerator applications
• Controls airflow from the freezer to the refrigerator compartment
• Replaces Whirlpool part W10594330
• Listed as an OEM part for Whirlpool, Maytag, Amana, KitchenAid, and related refrigerator applications

Installation Notes

• Safely store perishable food that could deteriorate while the refrigerator is powered off.
• Unplug the refrigerator before servicing or installing the assembly.
• Access the damper in the refrigerator compartment according to the appliance model's service procedure.
• Disconnect the electrical connector before removing the old assembly and reconnect it securely to the replacement.
• Do not force the damper door or alter the wiring; verify airflow and operation before fully closing the access cover.

Verified Compatible Models

ABB1921BRB00, ABB1921BRB02, ABB1921BRM00, ABB1921BRM02, ABB1921BRW01, ABB1921BRW03, ABB1924BRB00, ABB1924BRB02, ABB1924BRB05, ABB1924BRM00, ABB1924BRM02, ABB1924BRW01, ABB1924BRW03, ABB1924BRW05, ABB2224BRB02, ABB2224BRM01, ABB2224BRM03, ABB2224BRM05, ABB2224BRW02, WRB322DMBB00, WRB322DMBM00, WRB322DMBW00, WRF532SNHZ03, WRF532SNHZ06, WRF535SMHB02, WRF535SMHB05, WRF535SMHW02, WRF535SMHW05, WRF535SMHZ03, WRF535SWHB00, WRF535SWHB02, WRF535SWHB05, WRF535SWHV00, WRF535SWHV02, WRF535SWHV03, WRF535SWHV04, WRF535SWHV05, WRF535SWHW00, WRF535SWHW02, WRF535SWHW05, WRF535SWHZ00, WRF535SWHZ03, WRF535SWHZ04, WRF535SWHZ05, WRF535SWHZ07, WRFA32SMHZ02, WRFA32SMHZ06, WRFA35SWHN02, WRFA35SWHZ03, WRFA35SWHZ07

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
