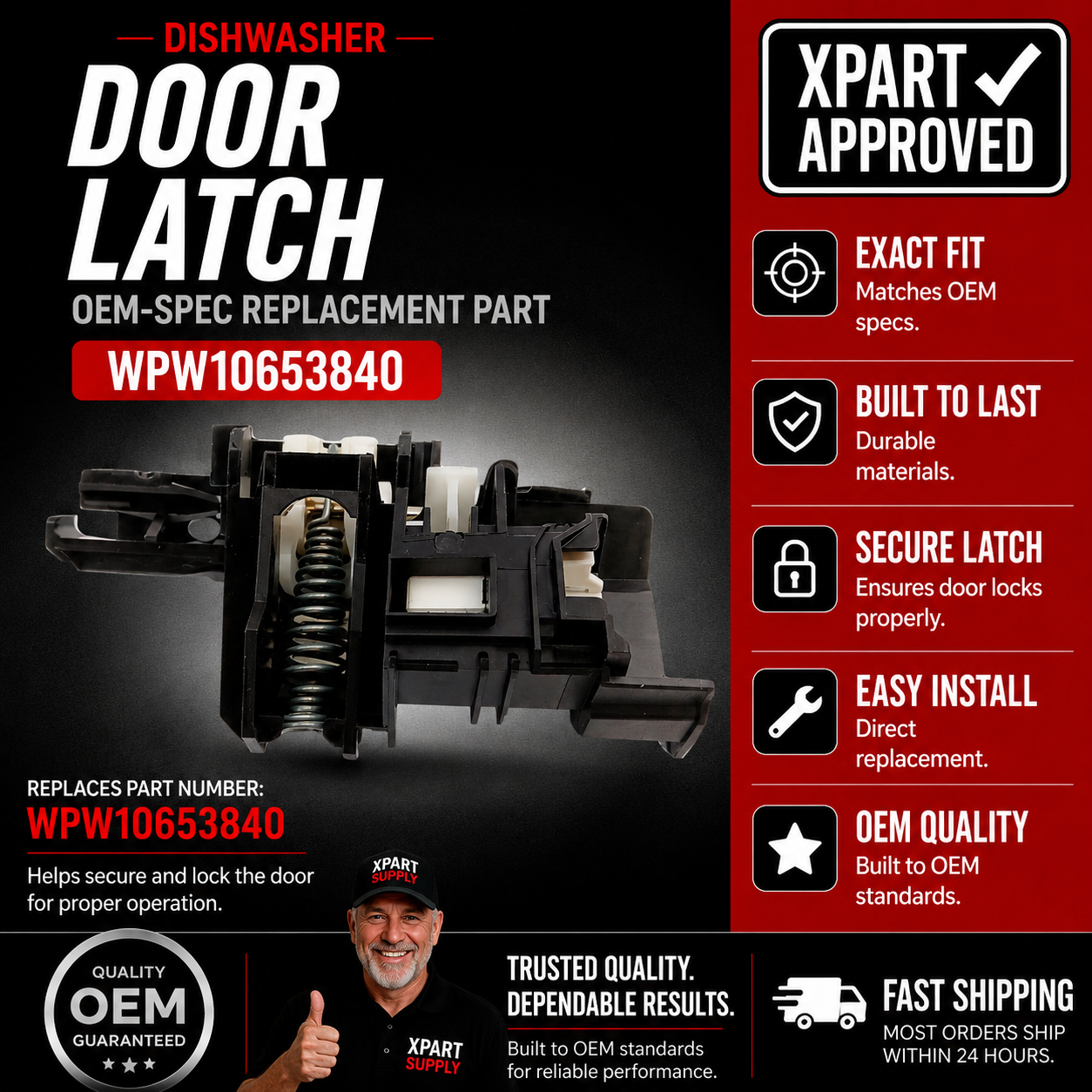

Whirlpool Dishwasher Door Latch WPW10653840, Replaces W10653840, W10574864

Dishwasher door latch assembly, including internal micro-switch; located at the top of the dishwasher door and keeps the door closed during operation.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Dishwasher will not start because the door-closed signal is not detected
• Door does not stay closed during operation
• Door-latch failure
• Possible leaking if the door cannot seal because it is not latched

Check Before Replacing

• Disconnect electrical power before inspecting the latch.
• Check the latch opening and door strike area for visible obstruction, damage, or misalignment.
• With power disconnected, operate the latch by hand and check for broken, loose, or sticking parts.
• If electrical testing is appropriate for the specific dishwasher model, test the latch switch only with power disconnected and compare the result with the model’s technical documentation; do not assume the latch is the sole cause of a no-start condition.

Pro Tip

Part Details

Key Features

• Whirlpool OEM dishwasher door-latch assembly
• Includes the internal latch switch assembly
• Black finish
• Located at the top of the dishwasher door
• Sold individually; mounting hardware is not identified as included

Installation Notes

• Disconnect electrical power before beginning installation.
• The repair requires access between the inner and outer door panels.
• After separating the panels, disconnect the latch wiring connector and release the latch from its retaining feature before removing it.
• Connect the replacement latch wiring, align it with the door panel, and reassemble the door panels before restoring power.
• Use the appliance-specific service information for exact screw type, fastener sequence, and electrical checks.

Verified Compatible Models

ADB1500ADB1, ADB1500ADS1, ADB1500ADW1, KDTE204DSS0, WDF520PADB7, WDF520PADM0, WDF520PADM2, WDF520PADM3, WDF520PADM5, WDF540PADW0, WDF560SAFB0, WDF560SAFB1, WDF560SAFB2, WDF560SAFM0, WDF560SAFM1

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
