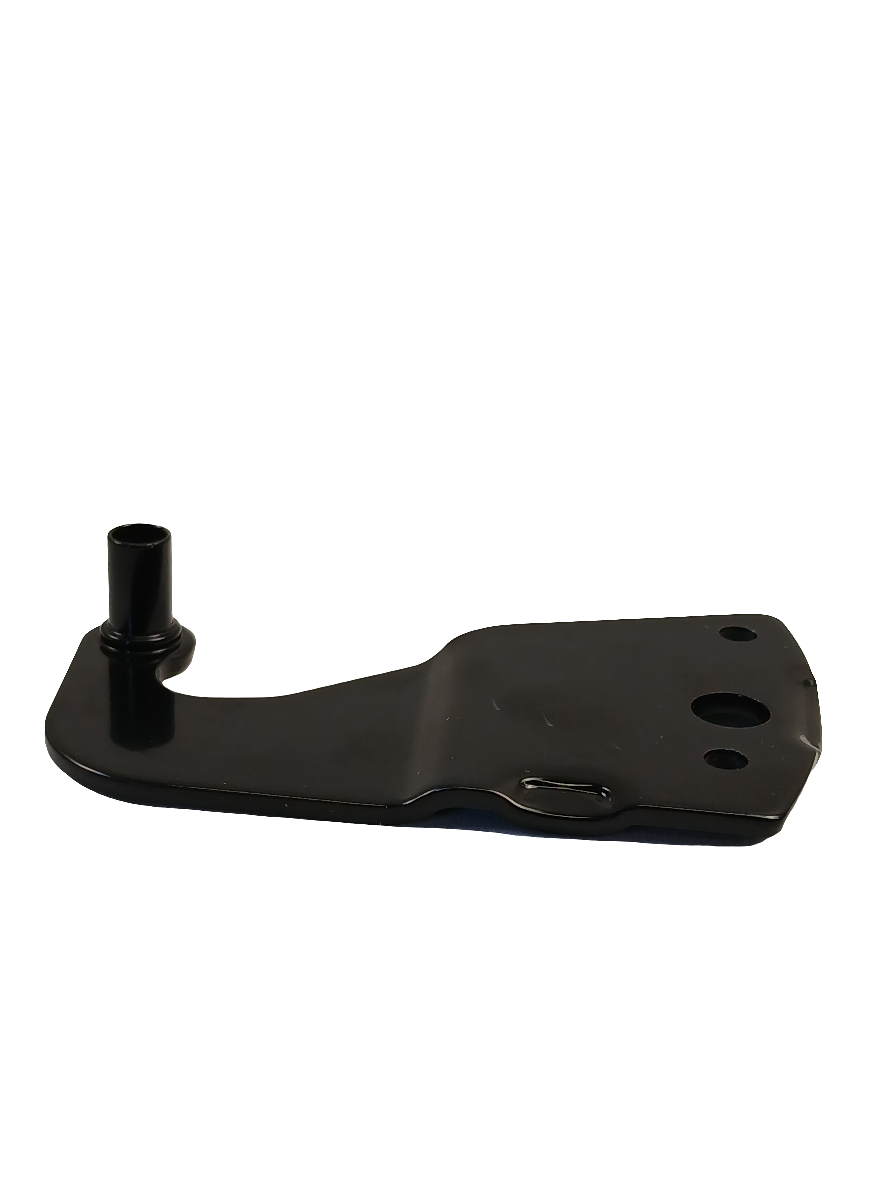

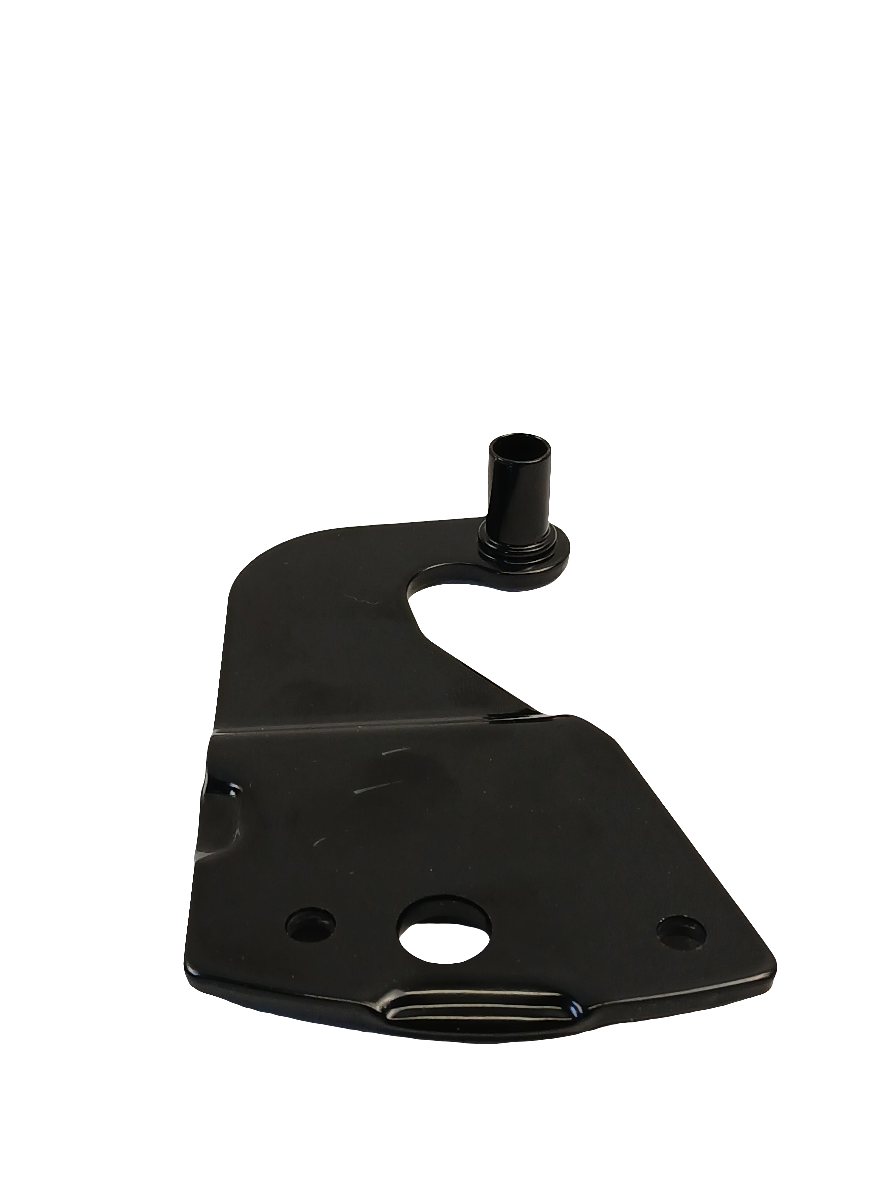

GE Refrigerator Hinge Top and Pin Assembly WR01L02497, Replaces 200D8628G002, 242260402, WR13M276

XPart Number XP10035489
$31.99
$34.87
Available by special order
Buying Options: OEM Genuine

Product variant with selected options does not exist!

Frequently Bought Together

Check Fit & Find Parts
Bubba checks verified models, product descriptions, cross-references and store data. Find your model number →
VERIFIED PART INFORMATION

GE Refrigerator Hinge Top and Pin Assembly WR01L02497

Genuine GE refrigerator hinge top-and-pin assembly used in the refrigerator door hinge system.

Part WR01L02497Replaces 200D8628G002, 242260402, WR13M276, WR13X10596GE
Guaranteed to Fit — or your money back.
Confirm your full appliance model number before ordering.

Is This the Right Part?

Part NumberWR01L02497
Replaces200D8628G002, 242260402, WR13M276, WR13X10596
ManufacturerGE
Appliance TypeRefrigerator
Part TypeHinge Top and Pin Assembly

✅ Cross Reference Information

200D8628G002, 242260402, WR13M276, WR13X10596

Check Before Replacing

  • Verify the refrigerator model number before ordering because hinge parts may have small size or shape differences.
  • Compare the installed hinge assembly with the replacement part and inspect for visible bending, cracking, or excessive wear.

Pro Tip

Confirm the appliance model before purchase; similar-looking GE hinge parts may not interchange.

Part Details

Part NumberWR01L02497
Part TypeHinge Top and Pin Assembly
ManufacturerGE
Appliance TypeRefrigerator
Primary FunctionSupports and guides the refrigerator door at the top hinge location.

Installation Notes

  • Use the appliance model number and existing hinge orientation to confirm fit before installation.
  • Support the refrigerator door safely during hinge service to prevent door movement or damage.

Verified Compatible Models

ABE20EGEBRBS, ABM20EGGARBS, ABM20EGGBRBS, GBR20DSEARBS, GBR20DSEBRBS, GBRC0GAXARBB, GBRC0GAXERBB, GBRL0HBXARBS, GBRL0HBXCRBS, GBRL0HBXERBS, GBRS0GAXARBS, GBRS0GAXERBS, GBRS0HBXARSS, GBRS0HBXCRSS, GBRS0HBXERSS, GBRS0HBXFRSS, GBSC0HBXARBB, GBSC3HBXARBB, GDR20DSEARBS, GDR20ESEARBS, GDRC0HBYARBB, GDRC0HBYERBB, GDRC0KBXARBB, GDRL0KBXARBS, GDRS0HBYARBS, GDRS0HBYERBS, GDRS0KBXARSS, GDRS0KBXCRSS, GDRS0KBXERSS, GDRS0KBXFRSS, GDSC0KBXARBB, PDR20KMHBRES, PDR20KSEARES, PDRS0MBXBRSS

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
