Is This the Part You Need?
If your GE Monogram 48" professional gas range has one or more burners that won't ignite, spark intermittently, or have completely stopped responding, the burner box harness is the most common culprit. Part WS01F00318 is the OEM wiring harness that connects the burner ignition system to the control board — when it fails, burners go dead. This is a direct OEM replacement sourced for the ZGP486 series.
⚠️ While You're In There: If the harness has failed due to heat exposure or arcing, inspect the igniter and spark module as well. Replacing a damaged igniter at the same time prevents a second service call.
Common Symptoms
- One or more burners won't click or ignite
- Burner sparks constantly even when off
- Intermittent ignition — works sometimes, fails others
- Visible burn marks or melted wiring near burner box
- Range throws ignition-related error or no response on surface burners
- Burner lights manually with match but won't spark electrically
Part Details
- OEM Part Number: WS01F00318
- Cross-Reference Numbers: WB24K10088, 164D8296G002

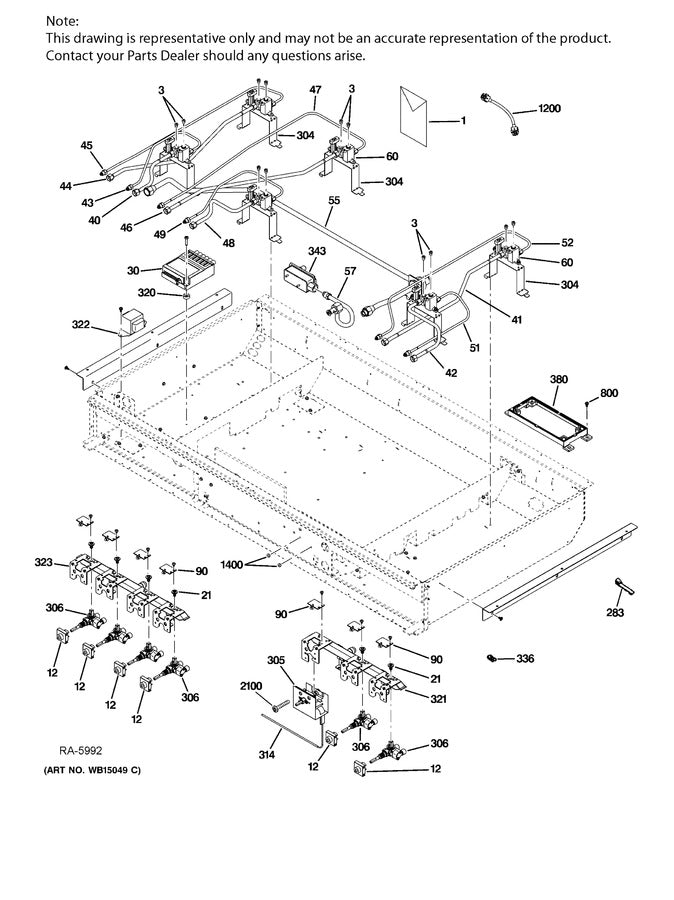

- Diagram Position: See #12 on the parts diagram
- Fits: GE Monogram 48" Professional Gas Range — ZGP486 Series
- Part Type: Range Harness Burner Box (wiring harness assembly)
- Condition: OEM — genuine replacement part
Buying Options
- OEM (WS01F00318): Genuine GE Monogram replacement — exact fit, factory spec
Installation Notes
This repair is rated intermediate skill level. Always disconnect power to the range at the breaker before beginning. The harness routes through the burner assembly and connects to the ignition module — take photos before disconnecting any wires. Reconnect in reverse order and test each burner before reassembling the cooktop. No special torque specs required, but ensure all connectors are fully seated to avoid intermittent faults post-repair.
Compatible Models
This part fits the following GE Monogram 48" gas range models. Not sure if your model is listed? Contact us and we'll confirm compatibility before you order.
ZGP486LDN1SS — GAS RANGE GE MONOGRAM 48"
ZGP486LDR1SS — RANGE GE MONOGRAM ALL GAS
ZGP486LDR2SS — RANGE MONOGRAM ALL GAS GE
ZGP486LDR3SS — MONOGRAM RANGE GE ALL GAS
ZGP486LDR4SS — GE MONOGRAM RANGE
ZGP486LDR5SS — GAS RANGE GE MONOGRAM
ZGP486NDN1SS — GAS RANGE GE MONOGRAM 48"
ZGP486NDR1SS — Monogram 48" Gas Professional Convection Range Stainless Steel
ZGP486NDR2SS — RANGE MONOGRAM ALL GAS GE
ZGP486NDR4SS — GE MONOGRAM RANGE
ZGP486NDR5SS — GAS RANGE GE MONOGRAM
Why Order From XPart Supply?
- OEM and quality replacement parts for professional appliances
- Canadian-based supplier with cross-border shipping options
- Parts verified against OEM diagrams before listing
- Real humans available to confirm compatibility — just ask
💡 Pro Tip — Don't Get Called Back:
If the harness failed due to heat damage or arcing at a connector, the root cause is often a partially clogged burner port causing flame rollback. Clean the burner ports and inspect the igniter electrode gap before closing up — this prevents the same harness from failing again within a year.
If the harness failed due to heat damage or arcing at a connector, the root cause is often a partially clogged burner port causing flame rollback. Clean the burner ports and inspect the igniter electrode gap before closing up — this prevents the same harness from failing again within a year.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
