Whirlpool Range Has No Power or Won’t Turn On? Power Cord WS01F00853 – Fix Range Power Failure Fast
If your Whirlpool, Maytag, or KitchenAid range is completely dead, has no power to the display or burners, or trips the breaker when plugged in, a damaged or failed power cord is the first component to inspect. In most Whirlpool-platform electric ranges, the power cord is the primary 240V connection between the wall outlet and the range terminal block — it carries the full electrical load for all heating elements, the control board, and the display. When it fails due to insulation breakdown, a damaged plug, loose terminal connections, or physical damage, the range loses all power or creates a dangerous fault condition. ⚡ One of the most commonly overlooked range power failures — always inspect the cord before replacing the control board. Part WS01F00853 is the OEM replacement power cord that restores safe, full-power connection to your range immediately.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Wall outlet tests at 240V and the circuit breaker is on and not tripped
- ✔ Visible damage found on existing cord — fraying, burn marks, melted insulation, or bent plug prongs
- ✔ Terminal block connections at the range end are loose, corroded, or burned
- ✔ ONLY problem is no power to the range — outlet and breaker confirmed good
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Range is completely dead — no display, no burners, no response
- Breaker trips immediately when range is plugged in
- Burning smell from behind the range near the cord or outlet
- Visible fraying, melted insulation, or burn marks on the power cord
- Range works intermittently — loses power when cord is moved or flexed
- Plug prongs are bent, corroded, or don’t seat firmly in the outlet
✔ If these symptoms match, this is the most likely cause.
✔ In most cases, replacing this power cord restores full range power immediately.

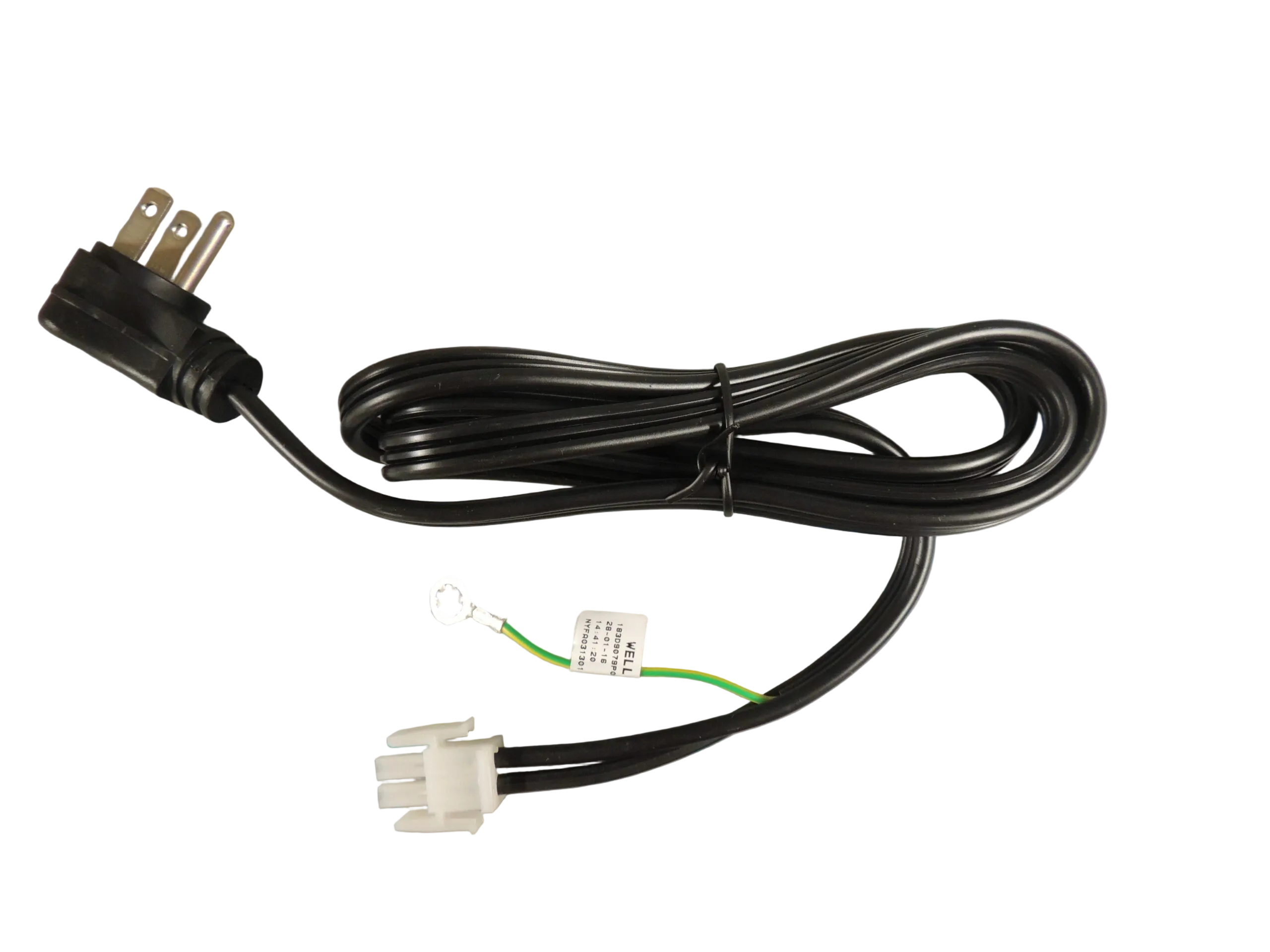

📦 Part Details
- Part Number: WS01F00853
- Type: Range Power Cord / 240V Appliance Power Cord
- Replaces: WS01F00853 (OEM current)
- Brands: Whirlpool, Maytag, KitchenAid, Amana
- Condition: Used — inspected, insulation intact, plug and terminals undamaged
While the range is pulled out and the power cord is being replaced, inspect the terminal block inside the range where the cord connects — burned or loose terminals at the block are a common secondary failure that causes the new cord to overheat and fail prematurely. If the terminal block shows any burn marks or loose screws, replace it at the same time. A $15 terminal block replacement prevents a repeat service call.
⚙️ Installation
Skill Level: EASY — 15–20 Minutes. Unplug the range from the wall outlet before servicing — never work on a 240V appliance with power connected. Pull the range away from the wall and remove the rear access panel to expose the terminal block. Loosen the terminal screws, remove the old cord, and connect the new WS01F00853 wires to the same terminals in the same positions (typically: left = L1, right = L2, center = neutral). Tighten securely, reinstall the strain relief clamp, replace the access panel, and plug in.
✓ Compatible Models
Confirmed compatible with select Whirlpool, Maytag, KitchenAid, and Amana electric range models. Contact us to verify your model number before ordering.
💡 Pro Tip
Electric range power cords come in 3-wire and 4-wire configurations depending on your home’s wiring and local electrical code. Homes wired before 1996 typically use 3-wire outlets (two hots + neutral); newer homes use 4-wire (two hots + neutral + ground). Before ordering, count the wires on your existing cord or check your wall outlet — a 3-wire cord on a 4-wire outlet (or vice versa) is a code violation and a safety hazard. Confirm WS01F00853 matches your outlet configuration before installing.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
