Range Not Heating or Oven Not Responding? Control Board WS01F07692 – Fix Electronic Control Failure Fast
A failed electronic control board is one of the most disruptive faults on a GE dual-fuel or gas range — it can cause the oven to stop responding entirely, display error codes, or heat erratically with no warning. In GE, Café, and Profile ranges using the T012 control platform, the electronic control board is the central brain that manages oven temperature, bake and broil elements, convection, and the user interface. When it fails, the range may go completely dead, display fault codes, or behave unpredictably. ⚡ Common failure point on GE dual-fuel and gas range T012 platform models. Part WS01F07692 is the genuine OEM T012 electronic control board that restores full oven and range operation immediately.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Range has power and display shows error codes or is completely unresponsive
- ✔ Bake and broil elements, igniter, and temperature sensor test OK
- ✔ Wiring harness connections to the board are undamaged and fully seated
- ✔ Power supply to the range is confirmed at correct voltage
- ✔ ONLY problem is oven not heating, not responding, or displaying persistent fault codes traced to the control board
Not sure? Send us your model number — we’ll confirm before you order.
🔧 Common Symptoms
- Oven completely unresponsive — display blank or frozen — most common complaint
- F-series error codes displayed (F1, F2, F3, F7) that won’t clear
- Oven not reaching set temperature or heating erratically
- Bake or broil function works but the other does not
- Convection fan runs but oven does not heat
- Range powers on but oven igniter or element never activates
✔ If these symptoms match and the board has been confirmed as the fault, this is the correct replacement component.
✔ In most cases, replacing this control board restores full oven operation immediately after installation.
📦 Part Details
- Part Number: WS01F07692

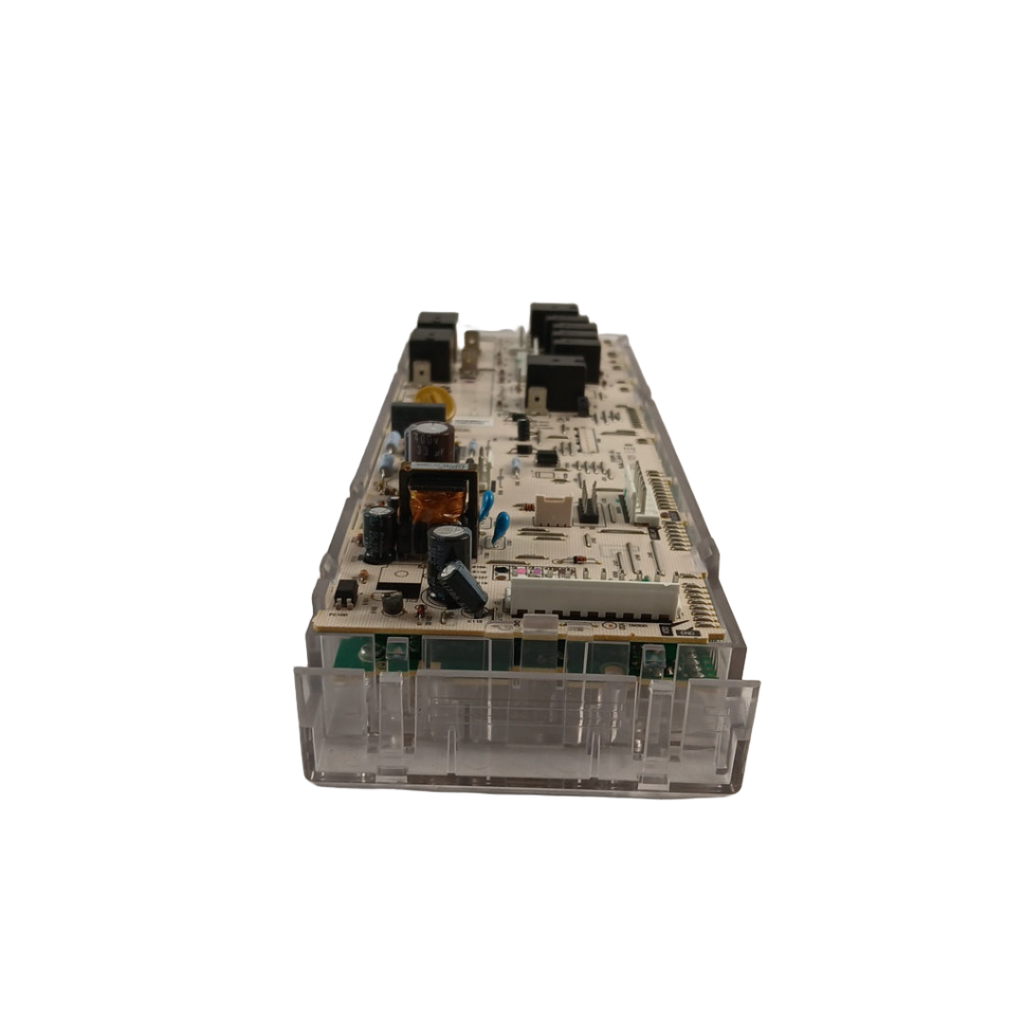

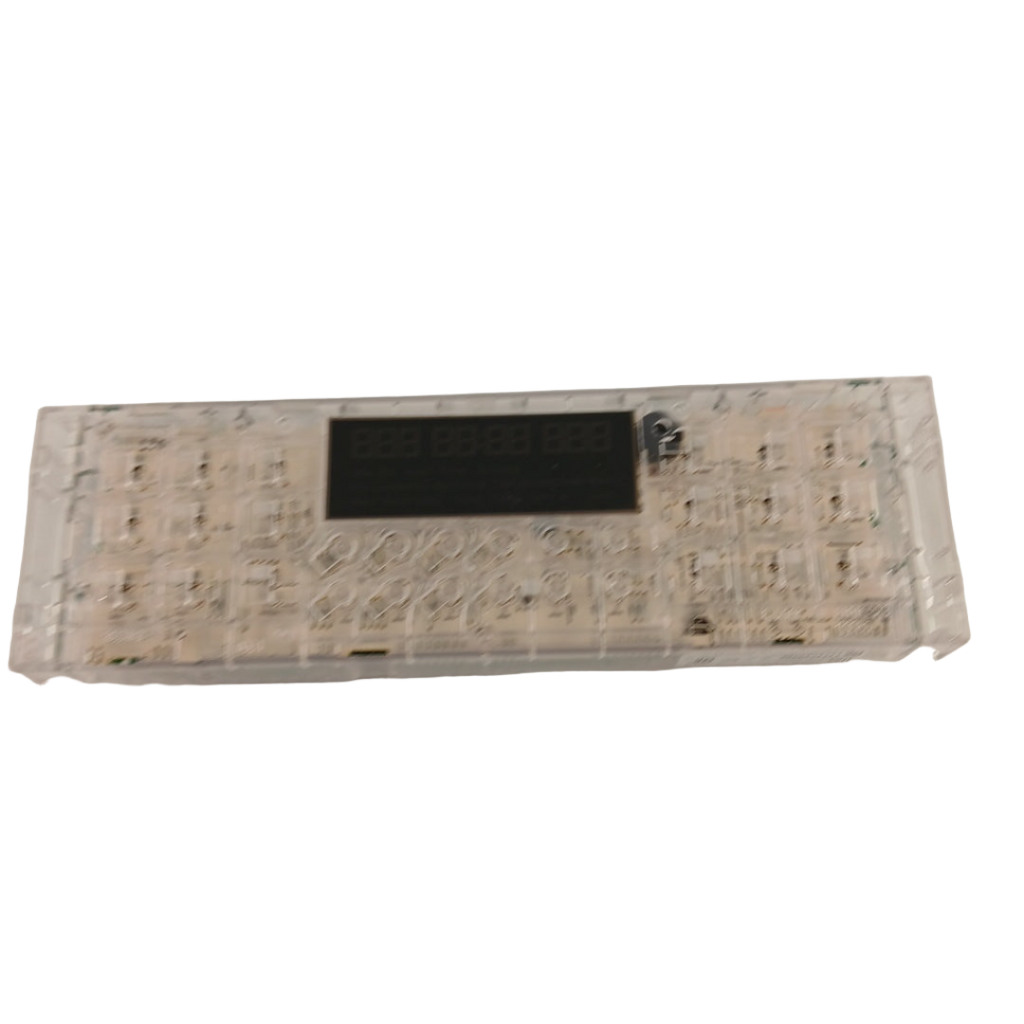

- Type: Range Electronic T012 Control Board (main oven control)

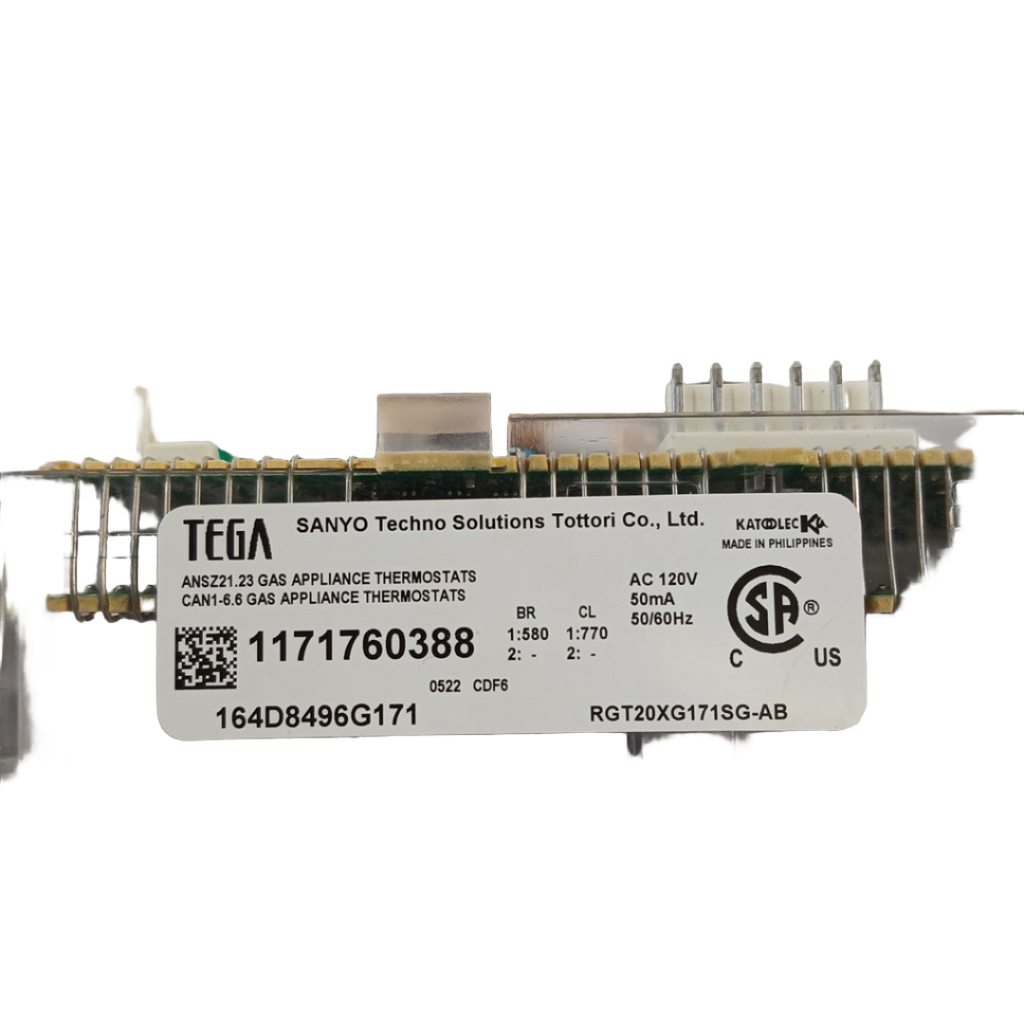

- Replaces: OEM direct-fit control board — supersedes WB27X2533, WB27X25332, WG02F10524, WS01F06878, 164D8496G171 (no modification required)
- Brands: GE, Café, GE Profile
Before replacing the control board, test the oven temperature sensor (WB21X5243) with a multimeter — a shorted or open sensor causes the same F-code symptoms as a failed board and costs a fraction of the price. Confirming the sensor is good before ordering the board eliminates the most common misdiagnosis on GE T012 platform ranges.
⚙️ Installation
Skill Level: MODERATE — 30–45 minutes. Disconnect power at the breaker before beginning — control boards carry line voltage. Remove the rear panel or control panel fascia depending on model to access the board. Photograph all wiring harness connections before disconnecting, then transfer each connector to the new board in the same position. Secure the board with the original mounting screws and restore power to test all oven functions before reassembling the panel. Do not overtighten board mounting screws — plastic standoffs crack easily.
💡 Pro Tip
The GE T012 platform throws F2 and F3 codes for both a failed control board AND a failed oven temperature sensor. The sensor (WB21X5243) costs under $30 and takes 5 minutes to test with a multimeter — it should read approximately 1,080–1,090 ohms at room temperature. If the sensor reads open or shorted, replace it before ordering the control board. Getting this step right saves a $175 board purchase on a $25 sensor fault.
Find parts for your range model: C2S900P2M1S1, C2S950P4M1W2, CC2S900P2M1S1, CC2S900P3M1D1, CC2S950P2M1S1, PC2S930SEL1SS, PC2S930SEL2SS, PC2S930YP1FS, PCGS930SEL1SS, PCGS930SEL2SS, PCGS930YP1FS, PCGS960SEL1SS, P2S930SEL1SS, CGS700P2M2S1, CCGS700M2N1S5, CCGS750M2N1S5
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
