GE Range Oven Bake Igniter WS01F08518, U.S. Cross-Reference WB28X28781

GE Range Oven Bake Igniter WS01F08518, Replaces 223C3381G042

Sale price: $149.99
Regular price: $186.71
You save: $36.72 (20%)

Buying Options: OEM

XPart

$167.99

OEM

$149.99

Product variant with selected options does not exist!

Frequently Bought Together

GAS OVEN PRODUCES NO HEAT — BAKE BURNER DOES NOT LIGHT

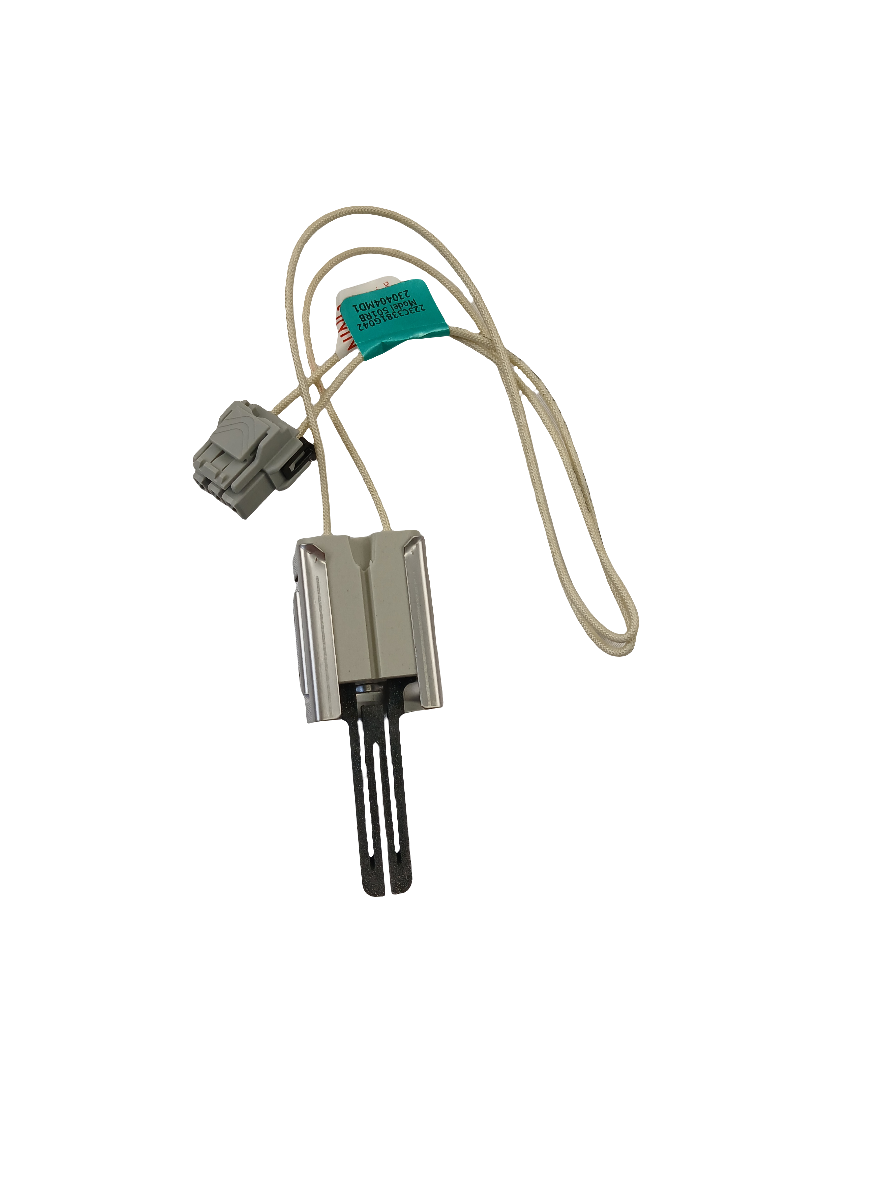

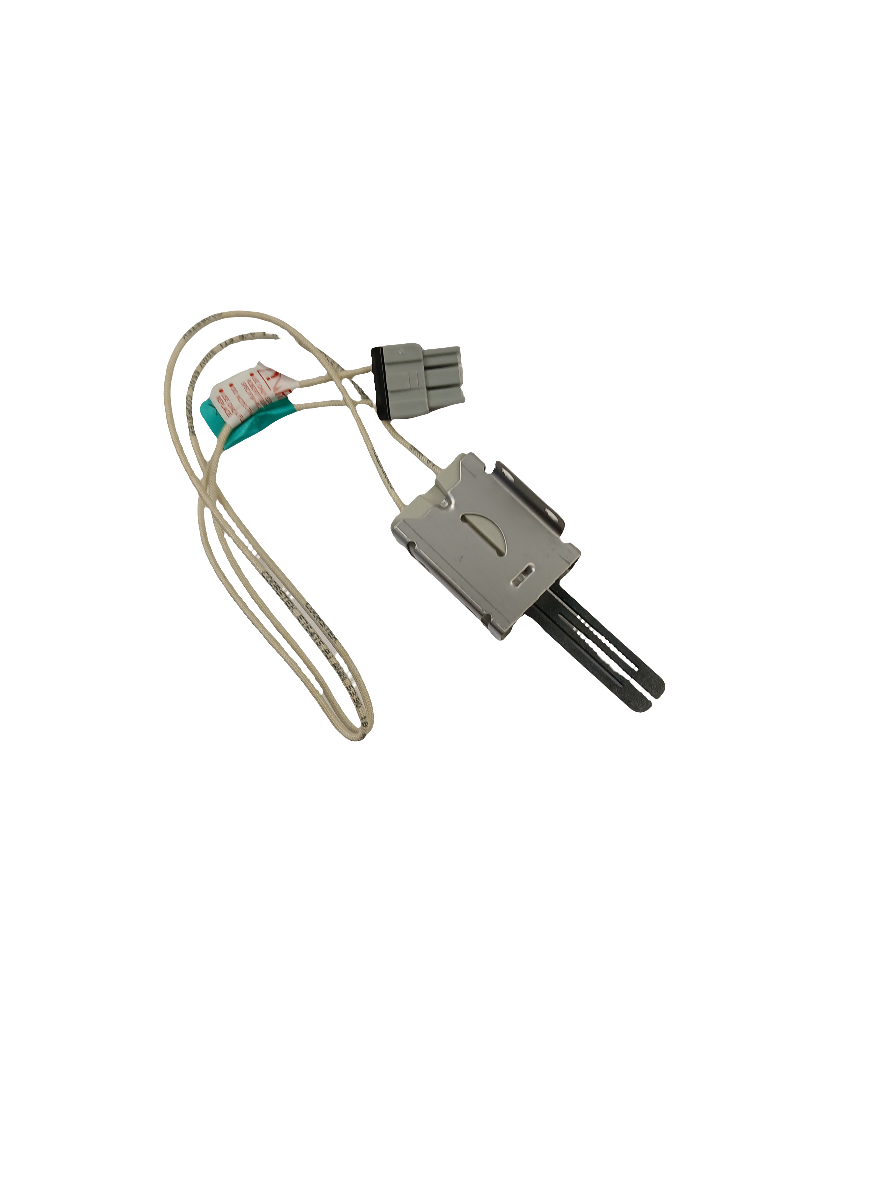

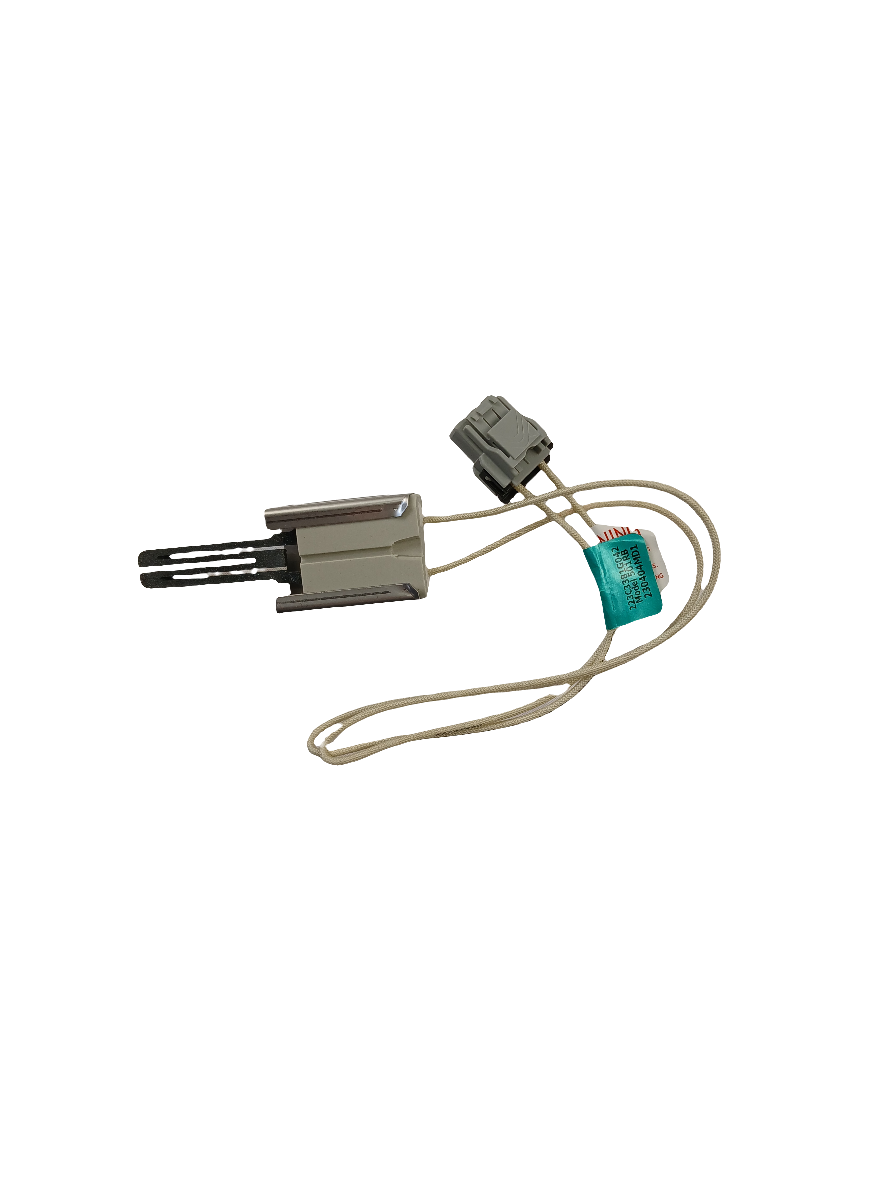

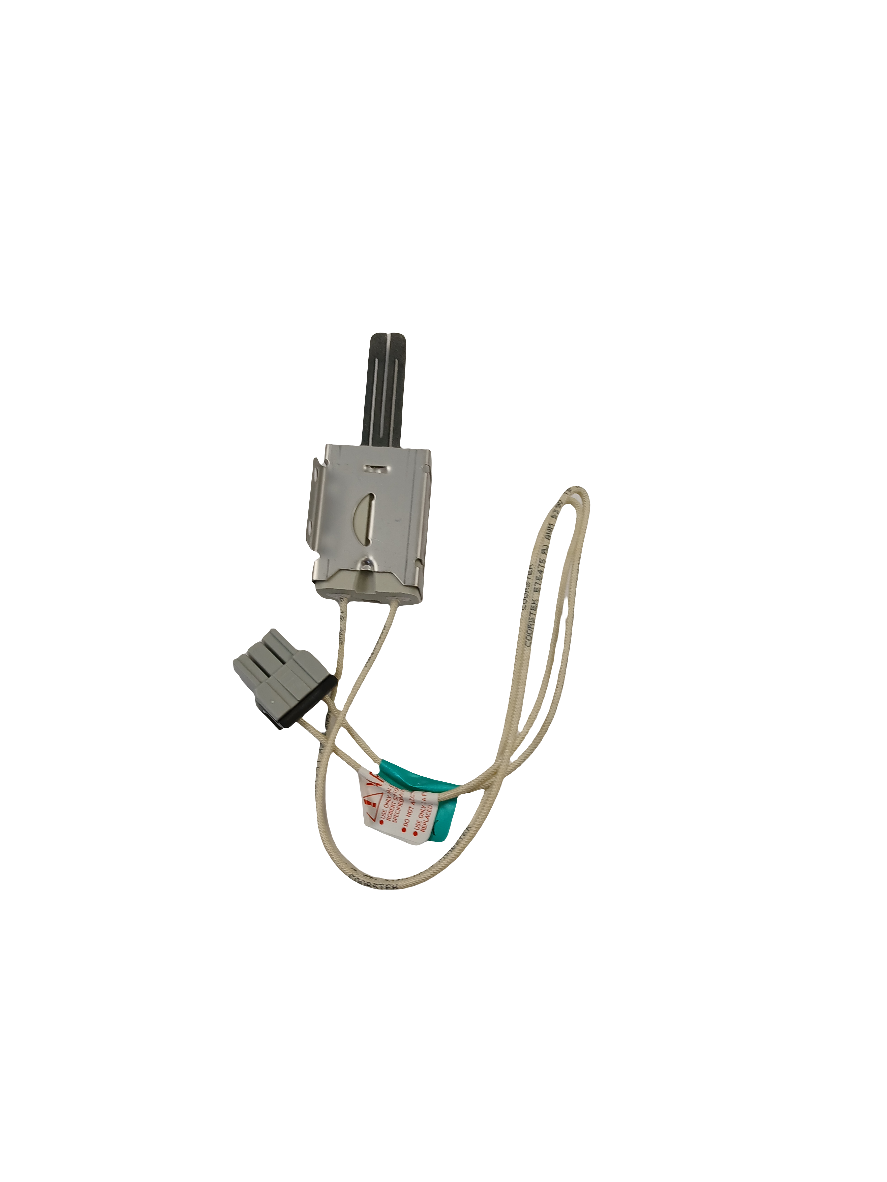

GE Range Igniter Glow Bar WS01F08518, Fixes Gas oven produces no heat — bake burner does not light

Gas-range glow-bar (hot-surface) igniter.

Part WS01F08518Replaces 223C3381G042GE

Guaranteed to Fit — or your money back.
Confirm your full appliance model number before ordering.

Is This the Right Part?

Part NumberWS01F08518

Replaces223C3381G042

ManufacturerGE

Appliance TypeRange

Part TypeIgniter Glow Bar

✅ Cross Reference Information

Current Part NumberWS01F08518

Replaces223C3381G042

Common Symptoms

Gas oven produces no heat — bake burner does not light
Oven takes excessively long to preheat
Igniter glows orange but burner never ignites
Igniter glows but gas valve does not open
Oven cycles off heat prematurely during baking
Igniter glows continuously even when oven is off (shorted igniter)

Check Before Replacing

Confirm the igniter glows — if it does not glow at all, check the igniter circuit wiring and oven control board before replacing the igniter
If the igniter glows but the burner does not light, measure igniter current draw — a weakened igniter drawing below the gas valve threshold is the most common cause
Inspect the wire harness and ceramic connector block for cracks, corrosion, or heat damage
Verify the gas supply valve is fully open and gas pressure is within range
Check the oven control board for fault codes before assuming igniter failure

Part Details

Part NumberWS01F08518

Part TypeIgniter Glow Bar

ManufacturerGE

Appliance TypeRange

Verified Compatible Models

CGB550P3M1D1, CCGB550P3M1D1, CGS750M2N1S5, CCGS750M2N1S5, CGS750P2M2S1, CCGS750P2M1S1, CCGS750P2M2S1, CGS750P3M1D1, CCGS750P3M1D1, CGS750P4M1W2, CCGS750P4M1W2, CGS750P4M2W2, CCGS750P4M2W2, CGS750P4M2W3, CGS995EEL1DS, CCGS995EEL1DS, CGS995EEL2DS, CCGS995EEL2DS, CGS995SEL1SS, CCGS995SEL1SS, CGS995SEL2SS, CCGS995SEL2SS, JGBS86EP1ES, JCGBS86SP1SS, JCGSS86SP1SS, PGB965YP1FS, PCGB965BP1TS, PCGB965YP1FS, PGS960BEL1TS, PCGS960BEL1TS, PGS960BEL2TS, PCGS960BEL2TS, PGS960EEL1ES, PCGS960EEL1ES, PGS960EEL2ES, PCGS960EEL2ES, PCGS960EEL3, PGS960FEL1DS, PGS960FEL2DS, PGS960SEL1SS, PGS960SEL2SS, PGS960SEL3SS, PGS960YP1FS, CCGS750P2M3S1, CCGS750P2M5S1, CCGS750P4M3W2, IO950FS0A, IO950FS0B, IO950TS0A, PCGS960EEL3ES, PCGS960EEL4ES, PCGS960SEL1SS, PCGS960SEL2SS, PCGS960SEL3SS, PCGS960SEL4SS, PCGS960YP1FS

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.

✅Compatibility & Cross Reference

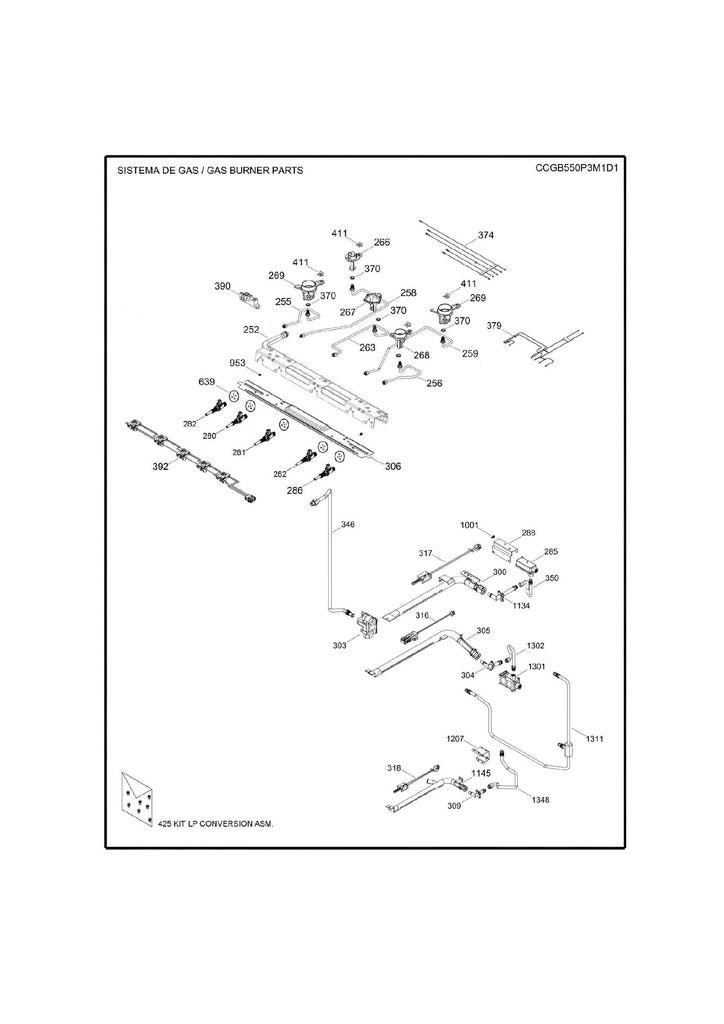

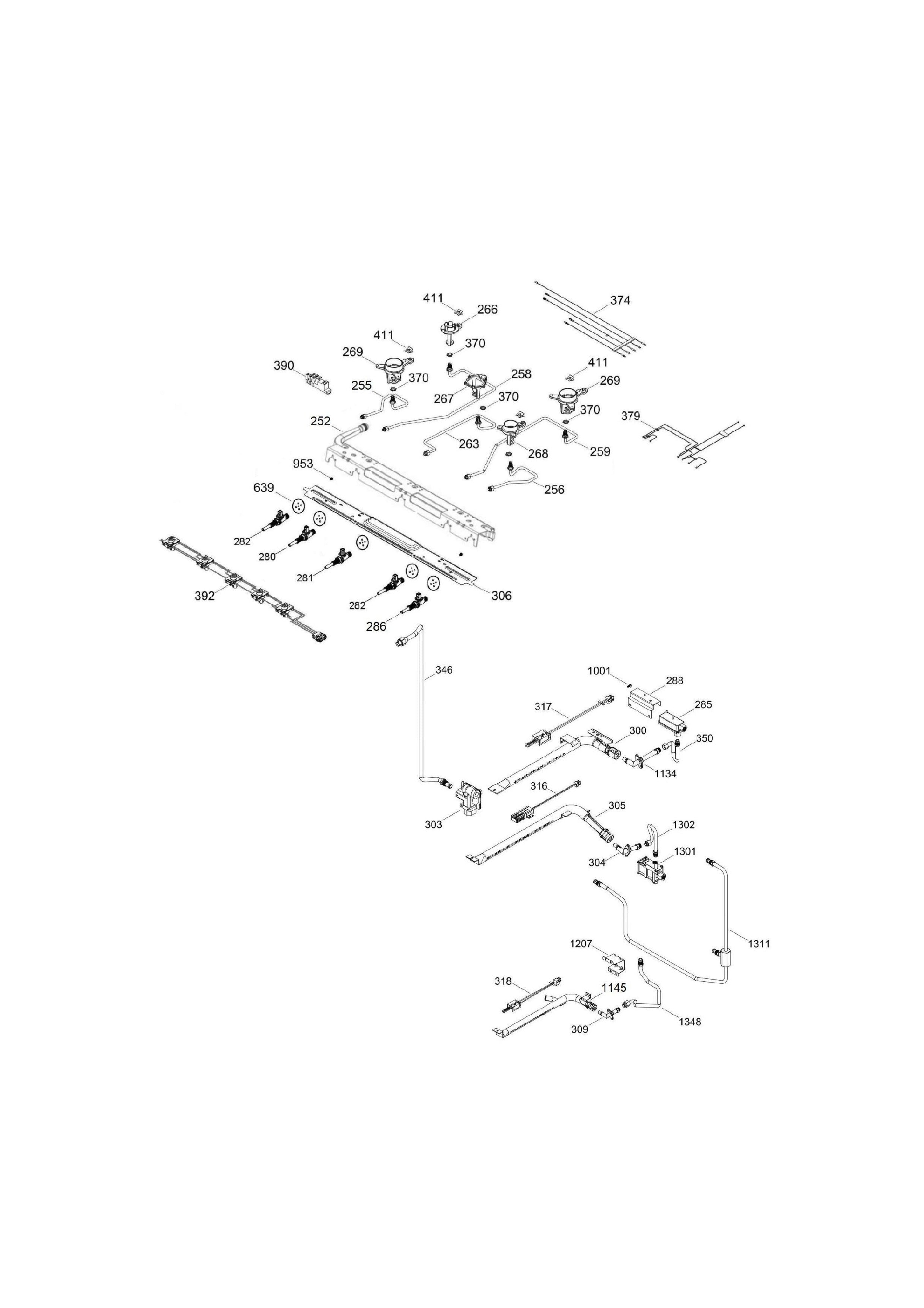

Item #316 in diagram.

223C3381G042, WS01F08518-ER

Q: Will this fit my oven model?
A: This igniter fits most GE, Hotpoint, and Kenmore gas ranges. Verify your model number before ordering.Q: Is this genuine OEM or aftermarket?
A: This is a genuine OEM GE part.Q: How do I know if my igniter is bad?
A: If the igniter doesn't glow, glows weakly (dim orange instead of bright orange), or the oven takes more than 90 seconds to ignite, the igniter likely needs replacement.Q: Can I install this myself?
A: Yes — with basic tools and 30–45 minutes, most DIYers can complete this repair. Just be sure to shut off gas and power first.Q: Why shouldn't I touch the glow bar?
A: Oils from your skin create hot spots on the igniter element, causing premature failure. Handle by the bracket only or wear gloves.Q: My igniter glows but the oven won't light — is it still bad?
A: Possibly. A weak igniter may glow but not draw enough current (minimum 3.0 amps) to open the gas valve. Replacement usually solves this.Q: Does this include the wire harness?
A: Yes — most OEM igniters include the harness and connector.Q: Is there a warranty on this part?
A: Defective OEM parts are replaced. Contact us if you receive a faulty igniter.

WS01F08518, GE oven igniter, oven bake igniter, glow bar igniter, gas oven not heating, oven won't ignite, GE range igniter, WB13K10043, WB13K10029, oven igniter replacement, gas oven igniter, Hotpoint oven igniter, Kenmore oven igniter, oven takes too long to preheat, oven glow bar, flat igniter, gas range igniter, oven igniter glow bar, GE gas oven parts, oven not reaching temperature

GE, Hotpoint, Café, Profile, Monogram

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
