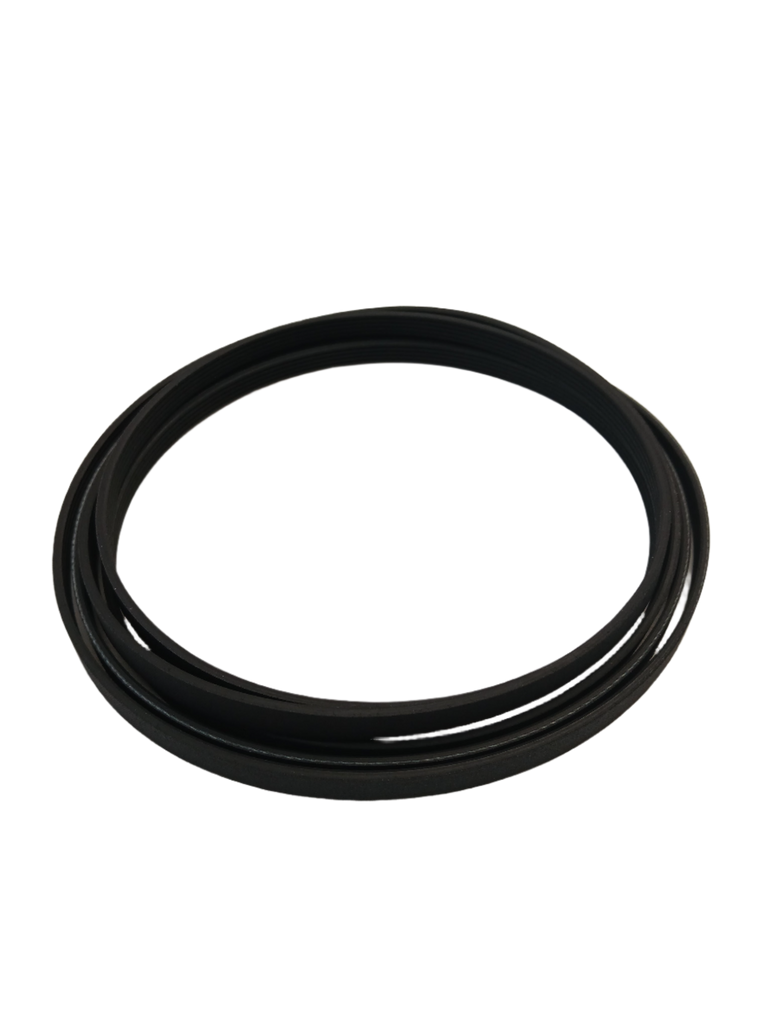

Whirlpool Dryer drum drive belt W11162091, Replaces W10610886

Genuine Whirlpool OEM belt that connects the dryer drum to the motor pulley and drives drum rotation. It is documented for Whirlpool and Maytag dryers.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Drum spins unusually easily by hand when the belt is broken
• Dryer makes squeaking or unusual belt-related noise
• Visible belt wear, fraying, cracking, or breakage
• Dryer may stop tumbling while the motor continues running
• Burning or rubber-like odor may occur if the belt is slipping or misaligned

Check Before Replacing

• Unplug the dryer before inspection or service.
• With power disconnected, gently rotate the drum by hand; unusually little resistance can indicate a broken or detached belt, but does not by itself confirm the diagnosis.
• Inspect the accessible belt area for visible breakage, fraying, cracking, glazing, or displacement.
• After belt installation, verify that the belt is centered on the drum and routed around the motor and idler pulleys according to the appliance-specific service information.
• If a replacement belt slips, smells hot, or makes noise, stop operation and check for pulley misalignment or drag rather than assuming the belt alone is faulty.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM dryer drum drive belt
• Connects the dryer drum to the motor pulley
• Listed for Whirlpool and Maytag dryer applications
• Replaces Whirlpool part number W10610886
• Flat belt design used with the dryer drum and pulley system

Installation Notes

• Disconnect electrical power before servicing.
• Wear work gloves when handling the belt or accessing internal dryer components.
• Follow the model-specific service instructions because access and belt routing vary by dryer model.
• Install the belt with the correct side against the drum and route it through the idler and motor pulleys as specified for the appliance.
• Replace all panels and guards before reconnecting power or operating the dryer.

Verified Compatible Models

7MMGDB835EW0, 7MMGDB835EW2, 7MMGDB855EC0, 7MMGDB855EC1, 7MMGDB855EC2, MEDB835DC3, MEDB835DC4, MEDB835DW0, MEDB835DW1, MEDB835DW2, MEDB835DW3, MEDB835DW4, MEDB855DC0, MEDB855DC1, MEDB855DC2

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
