Maytag Washer Water Inlet Valve 205613 — Restore Hot & Cold Water Fill

Maytag Washer Water Inlet Valve 205613 — Restore Hot & Cold Water Fill

Sale price: $49.99
Regular price: $53.74
You save: $3.75 (7%)

Buying Options: XPart

XPart

$49.99

OEM

$81.15

Product variant with selected options does not exist!

Frequently Bought Together

Washer Not Filling with Water? Water Inlet Valve 205613 – Fix Hot or Cold Fill Failure Fast

If your Maytag or Whirlpool top-load washer won't fill with hot or cold water — or fills too slowly — the water inlet valve is the most common cause. In most Maytag-built top-load washers, this is caused by a failed dual-port solenoid water inlet valve. When it fails, the washer drum won't fill at all, fills with only one temperature, or takes excessively long to reach the correct water level — leaving laundry unwashed and cycles stalled. ⚡ Common failure point in Maytag-built top-load washers from the 1980s through early 2000s. Part 205613 is the genuine OEM replacement that restores proper hot and cold water flow, allowing your washer to fill correctly and complete full wash cycles.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

✔ Washer powers on and agitates/spins normally
✔ Water supply hoses are connected and shutoff valves are fully open
✔ Household water pressure is confirmed adequate (20–120 PSI)
✔ ONLY problem is the washer not filling, filling slowly, or filling with one temperature only

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

Washer drum does not fill with water at all
Washer fills with hot water only or cold water only
Washer fills very slowly and cycle times are excessive
Washer stops mid-cycle during the fill phase
Humming sound from valve area but no water enters the drum

✔ If these symptoms match, this is the most likely failed component in the water supply system.

✔ In most cases, replacing this water inlet valve restores normal fill operation immediately.

📦 Part Details

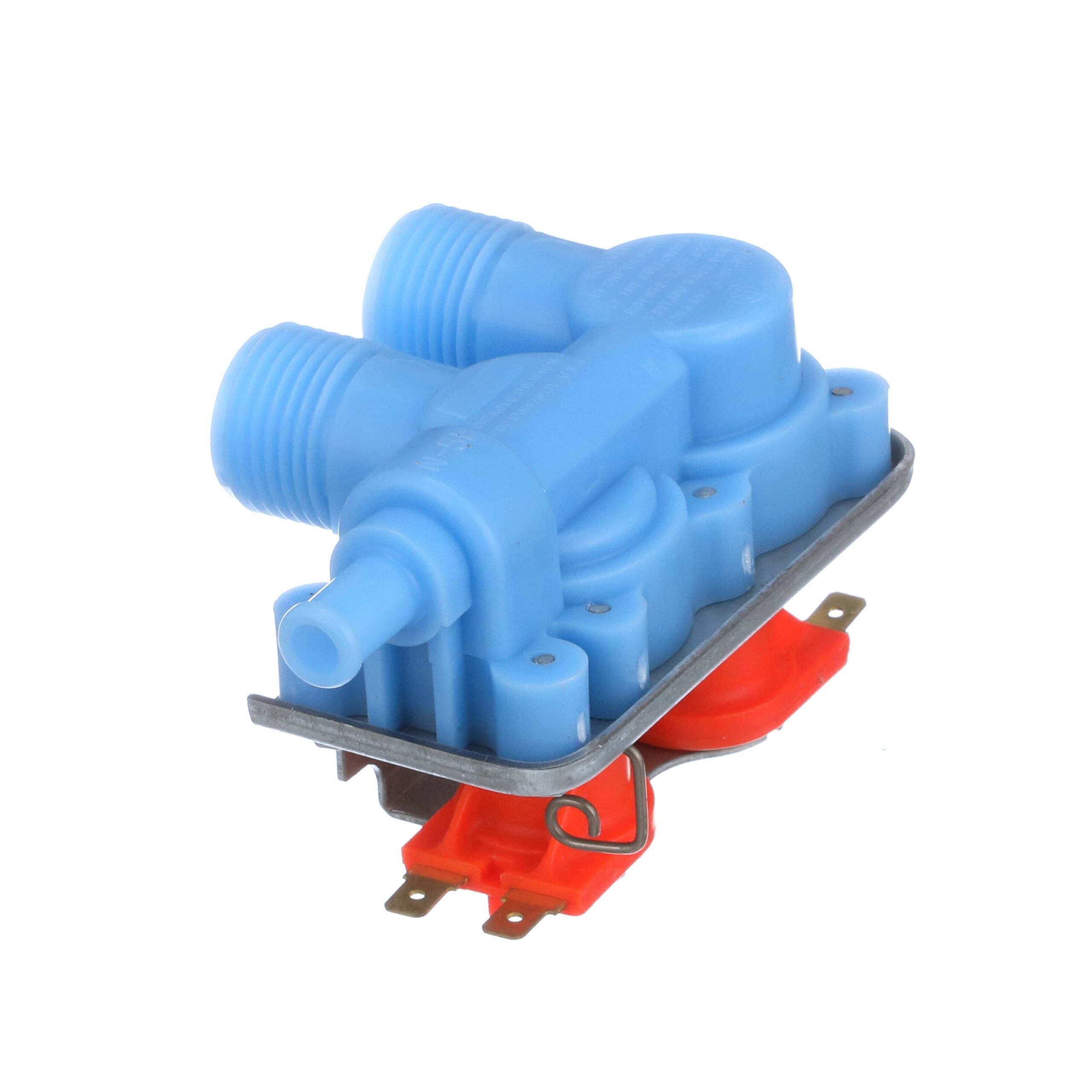

Part Number: 205613
Type: Dual-port solenoid water inlet valve — 120V / 60Hz, controls both hot and cold water inlets
Replaces: 203177, 203847, 204028, 205613VP, 205614, 21001605, 22002882, 25832, 25832R
XPart SKU: 285805
Brands: Maytag, Whirlpool, Admiral, Magic Chef, Norge, Crosley, Jenn-Air
Condition: Genuine OEM — new in manufacturer packaging

⚠️ Recommended While Repairing:
While the back panel is off, inspect the lid switch assembly and water level pressure switch — both are common failure points on washers this age and are inexpensive to replace proactively. Doing both at once saves a second service call.

⚙️ Installation

Skill Level: EASY — 20–35 minutes. Disconnect power and turn off water supply before servicing. Remove the rear access panel, disconnect the two water supply hoses and the wiring harness from the old valve, unscrew the mounting bracket, and install the new valve in reverse order. Reconnect hoses, restore power and water, and run a fill cycle to confirm proper operation.

✓ Compatible Models

Confirmed compatible with LAT7300, LAT7400, LAT7500, LAT7800, LAT8100, LAT8200, LAT8240, LAT8340, LAT8500, LAT8600, LAT8640, LAT8650, LAT8700, LAT8800, LAT8820, LAT8840, LAT9200, LAT9300, LAT9400, LAT9600, LAT9700, LAT9800, LAT9900, LATA100, LATA200, LATA300, LATA400, LATA500, plus hundreds of additional Maytag, Whirlpool, Admiral, and Norge models. Full model list includes A-series, CW-series, DA-series, FA-series, GA-series, GW-series, LA-series, LAT-series, LAW-series, LW-series, MAT-series, and more. Contact us to verify your model number before ordering.

💡 Pro Tip

Order the Lid Switch While You're In There:
On Maytag top-loaders of this era, the lid switch fails almost as often as the inlet valve — and it's a 5-minute swap once the machine is already pulled out. If your washer occasionally refuses to agitate or spin after this repair, the lid switch is the next suspect. Grab it now and avoid a second service call.

Maytag Whirlpool Water Inlet Valve 205613

✓ Model-Specific Repair Pages

Whirlpool WASHER Dryer Parts & Repair Guide

✅Compatibility & Cross Reference

Part number 205613 replaces 203177, 203847, 204028, 205613VP, 205614, 21001605, 22002882, 25832, 25832R

A104, A105, A110, A112, A1410B, A15CA, A15CM, A15CT, A16CA, A16CM, A16CT, A17CA, A17CM, A17CT, A180, A181, A182, A183, A18CA, A18CM, A18CT, A190, A1910, A209, A209S, A210, A210S, A211, A211S, A212, A212S, A21CA, A21CM, A21CT, A22CA, A22CM, A22CT, A23CA, A23CDL, A23CDW, A23CSL, A23CSW, A23CT, A24CA, A25CA, A25CAE, A25CM, A25CME, A25CS, A25CT, A26CA, A26CAE, A26CD, A26CDC, A282, A283, A284, A305, A308, A308S, A310, A310S, A312, A312S, A382, A390, A3910, A410, A412, A482, A484, A490, A4910, A5000, A503, A506, A510, A510S, A511, A511S, A512, A512S, A590, A5910, A610, A612, A612S, A613, A6910, A710, A710S, A712, A7300, A7400, A7500, A7500S, A7500W, A7800, A806, A806S, A810, A8100, A8120, A8140, A8200, A8210, A8240, A8340, A8420, A8440, A8500, A8520, A8600, A8640, A8650, A8700, A8740, A8800, A882, A8820, A883, A884, A8840, A9200, A9300, A9400, A9400S, A9400W, A9600, A9700, A9700S, A9700W, A9800, A9900, AW20K23A, AW20K23H, AW20K23W, AW20K2A, AW20K2H, AW20K2W, AW20K3A, AW20K3AS, AW20K3H, AW20K3HS, AW20K3W, AW20K3WS, AW20L1A, AW20L1H, AW20L1W, AW20L4A, AW20L4AS, AW20L4H, AW20L4HS, AW20L4W, AW20L4WS, AW20M1A, AW20M1H, AW20M1W, AW20M2V, AW20M3SV, AW20N2V, AW25K3WSX, AW26K3AS, AW26K3HS, AW26K3WS, BA1910, BA3910, BA5000, BA7300, BA7400, BA7500, BA7800, BA8100, BA8140, BA8200, BA8240, BA8340, BA8440, CW18C1, CW18C1A, CW18C1H, CW18C3A, CW18C3W, CW18M4, CW18M4A, CW18M4H, CW18P2A, CW18P2AC, CW18P2H, CW18P2W, CW18P2WC, CW18P6A, CW18P6H, CW18P6W, CW18T2A, CW18T2W, CW18T2WC, CW20C5A, CW20C5W, CW20C7A, CW20C7W, CW20M4A, CW20M6, CW20M6A, CW20M8, CW20M8A, CW20M8H, CW20M9A, CW20M9N, CW20P4A, CW20P4W, CW20P5A, CW20P5AC, CW20P5H, CW20P5HC, CW20P5W, CW20P5WC, CW20P6A, CW20P6AC, CW20P6H, CW20P6W, CW20P6WC, CW20P8A, CW20P8AC, CW20P8AS, CW20P8ASC, CW20P8D, CW20P8DS, CW20P8DSC, CW20P8H, CW20P8HS, CW20P8HSC, CW20P8W, CW20P8WC, CW20P8WS, CW20P8WSC, CW20T5A, CW20T5W, CW20T5WC, CW20T6A, CW20T6AC, CW20T6W, CW20T6WC, CW20T8A, CW20T8V, CW20T8VC, CW20T8W, CW25P6A, CW25P6H, CW25P6W, CW26P6KA, CW26P6KW, DA3690, DA3691, DA3820, DA3821, DA6100, DA6101, DA6120, DA6121, DA6123, DA6191, DA6200, DA6201, DA9000, DA9041, DA9043, DA9101, DA9103, ESE9900, ESG9900, FA0390, FA0620, FA0650, FA0660, FA0661, FA2230, FA2231, FA2950, FA2960, FA2961, FA3510, FA3690, FA3691, FA3820, FA3821, FA4110, FA4111, FA4130, FA4141, FA4160, FA4161, FA4200, FA4201, FA4300, FA4310, FA4311, FA6010, FA6011, FA6022, FA6121, FA6123, FA6191, FA6201, FA6300, FA6310, FA6311, FA6312, FA6610, FA6611, FA9101, FA9103, FA9151, FA9211, GA104, GA183, GA190, GA1910, GA211, GA211S, GA25CM, GA25CME, GA25CS, GA25CT, GA26CD, GA26CDC, GA282, GA283, GA284, GA308, GA308S, GA382, GA390, GA3910, GA482, GA484, GA490, GA4910, GA5000, GA506, GA590, GA5910, GA6910, GA7300, GA7400, GA7500, GA7800, GA8100, GA8120, GA8140, GA8200, GA8210, GA8240, GA8340, GA8420, GA8440, GA8500, GA8520, GA8600, GA8640, GA8650, GA8700, GA8740, GA8800, GA882, GA8820, GA884, GA8840, GA9200, GA9300, GA9400, GA9600, GA9700, GA9800, GA9900, GW18F1A, GW18F1H, GW18F1W, GW18F2A, GW18F2H, GW18F2W, GW18G1A, GW18G1HW, GW18G1WW, GW20F6A, GW20F6H, GW20F6W, HWA2000AA, HWA2000AW, HWA2006A, HWA2006W, HWA2506W, LA104, LA105, LA110, LA112, LA180, LA181, LA182, LA183, LA190, LA1910, LA2000, LA2000A, LA2000H, LA209, LA209S, LA210, LA210S, LA211, LA211S, LA212, LA212S, LA25CM, LA25CME, LA25CS, LA25CT, LA26CD, LA26CDC, LA282, LA283, LA284, LA305, LA308, LA308S, LA310, LA310S, LA312, LA312S, LA382, LA390, LA3910, LA410, LA412, LA482, LA484, LA490, LA4910, LA5000, LA503, LA506, LA510, LA510S, LA511, LA511S, LA512, LA512S, LA590, LA5910, LA610, LA612, LA612S, LA613, LA6910, LA712, LA7300, LA7400, LA7500, LA7500S, LA7500W, LA7800, LA806, LA806S, LA810, LA8100, LA8120, LA8140, LA8200, LA8210, LA8240, LA8340, LA8420, LA8440, LA8500, LA8520, LA8600, LA8640, LA8650, LA8700, LA8740, LA8800, LA882, LA8820, LA883, LA884, LA8840, LA9200, LA9300, LA9400, LA9400S, LA9400W, LA9600, LA9700, LA9700S, LA9700W, LA9800, LA9900, LAT1910AAL, LAT1910AAW, LAT2910AAL, LAT2910AAW, LAT3910AAL, LAT3910AAW, LAT4910AAL, LAT4910AAW, LAT5000AAL, LAT5000AAW, LAT5000ABL, LAT5000ABW, LAT5910AAL, LAT5910AAW, LAT5910BAL, LAT5910BAW, LAT6910AAL, LAT6910AAW, LAT7300AAL, LAT7300AAW, LAT7300ABL, LAT7300ABW, LAT7300ABX, LAT7300AGL, LAT7300AGW, LAT7300AGX, LAT7400AAL, LAT7400AAW, LAT7400ABL, LAT7400ABW, LAT7400ABX, LAT7480AAL, LAT7480AAW, LAT7480ABL, LAT7480ABW, LAT7500AAL, LAT7500AAW, LAT7500ABL, LAT7500ABW, LAT7500ABX, LAT7500AGL, LAT7500AGW, LAT7500AIL, LAT7500AIW, LAT7793AAL, LAT7793AAW, LAT7793ABL, LAT7793ABW, LAT7800AAL, LAT7800AAW, LAT7800ABL, LAT7800ABW, LAT7800ABX, LAT8100AAL, LAT8100AAW, LAT8100ABL, LAT8100ABW, LAT8120AAL, LAT8120AAW, LAT8140AAL, LAT8140AAW, LAT8140ABL, LAT8140ABW, LAT8140ABX, LAT8200AAL, LAT8200AAW, LAT8200ABL, LAT8200ABW, LAT8200ABX, LAT8210AAL, LAT8210AAW, LAT8240AAL, LAT8240AAW, LAT8240ABL, LAT8240ABW, LAT8240ABX, LAT8340AAL, LAT8340AAW, LAT8420AAL, LAT8420AAW, LAT8420ABL, LAT8420ABW, LAT8440AAL, LAT8440AAW, LAT8440ABL, LAT8440ABW, LAT8500AAL, LAT8500AAW, LAT8500ABL, LAT8500ABW, LAT8520AAL, LAT8520AAW, LAT8520ABL, LAT8520ABW, LAT8520BAL, LAT8520BAW, LAT8520BBL, LAT8520BBW, LAT8600AAE, LAT8600AAL, LAT8600AAW, LAT8600ABE, LAT8600ABL, LAT8600ABW, LAT8608AAE, LAT8608AAL, LAT8608AAW, LAT8608ABE, LAT8640AAL, LAT8640AAW, LAT8640ABL, LAT8640ABW, LAT8640BAL, LAT8640BAW, LAT8640BBL, LAT8640BBW, LAT8650AAL, LAT8650AAW, LAT8650ABL, LAT8650ABW, LAT8650BAL, LAT8650BAW, LAT8650BBL, LAT8650BBW, LAT8700AAL, LAT8700AAW, LAT8700ABL, LAT8700ABW, LAT8740AAL, LAT8740AAW, LAT8800AAL, LAT8800AAW, LAT8800ABL, LAT8800ABW, LAT8820AAL, LAT8820AAW, LAT8820ABL, LAT8820ABW, LAT8820BAL, LAT8820BAW, LAT8820BBL, LAT8820BBW, LAT8840AAL, LAT8840AAW, LAT8840ABL, LAT8840ABW, LAT8840BAL, LAT8840BAW, LAT8840BBL, LAT8840BBW, LAT9200AAE, LAT9200AAG, LAT9200AAL, LAT9200AAM, LAT9200AAW, LAT9200ABE, LAT9200ABL, LAT9200ABM, LAT9200ABW, LAT9200BAE, LAT9200BAL, LAT9200BAM, LAT9200BAW, LAT9200BBE, LAT9200BBL, LAT9200BBM, LAT9200BBW, LAT9200DAL, LAT9200DAW, LAT9280AAL, LAT9280AAW, LAT9280ABL, LAT9280ABW, LAT9300AAL, LAT9300AAW, LAT9300ABL, LAT9300ABW, LAT9400AAE, LAT9400AAL, LAT9400AAW, LAT9400ABE, LAT9400ABL, LAT9400ABW, LAT9400AGL, LAT9400AGW, LAT9400DAL, LAT9400DAW, LAT9593AAL, LAT9593AAW, LAT9593ABL, LAT9593ABW, LAT9600AAL, LAT9600AAW, LAT9600ABL, LAT9600ABW, LAT9700AAL, LAT9700AAW, LAT9700ABL, LAT9700ABW, LAT9700DAL, LAT9700DAW, LAT9800AAL, LAT9800AAW, LAT9800ABL, LAT9800ABW, LAT9900AAL, LAT9900AAW, LAT9900ABL, LAT9900ABW, LATA100AAE, LATA100AAL, LATA100AAM, LATA100AAW, LATA100AJE, LATA100ARE, LATA200AAE, LATA200AAL, LATA200AAM, LATA200AAW, LATA200AJE, LATA200AJM, LATA300AAE, LATA300AAL, LATA300AAM, LATA300AAW, LATA400AAE, LATA400AAL, LATA400AAM, LATA400AAW, LATA500AAE, LATA500AAL, LATA500AAW, LAW7500AAL, LAW7500AAW, LAW7500ABL, LAW7500ABW, LAW9400AAL, LAW9400AAW, LAW9400ABL, LAW9400ABW, LAW9700AAL, LAW9700AAW, LAW9700ABL, LAW9700ABW, LSE2700W, LSE2700W-8, LSE2700W-C, LSE7800, LSE7800ACE, LSE7800ACL, LSE7800ACW, LSE7800ADE, LSE7800ADL, LSE7800ADW, LSE7800AEE, LSE7800AEL, LSE7800AEW, LSG2700W, LSG7800, LSG7800AAE, LSG7800AAL, LSG7800AAW, LSG7800ABE, LSG7800ABL, LSG7800ABW, LWJ202A, LWJ202H, LWJ202W, LWJ206A, LWJ206H, LWJ206W, LWJ208A, LWJ208H, LWJ208W, LWK202AC, LWK202NC, LWK206A, LWK206AC, LWK206H, LWK206NC, LWK206W, LWK208A, LWK208H, LWK208W, LWL202A, LWL202AC, LWL202H, LWL202HC, LWL202W, LWL202WC, LWL203A, LWL203AC, LWL203H, LWL203HC, LWL203W, LWL203WC, LWL263A, LWL263H, LWL263W, LWM201A, LWM201H, LWM201W, LWM202, LWM202A, LWM202AC, LWM202H, LWM202HC, LWM202WC, LWM204A, LWM204AC, LWM204H, LWM204HC, LWM204W, LWM204WC, LWM205A, LWM205AC, LWM205W, LWM205WC, LWN202A, LWN202AC, LWN202W, LWN202WC, LWN203A, LWN203AC, LWN203W, LWN203WC, LWN204A, LWN204V, LWN204VC, LWN204W, MA105, MAT23PCAAG, MAT23PCAAL, MAT23PCAAW, MAT23PCABG, MAT23PCABL, MAT23PCABW, MAT25CSAAG, MAT25CSAAL, MAT25CSAAW, MAT25CSAGG, MAT25CSAGL, MAT25CSAGW, MAT25CSBIL, MAT25CSCAG, MAT25CSCAL, MAT25CSCAW, MAT25CSEGG, MAT25CSEGL, MAT25CSEGW, MAT25CTAAG, MAT25CTAAL, MAT25CTAAW, MAT25DAAAL, MAT25DAAAM, MAT25DAAAW, MAT25DAABL, MAT25DAABW, MAT25MNAAG, MAT25MNAAL, MAT25MNAAW, MAT25MNAGW, MAT26MNAAG, MAT26MNAAL, MAT26MNAAW, MAT26PCAAG, MAT26PCAAL, MAT26PCAAW, MAT26PCABG, MAT26PCABL, MAT26PCABW, NAW2030A, NAW2030H, NAW2030W, SAW25K3S, SE7800, SG7800, SHWA2506A, SHWA2506AT, SHWA2506W, SHWA2506WT, TLWL202A, TLWL202W, TLWL204A, TLWL204H, TLWL204W, TLWM202IIA, TLWM202IIH, TLWM202IIW, TLWM208IIA, TLWM208IIH, TLWM208IIW, W14EA1, W14EN1, W14HA1, W14HN1, W14HY1, W14JA1, W14JN1, W14JY1, W18DA2, W18DN2, W18DY2, W18EA1, W18EA2, W18EN1, W18EN2, W18EY1, W18EY2, W18FA1, W18FA1C, W18FA2, W18FN1, W18FN1C, W18FN2, W18FY1, W18FY1C, W18FY2, W18GA1, W18GN1, W18GY1, W18HA1, W18HN1, W18HY1, W18JA1, W18JN1, W204KA, W204KW, W205KA, W205KAC, W205KV, W205KW, W205KWC, W206KA, W206KW, W207KA, W207KAC, W207KW, W207KWC, W208KA, W208KV, W208KW, W209KA, W209KV, W209KVC, W20DA3, W20DA4, W20DN3, W20DN4, W20DY3, W20DY4, W20EA2, W20EA3, W20EA4, W20EN2, W20EN3, W20EN4, W20EY2, W20EY3, W20EY4, W20FA2, W20FA2C, W20FA3, W20FA3C, W20FA4, W20FA4C, W20FA5, W20FN2, W20FN2C, W20FN3, W20FN3C, W20FN4, W20FN4C, W20FN5, W20FY2, W20FY2C, W20FY3, W20FY3C, W20FY4, W20FY4C, W20FY5, W20HA2, W20HA23, W20HA2C, W20HA3, W20HA3C, W20HA3S, W20HA3SC, W20HA4, W20HA4C, W20HA5, W20HN2, W20HN23, W20HN2C, W20HN3, W20HN3C, W20HN3S, W20HN3SC, W20HN4, W20HN4C, W20HN5, W20HV3S, W20HY2, W20HY23

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
