Whirlpool Dryer drum felt seal kit 280114, Replaces W10521118, W10116343, W10166807, 697694, 3403265

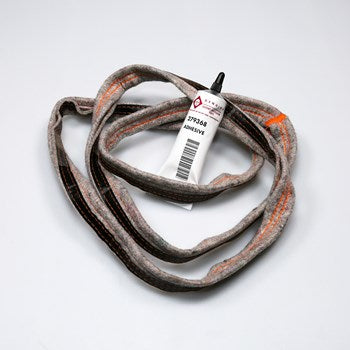

Whirlpool OEM dryer rear drum felt seal kit with silicone rubber adhesive. The seal fits between the rear of the dryer drum and the rear panel to limit air leakage and maintain separation between moving drum surfaces and the cabinet.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Unusual or loud operating noise
• Insufficient heat or poor drying performance
• Clothing marks associated with a worn drum seal

Check Before Replacing

• Inspect the rear drum felt for tearing, separation, flattening, or missing sections.
• Check for visible gaps between the drum and rear panel where the felt seal should contact.
• With power disconnected, inspect for evidence of drum-to-panel contact or clothing becoming caught near the rear drum seal.

Pro Tip

Part Details

Key Features

• Whirlpool OEM part
• Includes silicone rubber adhesive
• Rear drum felt seal
• Approximately 71-inch loop

Installation Notes

• Disconnect electrical power before servicing the dryer.
• The drum must be removed for installation.
• Remove old adhesive and prepare the mounting surface before applying the replacement seal, following the appliance service instructions.

Verified Compatible Models

3RAWZ480ESQ0, 110.68002010, 110.69822801, 110.82822101, 110.82822102, 110.84832201, 110.96591220, BYCWD6274W0, BYCWD6274W1, CEM2793BQ0, YWED5700XL0, YWED5700XW0, YWED5800BW0, YWED7500GW0, YWED7990XG0, 1DNET3205TQ0, 3CSP2760BN0, 3CSP2760BW0, 3CSP2761BN0, 3CSP2761BW0, 3CSP2761BW1, 3LCED9100WQ0, 3LCED9100WQ1, 3LCED9100WQ2, 3LCGD9100WQ0, 3LCGD9100WQ1, 3LCGD9100WQ2, 3LCGD9100WQ3, 3LMEDC100YW0, 3LMEDC100YW1

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
