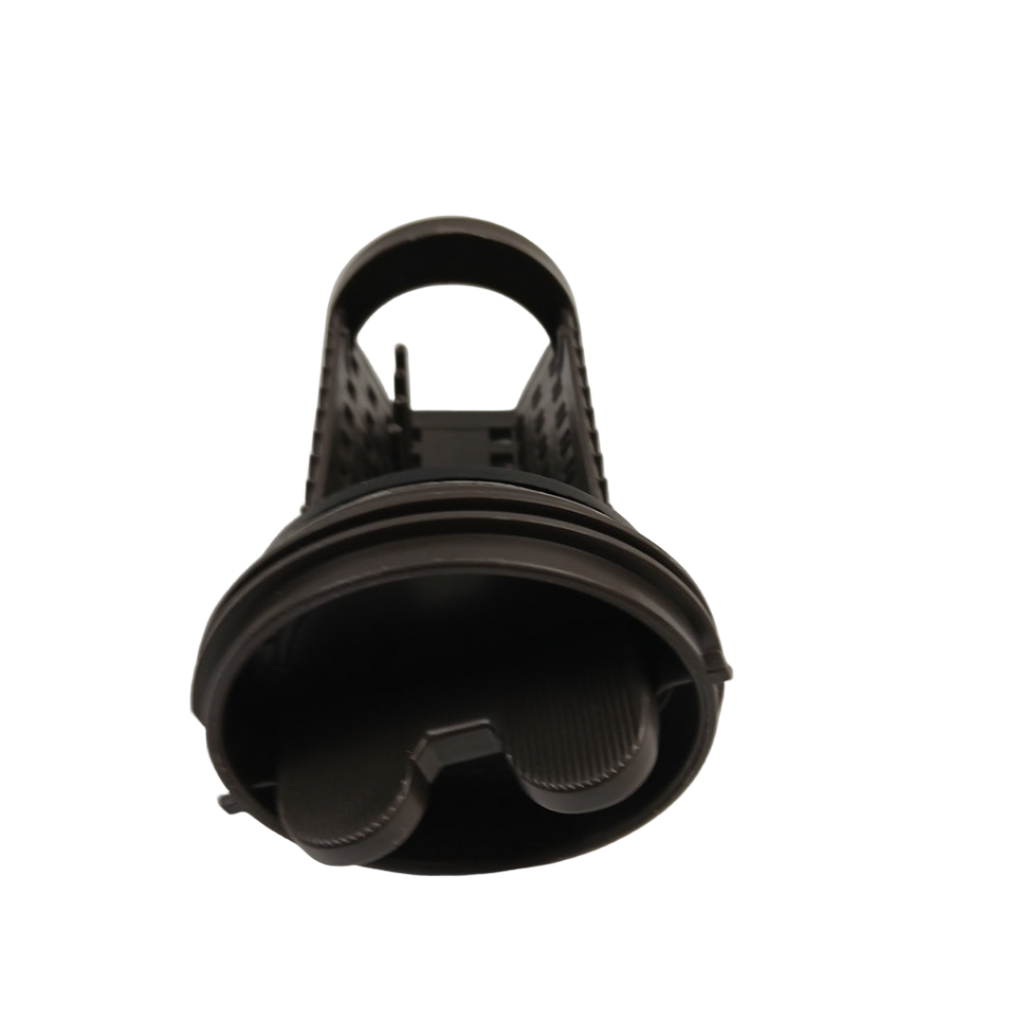

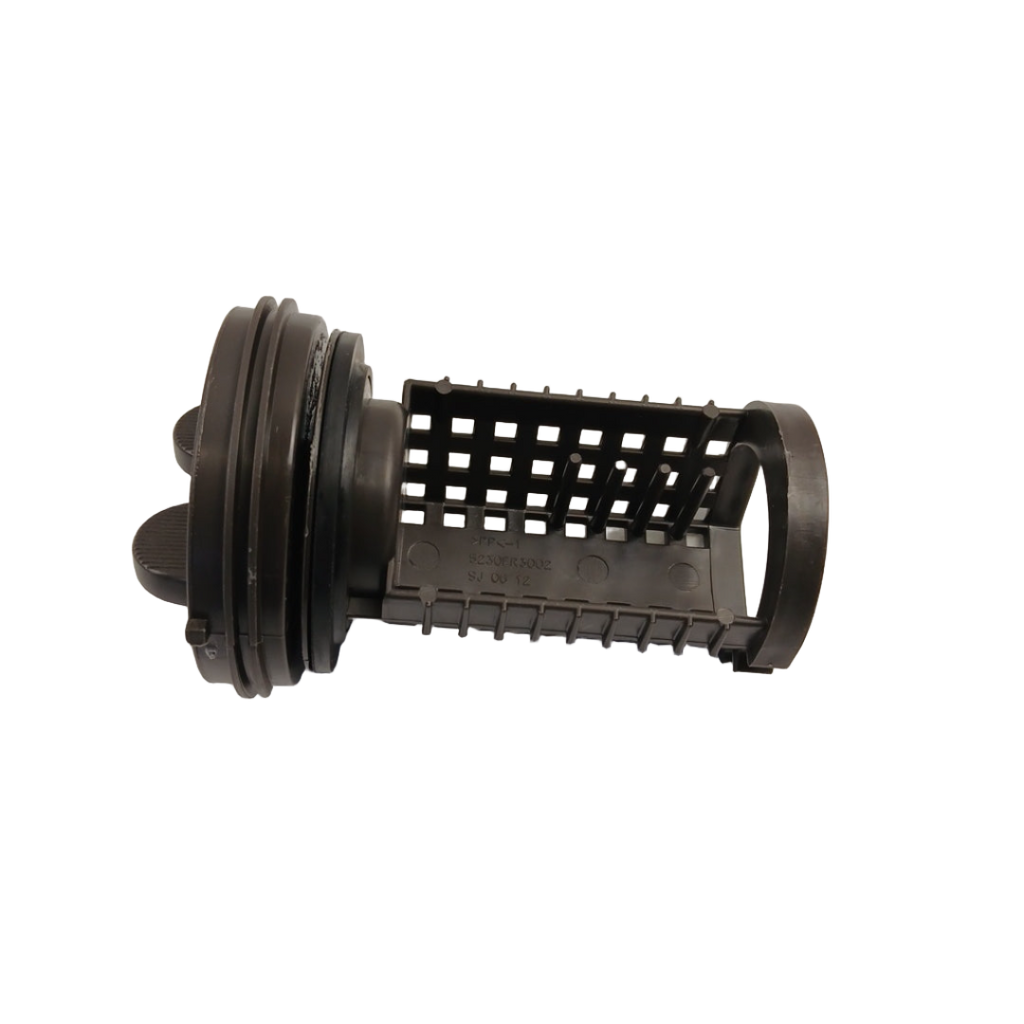

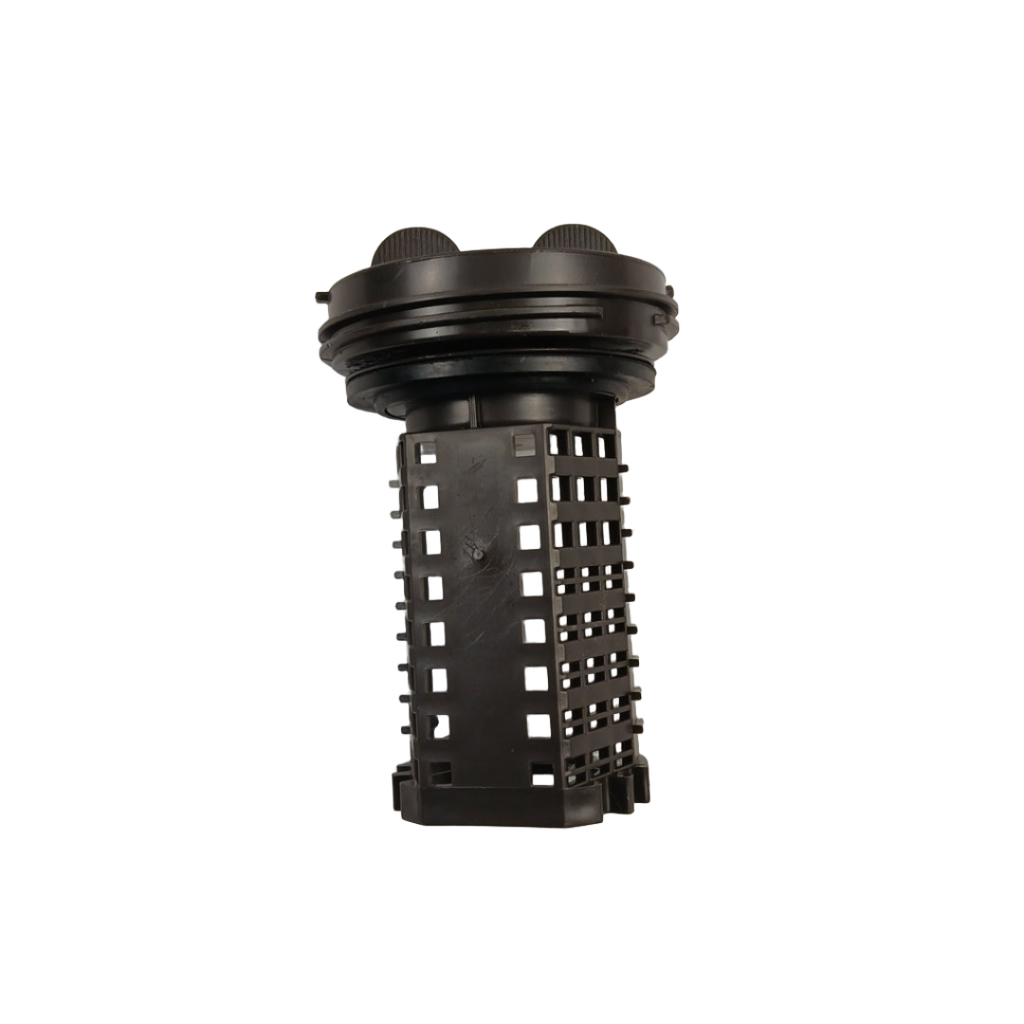

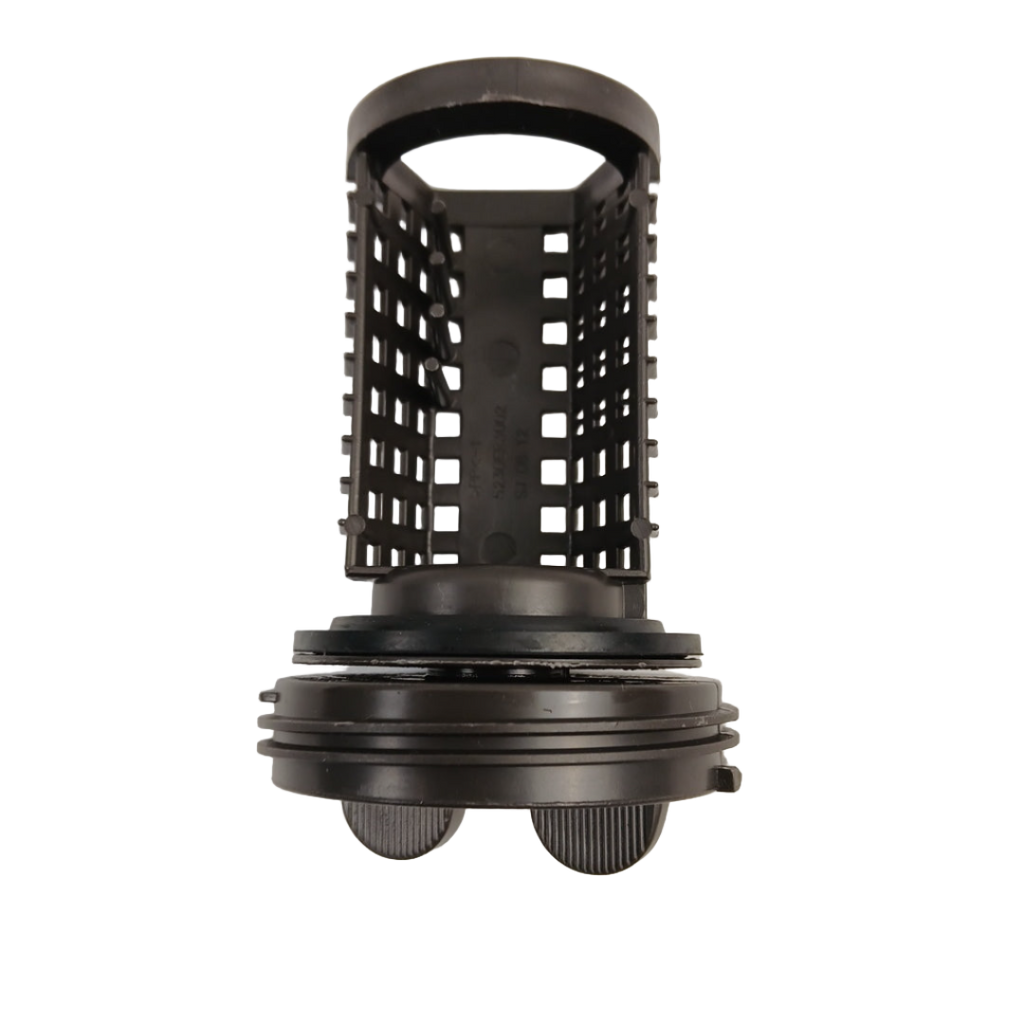

LG LG Front Load Washer Drain Pump Filter / Filter and Cap Assembly 383EER2001A, Replaces 5230ER3002A, MDJ65564201

Genuine LG drain-pump filter used in front-load washing machines. The filter is installed behind the lower access panel and traps lint, coins, and other foreign objects before they reach the drain pump.

Is This the Right Part?

Common Symptoms

• Slow draining
• Failure to drain completely
• Water leakage from the filter area when the filter, cap, or seal is damaged
• Visible debris or damage in the filter assembly

Check Before Replacing

• Unplug the washer before inspection or cleaning.
• If water may remain in the tub, use the small drain hose and a suitable container to drain residual water before removing the filter.
• Inspect the filter for lint, coins, buttons, and other foreign objects.
• Inspect the filter basket, cap, and sealing area for cracks, damage, or debris.
• After cleaning and reinstalling the filter, verify that it is fully seated and does not leak during a drain cycle.

Pro Tip

Part Details

Key Features

• Genuine LG washer drain-pump filter
• Filter-and-cap assembly
• Designed for front-load washer drain-filter access
• Traps lint and foreign objects before they reach the drain pump

Installation Notes

• Disconnect electrical power before servicing.
• The filter is typically accessed behind the lower front access panel; the exact location can vary by model.
• Drain residual water before removing the filter to reduce the risk of water spillage.
• Remove the filter by turning it counterclockwise, then reinstall it by reversing the removal steps and ensuring it is seated securely.
• Follow the appliance-specific owner’s or service manual for model-specific access and safety instructions.

Verified Compatible Models

AWD-12312RD, AWD-14310FD, AWD-14312RD, AWD-14317RD, AWD-16330FD, CW2079CWD, CW2079CWN, CWG27PDCRB, DD148P2WM, DD1411BWM, F0K1CHK2T2, F0K2CHK2T2, F0K2CHK5T2, F0K4CHK2T2, F0K6DMK2S2

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
