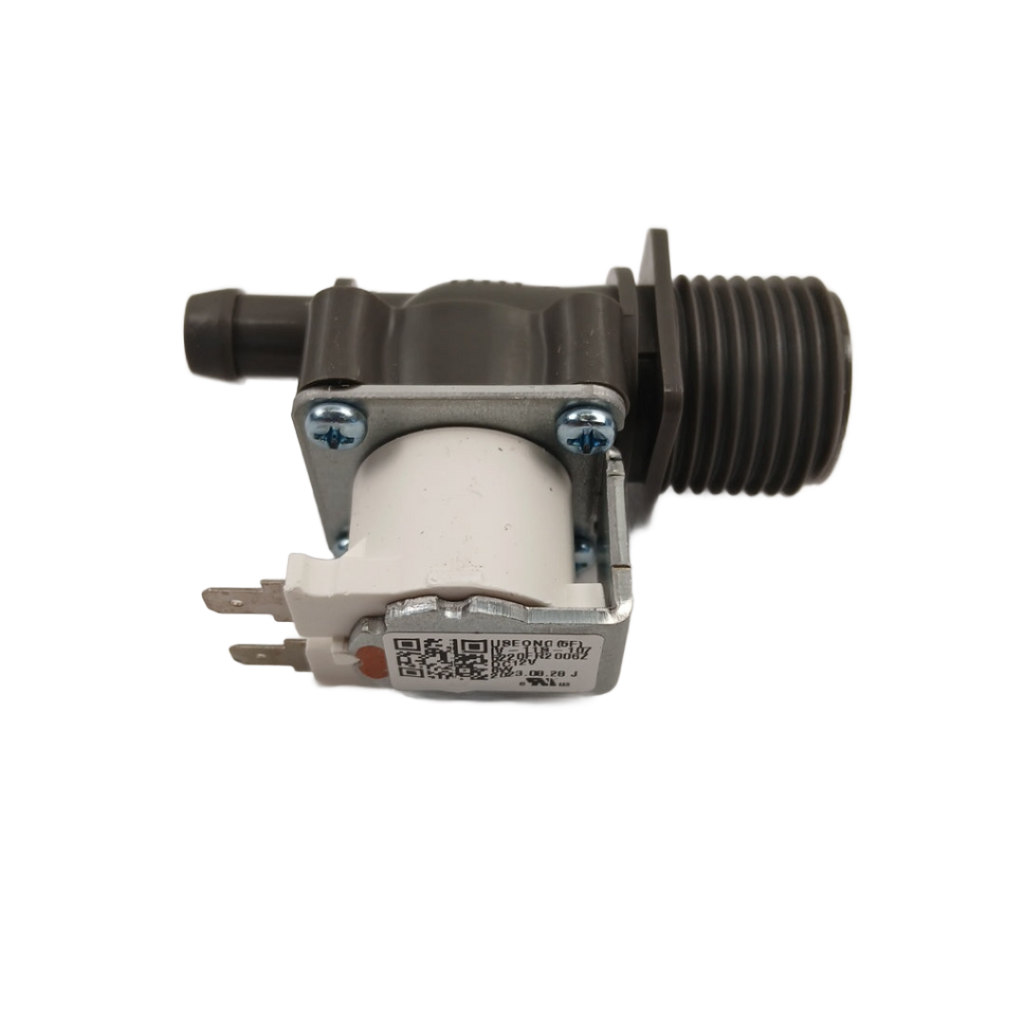

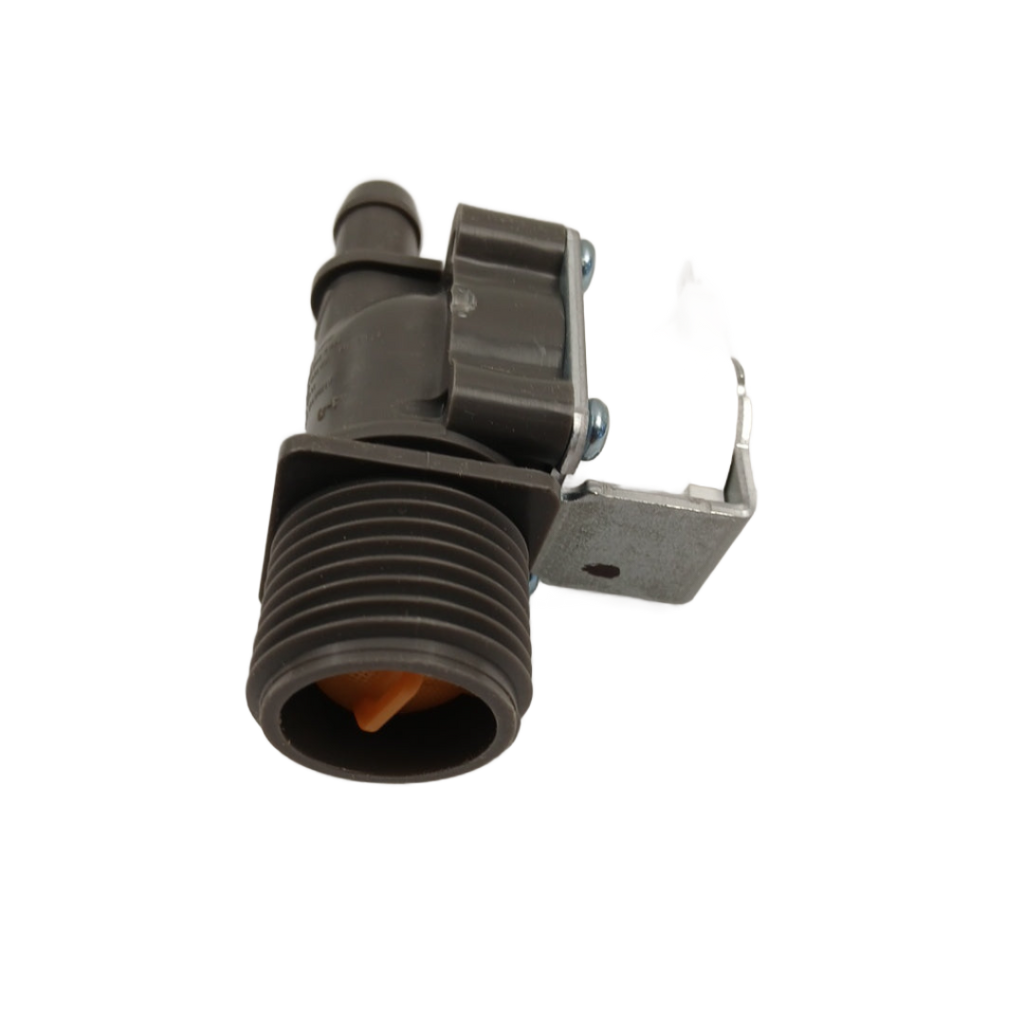

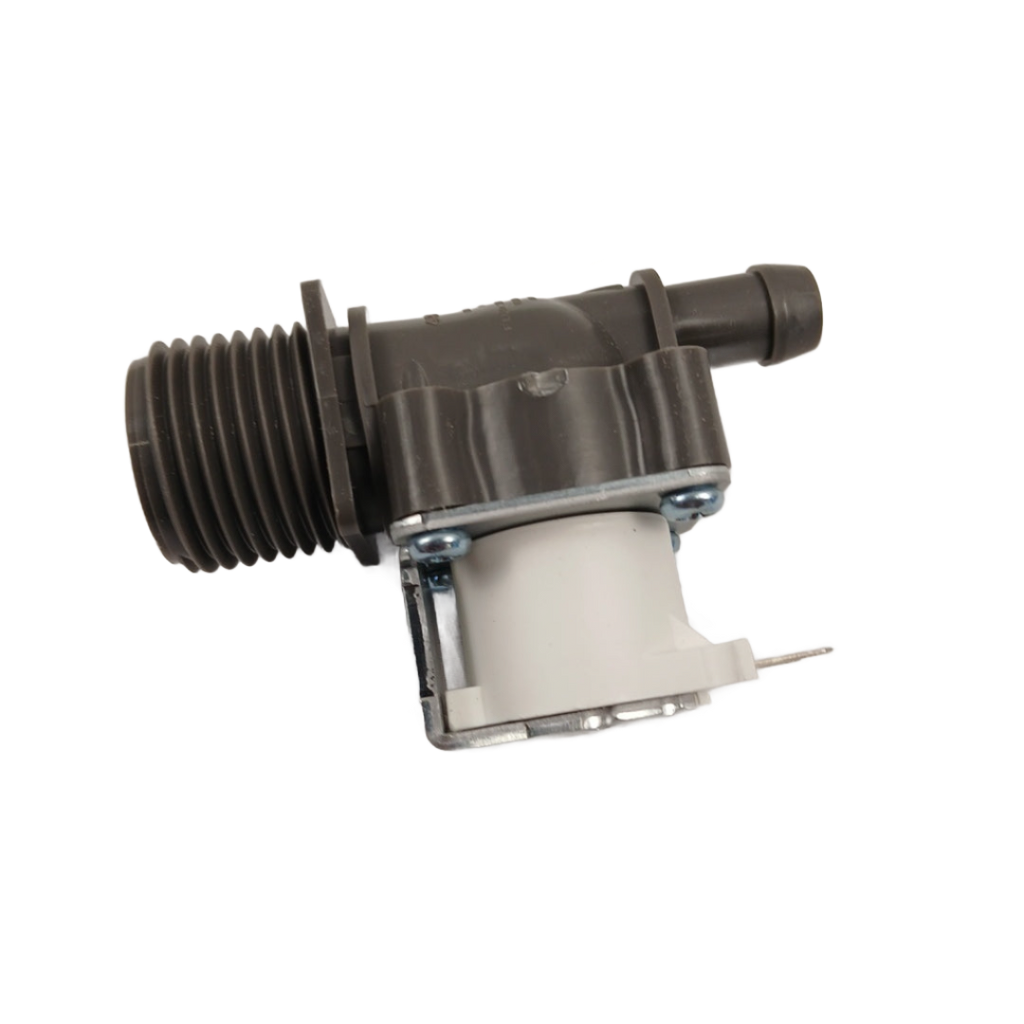

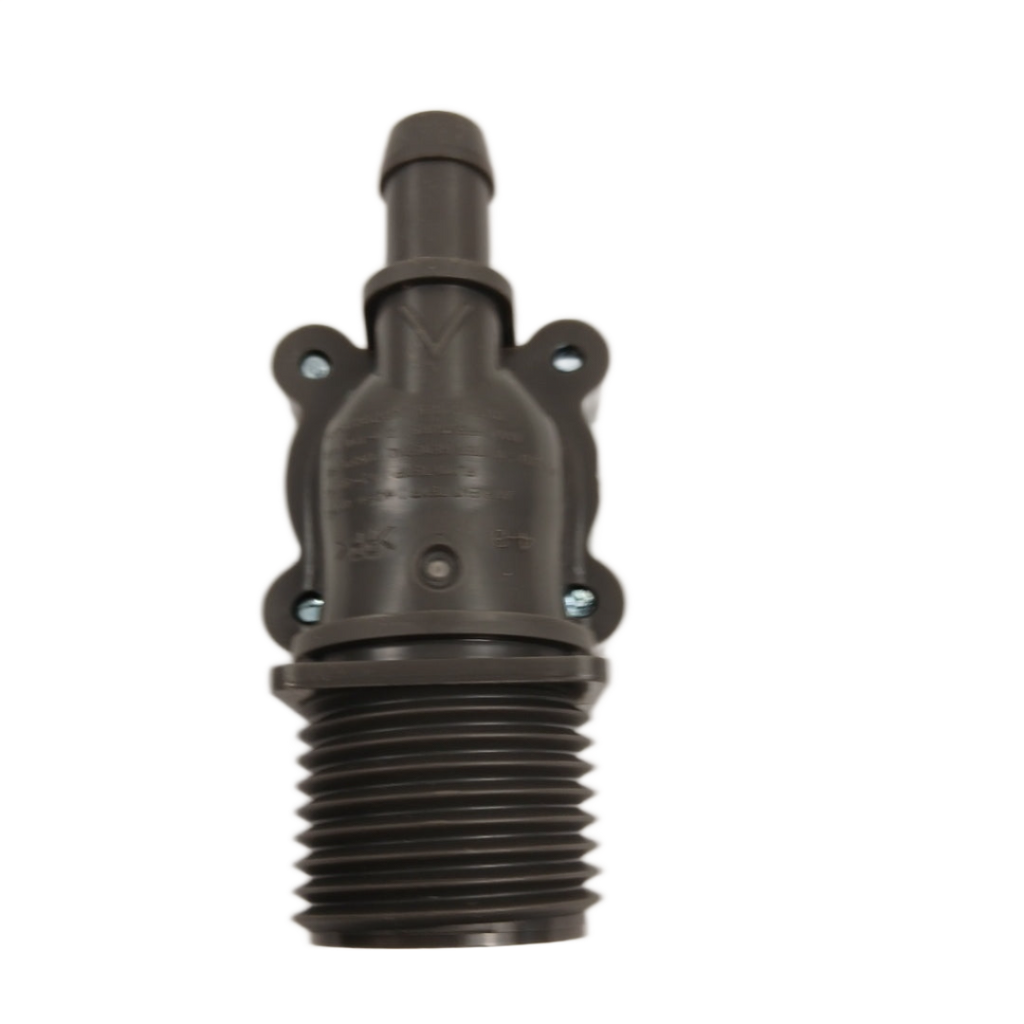

LG Washer Inlet Valve Assembly 5220FR2006Z

Genuine LG washer water inlet valve assembly that controls water flow into the washer; retailer documentation identifies it specifically as the hot-water inlet valve assembly.

Is This the Right Part?

Common Symptoms

• Hot-water fill is absent or noticeably slow.
• Water inlet valve area leaks during filling or after the cycle.
• A humming or chattering noise occurs during the fill attempt.
• The washer may report a water-filling issue when the hot-water circuit is selected.

Check Before Replacing

• Disconnect power and shut off the washer's water supply before inspection.
• Confirm the hot-water supply faucet is fully open and the hot-water hose is not kinked.
• Inspect the hose connection and valve area for visible leakage, damaged seals, or loose connections.
• With the appliance unplugged, inspect the inlet screen for visible debris without damaging or removing it unless the model's service instructions permit removal.
• If service access is appropriate for the exact washer model, compare the valve's electrical connector and visible wiring for looseness, corrosion, or damage; do not energize exposed components.
• Verify the replacement part number and valve configuration against the washer's model-specific parts list before installation.

Pro Tip

Part Details

Key Features

• Genuine LG OEM inlet valve assembly.
• Identified by LG manufacturer part number 5220FR2006Z.
• Used for the hot-water inlet function in documented washer applications.
• Designed as a direct replacement for select LG and Kenmore appliances; exact model verification is required because visually similar valves can vary.
• Controls water flow into the washer tub.

Installation Notes

• Disconnect the appliance from electrical power and shut off its water supply before service.
• Wear protective work gloves and appropriate safety equipment.
• Refer to the washer owner's or service manual for the model-specific access and replacement procedure.
• Verify the part number, connector arrangement, hose connections, and physical fit before fully securing the replacement.
• After installation, restore utilities cautiously and check the valve and hose connections for leaks during a fill test.

Verified Compatible Models

41362, 41462, 41463, 41562, 41563, 79641362910, 79641462910, 79641463910, 79641562910, 79641563910, F3S1CWK2WN, F4V9RCP2P, F4V9RCP2W, SWWE50N3, SWWE50W4, SWWG50N3, SWWG50W4, TCWM2013CD3, TCWM2013CS3, TCWM2013QS3, W3P7CVU2WVS, W3P7CWUBWVM, W3S1CVK2EHM, W3S1CVK2ENS, W3S1CVK2EVS, W3S1CVK2NNS, W3S1CVK2NVS, W3S1CVK2RNS, W3S1CVK2RVS, W3S1CVK2WNS

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
