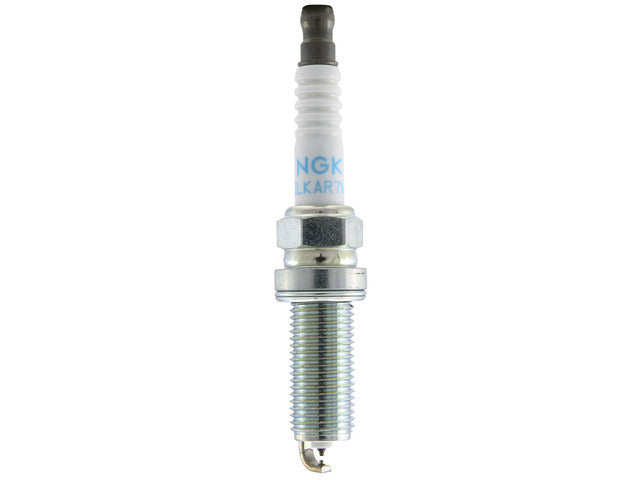

Spark Plug 90288

NGK Spark Plug 90288

XPart Number XP10228355
Price
$48.66
Available by special order

Choose an available buying option.

Free shipping progress
Availability:
Available by special order
Check Fit & Find Parts
Bubba checks verified models, product descriptions, cross-references and store data. Find your model number →

Frequently Bought Together

AUTOMOTIVE PART

NGK Spark Plug 90288

Spark Plug, Laser Iridium

Part 90288NGKSpark Plug
Match your exact vehicle configuration to the verified applications below.
Confirm the year, make, model, engine, drivetrain and required position before ordering.

Is This the Right Part?

Manufacturer Part Number90288
ManufacturerNGK
Part TypeSpark Plug

Part Details

Part Specifications

Center Electrode Core Material Copper
Center Electrode Tip Material Iridium
Electrical Terminal Type Non-Removable Nut
Ground Configuration J-Gap
Ground Electrode Core Material Nickel
Ground Electrode Quantity 1
Ground Electrode Tip Design Dual Fine Electrode (DFE) - High Ignitability
Hex Size 14mm
Insulator Height 2.01 IN
Insulator Material Ceramic
Manufacturer Heat Range 7
Material Grade Iridium Platinum
Part Number DILKAR7M8
Pre-Gap Size .030 IN
Reach 1.043 IN
Resistance 5000.0 82
Resistor Type Yes
Seat Type Flat
Short Style Spark Plug No
Stock Number 90288
Thread Diameter 0.472 IN
Thread Diameter 12.0 MM

Verified Vehicle Fitment

Make: Mazda
Model: 7 verified models — see exact combinations below.
Years: 2016–2024 — varies by model and configuration.

Check before ordering: Match the year, make, model, position, and every engine, transmission or other restriction in the same row. Listed years do not apply to every model.

View vehicle applications (11 configuration groups)
Years Make Model Position Engine / transmission / notes
2021–2024 Mazda 3 — Aspiration: Turbo; Actual OE Manufacturer; OE Spark Plug Is High Ignitability. For Optimal Performance, Replace With High Ignitability Spark Plugs., 40,000 mi Factory Recommended Service Interval, Gap 0.030in
2021–2024 Mazda 3 Sport — Aspiration: Turbo; Actual OE Manufacturer; OE Spark Plug Is High Ignitability. For Optimal Performance, Replace With High Ignitability Spark Plugs., 40,000 mi Factory Recommended Service Interval, Gap 0.030in
2018–2021 Mazda 6 — Aspiration: Turbo; Actual OE Manufacturer; OE Spark Plug Is High Ignitability. For Optimal Performance, Replace With High Ignitability Spark Plugs., 40,000 mi OE Mfr Recommended Service Interval, Gap 0.030in
2021–2024 Mazda CX-30 — Aspiration: Turbo; Actual OE Manufacturer; OE Spark Plug Is High Ignitability. For Optimal Performance, Replace With High Ignitability Spark Plugs., 40,000 mi Factory Recommended Service Interval, Gap 0.030in
2021–2024 Mazda CX-5 — Aspiration: Turbo; Actual OE Manufacturer; OE Spark Plug Is High Ignitability. For Optimal Performance, Replace With High Ignitability Spark Plugs., 40,000 mi Factory Recommended Service Interval, Gap 0.030in
2019 Mazda CX-5 — Aspiration: Turbo; Engine: 2.5 L4; Actual OE Manufacturer; OE Spark Plug Is High Ignitability. For Optimal Performance, Replace With High Ignitability Spark Plugs., 40,000 mi OE Mfr Recommended Service Interval, Gap 0.030in
2020 Mazda CX-5 — Aspiration: Turbo; Actual OE Manufacturer; OE Spark Plug Is High Ignitability. For Optimal Performance, Replace With High Ignitability Spark Plugs., 40,000 mi OE Mfr Recommended Service Interval, Gap 0.030in
2023–2024 Mazda CX-50 — Aspiration: Turbo; Actual OE Manufacturer; OE Spark Plug Is High Ignitability. For Optimal Performance, Replace With High Ignitability Spark Plugs., 40,000 mi Factory Recommended Service Interval, Gap 0.030in
2016 Mazda CX-9 — Actual OE Manufacturer; OE Spark Plug Is High Ignitability. For Optimal Performance, Replace With High Ignitability Spark Plugs., 100,000 mi OE Mfr Recommended Service Interval, Gap 0.030in
2021–2023 Mazda CX-9 — Actual OE Manufacturer; OE Spark Plug Is High Ignitability. For Optimal Performance, Replace With High Ignitability Spark Plugs., 40,000 mi Factory Recommended Service Interval, Gap 0.030in
2017–2020 Mazda CX-9 — Actual OE Manufacturer; OE Spark Plug Is High Ignitability. For Optimal Performance, Replace With High Ignitability Spark Plugs., 40,000 mi OE Mfr Recommended Service Interval, Gap 0.030in

Source: supplier-verified applications for NGK 90288. A vehicle not listed is not confirmed compatible.
