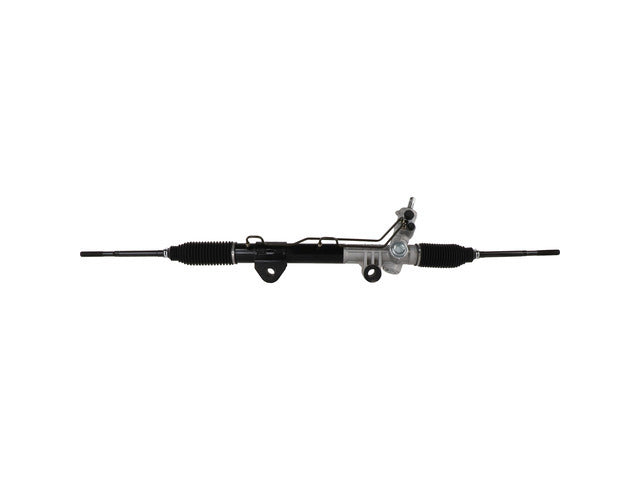

Cardone Steering Rack 97382
Steering Rack, w/o Outer Tie Rod Ends, 100% New Complete Long Rack
Confirm the year, make, model, engine, drivetrain and required position before ordering.
Is This the Right Part?
Part Details
Part Specifications
| Casting Material | Aluminum |
|---|---|
| Distance Between Mounting Holes | 11.57 |
| Distance Between Mounting Holes | 294.00 |
| E-Waste | No |
| Hose Port Type | O-Ring/O-Ring |
| Input Shaft Diameter (in) | 0.71 |
| Input Shaft Diameter (mm) | 18.00 |
| Input Shaft Length (in) | 1.89 |
| Input Shaft Length (mm) | 48.00 |
| Number of Mounting Holes | 2 |
| Package Contents | Rack and Pinion, Kit, Tag, Insert, Instruction Sheet |
| Pressure Port Thread Size | M18 x 1.5 |
| Product Condition | New |
| Rack Length (in) | 56.65 |
| Rack Length (mm) | 1439.00 |
| Return Port Thread Size | M20 x 1.5 |
| Steering Rack Color | Black |
| Thread Length (in) | 2.56 |
| Thread Length (mm) | 65.00 |
| Tie Rod Ends Included | Inner |
| Total Turns Lock to Lock | 3.33 |
Verified Vehicle Fitment
Make: Dodge, Ram
Model: 2 verified models — see exact combinations below.
Years: 2006–2012 — varies by model and configuration.
Check before ordering: Match the year, make, model, position, and every engine, transmission or other restriction in the same row. Listed years do not apply to every model.
View vehicle applications (11 configuration groups)
| Years | Make | Model | Position | Engine / transmission / notes |
|---|---|---|---|---|
| 2009–2010 | Dodge | Ram 1500 | — | with Hydraulic Power, Includes Inner Tie Rods, with Seal Kit, For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system, In-Line Filter available |
| 2006–2008 | Dodge | Ram 1500 | — | Body Type: Crew Cab Pickup; Sub Model: Laramie; with Hydraulic Power, Includes Inner Tie Rods, with Seal Kit, For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system, In-Line Filter available |
| 2006–2008 | Dodge | Ram 1500 | — | Body Type: Crew Cab Pickup; Sub Model: SLT; with Hydraulic Power, Includes Inner Tie Rods, with Seal Kit, For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system, In-Line Filter available |
| 2008 | Dodge | Ram 1500 | — | Body Type: Crew Cab Pickup; Sub Model: SXT; with Hydraulic Power, Includes Inner Tie Rods, with Seal Kit, For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system, In-Line Filter available |
| 2006 | Dodge | Ram 1500 | — | Body Type: Standard Cab Pickup; Sub Model: Laramie; with Hydraulic Power, Includes Inner Tie Rods, with Seal Kit, For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system, In-Line Filter available |
| 2006–2008 | Dodge | Ram 1500 | — | Body Type: Standard Cab Pickup; Sub Model: SLT; with Hydraulic Power, Includes Inner Tie Rods, with Seal Kit, For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system, In-Line Filter available |
| 2008 | Dodge | Ram 1500 | — | Body Type: Standard Cab Pickup; Sub Model: SXT; with Hydraulic Power, Includes Inner Tie Rods, with Seal Kit, For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system, In-Line Filter available |
| 2006–2007 | Dodge | Ram 1500 | — | Sub Model: Sport; with Hydraulic Power, Includes Inner Tie Rods, with Seal Kit, For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system, In-Line Filter available |
| 2006–2008 | Dodge | Ram 1500 | — | Sub Model: ST; with Hydraulic Power, Includes Inner Tie Rods, with Seal Kit, For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system, In-Line Filter available |
| 2006–2007 | Dodge | Ram 1500 | — | Sub Model: TRX4; with Hydraulic Power, Includes Inner Tie Rods, with Seal Kit, For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system, In-Line Filter available |
| 2011–2012 | Ram | 1500 | — | with Hydraulic Power, Includes Inner Tie Rods, with Seal Kit, For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system, In-Line Filter available |
Source: supplier-verified applications for Cardone 97382. A vehicle not listed is not confirmed compatible.
