Refrigerator Leaking Water Inside? Drain Tube DA97-04049D — Fix Ice Maker & Defrost Drainage Fast

Water pooling under the crisper drawers or leaking onto the floor is almost always a blocked or cracked drain tube — not a sealed system failure. In most Samsung refrigerators, the drain tube channels defrost water and ice maker overflow from the evaporator tray down to the drain pan beneath the unit. When it cracks, kinks, or becomes blocked with ice, water backs up into the freezer compartment, floods the crisper area, or leaks onto the floor. ⚡ One of the most common water leak causes in Samsung French Door and Side-by-Side refrigerators. Part DA97-04049D is the genuine OEM replacement drain tube that restores proper drainage and eliminates interior water leaks permanently.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Refrigerator powers on and cools normally
• ✔ Ice maker and water dispenser function correctly (or are disabled)
• ✔ No visible water supply line leaks behind or beneath the unit
• ✔ ONLY problem is water pooling inside the fridge, under drawers, or on the floor beneath the unit

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

• Water pooling under the crisper or vegetable drawers
• Ice forming on the freezer floor or beneath the evaporator cover
• Water leaking from the front bottom of the refrigerator onto the floor
• Drain pan overflowing or water visible beneath the unit
• Gurgling or dripping sounds from inside the freezer compartment
• Visible cracks, kinks, or ice blockage in the existing drain tube

✔ If these symptoms match, this is the most likely failed component in the drainage system.

✔ In most cases, replacing this drain tube eliminates interior water leaks immediately after the next defrost cycle.

📦 Part Details

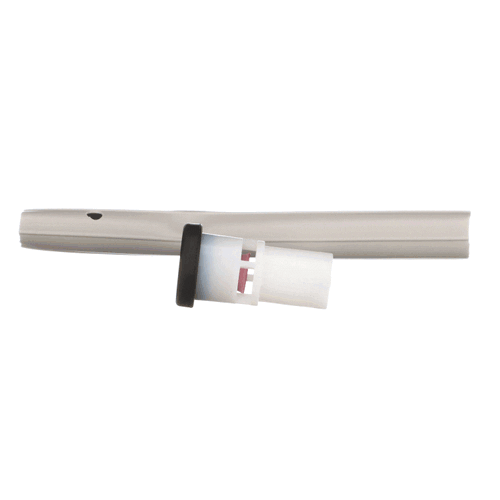

• Part Number: DA97-04049D
• Type: Refrigerator Drain Tube
• Brands: Samsung
• Condition: New Genuine OEM
• Ships From: Canada

⚙️ Installation

Skill Level: Easy to Moderate — 30–60 minutes. Disconnect power before servicing. Remove freezer shelves and the evaporator cover to access the drain trough. Disconnect the old tube from the drain outlet and drain pan fitting, route the new tube along the same path, and secure all clips. Restore power and run a manual defrost cycle to confirm drainage is flowing correctly to the drain pan.

✓ Compatible Models

Confirmed compatible with select Samsung French Door and Side-by-Side refrigerator models. Contact us to verify your model number before ordering — drain tube routing and fitment vary by model series and must be confirmed against your full model number on the door jamb sticker.
