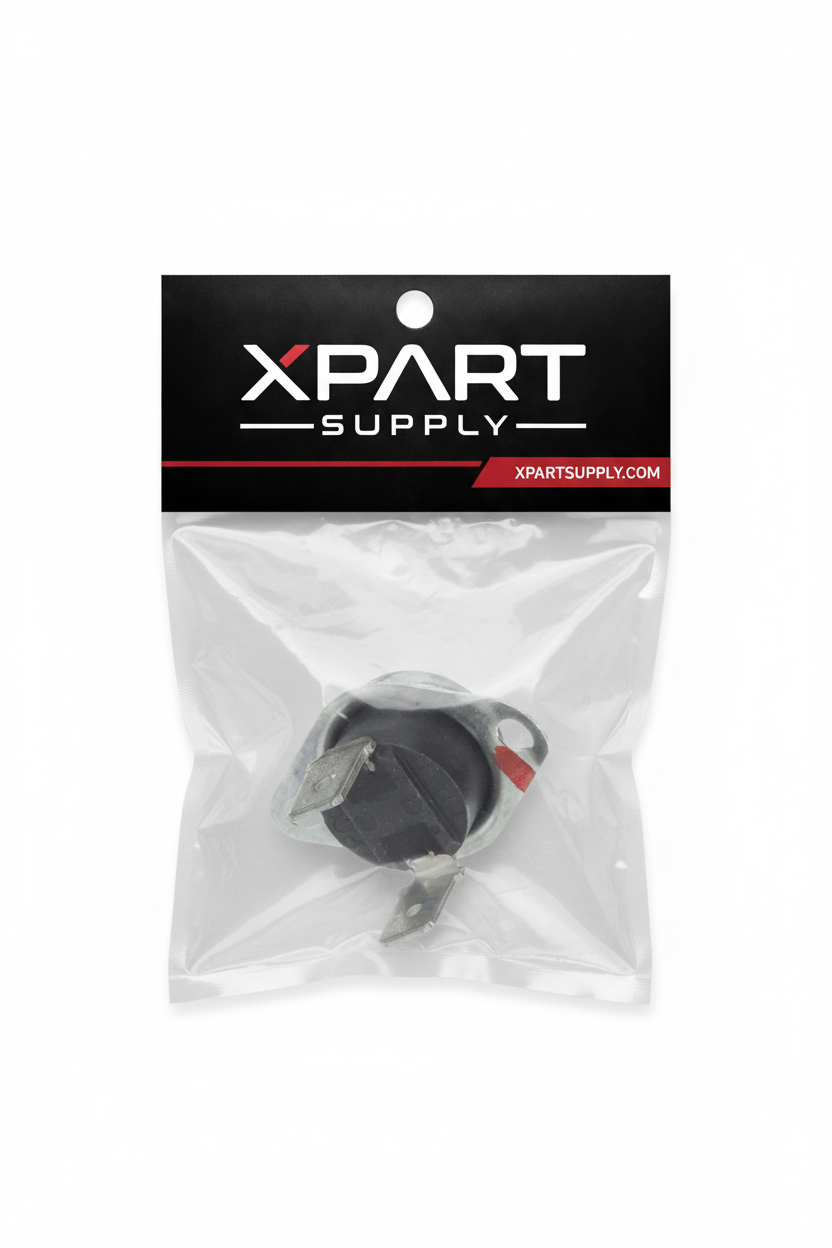

DC47-00016A Dryer Thermal Fuse (replaces 35001087, WP35001087, PTS-17S, N85)

Price
$29.95

XPart Number: 9798578798881   |   GTIN: 8383530815471

Buying Options: XPart

Product variant with selected options does not exist!

Frequently Bought Together

Shipper / Seller: XPart Supply Ltd.

🧰 Fix your dryer in under 30 minutes!

⚠️ Warnings & Best Practices


  • A thermal fuse may blow because of excessive heat which is often caused by clogged lint filters, blocked vent ducts, or poor airflow. Always check/clean the venting system when replacing.

  • Don’t substitute a fuse with a higher temperature rating than original — that undermines safety.

  • Use matching mounting style and terminal size so there’s no loose connection (loose fit causes heat/voltage drop).

  • If the new fuse blows immediately, there’s likely another problem (blocked vent, failing heating element, thermostat issue, etc.).

35001087, WP35001087

Fits Models: (Ctrl+F and Enter Your Model Number)


DV456EWHDSU/AA, DV511AER/XAA, DV306LEW/XAA, DV219AGW/XAA, DV400GWHDWR/AA, DV395ETPASU/A1, DV48H7400EW/A2, DV56H9000EW/A2, DV5451AEW/XAA, DV5451AEW/XAC, DV42H5400EF, DV45H7000EW/A2, DV50K8600EV/A3, DV50K8600EV/AC, DV52J8700EW/A2, DV52J8700EP/AC, DV48J7700EW/A2, DV48J7770EP/A2, DV52J8700GP/A2, DV48J7770EW/A2, DV52J8700GW/A2, DV48J7700GW/A2, DV48J7770EW/AC, DV48J7770GP/A2, DV45K6200EZ/A3, DV48J7770GW/A2, DV45K6200EW/AC, DV45K6200EZ/AC, DV45K6200GW/A3, DV45K6200GZ/A3, DV45K7600EW/A3, DV45K7600EW/AC, DV45K7600GW/A3, DV45K6500EV/A3, DV45K6500EW/A3, DV45K6500EV/AC, DV40J3000EW/A2, DV45K6500GV/A3, DV45K6500GW/A3, DV40J3000EW/AC, DV40J3000GW/A2, 59289622, 59299622, 59289653, DV45H7000EP/A3, 59299653, DV50K8600EW/A3, 59289679, 59289683, DV45H7000GP/A3, DV50K8600GV/A3, DV50K8600GW/A3, DV50K7500EV/A3, DV50K7500EV/AC, DV50K7500GV/A3, DV50K7500GW/A3, DV52J8700EP/A2, DVG54M8750V/A3, DVG50M7450W/A3, DVE52M8650W/A3, DVG50M7450P/A3, DVE50M7450W/A3, DVE52M7750W/A3, DVE54M8750V/A3, DVE45N5300W/A3, DVE60M9900V/A3, DV45H7000GW/A2, DVE45M5500W/A3, DVG60M9900V/A3, DVG55M9600W/A3, DVG45M5500W/A3, DVG55M9600V/A3, DVG52M7750W/A3, DVG52M8650W/A3, DVE50M7450P/A3, DVG52M7750V/A3, DVE54M8750W/A3, DVG45N5300W/A3, DVE52M7750V/A3, DV45H7000GW, DVE55M9600V/A3, DV42H5200EW/A3, DVE52M8650V/A3, DVE55M9600W/A3, DV42H5000EW/A3, DVE45M5500Z/A3, DVE45N5300V/A3, DV42H5200EP/A3, DVG45M5500Z/A3, DVG54M8750W/A3, DV50K7500EW/A3, DV42H5200GP/A3, DV42H5200GW/A3, DV42H5000GW/A3, DVG52M8650V/A3, DVE45M5500P/A3, DVG45N5300V/A3, DVE60M9900W/A3, DV45H7000EW/AC, DV42H5000EW/AC

🔧 Testing & Installation Tips

Testing the Existing Fuse


  1. Disconnect power to the dryer (unplug or turn off the breaker).

  2. Locate the thermal fuse — usually on or near the blower housing or exhaust vent path.

  3. Use a multimeter (ohmmeter) to check continuity across the fuse terminals:


    If you get “OL” (open circuit) or infinite resistance, the fuse is blown.


    If you see low resistance (close to zero), it’s still good (but consider if airflow issues caused overheating).



  4. If it’s blown, it needs replacement — they aren’t resettable.

Replacing / Installing


  1. Unplug the dryer / remove power.

  2. Gain access:


    Remove the rear panel or front control panel (depending on model).


    Disconnect or push aside the lint trap / vent hose if needed.



  3. Remove the mounting screw holding the old fuse in place. Repair Clinic+2Amazon+2

  4. Disconnect the wiring (note which wire goes where — take a photo if needed).

  5. Install the new fuse in the same orientation.

  6. Reconnect wires securely (ensure good contact, no frayed ends).

  7. Reassemble panels / vent / covers.

  8. Restore power and test the dryer on a short (no-load) cycle to confirm it starts and heats (if applicable).


Whirlpool refrigerator replacement parts, Frigidaire refrigerator replacement parts, GE refrigerator replacement parts, Kenmore refrigerator replacement parts, KitchenAid refrigerator replacement parts, LG refrigerator replacement parts, Maytag refrigerator replacement parts, Whirlpool refrigerator drawers and glides replacement, Whirlpool dishwasher replacement parts, GE dishwasher replacement parts, KitchenAid dishwasher replacement parts, Maytag dishwasher replacement parts, Frigidaire dishwasher replacement parts, Kenmore dishwasher replacement parts, Whirlpool washer replacement parts, GE washer replacement parts, Maytag washer replacement parts, Kenmore washer replacement parts, LG washer replacement parts, Whirlpool dryer replacement parts, GE dryer replacement parts, Maytag dryer replacement parts, Kenmore dryer replacement parts, LG dryer replacement parts, Whirlpool range replacement parts, GE range replacement parts, Whirlpool stove replacement parts, GE stove replacement parts, GE oven replacement parts, GE microwave replacement parts, buy Whirlpool refrigerator parts online, buy GE dishwasher parts online, replacement Kenmore washer parts for sale, buy Maytag dryer parts, LG washer replacement parts online, KitchenAid refrigerator parts for sale, Whirlpool stove and range replacement parts

DC47-00016A Dryer Thermal Fuse

Ensure your dryer operates safely and efficiently with the DC47-00016A Thermal Fuse from XPart Supply Ltd., a reliable replacement part designed for homeowners and appliance technicians looking to prevent overheating issues in compatible Samsung models.

Key Features and Design

This compact thermal fuse is engineered with high-quality materials for long-lasting durability, featuring a simple design that allows for straightforward installation. It includes a precise temperature-sensitive mechanism that activates at pre-set levels, making it an essential safety component for various dryers.

  • High-quality construction: Built to withstand repeated use while maintaining dependable performance.
  • Compact size: Easily fits into your dryer's existing setup, as seen in its sleek, wire-connected form.
  • Compatibility: Replaces parts like 35001087 and WP35001087, supporting a wide range of Samsung dryer models for versatile application.

Performance and Benefits

By automatically shutting off your dryer when it detects excessive heat, this thermal fuse helps prevent potential fires and extends the lifespan of your appliance, solving common overheating problems with reliable peace of mind. From XPart Supply Ltd., known for quality parts, it enhances your dryer's safety and efficiency, saving you time and reducing the need for costly repairs.

DC47-00016A Dryer Thermal Fuse is designed for easy installation and reliable performance. This thermal fuse triggers and shuts off the dryer when it reaches pre-set temperatures, to help prevent fires caused by overheating. DC47-00016A is made with high quality materials for long lasting durability and dependable safety.

Part number DA47-00016A replaces 35001087, WP35001087

Supported Models:

DV456EWHDSU/AA, DV511AER/XAA, DV306LEW/XAA, DV219AGW/XAA, DV400GWHDWR/AA, DV395ETPASU/A1, DV48H7400EW/A2, DV56H9000EW/A2, DV5451AEW/XAA, DV5451AEW/XAC, DV42H5400EF, DV45H7000EW/A2, DV50K8600EV/A3, DV50K8600EV/AC, DV52J8700EW/A2, DV52J8700EP/AC, DV48J7700EW/A2, DV48J7770EP/A2, DV52J8700GP/A2, DV48J7770EW/A2, DV52J8700GW/A2, DV48J7700GW/A2, DV48J7770EW/AC, DV48J7770GP/A2, DV45K6200EZ/A3, DV48J7770GW/A2, DV45K6200EW/AC, DV45K6200EZ/AC, DV45K6200GW/A3, DV45K6200GZ/A3, DV45K7600EW/A3, DV45K7600EW/AC, DV45K7600GW/A3, DV45K6500EV/A3, DV45K6500EW/A3, DV45K6500EV/AC, DV40J3000EW/A2, DV45K6500GV/A3, DV45K6500GW/A3, DV40J3000EW/AC, DV40J3000GW/A2, 59289622, 59299622, 59289653, DV45H7000EP/A3, 59299653, DV50K8600EW/A3, 59289679, 59289683, DV45H7000GP/A3, DV50K8600GV/A3, DV50K8600GW/A3, DV50K7500EV/A3, DV50K7500EV/AC, DV50K7500GV/A3, DV50K7500GW/A3, DV52J8700EP/A2, DVG54M8750V/A3, DVG50M7450W/A3, DVE52M8650W/A3, DVG50M7450P/A3, DVE50M7450W/A3, DVE52M7750W/A3, DVE54M8750V/A3, DVE45N5300W/A3, DVE60M9900V/A3, DV45H7000GW/A2, DVE45M5500W/A3, DVG60M9900V/A3, DVG55M9600W/A3, DVG45M5500W/A3, DVG55M9600V/A3, DVG52M7750W/A3, DVG52M8650W/A3, DVE50M7450P/A3, DVG52M7750V/A3, DVE54M8750W/A3, DVG45N5300W/A3, DVE52M7750V/A3, DV45H7000GW, DVE55M9600V/A3, DV42H5200EW/A3, DVE52M8650V/A3, DVE55M9600W/A3, DV42H5000EW/A3, DVE45M5500Z/A3, DVE45N5300V/A3, DV42H5200EP/A3, DVG45M5500Z/A3, DVG54M8750W/A3, DV50K7500EW/A3, DV42H5200GP/A3, DV42H5200GW/A3, DV42H5000GW/A3, DVG52M8650V/A3, DVE45M5500P/A3, DVG45N5300V/A3, DVE60M9900W/A3, DV45H7000EW/AC, DV42H5000EW/AC

Past Part Numbers (Superseded)

35001087, WP35001087

Compatible with the following models


DV456EWHDSU/AA, DV511AER/XAA, DV306LEW/XAA, DV219AGW/XAA, DV400GWHDWR/AA, DV395ETPASU/A1, DV48H7400EW/A2, DV56H9000EW/A2, DV5451AEW/XAA, DV5451AEW/XAC, DV42H5400EF, DV45H7000EW/A2, DV50K8600EV/A3, DV50K8600EV/AC, DV52J8700EW/A2, DV52J8700EP/AC, DV48J7700EW/A2, DV48J7770EP/A2, DV52J8700GP/A2, DV48J7770EW/A2, DV52J8700GW/A2, DV48J7700GW/A2, DV48J7770EW/AC, DV48J7770GP/A2, DV45K6200EZ/A3, DV48J7770GW/A2, DV45K6200EW/AC, DV45K6200EZ/AC, DV45K6200GW/A3, DV45K6200GZ/A3, DV45K7600EW/A3, DV45K7600EW/AC, DV45K7600GW/A3, DV45K6500EV/A3, DV45K6500EW/A3, DV45K6500EV/AC, DV40J3000EW/A2, DV45K6500GV/A3, DV45K6500GW/A3, DV40J3000EW/AC, DV40J3000GW/A2, 59289622, 59299622, 59289653, DV45H7000EP/A3, 59299653, DV50K8600EW/A3, 59289679, 59289683, DV45H7000GP/A3, DV50K8600GV/A3, DV50K8600GW/A3, DV50K7500EV/A3, DV50K7500EV/AC, DV50K7500GV/A3, DV50K7500GW/A3, DV52J8700EP/A2, DVG54M8750V/A3, DVG50M7450W/A3, DVE52M8650W/A3, DVG50M7450P/A3, DVE50M7450W/A3, DVE52M7750W/A3, DVE54M8750V/A3, DVE45N5300W/A3, DVE60M9900V/A3, DV45H7000GW/A2, DVE45M5500W/A3, DVG60M9900V/A3, DVG55M9600W/A3, DVG45M5500W/A3, DVG55M9600V/A3, DVG52M7750W/A3, DVG52M8650W/A3, DVE50M7450P/A3, DVG52M7750V/A3, DVE54M8750W/A3, DVG45N5300W/A3, DVE52M7750V/A3, DV45H7000GW, DVE55M9600V/A3, DV42H5200EW/A3, DVE52M8650V/A3, DVE55M9600W/A3, DV42H5000EW/A3, DVE45M5500Z/A3, DVE45N5300V/A3, DV42H5200EP/A3, DVG45M5500Z/A3, DVG54M8750W/A3, DV50K7500EW/A3, DV42H5200GP/A3, DV42H5200GW/A3, DV42H5000GW/A3, DVG52M8650V/A3, DVE45M5500P/A3, DVG45N5300V/A3, DVE60M9900W/A3, DV45H7000EW/AC, DV42H5000EW/AC
