⚠ This part has been superseded by a newer XPart Kit.
DC66-00470B has been replaced by XPart Kit. We recommend ordering the current part for guaranteed fit and full lifespan.
Order XPart Kit Instead →Samsung Washer Banging or Shaking Violently? Rear Shock Absorber DC66-00470B — Fix Excessive Vibration Fast
If your Samsung front-load washer is banging against the cabinet, walking across the floor, or shaking violently during the spin cycle, the rear shock absorbers are the most likely cause. In most Samsung front-loaders, this is caused by a failed rear shock absorber — a hydraulic damper that controls drum movement during agitation and spin. When it fails, the drum swings freely, metal contacts metal on every cycle, the machine walks forward, and the noise becomes severe enough to damage surrounding cabinetry. ⚡ Common wear failure on Samsung WF-series front-load washers after 5–8 years of use. Part DC66-00470B is the genuine OEM rear shock absorber that restores controlled drum movement, eliminates banging, and stops the machine from walking during high-speed spin.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Your washer powers on and completes wash cycles normally
- ✔ The drum bearings are intact — no grinding noise when spinning by hand
- ✔ The machine is level and the leveling feet are properly adjusted
- ✔ ONLY problem is excessive vibration, banging, or movement during spin

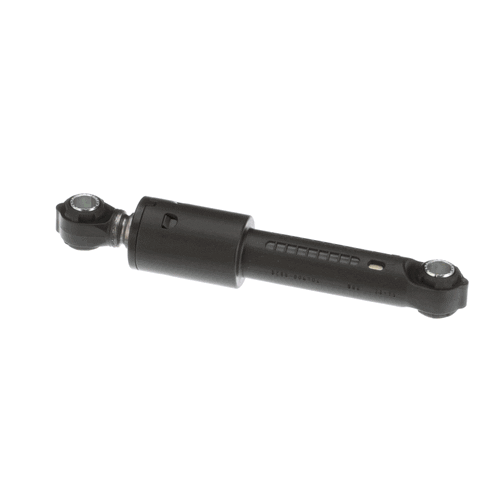

Note: This is the rear shock absorber. Front shocks are part number DC66-00470A. Not sure which you need? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Washer bangs loudly against the cabinet during spin cycle
- Machine walks forward or shifts position during high-speed spin
- Drum visibly swings or lurches side-to-side during agitation
- Vibration severe enough to rattle nearby items or cabinetry
✔ If these symptoms match, this is the most likely failed component in the system.
✔ In most cases, replacing the rear shock absorbers restores smooth, controlled operation immediately.

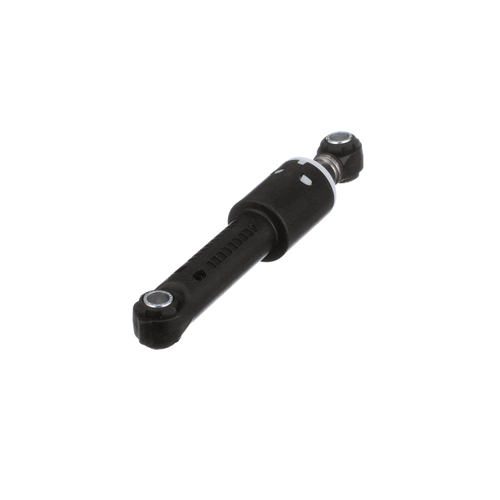

📦 Part Details
- Part Number: DC66-00470B
- Type: Washer Rear Drum Shock Absorber — Hydraulic damper, OEM Samsung WF-series
- Replaces: DC66-00470B (superseded — see XPart Kit above for current replacement)
- Brands: Samsung
⚠️ Recommended While Repairing:
Shocks always fail in pairs — if one rear shock is worn, the other is equally stressed. Replace both rear shocks at the same time to restore balanced drum support. While the cabinet is open, also inspect the front shock absorbers (DC66-00470A) and the drum spider/bearing for wear, as these components share the same load and often fail together.
Shocks always fail in pairs — if one rear shock is worn, the other is equally stressed. Replace both rear shocks at the same time to restore balanced drum support. While the cabinet is open, also inspect the front shock absorbers (DC66-00470A) and the drum spider/bearing for wear, as these components share the same load and often fail together.
⚙️ Installation
Skill Level: MODERATE — 45–60 minutes. Disconnect power and water supply before servicing. Remove the front panel and top panel to access the drum assembly; disconnect the shock absorber mounting pins at the base of the drum and the tub frame, slide the new shock into position, and secure both pins firmly. Always replace shocks in pairs and run a spin-only test cycle before reassembling panels to confirm vibration is eliminated.
✓ Compatible Models
Confirmed compatible with WF330ANW, WF350ANW, WF42H5200AW, WF45K6200AW, WF45M5500AW, WF45N5300AW, WF50K7500AW, WV55M9600AW, WV60M9900AW plus additional Samsung WF-series front-load models. Contact us to verify your model number before ordering.
💡 Pro Tip
Check the Leveling Feet Before You Order:
Before replacing shocks, confirm all four leveling feet are firmly contacting the floor and the machine is level front-to-back and side-to-side. A washer that is even slightly unlevel will vibrate excessively regardless of shock condition — this is the most common misdiagnosis on this repair. If leveling doesn't resolve it, the shocks are almost certainly the cause.
Before replacing shocks, confirm all four leveling feet are firmly contacting the floor and the machine is level front-to-back and side-to-side. A washer that is even slightly unlevel will vibrate excessively regardless of shock condition — this is the most common misdiagnosis on this repair. If leveling doesn't resolve it, the shocks are almost certainly the cause.
WF455ARGSGR/AA, WF45K6200AZ/A2, WF45M5500AW/A5, WF45N5300AW/US, WF45N5300AV/US, WF45M5500AZ/A5, WF45M5500AP/A5, WF45K6200AW/A2, WF331ANW/XAA, WF409ANR/XAA, WF457ARGSWR/AA, WF455ARGSGR/AA, WF410ANW/XAA, WF350ANR/XAA, WF419AAU/XAA, WF330ANW/XAA, WF330ANB/XAA, WF410ANR/XAA, WF350ANW/XAA, WF42H5400AF/A2, WF419AAW/XAA, WF457ARGSG, WF45K6200AZ/A2, WV60A9900AV/A5, WF331ANW/XAA, WF45H6100AP/A2, WF350ANR/XAA, WF45H6300AG/A2, WF330ANW/XAA, WF350ANP/XAA, WF330ANB/XAA, WF45H6300AW/A2, WV60M9900AW/A5, WF45M5500AW/A5, WF45N5300AW/US, WV55M9600AV/A5, WF45N5300AV/US, WF45K6500AV/A2, WF42H5000AW/A2, WF50K7500AW/A2, WF50K7500AV/A2, WF45K6500AW/A2, WV55M9600AW/A5, WF45M5500AZ/A5, WF45M5500AP/A5, WF45K6200AW/A2, WV60M9900AV/A5, WF42H5200AW/A2, WF42H5200AP/A2, WF350ANW/XAA
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
