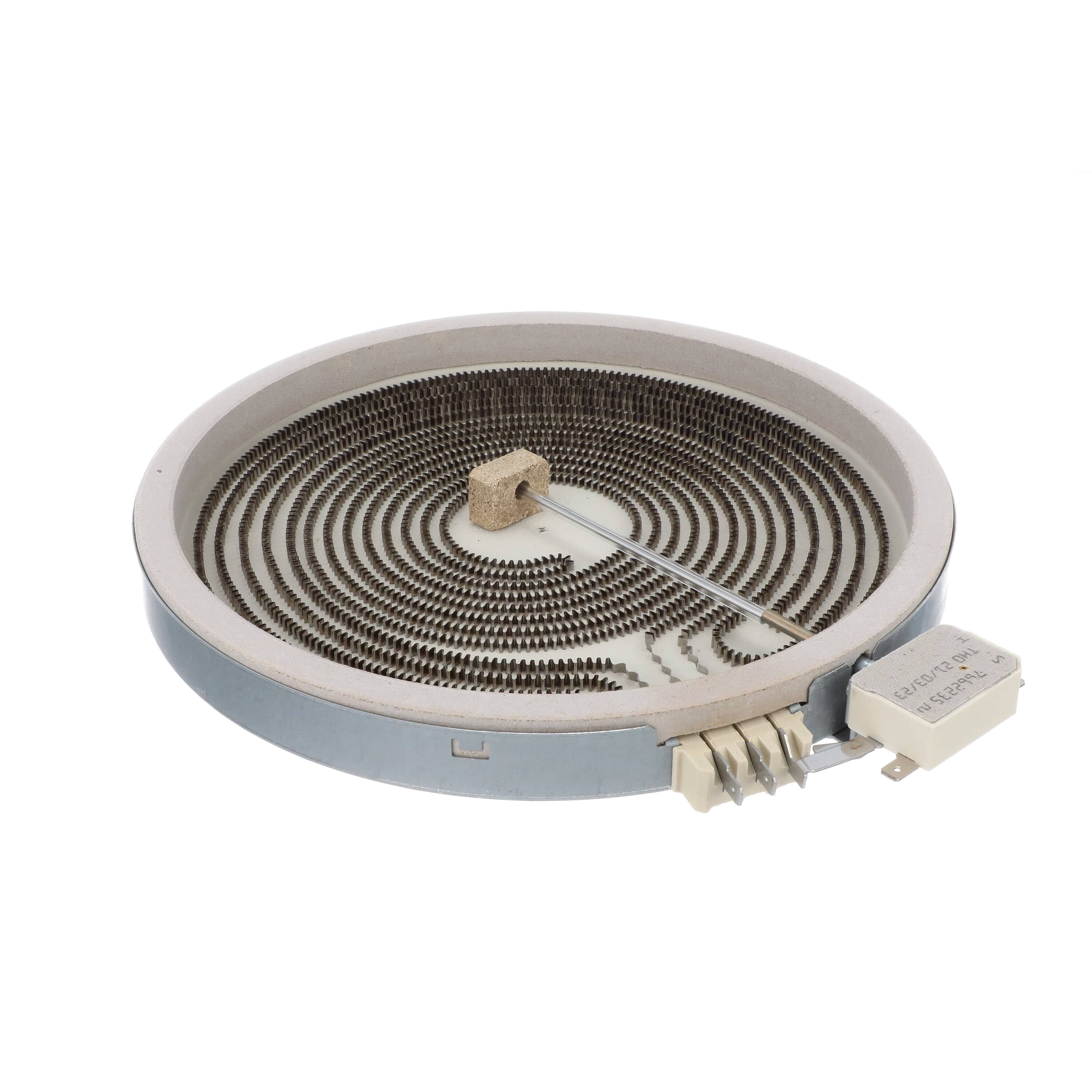

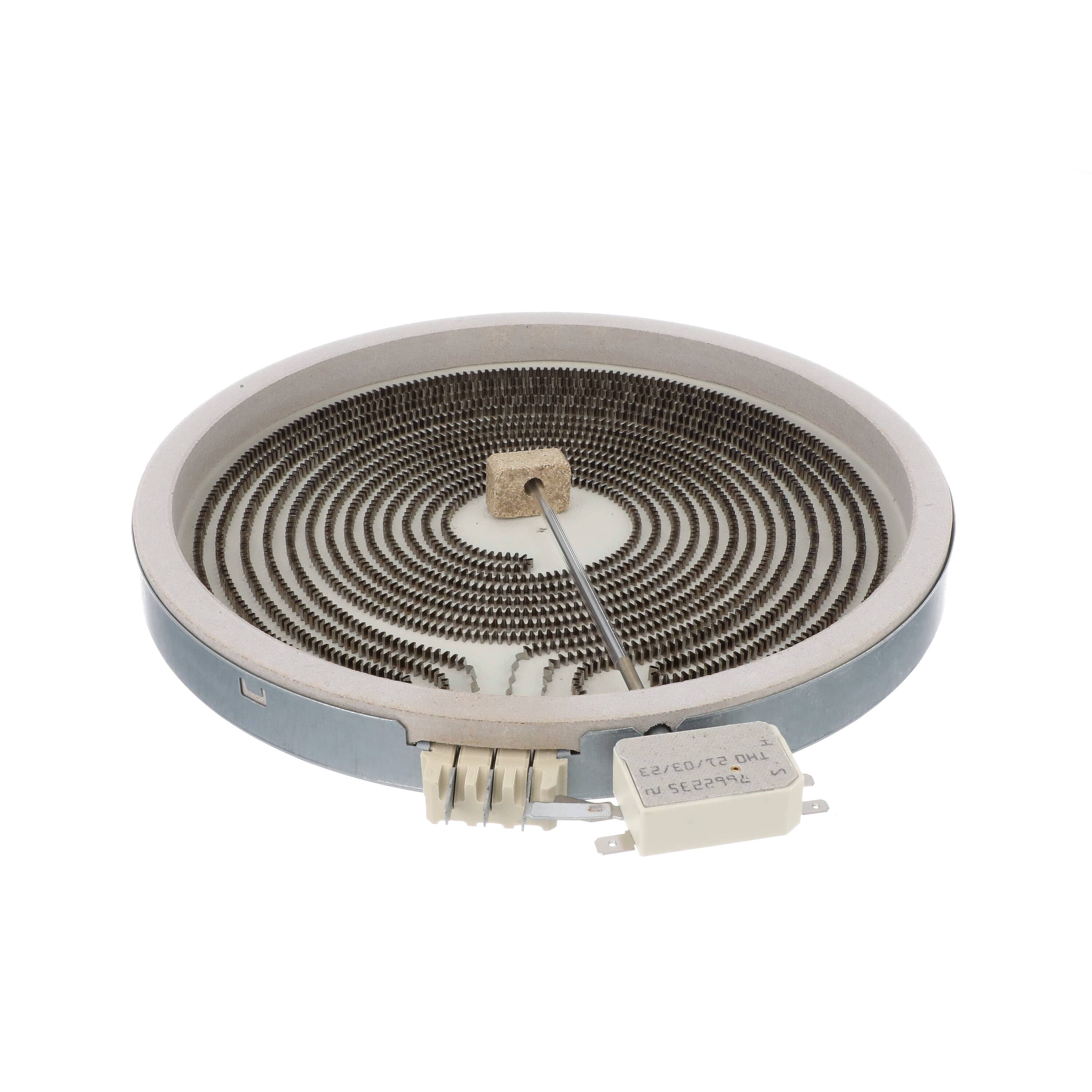

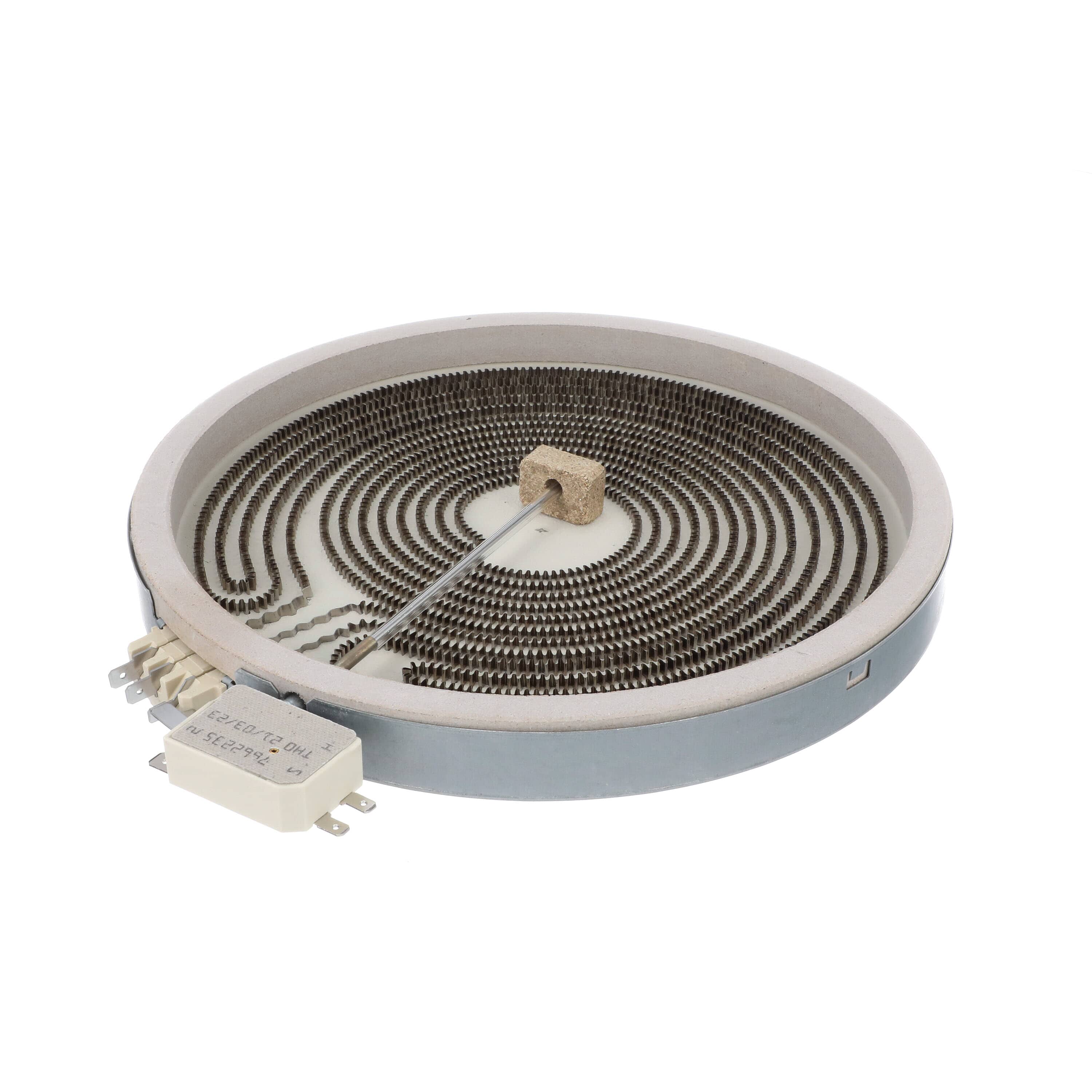

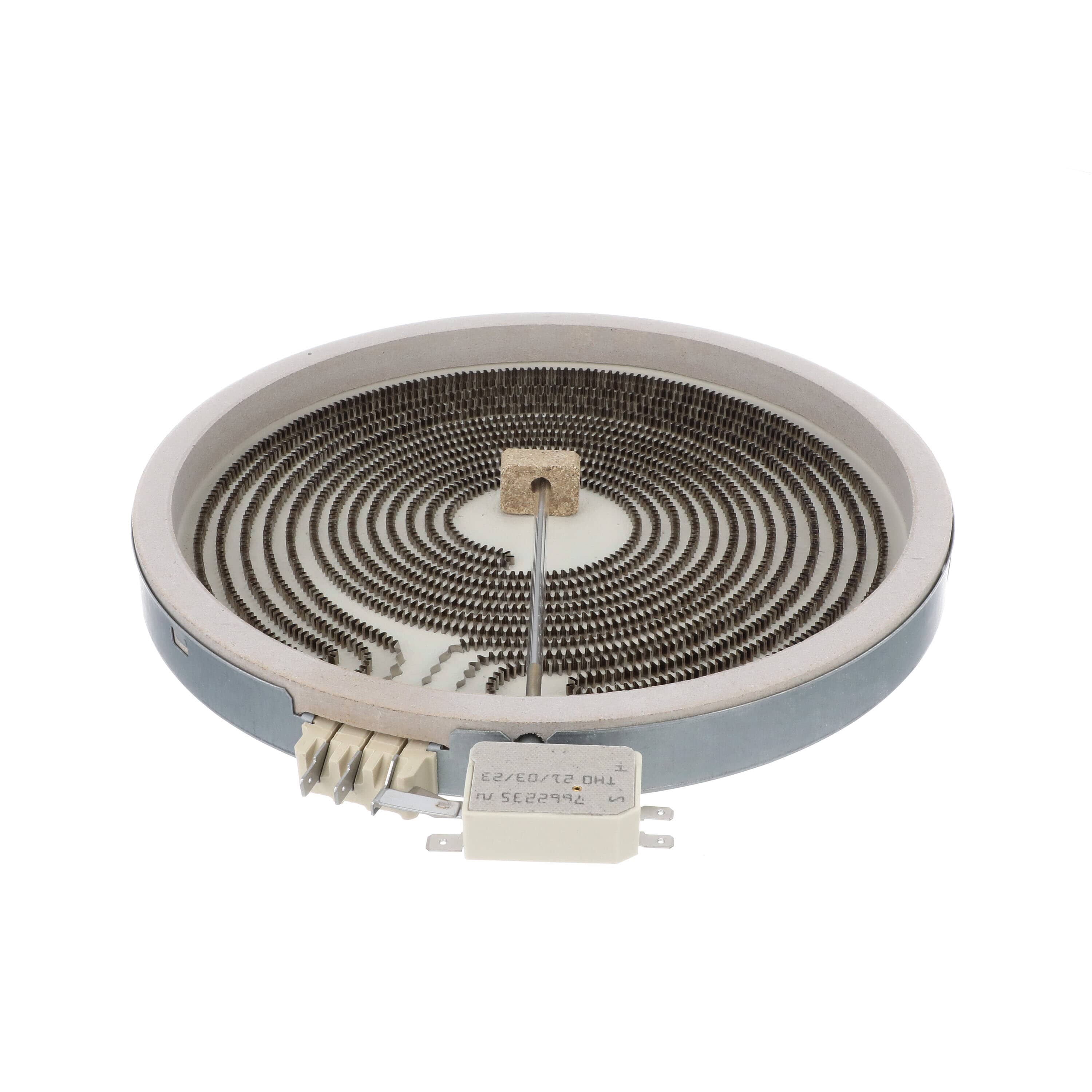

Samsung DG47-00067A Range Dual Radiant Surface Element – Burner Won't Heat or Cooks Unevenly
Part # DG47-00067A
Cross-ref MEE62385201
Fits Samsung Electric Ranges
OEM · XPart · Used Available
Burner Zone Dead or Cooking Unevenly? The Dual Radiant Surface Element Is the Fix.
When the dual radiant surface element fails, one or both heating zones in the element stop producing heat — food cooks unevenly, the surface takes too long to reach temperature, or the zone is completely dead. The DG47-00067A is the dual radiant surface element for Samsung electric ranges, delivering even, consistent heat across a dual-zone burner configuration. Cross-references MEE62385201. Choose OEM for factory-original fit, XPart (SU0067A) for a premium aftermarket alternative, or Used/Tested Good for a budget-conscious option.
⚠️ Symptoms of a Failed Dual Radiant Surface Element
- One or both burner zones won't heat at all
- Burner heats unevenly — one zone works but the other doesn't
- Cooktop surface takes much longer than normal to reach temperature
- Visible burn marks, discolouration, or physical damage on the element
- Element glows in one area but not across the full dual zone
- Error code on range display indicating element or heating fault
- Range trips the breaker when the affected burner zone is activated
- Burning smell from beneath the cooktop surface during operation
✓ Part Details
-
OEM Part Number: DG47-00067A
-
Cross-references: MEE62385201
-
Part Type: Range Dual Radiant Surface Element (Dual Zone Heating Element / Radiant Element Assembly / Surface Element)
-
Variants: OEM (genuine Samsung, DG47-00067A), XPart (premium aftermarket, SU0067A), Used/Tested Good
-
Fits: Samsung electric ranges including NE59J7630SS/AA, NE63A6511SS/AA and related models
-
Common Failure Causes: Element wire fatigue from repeated thermal cycling, physical impact damage to cooktop surface, power surge to element circuit
-
Typical Lifespan: 8–15 years; failures most often caused by element wire fatigue or impact damage
💡 Pro Tip — Test the Infinite Switch Before Replacing the Element:
A burner zone that won't heat is more often caused by a failed infinite switch (burner control switch) than a failed element — the switch controls power delivery to the radiant element and fails far more frequently. Before ordering this assembly, test the infinite switch for the affected zone with a multimeter for continuity through its full range of motion. If the switch tests open or intermittent, replace the switch first — it's a fraction of the cost of the element. If the switch tests good and the zone still won't heat, the radiant element is the confirmed fault. This is the most common repeat-repair mistake on Samsung electric ranges.
⚙️ Installation Notes
-
Skill Level: Intermediate — cooktop glass or surface panel removal required to access the element
-
Always disconnect power at the breaker before servicing — radiant elements carry line voltage
- Allow the range to cool completely before beginning — radiant elements retain heat long after being turned off
- Remove the cooktop glass or surface panel to access the element mounting screws
- Photograph all wire harness connector positions before disconnecting the old element
- Transfer wire connectors one at a time to the new element assembly
- Do not overtighten mounting screws — element brackets are fragile under torque
- Restore power and test each zone individually before reassembling the cooktop surface
✓ Compatible Models
Fits Samsung electric ranges requiring DG47-00067A. Known compatible models include NE59J7630SS/AA and NE63A6511SS/AA. Verify your model number before ordering — model tag is located inside the storage drawer or on the rear panel. Contact XPart Supply for full fitment confirmation.
