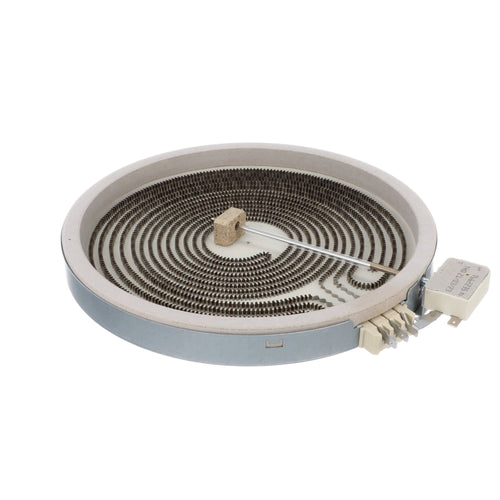

Whirlpool Range Dual Radiant Surface Element W11517959 (Replaces DG47-00067A)

W11517959 Range Dual Radiant Surface Element, 3000W/1400W - XPart Supply Ltd.

Whirlpool Range Dual Radiant Surface Element W11517959 (Replaces DG47-00067A)

Sale price: $127.70
Regular price: $175.62
You save: $47.92 (27%)

XPart Number: 9665331593505 | GTIN: 883049617442

Condition : New

New

$127.70

Used

$59.99

Product variant with selected options does not exist!

Frequently Bought Together

Guaranteed to fit your model: Need help? Call 416-817-1964

Shipper / Seller: XPart Supply Ltd.

Professional Repair Time: 20–30 minutes

DIY Repair Time: 30–45 minutes

Difficulty Rating: Moderate (3/5) — Requires disconnecting 240V power, lifting or removing glass cooktop surface, disconnecting 4 wire terminals, removing element mounting hardware, installing new element, reconnecting all wires correctly, reassembling cooktop, testing both inner and outer heating zones.

Burner won't heat at all
Inner ring heats but outer ring doesn't (or vice versa)
Element glows in some spots but not others
Uneven heating — hot spots and cold spots
Burner takes too long to heat up
Element doesn't respond to control knob or touch panel
Visible cracks or damage on element coils
Burn marks or discoloration visible through glass
Burner cycles on and off erratically
Cooktop displays error code for surface element
Burning smell when burner is on
Element sparks or arcs
One burner works, another doesn't
Expandable/dual zone feature stopped working

Part number W11517959 replaces W10169799, W10275048, W10350485, W10823729, W11282542, WPW10169799, DG47-00067A, MEE62385201

Fits Models: (Ctrl+F and Enter Your Model Number)

66495113610, 66495113611, 664C95113610, AER5630BAB0, AER5630BAS0, AER5630BAW0, AER6603SFB0, AER6603SFB1, AER6603SFB2, AER6603SFS0, AER6603SFS1, AER6603SFS2, AER6603SFS3, AER6603SFW0, AER6603SFW1, AER6603SFW2, GFE461LVB0, GFE461LVB1, GFE461LVQ0, GFE461LVQ1, GFE461LVS0, GFE461LVS1, GFE461LVT0, GFE461LVT1, GFE471LVB0, GFE471LVQ0, GFE471LVS0, GGE388LXB00, GGE388LXB01, GGE388LXB02, GGE388LXB03, GGE388LXB04, GGE388LXQ00, GGE388LXQ01, GGE388LXQ02, GGE388LXQ03, GGE388LXQ04, GGE388LXS00, GGE388LXS01, GGE388LXS02, GGE388LXS03, GGE388LXS04, GGE390LXB00, GGE390LXB01, GGE390LXB02, GGE390LXB03, GGE390LXB04, GGE390LXQ00, GGE390LXQ01, GGE390LXQ02, GGE390LXQ03, GGE390LXQ04, GGE390LXS00, GGE390LXS01, GGE390LXS02, GGE390LXS03, GGE390LXS04, IER660GS0, IES790GS0, IES900DS00, IES900DS01, IES900DS02, IES900DS03, IES900DS04, IVE82301, IVE82302, IVE82303, IVP85802, IVP85803, JEC3430BB00, JEC3430BS00, JEC3430HB00, JEC3430HS00, JEC3536HB00, JEC3536HS00, JEC4424HB00, JEC4424HB01, JEC4430BB00, JEC4430BS00, JEC4536HB00, JEC4536HB01, JEC4536HS00, JEC4536HS01, JED3430GB00, JED3430GB01, JED3430GS00, JED3430GS01, JED4430GB00, JED4430GB01, JED4430GS00, JED4430GS01, JED4536GB00, JED4536GB01, JED4536GS00, JED4536GS01, JES1750CEB0, JES1750CES0, JES1750EB0, JES1750EB1, JES1750ES0, JES1750ES1, JES1750FB0, JES1750FB1, JES1750FS0, JES1750FS1, KCED600GBL00, KCED600GBL01, KCED600GSS00, KCED600GSS01, KCES550HBL00, KCES550HSS00, KCES950HBL00, KCES950HBL01, KCES950HSS00, KCES950HSS01, KECC607BBL00, KECC607BBL01, KECC607BBL02, KECC607BSS00, KECC607BSS01, KECC607BSS02, KERS202BBL0, KERS202BSS0, KERS202BSS1, KERS202BWH0, KERS206XBL0, KERS206XBL1, KERS206XBL2, KERS206XSS0, KERS206XSS1, KERS206XSS2, KERS206XSS3, KERS206XWH0, KERS206XWH1, KERS206XWH2, KERS208XBL0, KERS208XBL1, KERS208XBL2, KERS208XSS0, KERS208XSS1, KERS208XSS2, KERS208XSS3, KERS308XSS0, KERS308XSS1, KERS308XSS2, KFEG500EBL0, KFEG500EBL2, KFEG500EBL3, KFEG500EBS1, KFEG500EBS2, KFEG500EBS3, KFEG500ESS0, KFEG500ESS1, KFEG500ESS2, KFEG500ESS3, KFEG500EWH0, KFEG500EWH2, KFEG500EWH3, KFEG504KPS0, KSEG950ESS0, KSEG950ESS1, KSEG950ESS2, MEC7430BB00, MEC7430BB01, MEC7430BB02, MEC7430BB03, MEC7430BS00, MEC7430BS01, MEC7430BS02, MEC7430BW00, MEC7430BW01, MEC7430BW02, MEC8830HB00, MEC8830HS00, MEC9530BB00, MEC9530BB01, MEC9530BB02, MEC9530BS00, MEC9530BS01, MEC9536BB00, MEC9536BB01, MEC9536BB02, MEC9536BB03, MEC9536BS00, MEC9536BS01, MEC9536BS02, MER6600FB0, MER6600FB1, MER6600FB2, MER6600FW0, MER6600FW1, MER6600FW2, MER6600FW3, MER6600FZ0, MER6600FZ1, MER6600FZ2, MER6600FZ3, MER7685BB0, MER7685BS0, MER7685BW0, MER7765WB0, MER7765WB1, MER7765WS0, MER7765WS1, MER7765WW0, MER7765WW1, MER7775WB0, MER7775WB1, MER7775WB2, MER7775WS0, MER7775WS1, MER7775WS2, MER7775WW0, MER7775WW1, MER7775WW2, MER8600DE0, MER8600DH0, MER8600DS0, MER8650ES0, MER8650FZ0, MER8650FZ1, MER8680BB0, MER8680BS0, MER8680BW0, MER8700DB0, MER8700DB1, MER8700DE0, MER8700DE1, MER8700DH0, MER8700DH1, MER8700DS0, MER8700DS1, MER8700DS2, MER8700DW0, MER8700DW1, MET8665XB00, MET8665XB01, MET8665XB02, MET8665XS00, MET8665XS01, MET8665XS02, MET8665XW00, MET8665XW01, MET8665XW02, WCE55US6HB00, WCE77US0HB00, WCE77US0HB01, WCE77US0HS00, WCE77US0HS01, WCE77US0HW00, WCE77US0HW01, WCE77US6HB00, WCE77US6HS00, WCE97US0HB00, WCE97US0HB01, WCE97US0HS00, WCE97US0HS01, WCE97US6HB00, WCE97US6HB01, WCE97US6HS00, WCE97US6HS01, WEE510S0FB0, WEE510S0FB1, WEE510S0FB2, WEE510S0FS0, WEE510S0FS1, WEE510S0FS2, WEE510S0FV1, WEE510S0FV2, WEE510S0FW0, WEE510S0FW1, WEE510S0FW2, WEE510SAGB0, WEE510SAGB1, WEE510SAGS0, WEE510SAGS1, WEE510SAGW0, WEE510SAGW1, WEE745H0FE0, WEE745H0FE1, WEE745H0FE2, WEE745H0FH0, WEE745H0FH1, WEE745H0FH2, WEE745H0FS0, WEE745H0FS1, WEE745H0FS2, WEE750H0HB0, WEE750H0HB1, WEE750H0HV0, WEE750H0HV1

Disconnect power – Unplug the range or turn off the circuit breaker. Electric ranges use 240V — always verify power is completely off before working.
Allow cooktop to cool – Ensure all burners are completely cool before starting.
Remove cooktop surface – Depending on your model:Lift-up cooktop: Remove screws at the rear or front, then lift the glass cooktop up and prop it open.Fixed cooktop: Remove screws securing the cooktop frame, then carefully lift the glass surface off.
Locate the failed element – Identify the dual radiant element that needs replacement.
Take a photo – Document the wire connections before disconnecting.
Disconnect wire terminals – Remove the wires from the element terminals. There are typically 4 wires (2 for inner coil, 2 for outer coil). Note which wires connect to which terminals.
Remove element mounting hardware – Unclip or unscrew any brackets holding the element in place.
Remove old element – Lift the failed radiant element out of the element well.
Position new element – Place the new W11517959 element into the well, ensuring it sits flat and centered.
Secure mounting hardware – Reinstall any clips or brackets to hold the element in place.
Connect wire terminals – Attach all 4 wires to the correct terminals on the new element (match your photos).
Verify connections – Ensure all terminals are tight and wires are not pinched.
Reinstall cooktop surface – Lower the glass cooktop back into position and secure with screws.
Restore power – Turn on the circuit breaker or plug in the range.
Test both zones – Turn on the burner and test both the inner ring (small setting) and outer ring (large/expand setting) to verify both heat properly.

Test before replacing. You can test a radiant element for continuity using a multimeter. Disconnect power, remove wires from the element, and test across each coil's terminals — a good element shows low resistance (typically 10–50 ohms depending on wattage). Infinite resistance (OL) means that coil is burned out. For dual elements, test each coil separately. If one coil tests good but the other is open, the element needs replacement. Also check the infinite switch (burner control) and wiring — a failed switch can mimic a bad element. When installing the new element, ensure it sits flat in the well — an uneven element causes hot spots and can crack the glass cooktop. Don't overtighten wire terminals, but ensure they're snug to prevent arcing. After installation, the element may smoke slightly on first use — this is normal as manufacturing residues burn off.

Whirlpool refrigerator replacement parts, Frigidaire refrigerator replacement parts, GE refrigerator replacement parts, Kenmore refrigerator replacement parts, KitchenAid refrigerator replacement parts, LG refrigerator replacement parts, Maytag refrigerator replacement parts, Whirlpool refrigerator drawers and glides replacement, Whirlpool dishwasher replacement parts, GE dishwasher replacement parts, KitchenAid dishwasher replacement parts, Maytag dishwasher replacement parts, Frigidaire dishwasher replacement parts, Kenmore dishwasher replacement parts, Whirlpool washer replacement parts, GE washer replacement parts, Maytag washer replacement parts, Kenmore washer replacement parts, LG washer replacement parts, Whirlpool dryer replacement parts, GE dryer replacement parts, Maytag dryer replacement parts, Kenmore dryer replacement parts, LG dryer replacement parts, Whirlpool range replacement parts, GE range replacement parts, Whirlpool stove replacement parts, GE stove replacement parts, GE oven replacement parts, GE microwave replacement parts, buy Whirlpool refrigerator parts online, buy GE dishwasher parts online, replacement Kenmore washer parts for sale, buy Maytag dryer parts, LG washer replacement parts online, KitchenAid refrigerator parts for sale, Whirlpool stove and range replacement parts

W11517959 Whirlpool Range Dual Radiant Surface Element 3000W/1400W – Fix Your Cooktop That Won't Heat, Heats Unevenly, or Has a Dead Burner

The complete fix for an electric range or cooktop with a burner that won't heat, heats only partially, glows unevenly, or doesn't respond to controls. This dual radiant element features two independent heating zones — a 1400W inner ring for small pots and a full 3000W outer ring for large cookware — giving you flexible cooking power on one burner. When a radiant element fails, the burner may not heat at all, only the inner or outer ring may work, the element may glow in spots but not fully, or you may see visible cracks or burn-through damage on the coils. If your glass cooktop burner stopped working or heats inconsistently, a burned-out radiant element is the most common cause. This genuine OEM part directly replaces DG47-00067A (Samsung) and MEE62385201 (LG), making it a universal solution for multiple brands. Fits Whirlpool, Maytag, KitchenAid, Amana, Samsung, LG, and Kenmore electric ranges with smooth glass cooktops. Moderate 30–45 minute DIY repair that restores full cooking power to your range.

✅ Cross Reference Information

Part number W11517959 replaces W10169799, W10275048, W10350485, W10823729, W11282542, WPW10169799, DG47-00067A, MEE62385201

W11517959, dual radiant surface element, range surface element, cooktop element replacement, DG47-00067A, MEE62385201, electric range burner, cooktop won't heat, dual zone element, 3000W surface element, expandable burner element, glass cooktop element, range element replacement, Whirlpool cooktop element, Samsung range element, LG range element, stove burner not working, cooktop heating element, radiant element, electric stove element

✅ Guaranteed to Fit Your Model

✅ Frequently Asked Questions

Why does only the inner ring of my cooktop burner heat up?

Dual radiant elements have two independent heating coils — an inner ring and an outer ring. Each coil can fail separately. If only the inner ring heats, the outer coil has burned out. If only the outer ring heats, the inner coil has failed. This can also be caused by a faulty burner switch that's not sending power to both coils. First, test the element coils for continuity with a multimeter — if one coil shows infinite resistance, the element needs replacement. If both coils test good, the problem is likely the infinite switch (burner control) or wiring. Replacing the dual radiant element restores full heating capability to both zones.

Not sure about your model number? Call 833-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
