GE or Hotpoint Front Load Washer Not Spinning, Not Agitating, or Making Grinding Noise? Drive Motor WG04F09450 – Restore Full Wash and Spin Function Fast

A GE or Hotpoint front load washer that won’t start a wash cycle, won’t spin, makes a loud grinding or squealing noise, or displays motor error codes almost always has a failed direct drive motor assembly. In most GE front load washers, the WG04F09450 is a brushless DC direct drive motor that mounts directly to the rear of the drum hub — it controls all drum movement including tumbling during wash cycles and high-speed spin up to 1,200–1,400 RPM. When the motor bearings fail, the inverter board fails, or the motor windings burn out, the drum stops rotating entirely or the washer throws error codes and aborts the cycle. ⚡ The direct drive motor is the most common cause of complete wash and spin failure in GE and Hotpoint front load washers. Part WG04F09450 is the genuine OEM replacement that restores full drum rotation, wash tumbling, and high-speed spin immediately.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Your washer is a GE or Hotpoint front load model (GFW or HTW series)
• ✔ The washer powers on and the control panel responds — the control board is not the issue
• ✔ Water fills and drains normally — the pump and inlet valve are not the issue
• ✔ ONLY problem is drum not rotating, not spinning, grinding/squealing noise, or motor error codes (E20, E21, E23, E24)

Not sure? Send us your model number — we’ll confirm before you order.

🔧 Common Symptoms

• Washer won’t start wash cycle — drum does not rotate when cycle begins
• Drum spins slowly or intermittently — motor running but weak
• Loud grinding or squealing noise during wash or spin — bearing failure
• Washer not reaching high spin speed — clothes come out soaking wet
• Burning smell from rear of washer — motor winding overheating
• Motor error codes on display: E20, E21, E23, E24, or similar

✔ If these symptoms match, this is the most likely failed component in the system.

✔ In most cases, replacing the drive motor restores full wash and spin function immediately.

📦 Part Details

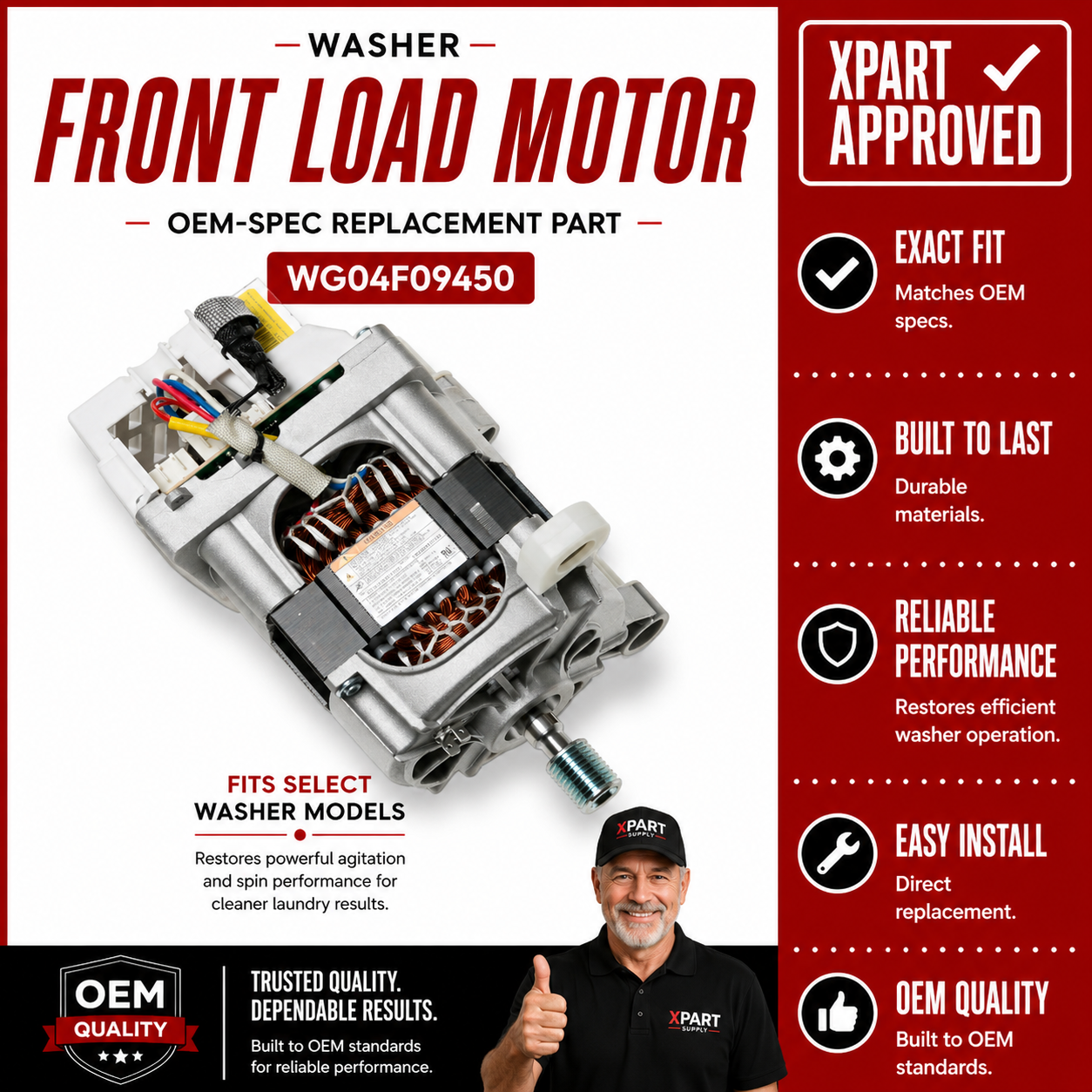

• Part Number: WG04F09450
• Type: Front Load Washer Direct Drive Brushless DC Motor Assembly — complete unit with inverter board, OEM GE/Hotpoint
• Replaces: WG04A03001, WH20X23194, WH20X20837, WDNFF0305010000, YXTK-600-4-3L, J58PWMAD1155 — no modification required
• Brands: GE, Hotpoint

⚙️ Installation

Skill Level: Advanced — 2–3 hours. Disconnect power and turn off water supply before servicing. This is a major disassembly — the top panel, control panel, front panel, and door boot seal must all be removed to access the motor mounted on the rear drum hub. The motor weighs 15–25 lbs — have a helper available. Disconnect the motor wiring harness, remove the 4–6 mounting bolts in a star pattern, and support the drum before pulling the motor straight back off the hub. Install the new WG04F09450 in reverse order, torquing mounting bolts to 15–20 ft-lbs in a star pattern. Run a full diagnostic cycle to confirm operation before closing up.

💡 Pro Tip

Confirmed compatible with GFW450SSKWW, GFW460SSKWW, GFW480SSKWW, GFW490SSKWW, GFW500SSKWW, GFW510SSKWW, GFW520SSKWW, GFW525SSKWW, GFW530SSKWW, GFW540SSKWW, GFW550SSKWW, HTW240ASKWW, HTW240SSKWW, HTW241ASKWW plus additional GE and Hotpoint front load models. Contact us to verify your model number before ordering.
