AUTOMOTIVE PART

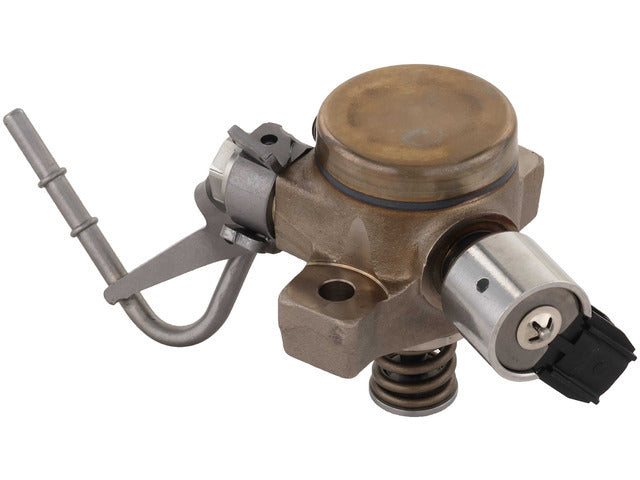

Delphi Direct Injection Fuel Pump HM10157
Direct Injection Fuel Pump
Part HM10157DelphiDirect Injection Fuel Pump
Match your exact vehicle configuration to the verified applications below.
Confirm the year, make, model, engine, drivetrain and required position before ordering.
Confirm the year, make, model, engine, drivetrain and required position before ordering.
Is This the Right Part?
Manufacturer Part NumberHM10157
ManufacturerDelphi
Part TypeDirect Injection Fuel Pump
Part Details
Part Specifications
| California Proposition 65 | WARNING: This product can expose you to chemicals including lea |
|---|---|
| Connector Shape | Rectangle |
| Drive Shaft Included | No |
| Fuel Type | Gas |
| Gasket Or Seal Included | No |
| Housing Color | Silver |
| Housing Material | Metal |
| In Tank or External | External |
| Inlet Outside Diameter | 0.250 IN |
| Inlet Type | Quick Connect |
| Mounting Hardware Included | No |
| Outlet Fitting Thread Size | M14 - 1.5 |
| Outlet Quantity | 1 |
| Outlet Type | Threaded |
| Pump Type | Mechanical |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
| Wiring Harness Included | No |
Verified Vehicle Fitment
Make: Acura, Honda
Model: 4 verified models — see exact combinations below.
Years: 2015–2022 — varies by model and configuration.
Check before ordering: Match the year, make, model, position, and every engine, transmission or other restriction in the same row. Listed years do not apply to every model.
View vehicle applications (4 configuration groups)
| Years | Make | Model | Position | Engine / transmission / notes |
|---|---|---|---|---|
| 2016–2022 | Acura | ILX | — | High pressure feed line must be replaced if removed |
| 2017–2020 | Acura | TLX | — | Engine: 2.4 L4; High pressure feed line must be replaced if removed |
| 2015–2017 | Honda | Accord | — | Engine: 2.4 L4; High pressure feed line must be replaced if removed |
| 2015–2016 | Honda | CR-V | — | High pressure feed line must be replaced if removed |
Source: supplier-verified applications for Delphi HM10157. A vehicle not listed is not confirmed compatible.
