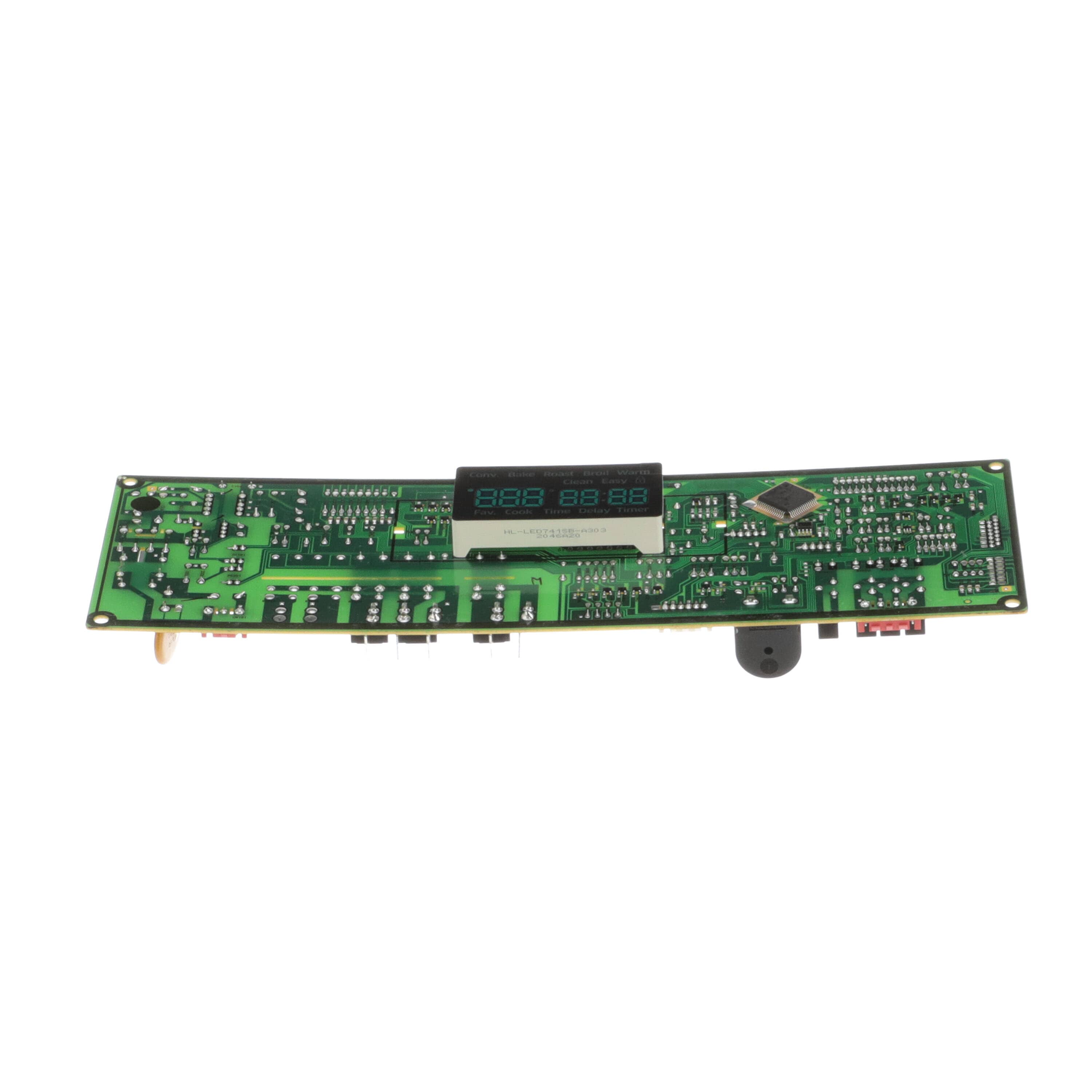

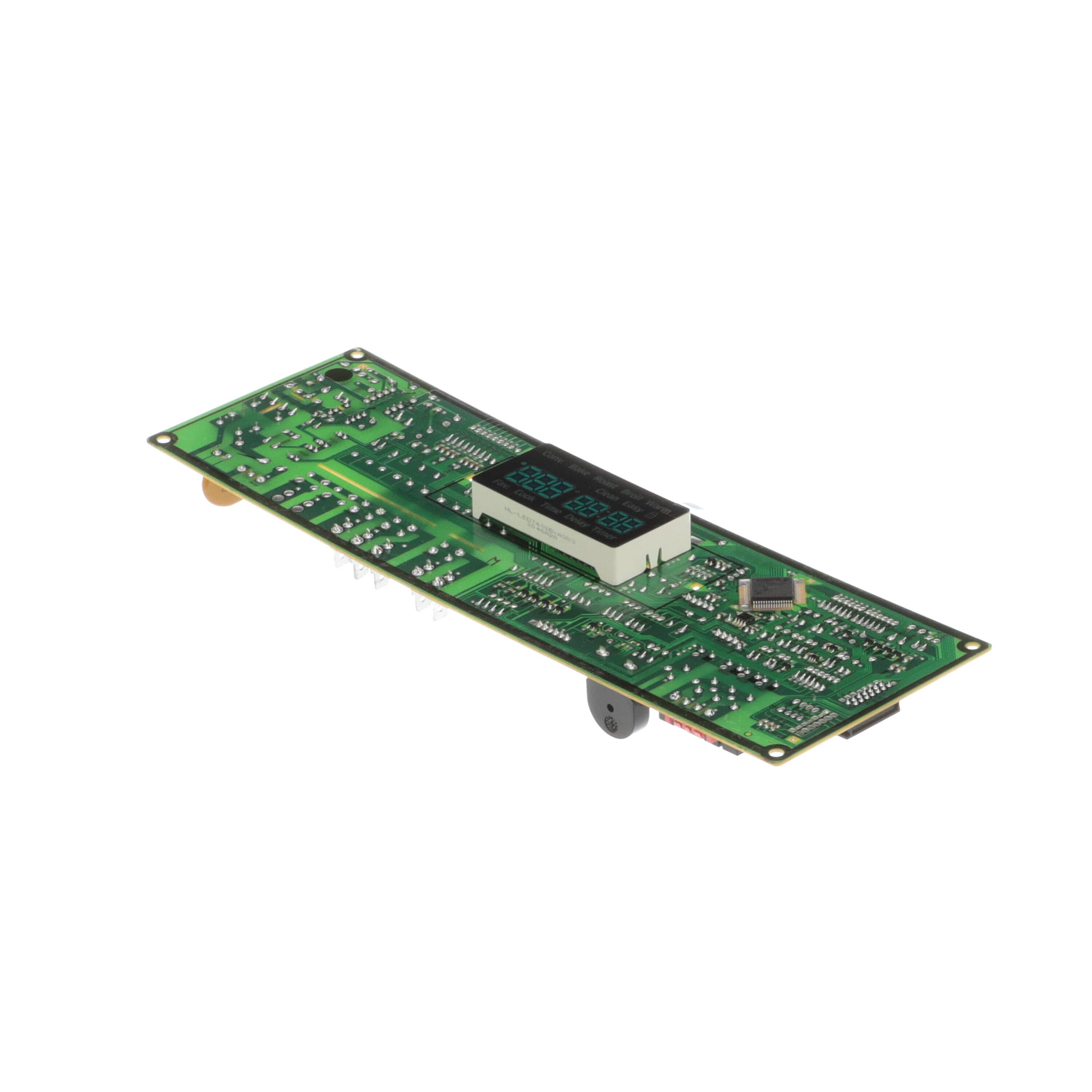

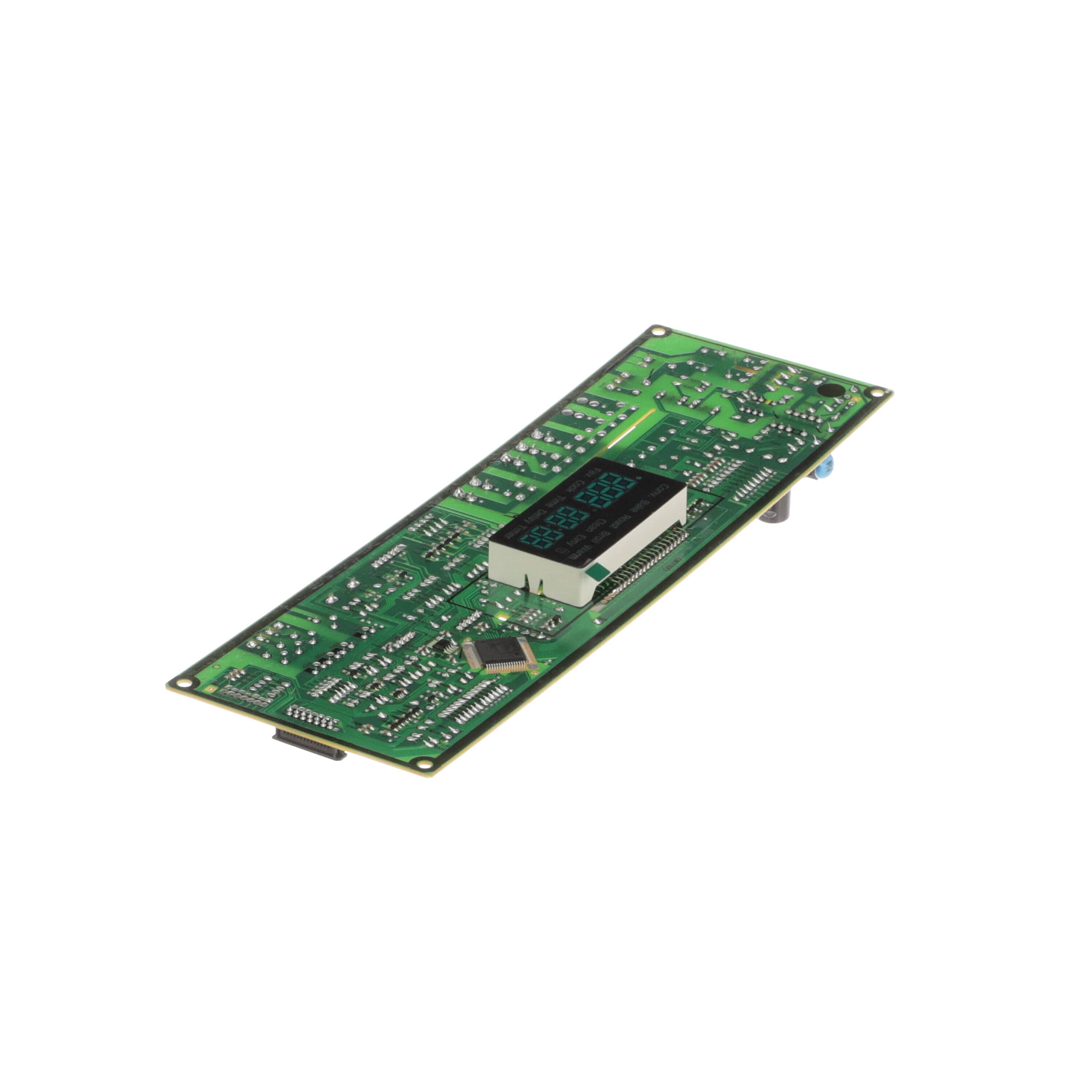

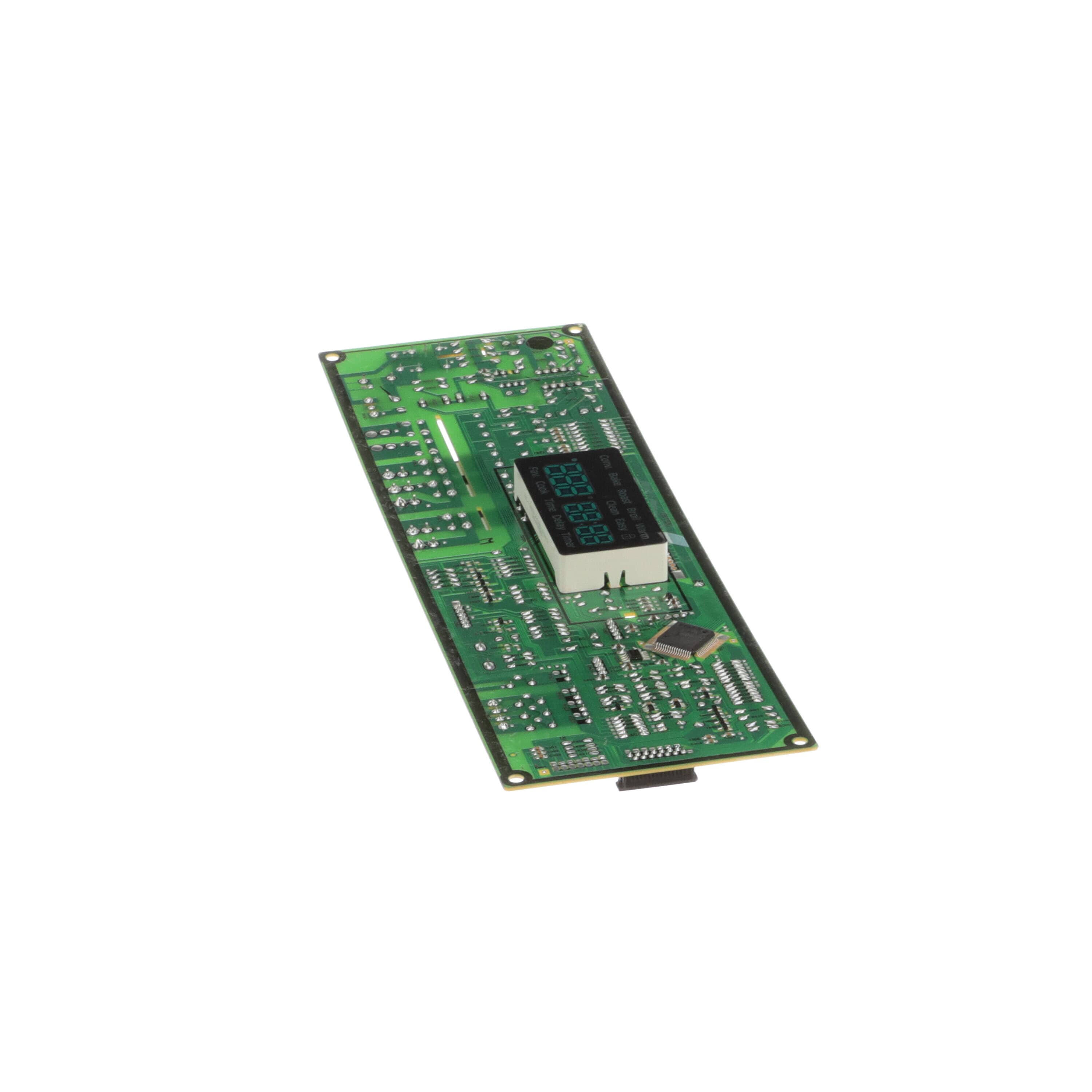

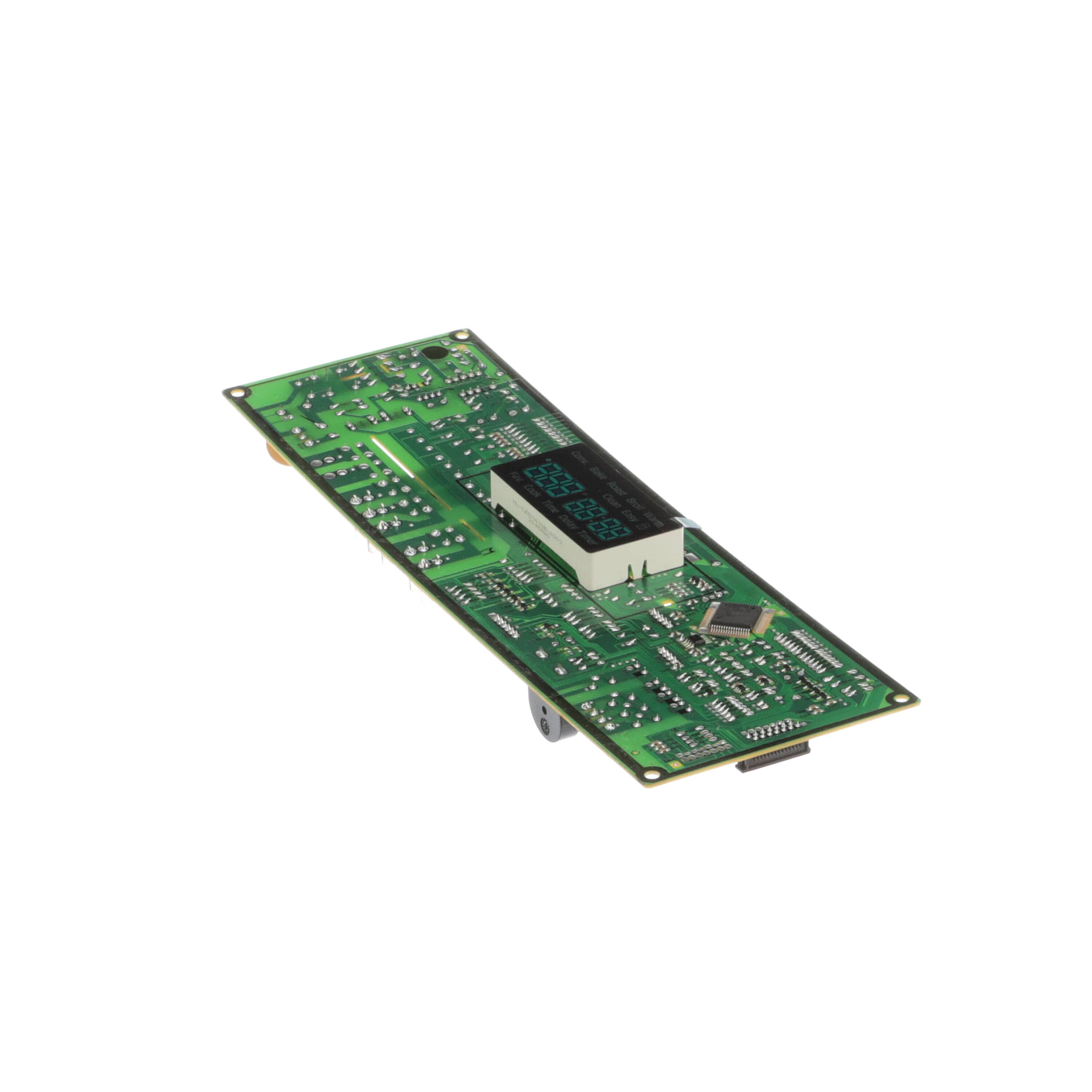

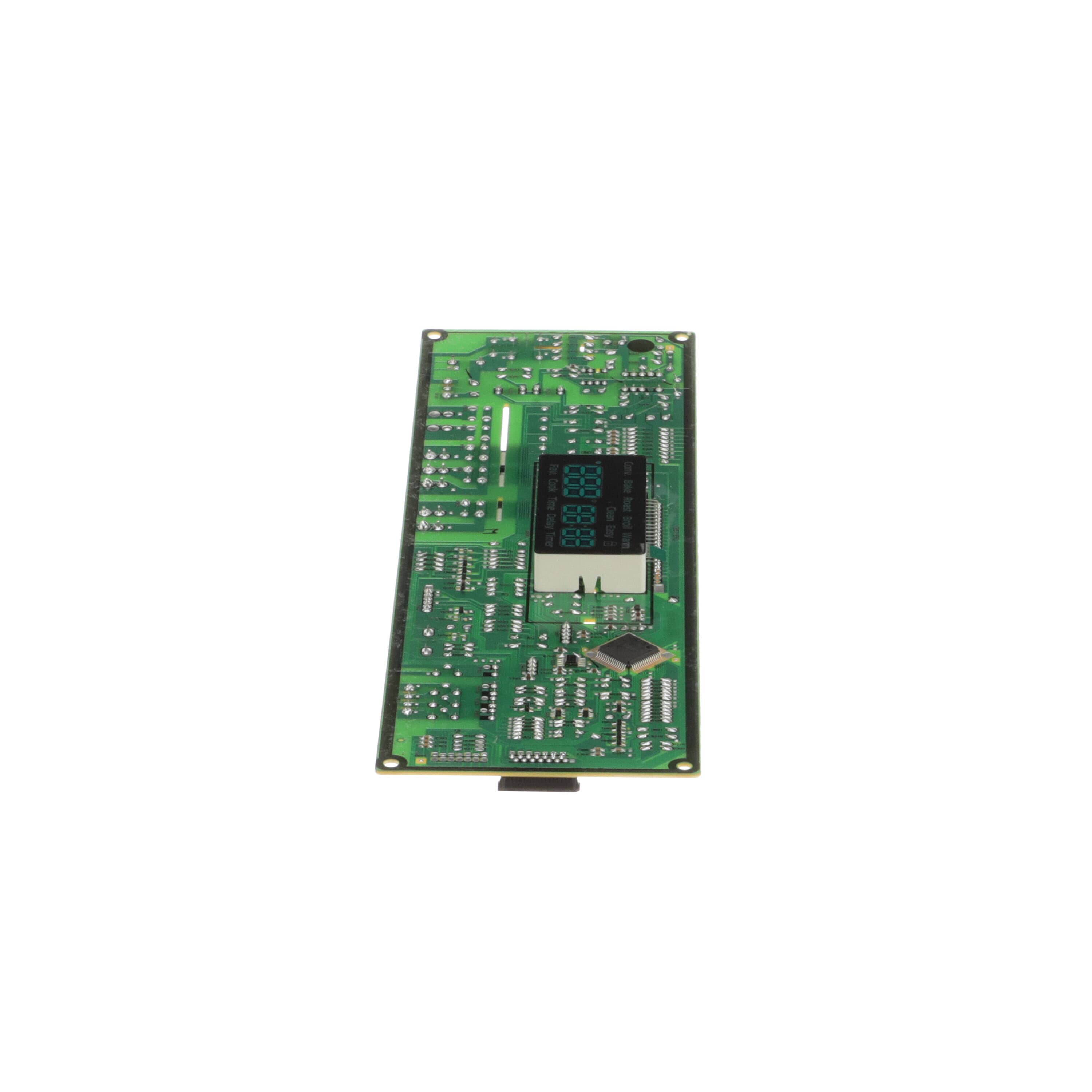

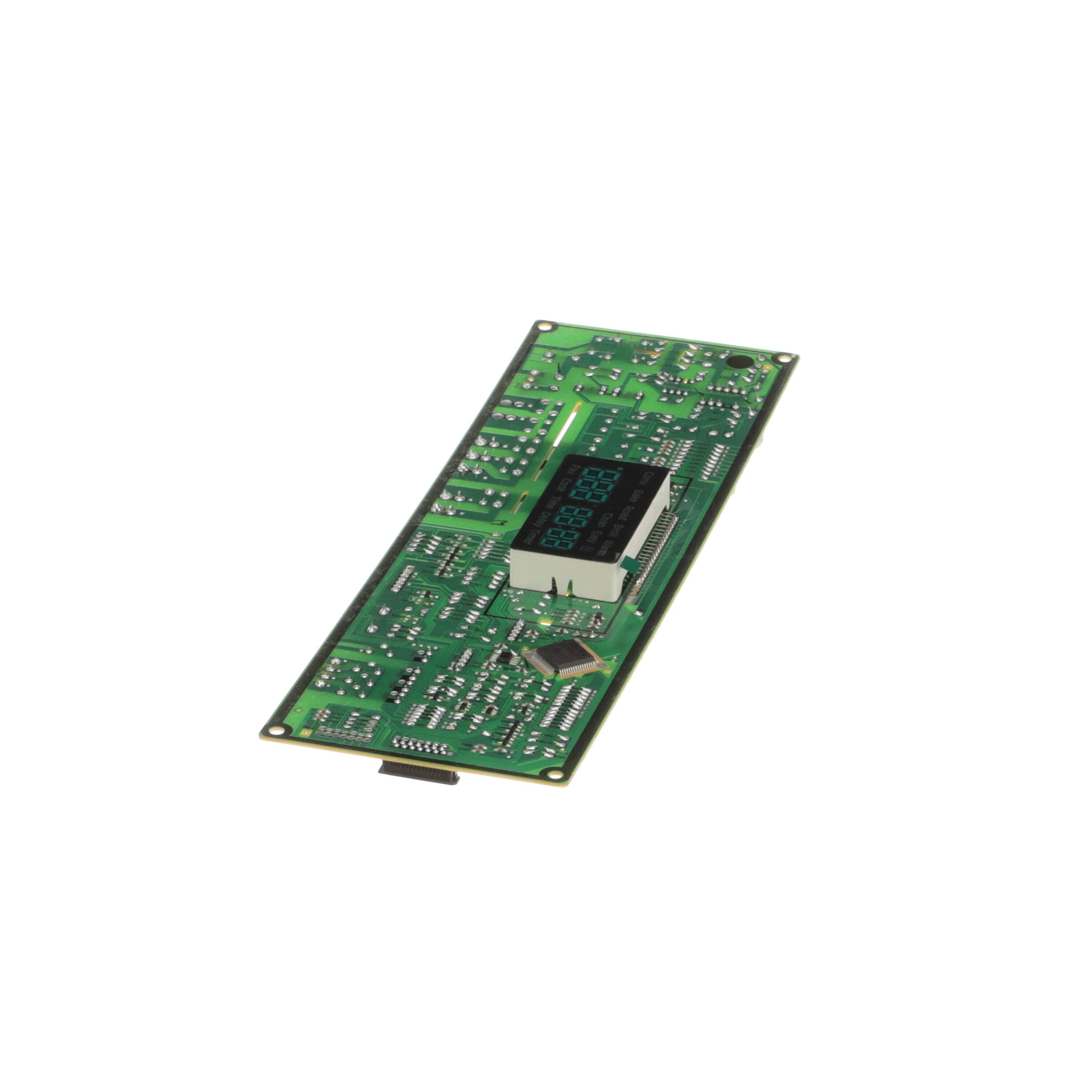

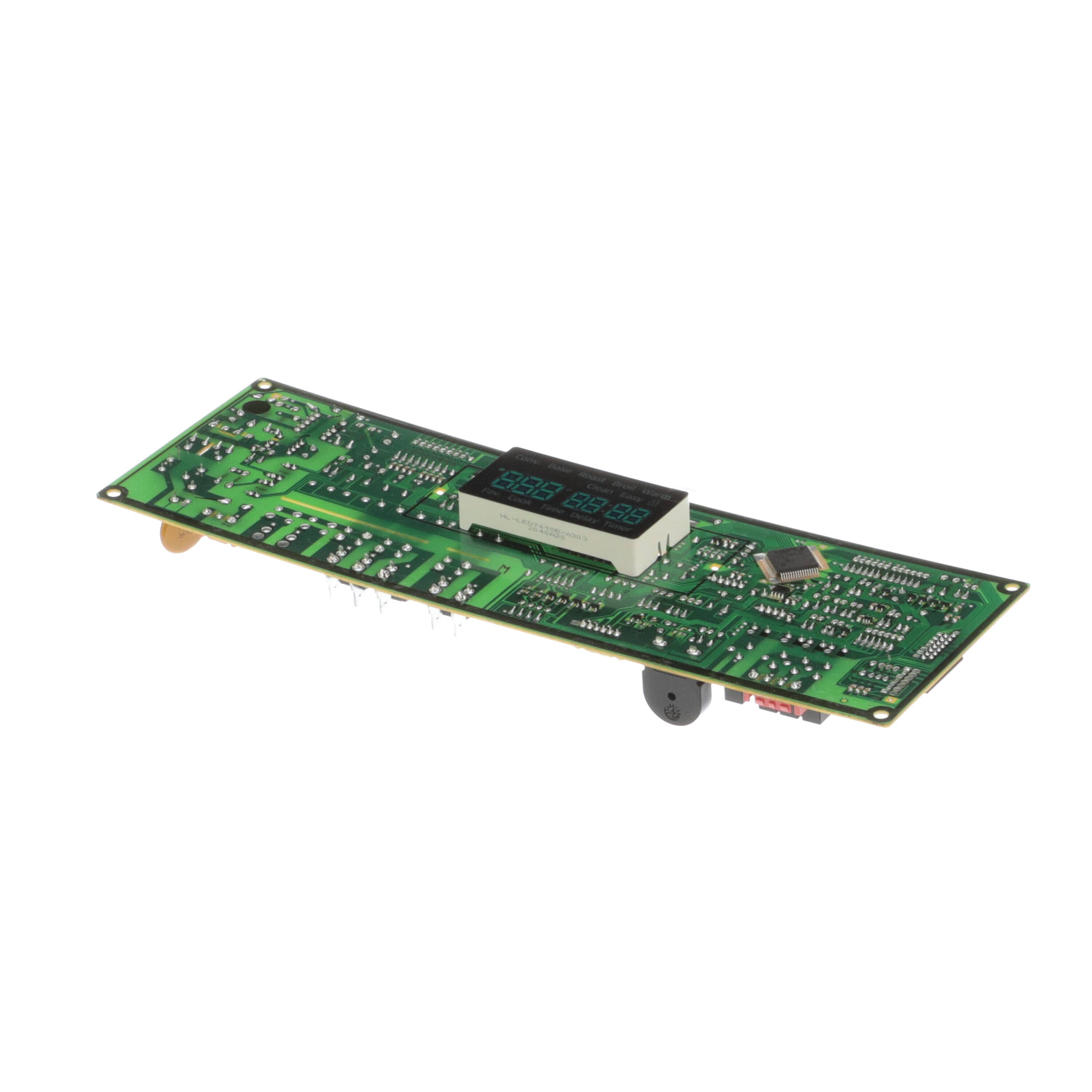

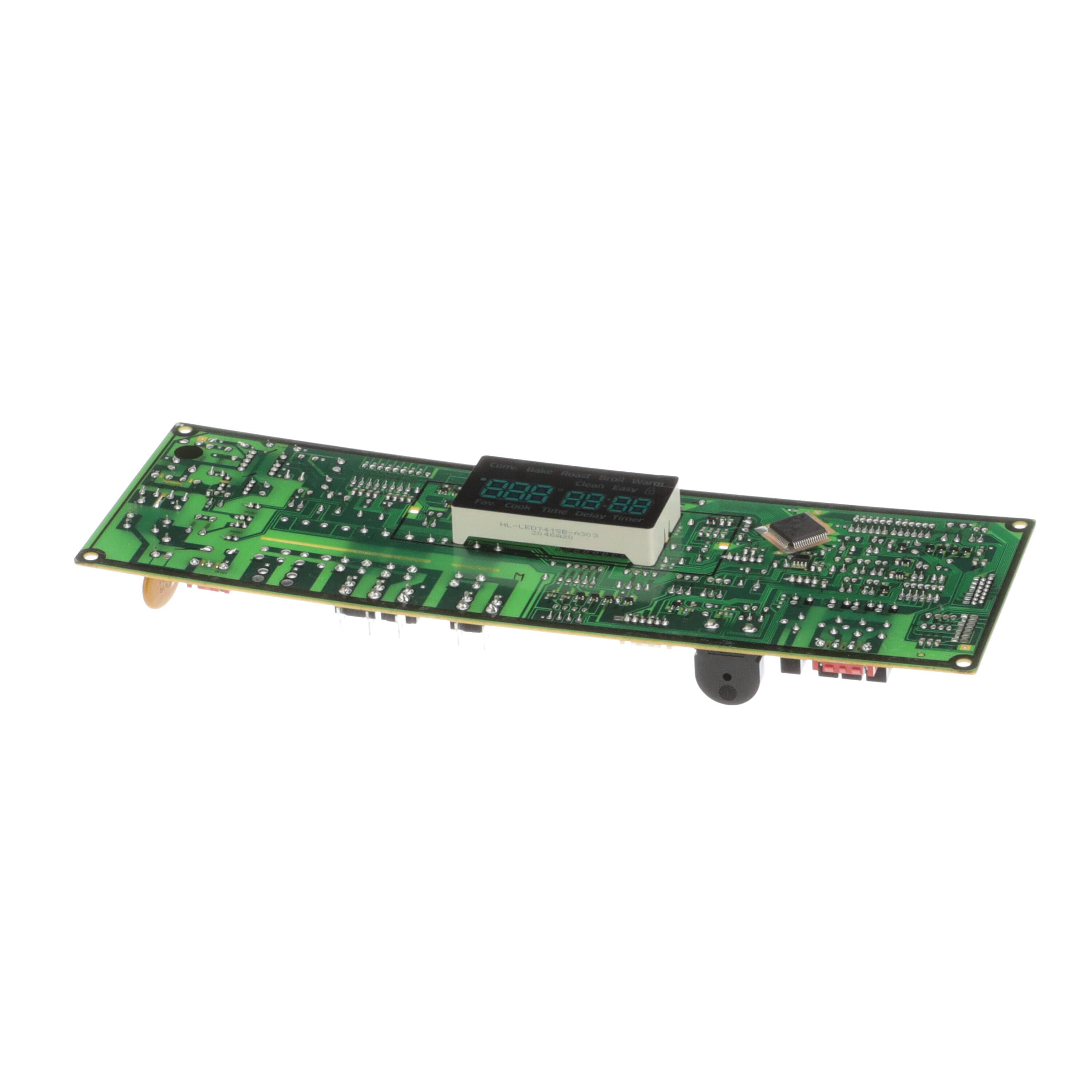

Samsung Range Oven Control Board DE92-02588J – OEM & Premium XPart Options Available
Also: DE92-02588B · DE92-02588C · DE92-02588D · DE92-02588F · DE92-02588G · DE92-02588H
Samsung Electric / Gas Range
Oven Control Board / PCB
New & Used Options
Samsung Range Oven Not Heating, Bake or Broil Not Working, or Displaying Error Codes? The Oven Control Board Is the Most Common Cause.
The oven control board is the central processing unit of the range — it manages bake and broil element activation, temperature regulation via the oven sensor, the clock and timer functions, and the user interface. When it fails, the oven may not heat at all, specific functions like bake or broil may stop working while others remain functional, error codes appear that won’t clear, or the display goes blank entirely. The DE92-02588J is the replacement oven control board for compatible Samsung ranges, with related suffix variants including DE92-02588B through DE92-02588H.
Symptoms of a Failed Oven Control Board
- Oven won’t heat — bake and broil elements not activating
- Bake works but broil doesn’t, or vice versa
- Error codes on the display that won’t clear after a power reset
- Display blank, dim, or showing garbled characters
- Oven preheats but shuts off heating element before reaching set temperature
- Clock and timer functions not working or resetting randomly
- Oven runs continuously without shutting off at cycle end
- Buttons on the control panel unresponsive or behaving erratically
- Oven temperature wildly inaccurate despite a confirmed good temperature sensor
- Range surface burners work but oven functions are completely dead
- Oven replaced the temperature sensor but heating problems persist
Part Details
-
OEM Part Number: DE92-02588J
-
Related Suffix Variants: DE92-02588B, DE92-02588C, DE92-02588D, DE92-02588F, DE92-02588G, DE92-02588H — verify exact suffix against your model before ordering
-
Type: Range Oven Control Board (PCB / Electronic Control Board)
-
Compatible Brands: Samsung (verify by model number)
-
Condition Options: New (OEM) · Used (Certified Pre-Owned, tested)
-
Function: Controls bake and broil element activation, oven temperature regulation, clock/timer, and user interface communication
💡 Pro Tip — Confirm the Oven Temperature Sensor and Bake Element Before Replacing the Board:
A Samsung oven that won’t heat is not always a failed control board. Before ordering a $200 board, test two things: (1) the oven temperature sensor — at room temperature it should read approximately 1,080–1,090 ohms; an open or shorted sensor causes the board to refuse to activate the heating elements as a safety measure; and (2) the bake element — inspect it visually for cracks or burn holes and test for continuity. Both are significantly cheaper than the control board and are the more common failure points. If both test good and the board still won’t command the elements, the control board is the correct next step. Also confirm the suffix letter on your board matches — DE92-02588 boards have multiple suffix revisions (B through J) and not all are interchangeable.
Installation Notes
-
Skill Level: Intermediate — requires rear panel or control console access and PCB harness disconnection
- Disconnect power at the breaker before starting — do not rely on the range’s power button
- The oven control board is typically located behind the rear control panel or inside the back of the range — access method varies by model
- Photograph all ribbon cable and harness connector positions before disconnecting
- Handle the PCB carefully — avoid static discharge and do not touch board traces or components
- Verify the suffix letter on the replacement board matches your original — confirm against your model number before installation
- Verify all connectors click fully into place after installation
- Restore power and run a full bake cycle to confirm the oven heats correctly and holds temperature
Compatible Models
Contact us with your full Samsung model number to confirm fitment and the correct board suffix before ordering.
New vs. Used — Which Option Is Right for You?
The New variant is a fresh OEM-spec control board — ideal for full service life and reliable oven control. The Used variant is a Certified Pre-Owned board pulled from a working unit and tested before sale — a practical choice for an older range or when cost is a priority. Both options ship from XPart Supply Ltd. in Canada.
