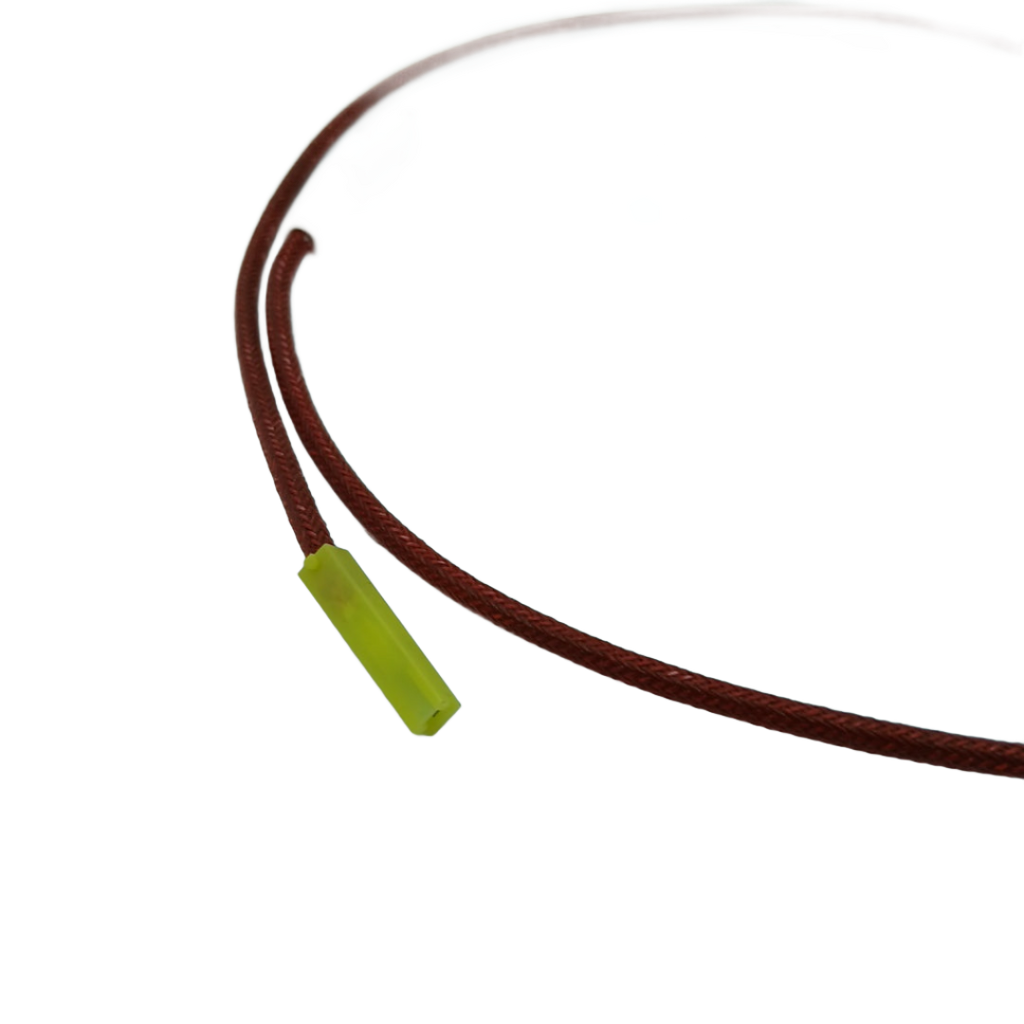

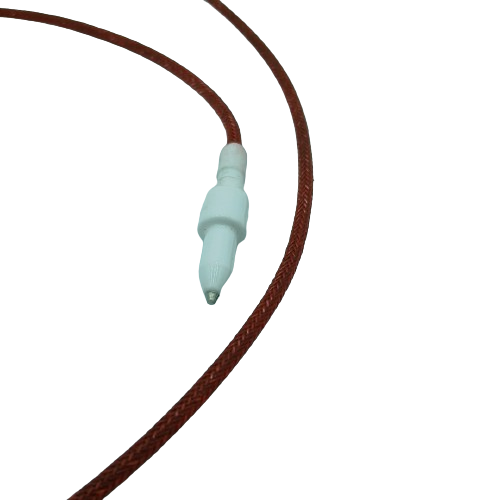

Whirlpool Gas range Surface burner spark electrode / igniter (IGNTR-SURF) W10669525

Whirlpool OEM surface-burner spark electrode that produces the ignition spark for a gas range cooktop burner.

Is This the Right Part?

Common Symptoms

• Surface burner fails to ignite
• Surface burner produces no spark

Check Before Replacing

• With the appliance safely disconnected from power, visually inspect the electrode for cracking, breakage, or other physical damage.
• During normal operation, observe whether the affected burner produces a spark; absence of a spark can also be caused by other ignition-system components.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM part
• Surface-burner electrode/igniter
• Used on gas ranges
• Part is documented as replaced by W11666003

Installation Notes

• Disconnect electrical power before servicing the range.
• Confirm the replacement against the appliance model and the original electrode position before installation.
• Electrical parts may have retailer-specific return restrictions.

Verified Compatible Models

AGS6603SFS0, IGS790GS0, JDS1450ML0, JDS1450ML1, JDS1450ML2, JDS1750ML0, JDS1750ML1, JDS1750ML2, JGS1450ML0, JGS1450ML1, JGS1450ML2, KSDB900ESS4, KSDB900ESS5, KSDB900ESS6, KSDB900ESS8, KSDB900ESS9, KSDG950ESS2, KSDG950ESS3, KSDG950ESS6, KSDG950ESS7, KSDG950ESS8, KSGB900ESS4, KSGB900ESS5, KSGB900ESS6, KSGB900ESS8, KSGG700EBS2, KSGG700EBS3, KSGG700EBS6, KSGG700EBS7, KSGG700ESS2, KSGG700ESS3, KSGG700ESS6, KSGG700ESS7, MGS8800FZ1, MGS8800FZ2, MGS8800FZ5, MGS8800PZ0, MGS8800PZ1, WEG515S0FB2, WEG515S0FS2, WEG515S0FS3, WEG515S0FV2, WEG515S0FW2, WEG515S0LB0, WEG515S0LB1, WEG515S0LB3, WEG515S0LB4, WEG515S0LS0, WEG515S0LS1, WEG515S0LS3

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
