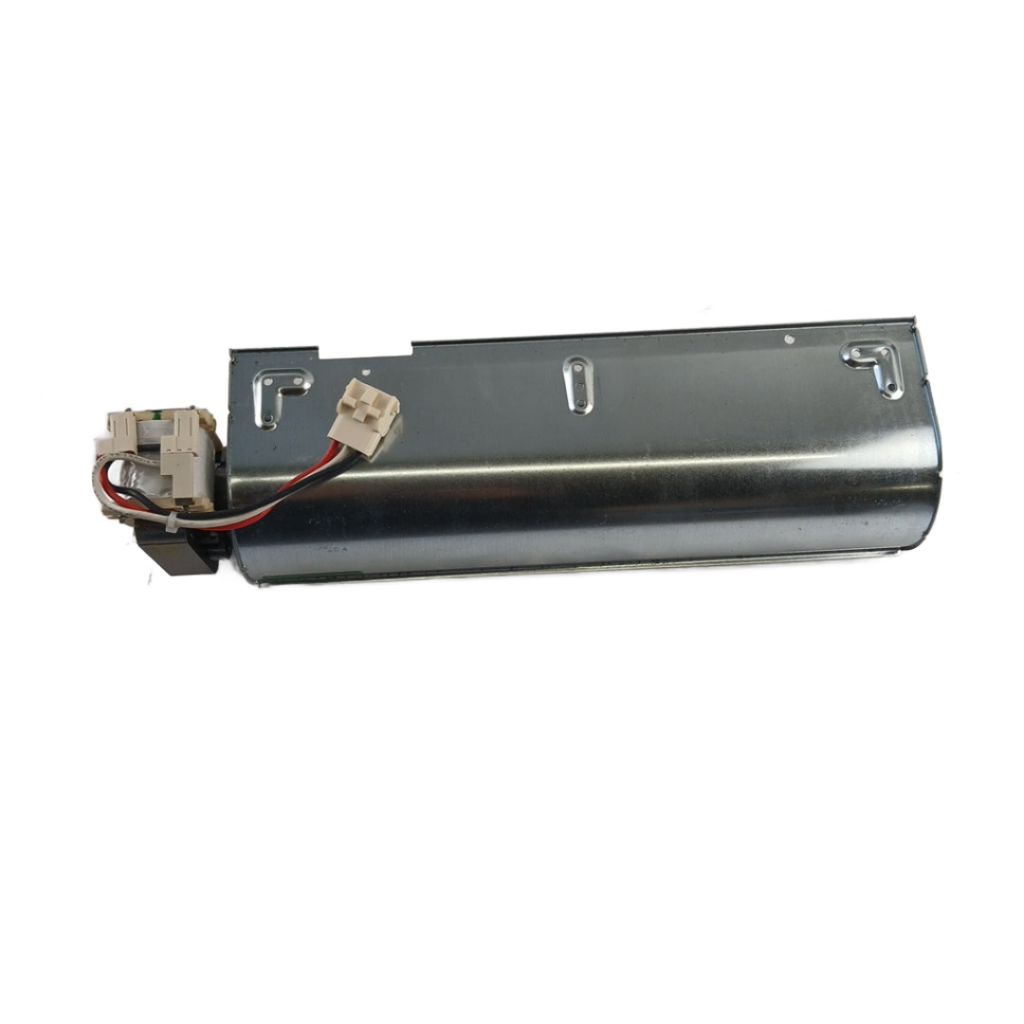

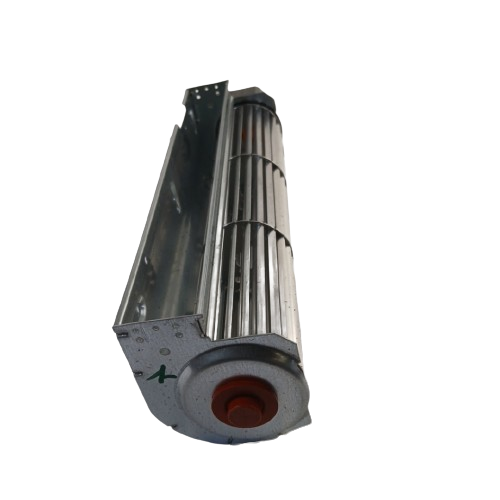

Whirlpool Blower / cooling fan for wall oven or range oven W11245567

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Cooling-related fault or low-fan-speed indication
• Unusual blower noise such as rattling or grinding
• Extended cooldown or inadequate airflow from the cooling vents
• Oven controls or surrounding areas become abnormally hot
• Oven may shut down or behave irregularly when cooling airflow is insufficient

Check Before Replacing

• Disconnect electrical power before inspecting the blower, wiring, or connector.
• With power disconnected, visually check the blower inlet, outlet, wheel, and housing for obstructions or visible damage.
• Check that the blower connector and wiring are fully seated and show no obvious heat damage or broken conductors.
• If the appliance service documentation specifies a motor-resistance test for the cooling-fan circuit, perform it only with power disconnected and using the appliance-specific service procedure.
• After inspection or service, reinstall all panels and verify normal fan operation during an appropriate oven cycle.

Pro Tip

Part Details

Installation Notes

• Disconnect power to the range or wall oven before installation or service.
• Confirm the replacement part and connector configuration against the appliance model-specific parts diagram or service documentation.
• Transfer or reconnect wiring exactly as documented for the appliance; do not alter the fan circuit.
• Ensure the blower wheel and housing are free of obstructions before reassembly.
• Reinstall all covers, panels, and guards before restoring power or operating the appliance.

Verified Compatible Models

AWO6313SFB01, AWO6313SFB02, AWO6313SFS01, AWO6313SFS02, AWO6313SFW01, AWO6313SFW02, AWO6317SFB01, AWO6317SFB02, AWO6317SFS01, AWO6317SFS02, AWO6317SFW01, AWO6317SFW02, IBS300DS02, IBS350DS02, IBS550DS02

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
