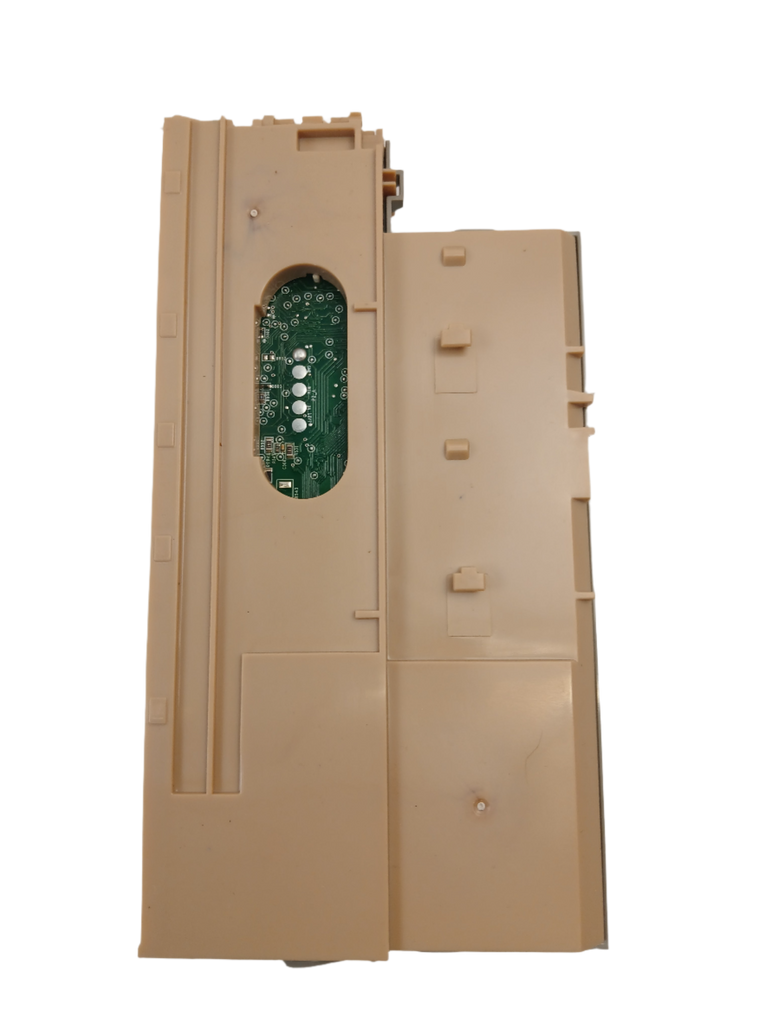

Whirlpool Dishwasher Electronic Control Board / ACU Final Assembly W11410061

The electronic control board is the brain of your KitchenAid or Whirlpool dishwasher — it manages cycle selection, water temperature, wash timing, sensor input, and error code processing. When it fails, the dishwasher may go completely dead, display persistent error codes, run incomplete cycles, or have an unresponsive control panel. The W11410061 is the correct OEM replacement, directly replacing W11351659 and W11049283.

Symptoms of a Failed Dishwasher Control Board

• Dishwasher completely dead — no display, no response
• Persistent error codes that won't clear after power cycling
• Control panel buttons unresponsive or intermittent
• Cycles won't start, advance, or complete
• Dishwasher starts on its own or behaves erratically
• Specific functions (heat dry, sanitize, delay start) not working

Part Details

• OEM Part Number: W11410061
• Replaces: W11351659, W11049283
• Weight: 10 lbs
• Compatible Brands: KitchenAid, Whirlpool
• Appliance Type: Dishwasher
• Condition: New OEM

Pro Tip

Installation Notes

• Skill Level: Intermediate (20–40 minutes)
• Disconnect power before starting

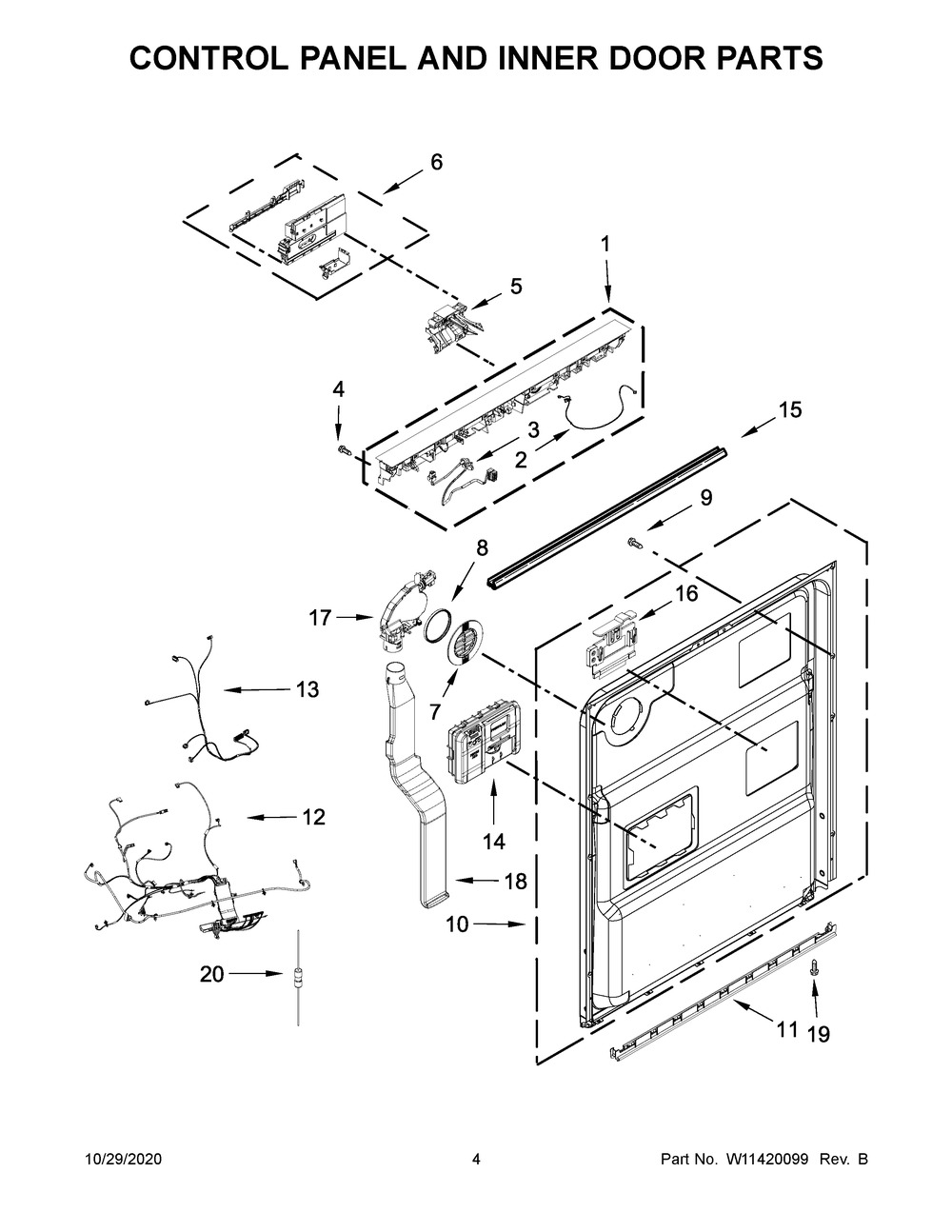

• The control board is located behind the inner door panel — remove door screws to access
• Photograph all wire harness connections before disconnecting
• Transfer connectors one at a time to avoid mis-wiring
• Control boards are static-sensitive — handle by edges only
• Reassemble and run a test cycle to confirm all functions restored

Compatible Models

KDPM704KPS0, KDPM804KBS0, KDPM804KPS0, KDTM704KPS0, KDTM804KBS0, KDTM804KPS0
